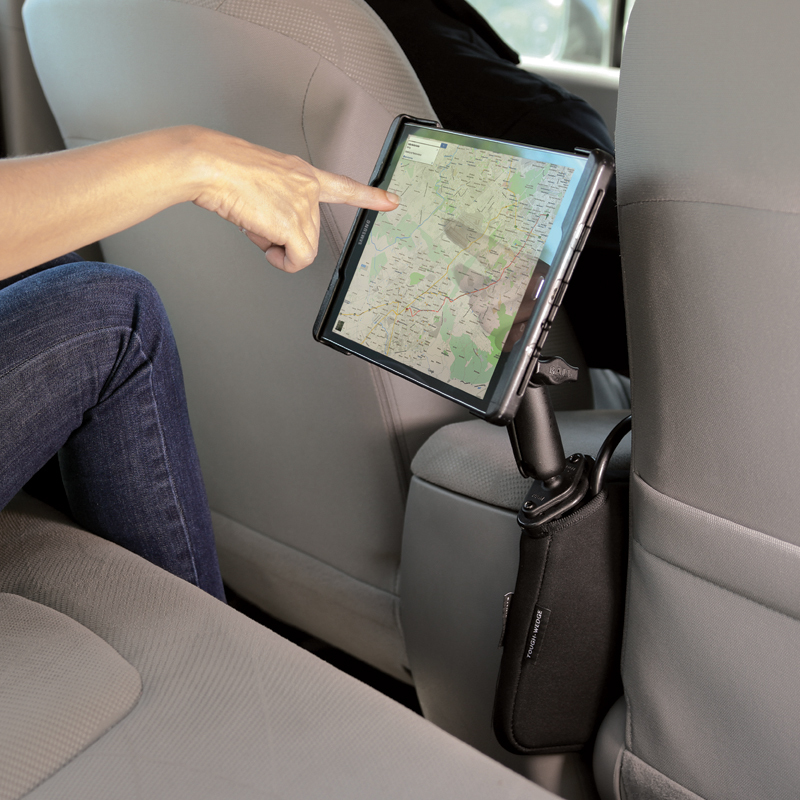

This product will wedge between your car seat and centre console, or even in the pocket on the back of your seat, and then connect to a RAM Mounts tablet holder, allowing you to mount your tablet in the car.

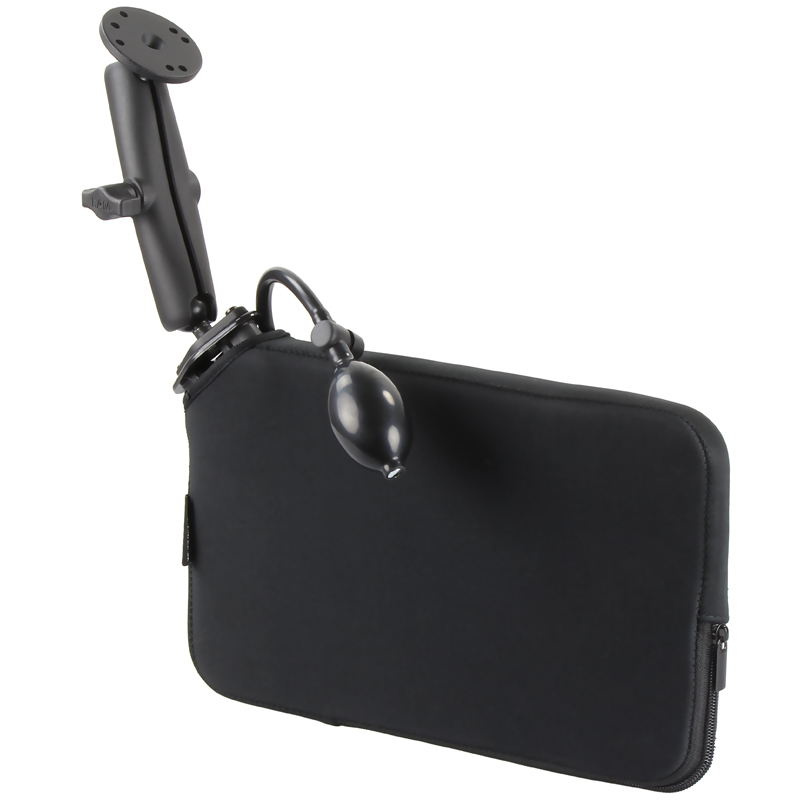

It consists of a Tough-Wedge™, a 1" ball diamond base, a long double socket arm and around base. The Tough-Wedge™ fits in the gap between the vehicle seat and centre console, or potentially a centre seat. It can also be used for back-seat applications by inserting into the pockets located on the back of the front seats. It comes with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing you to set your tablet at almost any angle. The long length double socket arm measures 6" (152.4mm) and the 2.5" round base contains the universal AMPs hole pattern.

The kit also includes an Expansion Pouch accessory for the RAM Tough-Wedge™. This is optional, and is designed to increase stability by creating a more secure fit of the wedge mount into the gap between seats. The Expansion Pouch fits inside the Tough-Wedge™ sleeve and is then inflated with the hand pump to the desired level, ensuring your device stays firmly in place.

• Tough-Wedge™ Dimensions:
  Length: 13.25" (336.6mm)
  Height: 8.25" (203.2mm)
  Depth: 1" (25.4mm)
  Inside Wedge Depth: 0.375" - 0.875" (9.5mm - 22.2mm)
• Expansion Pouch Dimensions:
  27.5cm x 13cm and 19cm long hose
• Material: High Strength Composite, Powder Coated Marine Grade Aluminium and Tarpaulin TPU
• Ball Size:  1" Rubber Ball "B" Size

Note: The "U" in the part number reflects product packaged in poly bag.

Assembly Instructions (PDF)
