HIGHSIDER mounting kit for various motorcycles

This special mounting kit makes it possible to mount the popular HIGHSIDER handlebar end weights, handlebar end mirrors or lever guards on the original handlebar of motorcycles.

With a suitable slotted screwdriver, the 8 x 1.25 threaded sleeves with M5 internal thread are screwed into the existing thread in the handlebar.
Fitting to the threaded sleeve with M5 internal thread are included M5 x 30 mm screws.
The M6 screws, which are used with the HIGHSIDER handlebar end weights, handlebar end mirrors and lever protectors, are replaced by the M5 screws
Now the HIGHSIDER handlebar accessories can be mounted on the handlebar.
In order to create a sufficiently large distance between the handle and the attachment part, the washers included in the set can be used if necessary.

Dimensions:
Thread sleeves
Outside: M8 x 1.25
Inside: M5

Washer:
Outer diameter: 15 mm
Inner diameter: 5.3 mm
Thickness: 1.6 mm

Adapter screw: M5 x 30 mm

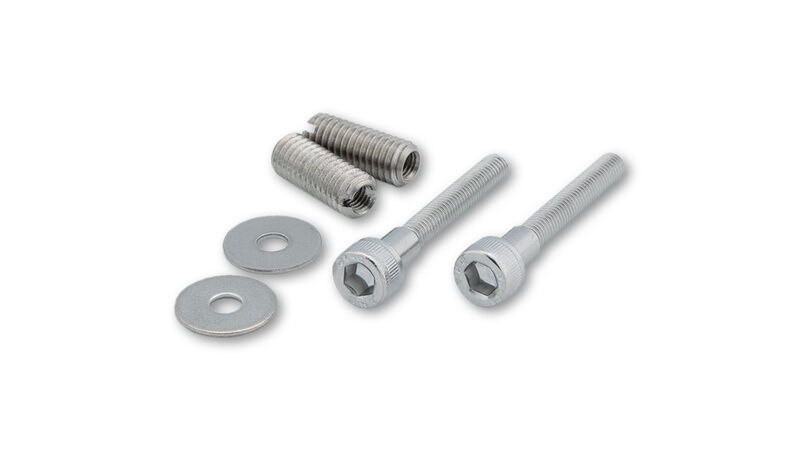

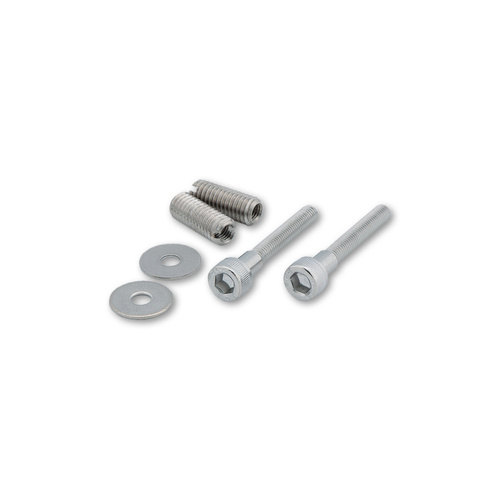

Scope of delivery:
2 x threaded sleeves
2 x washers
2 x M5 screws
