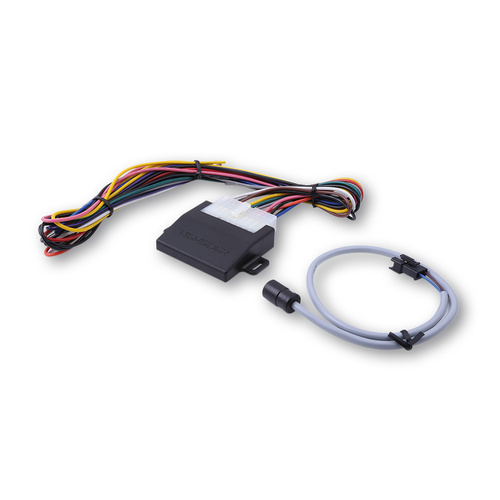

HIGHSIDER PW E-BOX TYPE 1, for DRL switching by light sensor.

For automatic switching between daytime running light and low beam. The HIGHSIDER PW E-BOX TYPE 1 detects when it gets dark or light and then automatically switches the low beam on and the daytime running light off at the same time (or vice versa). Additionally equipped (optionally switchable) is the so-called COMING HOME FUNCTION. This allows the daytime running light to be switched on for a further 30 sec. after the motorcycle has been switched off in the dark. actively glowing. No switch is required.

Dimensions:
Height: 16 mm
Width: 56.5 mm
Width with mounting tabs: 75 mm
Length: 48 mm
Mounting tabs: 3 mm x 11 mm (slotted hole)
Weight: 46 g
Cable length: 400 mm
Light sensor cable length: 600 mm (total)

Connectors:
Purple/black cable = high beam IN
Yellow/green cable = parking light IN
Black cable = ground IN (-)
Red cable = supply voltage IN (+)
Blue cable = low beam OUT
Black cable = ground OUT (-)
Pink cable = Daytime running lights OUT (TFL)
Orange cable = Low beam IN
Grey cable = Programming cable
Green cable = High beam OUT
Brown cable = Position light/parking light (OUT)
Black cable = Earth OUT (-)
White wire = TFL indicator light OUT

4 pin connector for light sensor

Scope of supply:

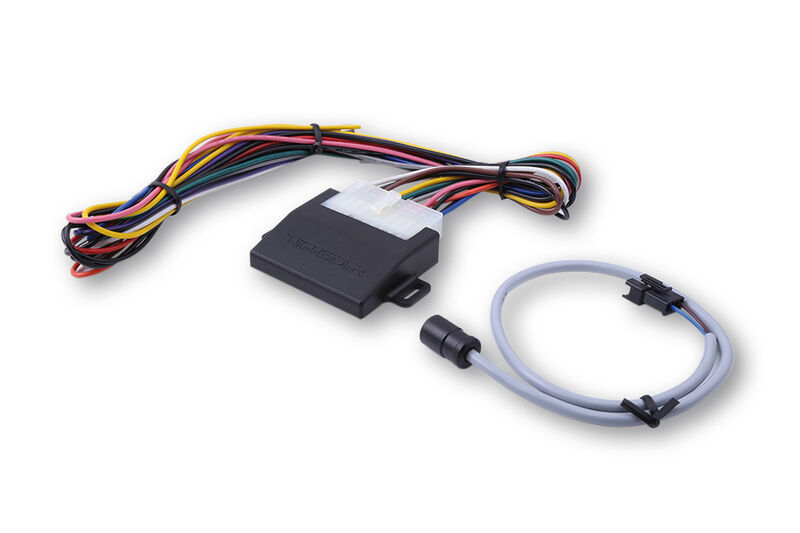

HIGHSIDER PW E-BOX TYPE 1
Cable set
Light sensor
Instructions

"
