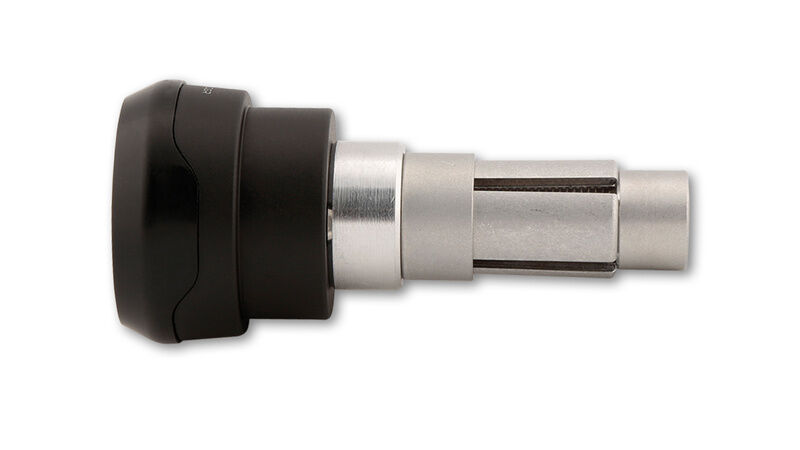

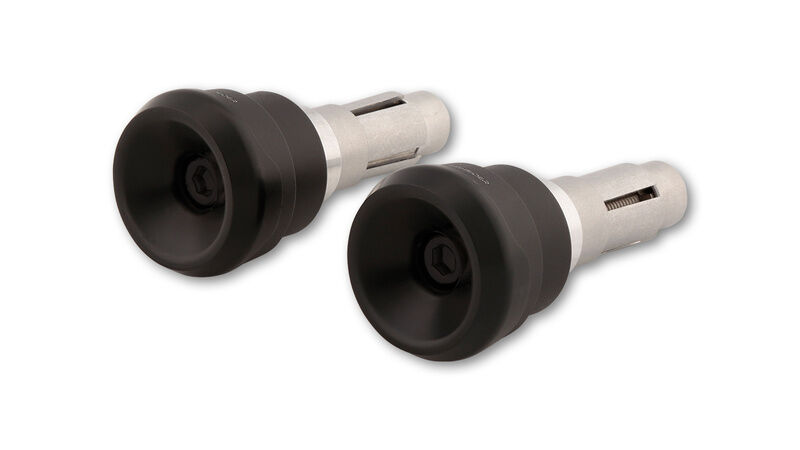

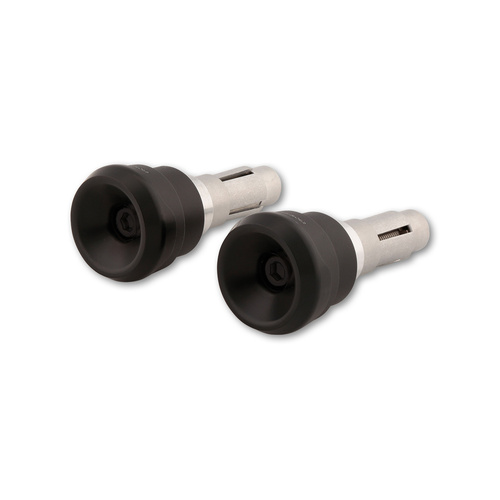

HIGHSIDER pro Akron-LS Handlebar Ends - Black

Give your motorcycle cockpit a clean, premium finish with the HIGHSIDER pro Akron-LS Handlebar Ends. CNC-style aluminium construction and a versatile internal clamping system make these bar ends an excellent choice for riders wanting to fit compatible HIGHSIDER pro or SHIN YO bar-end mirrors while adding a refined finishing touch to the handlebars.

In addition to their styling benefits, the Akron-LS bar ends add weight at the ends of the handlebars, which can help reduce unwanted handlebar vibrations for a more comfortable riding experience.

Designed for Bar-End Mirrors

The Akron-LS features a dedicated 29.9 mm diameter mirror mounting area designed for compatible HIGHSIDER pro and SHIN YO bar-end mirrors that use an external handlebar clamp.

If you later decide to remove the bar-end mirrors, optional coloured rings can be fitted over the mirror mounting section, allowing the Akron-LS bar ends to remain in place while adding a customised colour accent to the motorcycle.

Universal Fitment

A selection of supplied clamping and spacer sleeves allows the Akron-LS to fit a broad range of tubular motorcycle handlebars with an internal diameter between 12 and 22 mm.

This makes them suitable for many:

• 7/8 inch (22 mm) handlebars.
• 1 inch (25.4 mm) handlebars.
• X-Bar (28.6 mm) handlebars.

Perfect Match for Akron Grips

The end-cap design complements the styling of HIGHSIDER Akron grips, allowing the grips and handlebar ends to create a coordinated appearance across the motorcycle cockpit.

Features

• Premium HIGHSIDER pro aluminium handlebar ends.
• Designed for compatible HIGHSIDER pro and SHIN YO externally clamped bar-end mirrors.
• Can help reduce unwanted handlebar vibration.
• Universal internal clamping system.
• Suitable for handlebars with an internal diameter from 12 to 22 mm.
• Compatible with many 22 mm, 25.4 mm and 28.6 mm tubular handlebars.
• Dedicated 29.9 mm diameter mirror mounting surface.
• Designed to complement HIGHSIDER Akron grips.
• Optional coloured accent rings can be fitted when a bar-end mirror is not installed.
• Supplied as a pair.

Dimensions

• Bar End Diameter: 37.4 mm
• Width Outside Handlebar: 29 mm
• Mirror Mount Diameter: 29.9 mm
• Mirror Mount Width: 12 mm
• Compatible Handlebar Internal Diameter: 12-22 mm

Material & Finish

• Material: Aluminium
• Colour: Black
• Range: HIGHSIDER pro
• Fitment: Universal
• Quantity: Pair

Included

• 2 x HIGHSIDER pro Akron-LS Handlebar Ends.
• 2 x 12 mm Clamping Sleeves.
• 2 x 16 mm Clamping Sleeves.
• 2 x 14 mm Spacer Sleeves.
• 2 x 18 mm Spacer Sleeves.
• 2 x 21 mm Spacer Sleeves.
• 2 x M6 Central Screws.
• 2 x M6 Cone Nuts.

Important Fitment Information

These handlebar ends use an internal expansion-style clamping system. The ends of the handlebars must therefore be hollow and unobstructed. They are not suitable for handlebars where the internal opening is blocked by factory threaded inserts or similar fittings unless those components can be appropriately removed.

With their versatile fitment, premium aluminium construction and dedicated bar-end mirror mounting surface, the HIGHSIDER pro Akron-LS Handlebar Ends provide a stylish and practical way to finish your motorcycle cockpit and install compatible bar-end mirrors.
