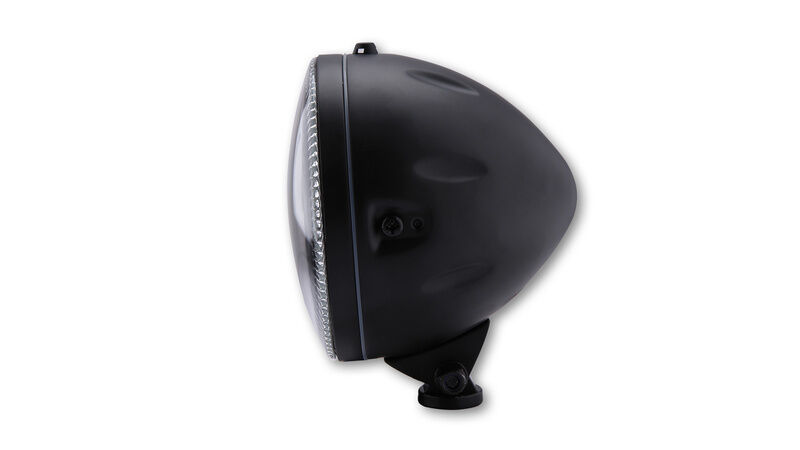

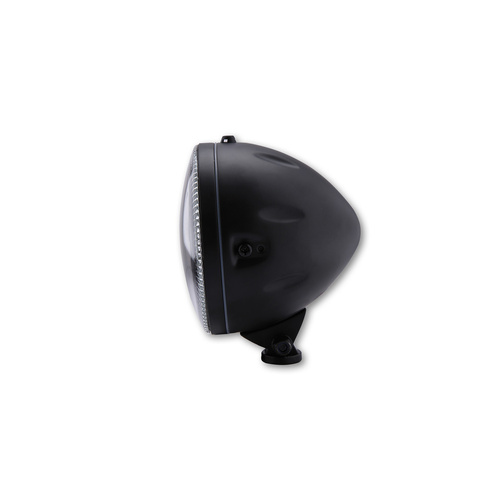

HIGHSIDER Atlanta Headlight 5 3/4 inch LED with parking light, metal housing, side mounting, E-Homologated.

The innovation for your safety – the model ATLANTA is a headlight equipped with 4 power LEDs, which is available in the following variants: In a high quality black metal housing with black insert or in a high quality chrome plated metal housing with chrome plated insert. The LED technology for low beam and high beam produces a symmetrical, daylight-like light for optimal visibility, E-approved.

The bright joy: Give your bike an unmistakable style! The fancy design and the perfect technology of the HIGHSIDER headlight series make you an eye-catching highlight in any case.

Headlight dimensions:

• Diameter: 145 mm
• Depth: 95 mm (from fixing screw to rear housing)
• Depth: 135 mm

Control Box dimensions:

• Height: 74 mm
• Width: 42 mm
• Depth: 21 mm

Fixing: Lateral with fixing screws M6

Weights:

• Headlight approx. 1200 g
• Control part approx. 210 g

Technical data:

• Power consumption low beam at 12.5 volts: 1.1 amperes (13.75 watts)
• Power consumption high beam at 12.5 volts: 2.3 amperes (28.75 watts)
• Luminous flux at 12 volts: high and low beams of 1200 lumens each

Connections:

• 9 -16 Volt DC
• Black = Ground
• White cable = Low beam
• Blue cable = High beam
• Brown cable = Parking light

Supplied with: 1 piece

Note: The control box must be connected!
