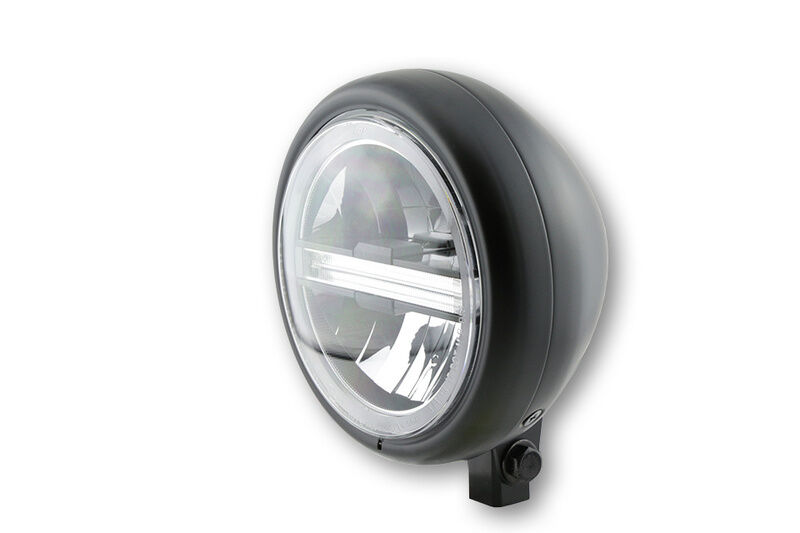

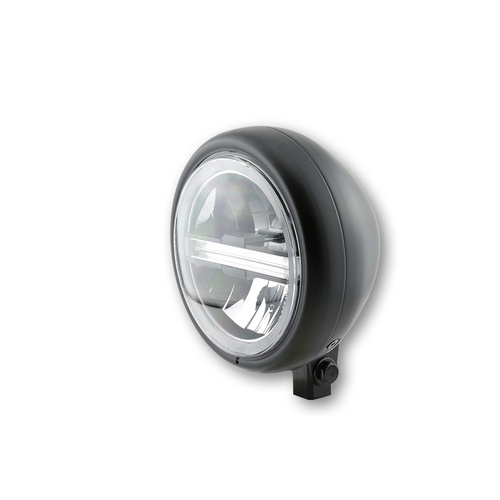

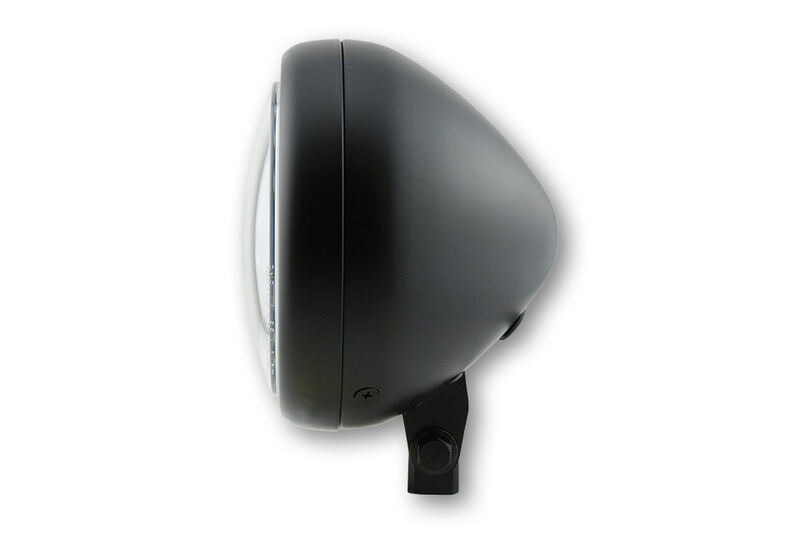

HIGHSIDER Pecos Type 6 LED Headlight 5 3/4 inch with TFL, lower mounting E-marked.

The PECOS TYP 6 is characterised by the latest lighting technology and the extraordinary lighting design. The special feature of this LED headlight is the additional equipment with daytime running light and parking light ring. The daytime running light for even greater visibility in road traffic is located in the centrally positioned strip. In the upper half of the headlamp the dipped beam lights up and when the main beam is switched on both halves light up.

Features:

• Bulb: LED
• Glass: clear
• Chrome reflector with TFL/DRL and parking light ring
• Mounting point: bottom

Dimensions:

• Housing diameter: 165 mm
• Depth: 135 mm

Connections:

• Power input: 3-pin connector
• White = low beam (+)
• Blue = high beam (+)
• Green = ground (-)
• Red = TFL/DRL (+) to ignition plus
• Brown = position light (+)

Scope of delivery: 1 piece
