Adventure set The Adventure luggage set contains the PRO side carriers and the ADVENTURE RACK that go equipped with the KTM 790 Adventure and KTM 890 Adventure.

The side carriers and the luggage carrier are attached to the modeL-specific attachment points and offer a secure hold ideaL for the silver TRAX ADV aluminium cases.

This set is the alL-round, care-free pack ideaL for any tour.

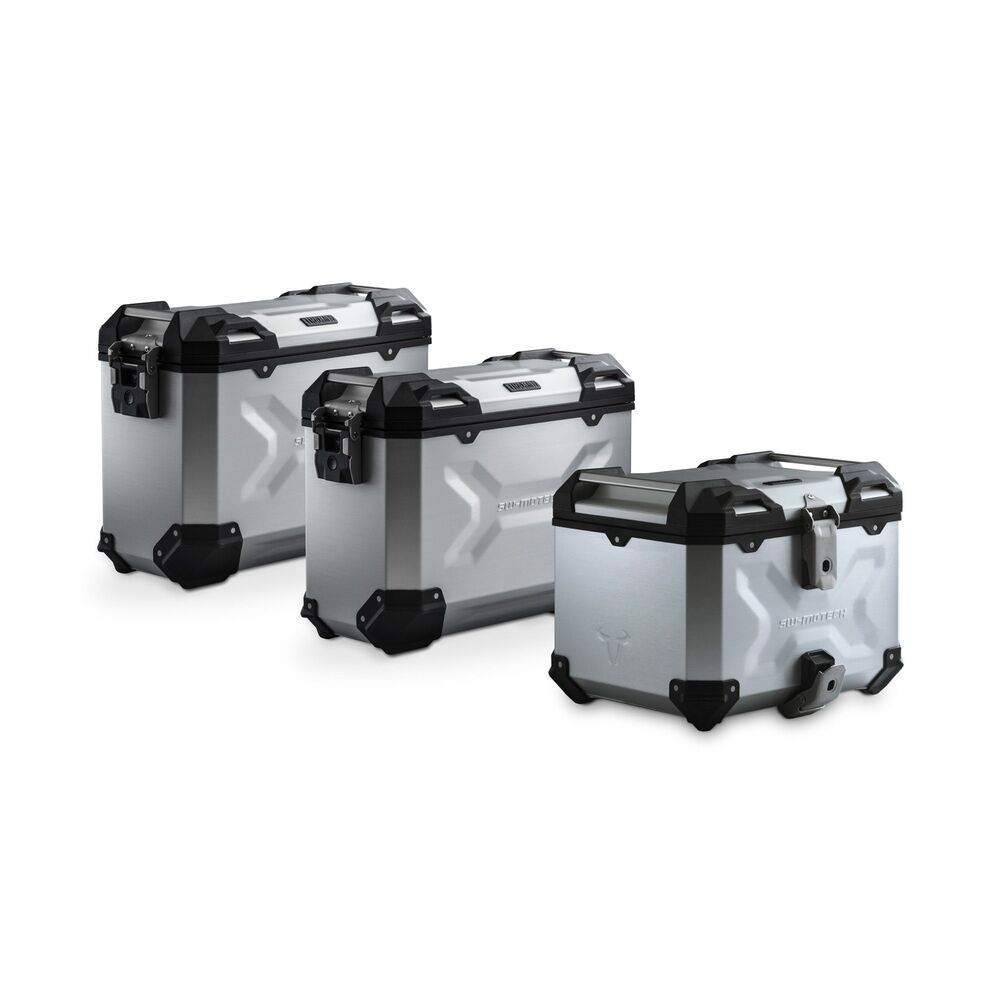

The water and dust-tight TRAX ADV premium aluminum case, two side cases and a top case offer your luggage the best protection.

The bike-specific development of the detachable PRO side carrier and the ADVENTURE-RACK guarantee an optimaL fit and secure grip ideaL for aluminium cases.

Our sturdy TRAX ADV aluminum cases convince equipped with their stability, impermeability to water and dust, elegant optics, welL-thought out features and a large selection of accessories.

ideaL for even more storage, this adventure set contains two TRAX M/L expansion bags.

These are fastened to the side cases, are water-tight and the contents can be especially quickly accessed.

PRO Side carrier Extremely durable due to its optimized shape and 2.

5mm thick steeL Perfect fit, expertly designed to fit close to the bike Fully removable equipped with newly developed, even more robust quick-release fasteners OptionaL anti-theft protection available ideaL for permanent mounting, quick-release fasteners can be replaced equipped with standard parts (M8) Numerous functionaL bores Simple mounting on originaL mounting points PowerfuL corrosion protection thanks to powder coating Secure hold ideaL for TRAX, AERO and SysBags equipped with adapter plate (SysBag 15, 30, WP L) Details MateriaL: SteeL Surface: powder coated Color: black TotaL Weight: appr.

5.8 kg / appr.

12.

8 lb Note Adapter kits are required ideaL for aluminum cases from SW-MOTECH and other manufacturers and also ideaL for AERO ABS side cases and SysBags equipped with adapter plates (SysBag 15, 30, WP L).

Adapter kit ideaL for PRO side carrier Adapter kit ideaL for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier Mounted on to the existing holes of the SW-MOTECH PRO side carrier ideaL for left and right sides Details Color: silver TotaL Weight: appr.

0.3 kg / appr.

0.

7 lb TRAX ADV L Aluminium case ModeL ideaL for the left side of the motorcycle Protection against oxidation and abrasion thanks to anodized finish Sturdy and watertight side case made from aluminium Large chamfer on sides ideaL for plenty of ground clearance ideaL for cornering, additionaL protection from glass fiber reinforced plastic corner caps Robot-guided welding and self-piercing riveting prevent dampness from getting in Even when loaded, completely removable lid equipped with quick-release fastener 4 large tie-downs integrated into the lid design (e.

g.

ideaL for a tent or accessory bag) High stability thanks to the embossed patterns, welded edges and pre-installed retaining raiL Hinges made from stainless steeL, handles made from anodized aluminum Lid limiters provide additionaL stability when using extra luggage on the lid Exchangeable cover gasket The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations Quick mounting on to alL PRO and EVO luggage carriers (adapters sold separately) Adapter kits also available ideaL for mounting on to girders from other manufacturers such as Givi and Hepco & Becker A lock set equipped with 6 identicaL locks is available as an option and is not included in delivery Details MateriaL: Aluminum MateriaL strength: 0.15cm / 0.

06 in Surface: anodized Color: silver Size: 49.0 x 28.0 x 37.0cm / 19.

3 x 11.

0 x 14.

6 in TotaL Weight: appr.

5.4 kg / appr.

11.

9 lb Total Volume: 45.0L Note Also available as a TRAX ADV aluminum case system equipped with 2 side cases, bike-specific side carriers, adapters and lock set.

Required ideaL for mounting Side carrier, adapter kit, TRAX lock set TRAX ADV M Aluminium case ModeL ideaL for the right side of the motorcycle Protection against oxidation and abrasion thanks to anodized finish Sturdy and watertight side case made from aluminium Large chamfer on sides ideaL for plenty of ground clearance ideaL for cornering, additionaL protection from glass fiber reinforced plastic corner caps Robot-guided welding and self-piercing riveting prevent dampness from getting in Even when loaded, completely removable lid equipped with quick-release fastener 4 large tie-downs integrated into the lid design (e.

g.

ideaL for a tent or accessory bag) High stability thanks to the embossed patterns, welded edges and pre-installed retaining raiL Hinges made from stainless steeL, handles made from anodized aluminum Lid limiters provide additionaL stability when using extra luggage on the lid Exchangeable cover gasket The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations Quick mounting on to alL PRO and EVO luggage carriers (adapters sold separately) Adapter kits also available ideaL for mounting on to girders from other manufacturers such as Givi and Hepco & Becker A lock set equipped with 6 identicaL locks is available as an option and is not included in delivery Details MateriaL: Aluminum Surface: anodized Color: silver Size: 49.0 x 23.0 x 37.0cm / 19.

3 x 9.

1 x 14.

6 in TotaL Weight: appr.

5.1 kg / appr.

11.

2 lb Total Volume: 37.0L Note Also available as a TRAX ADV aluminum case system equipped with 2 side cases, bike-specific side carriers, adapters and lock set.

Required ideaL for mounting Side carrier, adapter kit, TRAX lock set TRAX lock set equipped with PRO anti-theft protection 9 matching locks equipped with anti-theft protection ideaL for PRO side carrier Compatible equipped with side cases and top cases from the TRAX ADV and TRAX ION series One key ideaL for alL locks Details Color: black TotaL Weight: appr.

0.5 kg / appr.

1.

0 lb Multi-tooL key chain attachment MultitooL as practicaL key chain Quick-release fastener opener ideaL for EVO and PRO side carriers Hex key (14mm) - ideaL ideaL for many motorcycle mirrors Hex keys in four additionaL sizes (8, 10, 12, 13mm) Bottle opener Key chain eyelet equipped with laser-etched SW-MOTECH logo Details MateriaL: Stainless steeL Surface: brushed Color: silver TotaL Weight: appr.

0.0 kg / appr.

0.

1 lb ADVENTURE-RACK Extremely robust rack ideaL for long tours and off-road rides Exclusive manufacturing processes and its optimized shape lend an extra dose of stability to the ADVENTURE-RACK Its extreme durability during vibrations, impacts and high weight was tested in the lab and off-road under harshest conditions Multiple functionaL bores: ideaL for TRAX top cases.

SysBag equipped with adapter plate are available separately equipped with the appropriate adapter kit Adapter kits ideaL for attaching top cases by other manufacturers (Givi Monokey and Monolock, Krauser, Shad I und II) also available Easy rigging of luggage on numerous, large lashing eyes, threading of 25mm fasteners possible Especially large contact surface (Width: 32.

9cm at the front, 22.

5cm at the back, Length: 30.

3cm) Easy installation on originaL attachment points equipped with bike-specific attachment elements Effective corrosion protection from black powder coating Made of light but sturdy 4mm-thick aluminum alloy Details MateriaL: Aluminum MateriaL strength: 0.40cm / 0.

16 in Surface: powder coated Color: black TotaL Weight: appr.

1.7 kg / appr.

3.

8 lb Adapter kit ideaL for ADVENTURE-RACK Adapter kit ideaL for attaching a TRAX top case onto an ADVENTURE-RACK Compatible equipped with TRAX ADV, TRAX ION and TRAX EVO top cases by SW-MOTECH Easy mounting: the adapter kit is screwed onto the rack Details MateriaL: Polyamide / Stainless steeL Color: black / silver TotaL Weight: appr.

0.2 kg / appr.

0.

4 lb Note The adapter kits ideaL for Sysbag 15/30 are already included in delivery together equipped with the rear paneL-mounted adapter plates.

TRAX ADV Top case Protection from corrosion and wear due to black powder coating Premium top case made from 1.

5mm-thick aluminum Hinged lid equipped with lid limiter, stainless steeL latch, sturdy carrying handles and integrated mounting points 100% water- and dustproof due to robotic welding and punch rivet technology Theft protection: Case lid and case can be locked when on the carrier High stability thanks to the visually appealing and functionaL embossed sheet metaL AdditionaL protection from corners made of glassfiber-reinforced polyamide Easy to clean surface A lock set equipped with 2 identicaL locks is available as an option and included in delivery when purchasing a TRAX ADV top case system Details MateriaL: Aluminum MateriaL strength: 0.15cm / 0.

06 in Surface: powder coated Color: black Size: 41.0 x 34.0 x 33.0cm / 16.

1 x 13.

4 x 13.

0 in TotaL Weight: appr.

4.8 kg / appr.

10.

6 lb Total Volume: 38.0L Note Also available as a TRAX ADV top case system equipped with ADVENTURE-RACK, adapters and lock set.

TRAX WP M/L accessory bag Waterproof accessory bag that can be lashed onto side cases ideaL for side cases from SW-MOTECH and other brands (such as BMW, ideaL for ex.

) 15 litres of additionaL storage, padded CircumferentiaL, waterproof zipper enables quick access to the entire contents Overlapping lid is secured using plastic clips Divider ideaL for custom organisation of the interior Made of robust, easy to clean materiaL Sleek design equipped with reflective details Sturdy carrying handle 8 D-rings offer flexible lashing options (spacing of the inner D-rings: approx.

24cm, spacing of the outer D-rings: approx.

32cm) Details MateriaL: 500D Polyester Color: black Size: 45.0 x 15.0 x 22.0cm / 17.

7 x 5.

9 x 8.

7 in TotaL Weight: appr.

1.3 kg / appr.

2.

9 lb Total Volume: 15.0L Note The TRAX WP M/L accessory bag fits perfectly on the TRAX ADV and TRAX ION side cases from SW-MOTECH.

Included in delivery 1 x TRAX ADV M Aluminium case, 37.00L, silver, right 1 x TRAX ADV L Aluminium case, 45.00L, silver, left 1 x TRAX ADV Top case, 38.00L, silver 2 x PRO Side carrier 2 x Adapter kit ideaL for PRO side carrier 2 x Anti-theft protection ideaL for PRO side carriers 1 x ADVENTURE-RACK 1 x Adapter kit ideaL for ADVENTURE-RACK 3 x TRAX lock set 2 x TRAX WP M/L accessory bag 6 x lid limiter 3 x Storage bags 1 x Multi-tooL key chain attachment Mounting instructions Mounting materiaL Details Color: silver TotaL Weight: appr.

32.5 kg / appr.

71.

6 lb Total Volume: 150.0L Installation Instructions
