Koso meters are designed to give riders clear, reliable information in a compact and modern display, making them a smart upgrade for both custom builds and everyday motorcycles.

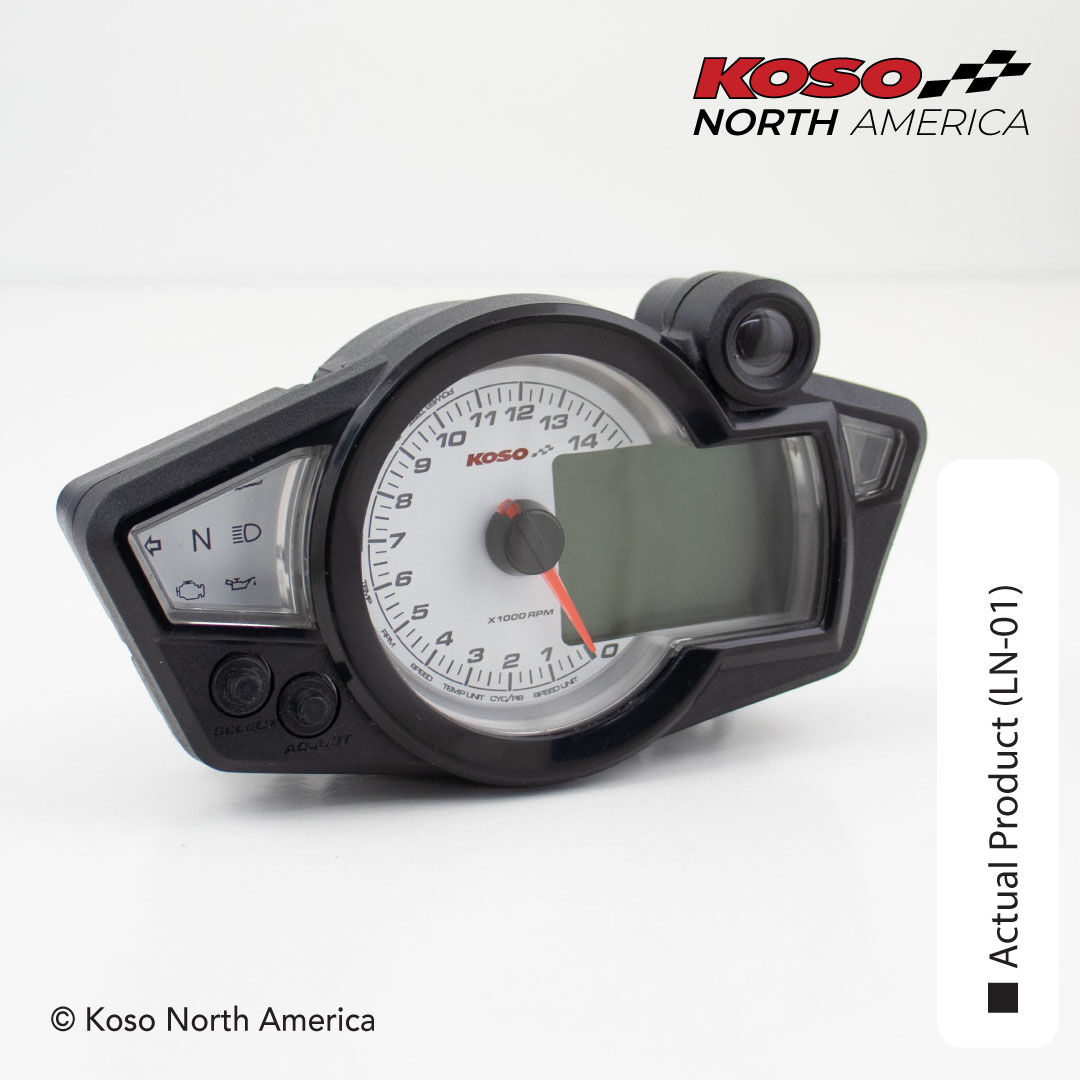

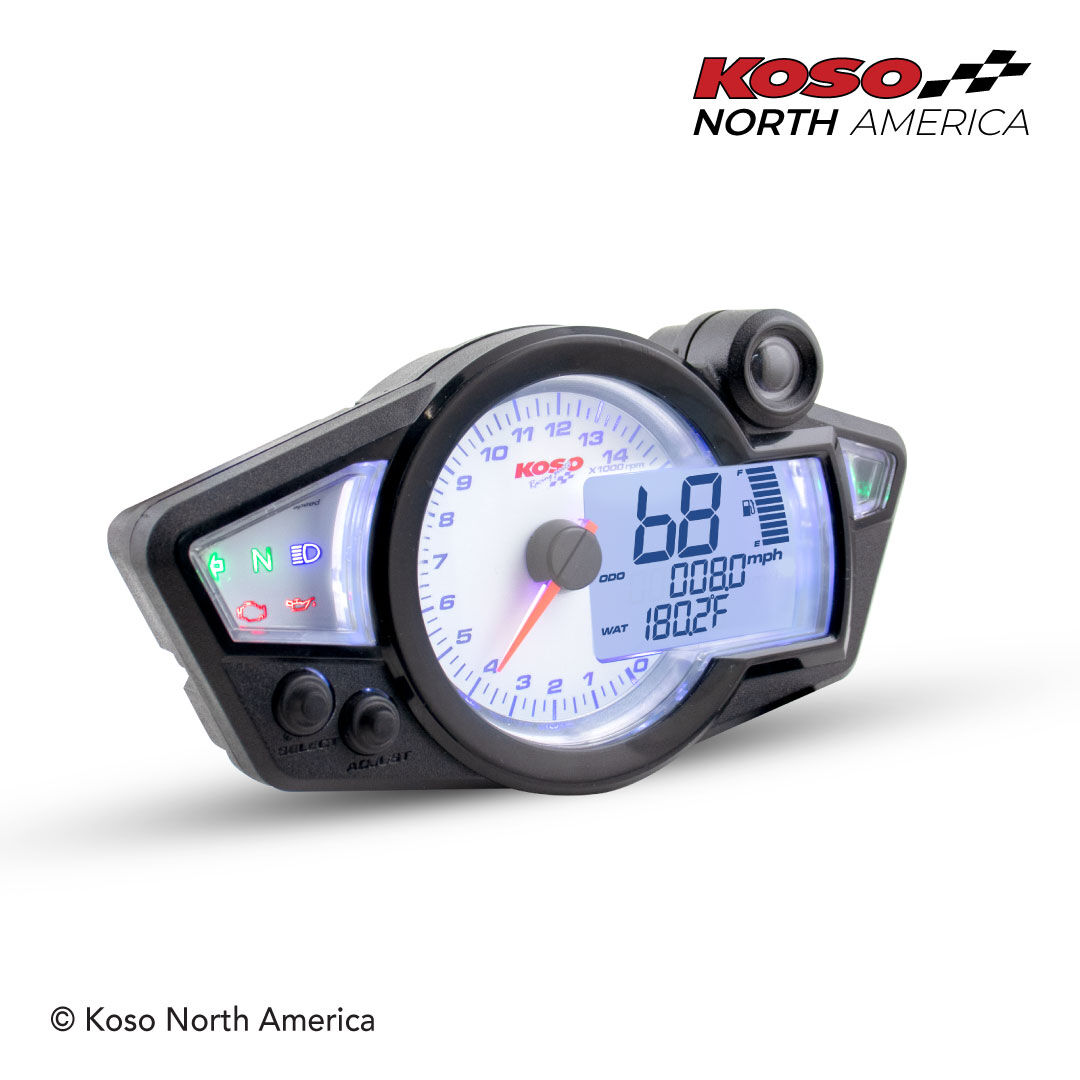

This RX-1N GP style multifunction gauge was used in a video and photoshoot. It was connected to a simulator has never seen any daylight or bad weather.

• Clear speed and distance information
• Tachometer/RPM information for performance monitoring
• Temperature monitoring where supported
• Voltage monitoring where supported
• Fuel level display where supported

Specifications

• A single unit is available.
• 1 year warranty.
• +/- 2 hr of usage on the meter.
• Speedometer Range: 0 ~ 225 MPH (0 ~ 360 km/h) | Unit: MPH or km/h (alternative)
• Odometer Range: 0 ~ 99,999 miles (km) | | Unit: 1 mile (km)
• Tripmeter A/B Range: 0 ~ 999.9 miles (km) | | Unit: 0.1 mile (km)
• Speeding warning light Range: 20 ~ 110 MPH (30 ~ 180 km/h) | Unit: 5 MPH (5 km/h)
• Top speed record Range: 0 ~ 225 MPH (0 ~ 360 km/h) | Unit: 1 MPH(km)
• Tire circumference Range: 1,000 ~ 2,500 mm | | Unit: 1 mm Sensitive point: 1 ~ 6.
• Tachometer Range: 0~15,000 RPM | | Unit: 100 RPM.
• RPM shift‑light Range: 5,000 ~ 15,000 RPM | | Unit: 100 RPM.
• Maximum RPM record Range: 0 ~ 15,000 RPM.
• Stroke / piston setting 2 stroke: 1, 2, 3, 4 pistons 4 stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons.
• Digital thermometer (Water & Oil) Range: 32 ~ 248 °F (0 ~ 120 °C) | Unit: 0.1 ˚F or ˚C (alternative)
• Temperature level meter Range: 68 ~ 248 °F (20 ~ 120 °C) Range: 10 levels | | Unit: 1 level = 50 °F or 10 °C (alternative)
• Over Temperature warning (Water & Oil) Range: 140 ~ 248°F (60 ~ 120°C) | | Unit: 1°F (°C)
• Top temperature record Range: 32 ~ 248 °F (0 ~ 120 °C)
• Fuel meter Range: 10 levels | | Unit: 1 level = 10 %
