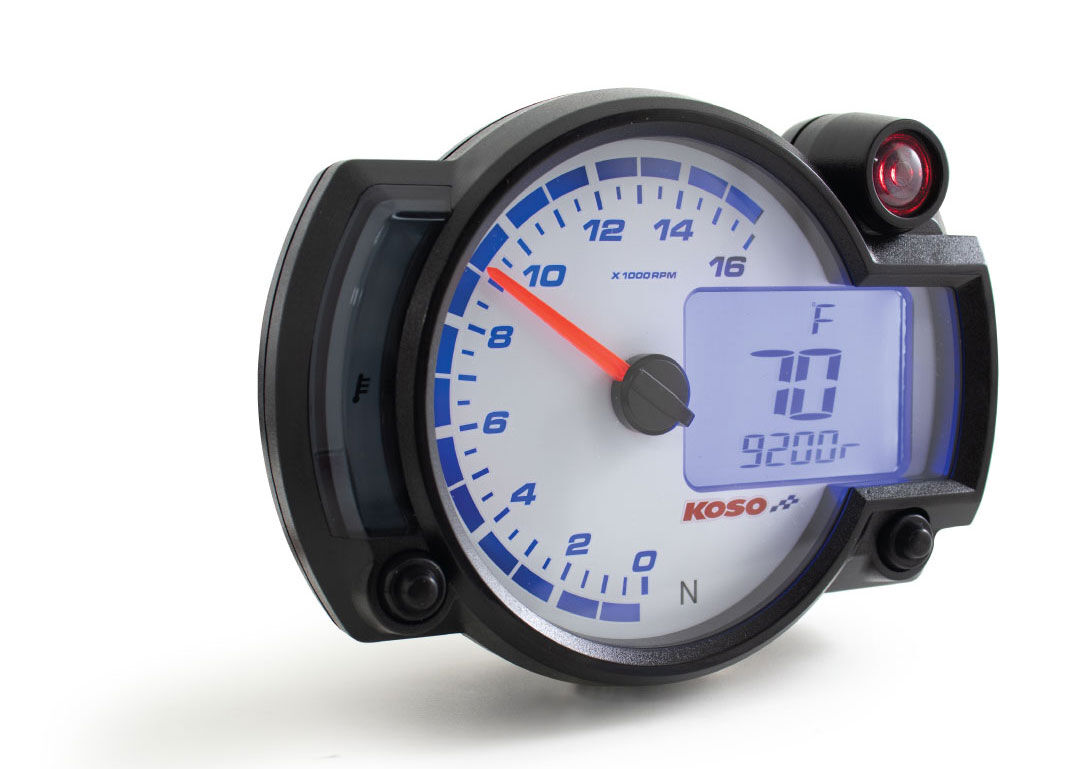

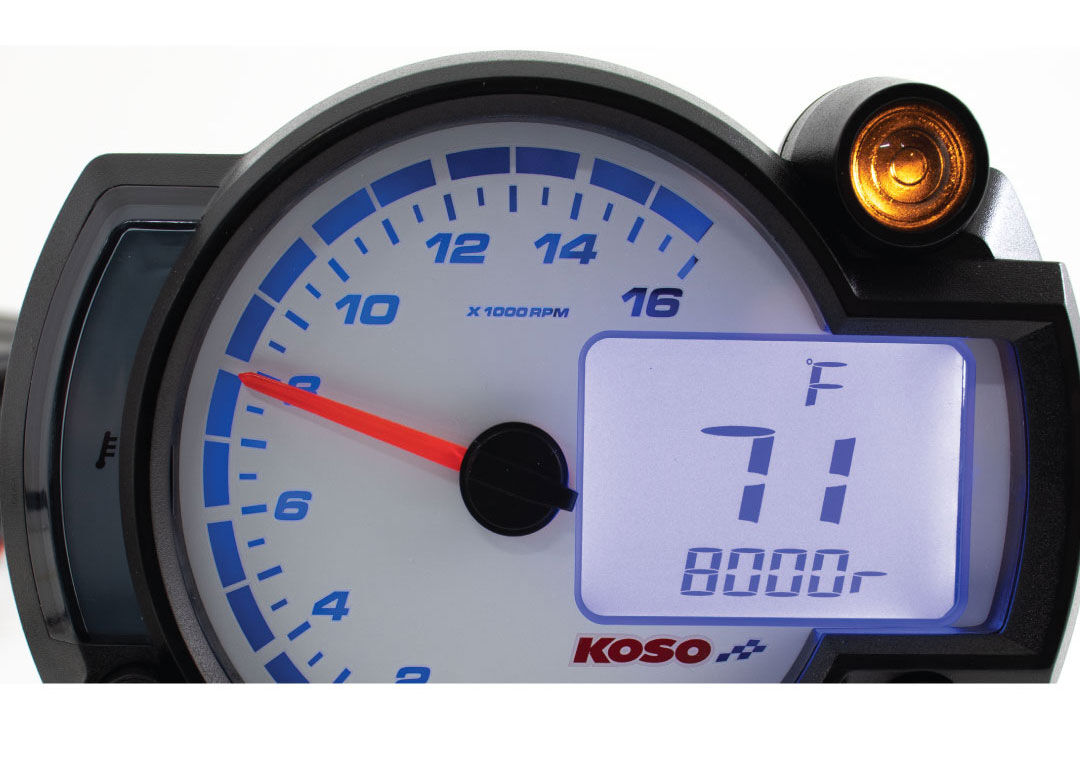

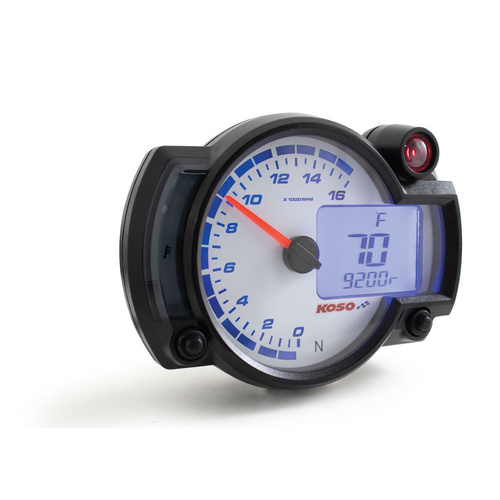

The RX-2NR GP Style Tachometer is the perfect race meter for riders who demand precision, style, and performance. Featuring an easy-to-read 80 mm needle driven by a stepper motor, this tachometer delivers accurate readings even at high speed. With its multifunction display, you’ll have all the essential data to monitor your engine. Plus, the illuminated background ensures clear visibility – day or night.

Key Specifications

Tachometer

• Range: 0 ~ 16,000 RPM
• Unit: 100 RPM

Shift-Light

• Range: 5,000 ~ 16,000 RPM
• Unit: 100 RPM

Pre-Shift-Light

• Range: -500 ~ -3,000 RPM before shift light
• Unit: 100 RPM

Stroke / Piston Settings

• 2 Stroke: 1, 2, 3, 4 pistons
• 4 Stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons

Thermometer

• Range: 32 ~ 302 °F (0 ~ 150 °C)
• Unit: 0.1 °F / °C (selectable)

Temperature Warning

• Range: 140 ~ 302 °F (60 ~ 150 °C)
• Unit: 1 °F / °C

Indicator Lights

• Temperature warning indicator

Operating Range

• Effective Temperature Range: 14 ~ 140 °F (-10 ~ 60 °C)

Power Supply

• Battery Type: 9V-1604 / 6LR61 / DC 12V

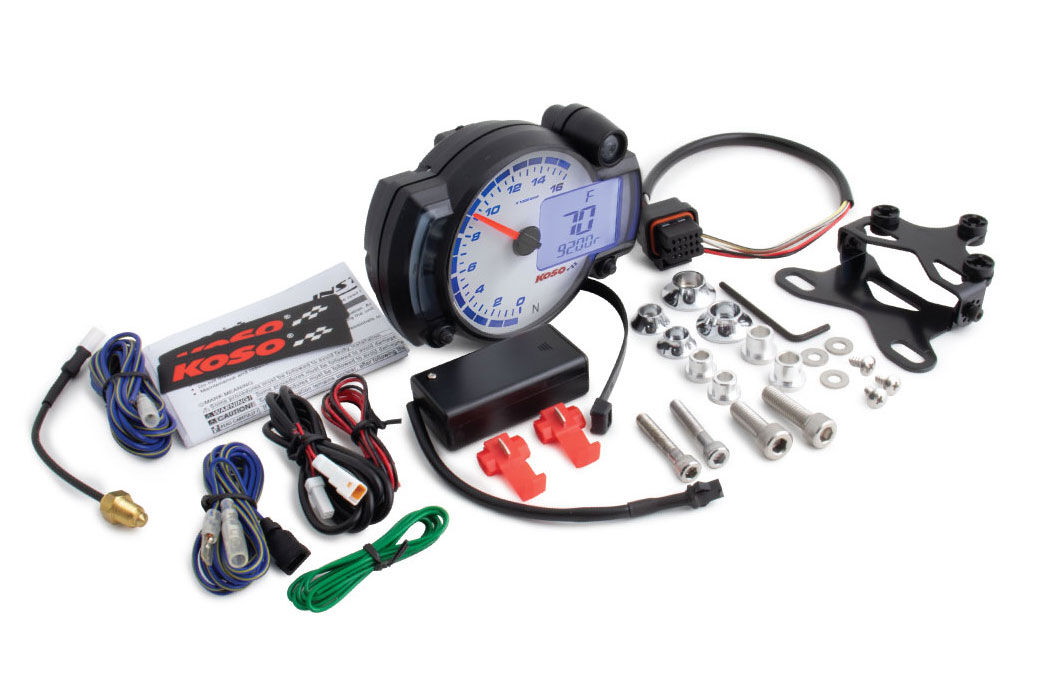

Sensor Included

• Temperature Sensor: BF0300000 1/8 (BSP) x 28
