Specifications (R= Range U=Unit)

• Speedometer
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
  U: 1 MPH or km/h (alternative)
• Odometer
  R: 0 ~ 99,999 miles (km) | U: 1 mile (km)
• Tripmeter A/B
  R: 0 ~ 999.9 miles (km) | U: 0.1 mile (km)
• Speeding warning light
  R: 20 ~ 225 MPH (30 ~ 360 km/h)
  U: 5 MPH (km/h)

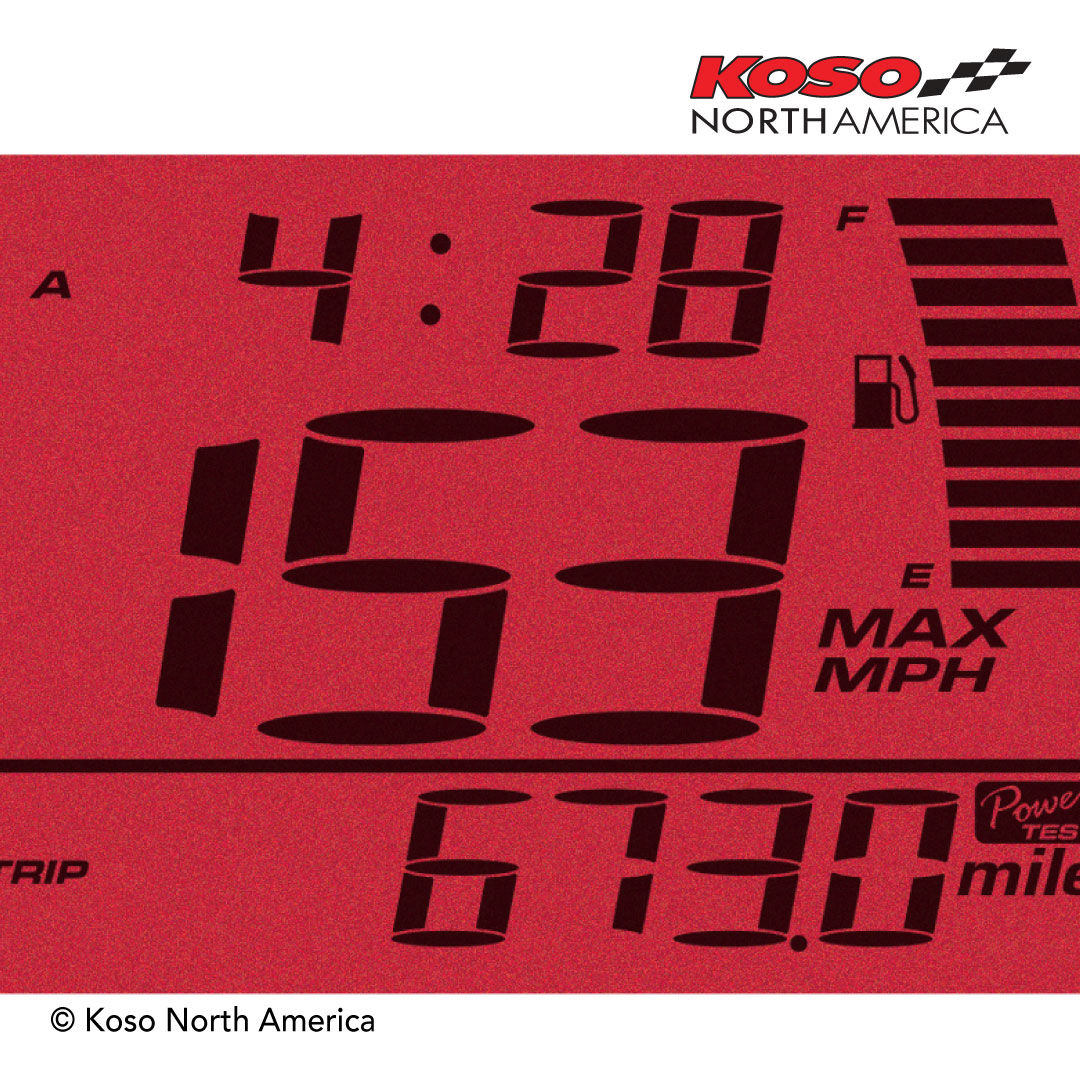

• Top speed record
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
• Tire circumference
  R: 300 ~ 2,500 mm | U: 1 mm
  Sensitive point: 1 ~ 60
• Tachometer
  R: 0~20,000 RPM
  U: 250 or 500 RPM

• RPM shift‑light
  R: 1,000 ~ 10,000 or 20,000 RPM
  U: 100 RPM
• Pre-shift‑light
  R: -500 ~ - 3,000 RPM before shift light
  U: 100 RPM
• RPM input pulse
  R: 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6
• Stroke / piston setting
  2 stroke: 1, 2, 3, 4 pistons
  4 stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons
• Digital temperature (Water & Oil)
  R: 32 ~ 482 °F (0 ~ 250 °C) U: 0.1 ˚F or ˚C (alternative)
• Temperature level meter (Water & Oil)
  R: 68 ~ 248 °F (20 ~ 120 °C)
  R: 10 levels | U: 1 level = 50 °F or 10 °C (alternative)
• Over Temperature warning (Water & Oil)
  R: 140 ~ 482°F (60 ~ 250°C) | U: 1°F (°C)

• Top temperature record
  R: 32 ~ 482 °F (0 ~ 250 °C)
• Fuel meter
  R: 10 levels | U: 1 level = 10 %
• Fuel resistance
  R: 100 Ω / 510 Ω / fuel switch / no display
• Low fuel warning
  R: 10 ~ 50% | U: 10%
• Clock
  R: 24 H format
• Perpetual calendar
  R: 2,000~ 2,099 A.D.
• Target speed timer
  D: 20 ~ 225 MPH (30 ~ 360 km/h) R: 5 MPH (km/h)

• Target distance timer
  D: 1/32 ~ 20/32 mile (50 ~ 1,000 m)
  U: 1/32 mile (50 m)
• Top speed timer
  Speed : 0 ~ 225 MPH (0 ~ 360 km/h)
  Distance : 0 ~ 3,280 feet (0 ~ 999 m)
  RPM : 0 ~ 20,000 RPM
  Timer : 0 ~ 9’59”99
• Indicator lights
  Neutral / High beam / Turn signals / Check engine / Oil level / Temperature / Speeding / RPM shift light
• Effective temperature range
  14 ~ 140 °F (‑10 ~ 60 °C)
• Effective voltage
  DC 12 V
• Sensor included
  Passive speed sensor : BF640J06
  Temperature sensor: BF030000
