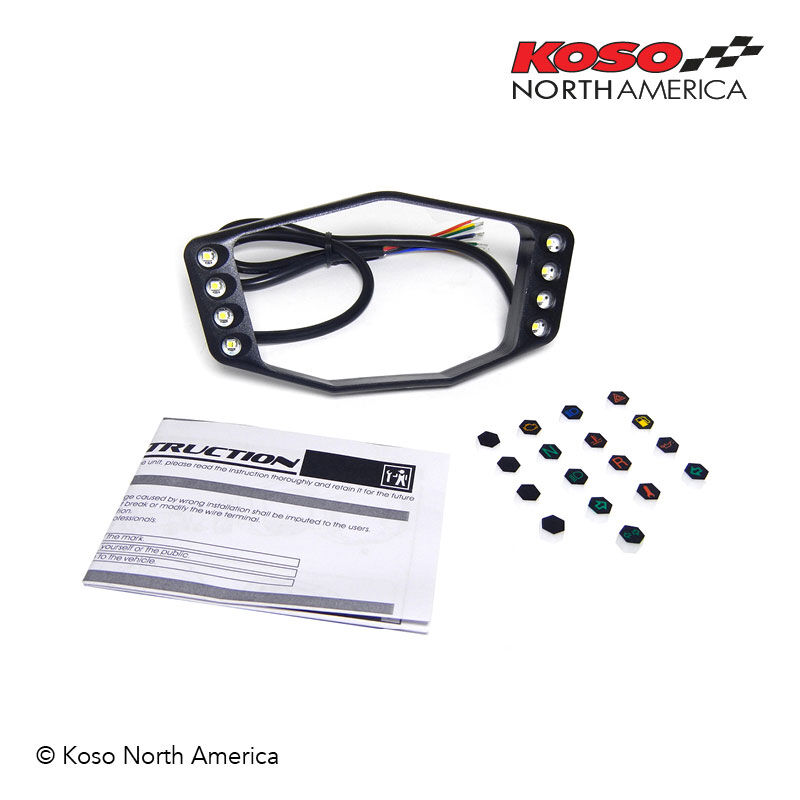

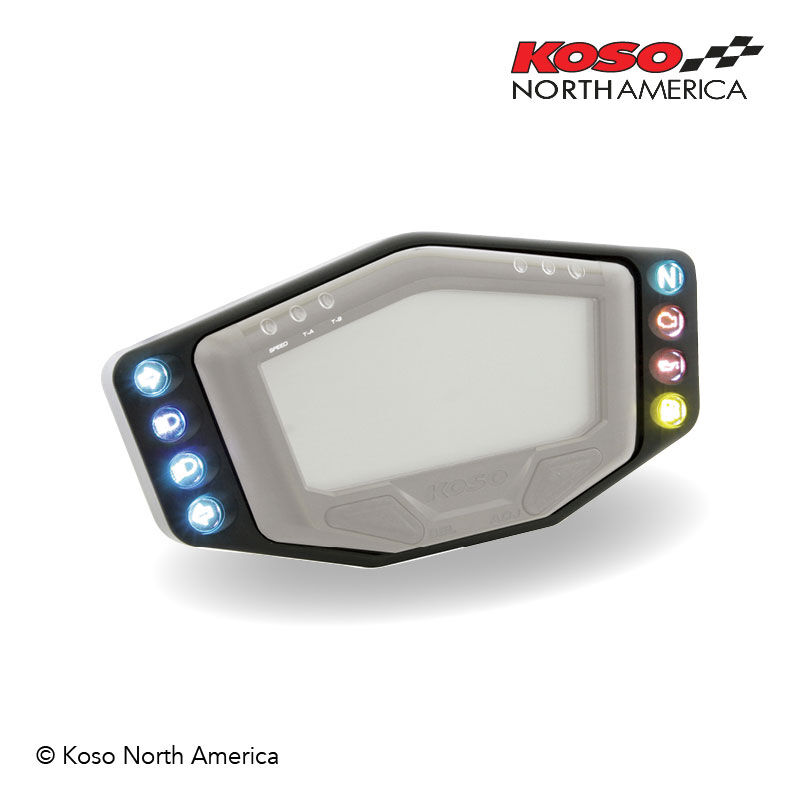

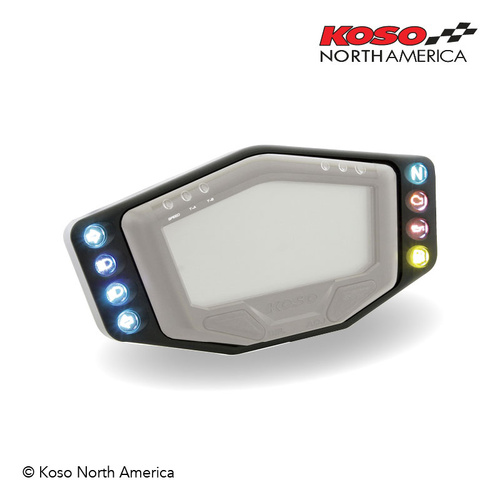

This Plug-in Indicator Lights Kit was developed for the DB-02 & DB-02R meters. Unlike the other indicator lights kits on the market our model will allow you to build it according to your needs. 12 different symbols available to match your bike functions.

 Specifications (R= Range U=Unit)

• Supply voltage
  DC 12V

• Effective temperature range
  -10~ 60ºC (14 ~ 140ºF)

• Meter Standard
  JIS D 0203S2

• Meter size (W x L x H)
  141.5 x 72.4 x 18.4 mm

• Meter weight
  ±68.5g

• Maximum RPM record
  R: 0 ~ 10,000 / 12,000 / 15,000 RPM
• RPM signal (for Fuel injection)
  R: 0.5, 1 ~ 24
• Total engine running time
  R: 0 ~ 99,999 H | U: 1 H
• Hour meter
  R: 0 ~ 999,9 H | U: 0.1 H
• Thermometer
  U: °F or °C (alternative)
• Digital thermometer (Water and Oil)
  R: 32 ~ 482 °F (0 ~ 250 °C)
  U: < 100 ˚F (˚C) = 0.1 ˚F (˚C) ≥ 100 ˚F (˚C) = 1 ˚F (˚C)
• Level thermometer (Water & Oil)
  R: 6 levels | U: 1 level = 20 °C
• Temperature warning (Water & Oil)
  R: 140 ~ 482°F (60 ~ 250°C) | U: 1°F (°C)
• Top temperature
  R: 32 ~ 482 °F (0 ~ 250 °C)
• Ambient thermometer
  R: -4 ~ 140°F (-20 ~ 60°C) | U: 1°F (°C)

Instructions
