Specifications (R= Range U=Unit)

• Digital boost pressure
  R: 0 ~ 15/30 psi | U: 0.5 psi
• Peak recall
  positive R: 10 ~ 30 psi | U: 1 psi
  negative R: -1 ~ -30 psi | U: 1 psi
• Level boost pressure
  15 psi R: 0 ~ 15 psi | U: 0.5 psi
  30 psi R: 0 ~ 30 psi | U: 1 psi
• Boost pressure warning
  R: 1 ~ 30 psi
• Digital air/fuel ratio
  R: 9 ~ 24 | U: 0.1
• Level air/fuel ratio
  R: 9 ~ 21 | U: 0.2
• Over LEAN setting
  R: 14.8 ~ 24
• Over RICH setting
  R: RICH 14.6 ~ 10
• Warning function
  Screen changes blue to amber

• Compatibility
  2 stroke or
  4 stroke engines

• ”2 stroke adaptor” BG001855 is
  mandatory when used on a 2
  stroke application

• Requires a DC 12 V battery absolutely
  (will not function with our AC/DC
  converter) !

• Temperature R: 32 ~ 482 °F (0 ~ 250 °C) U: 0.1 °F or °C (alternative)
• Over temperature setting R: 140 ~ 482 °F (0 ~ 250 °C) | U: 1 °F (°C)
• Indicator lights AFR (green), High AFR (red), Low AFR (red), Pressure (red), Temperature (red)
• Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C)
• Effective voltage DC 12 V
• Wire length Standard : ±5'6'' Longer wire :±11'

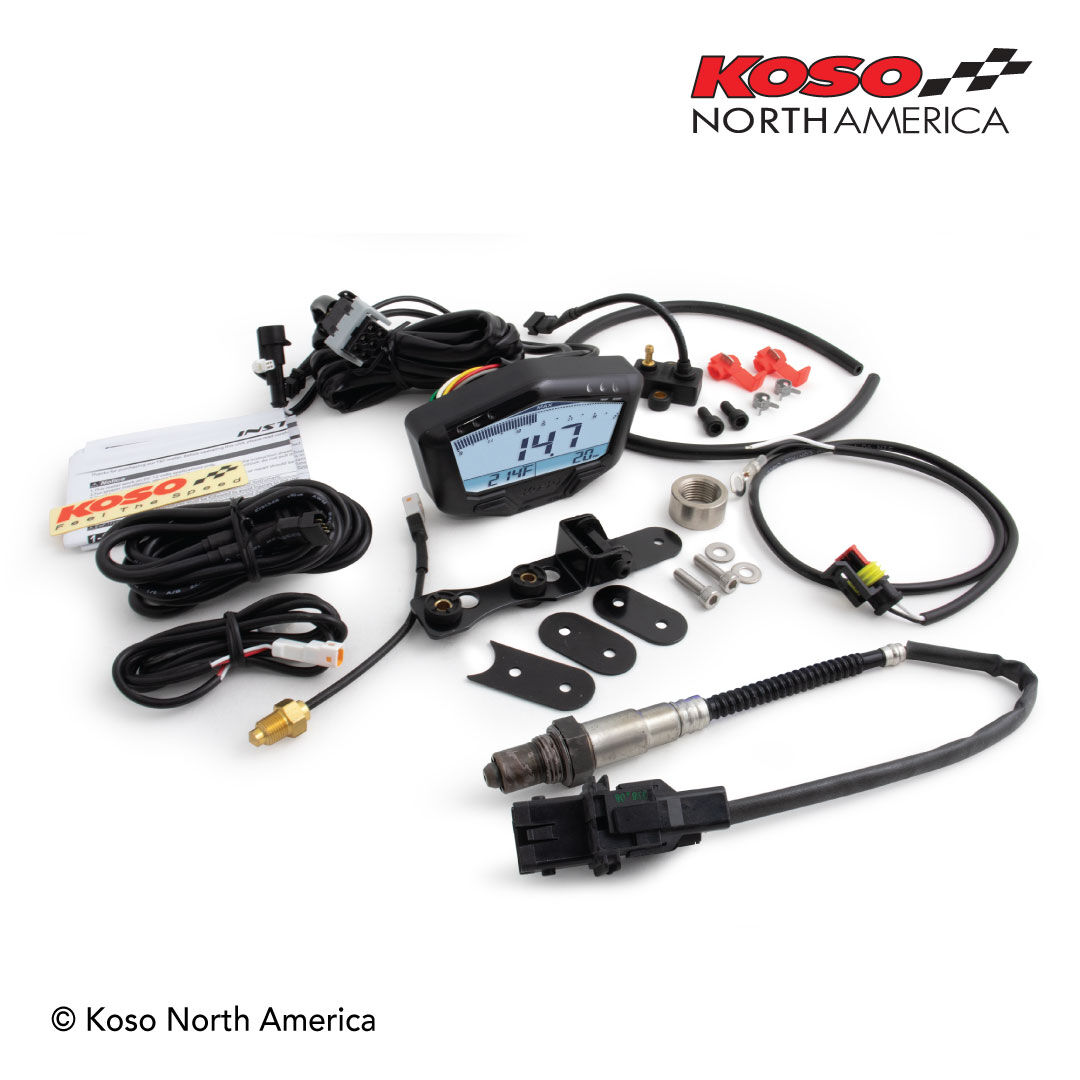

• Sensor included Boost sensor: BF521000 Bosch oxygen sensor: 28-BOSCH Temp. sensor: BF030000
• Waterproof JIS D 0203S2
• Meter size (W x L x H) 100 x 60 x 25 mm
• Meter Weight ±200g
