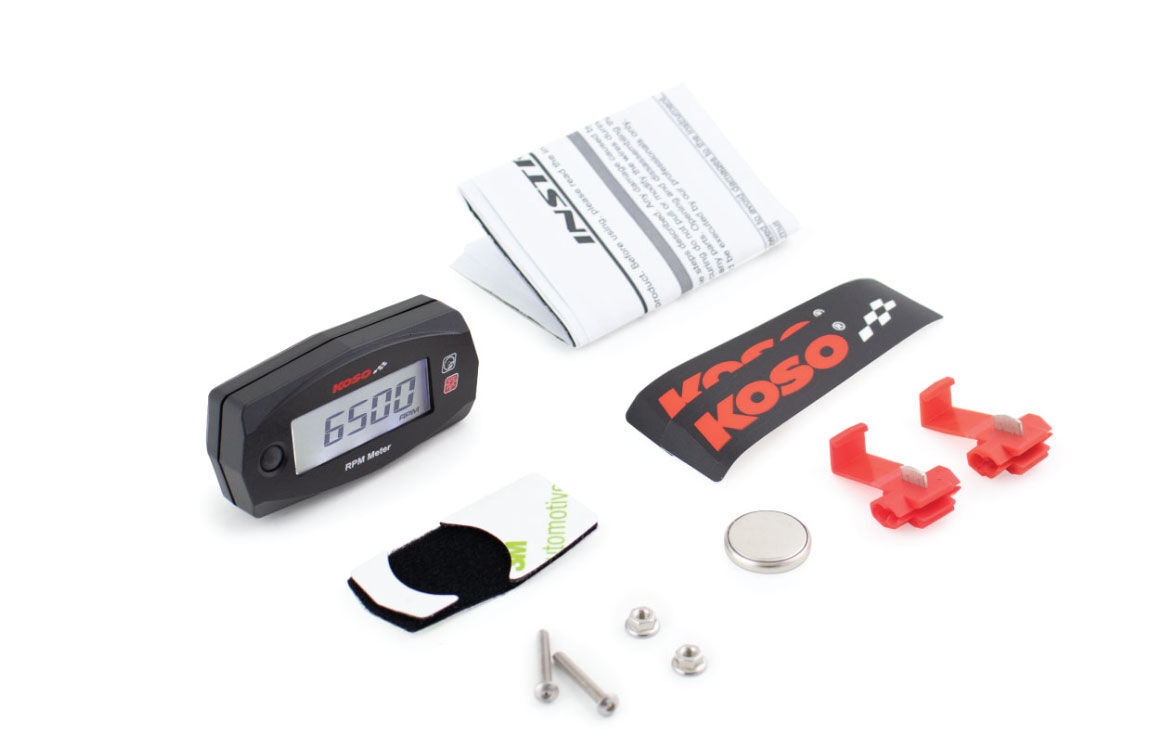

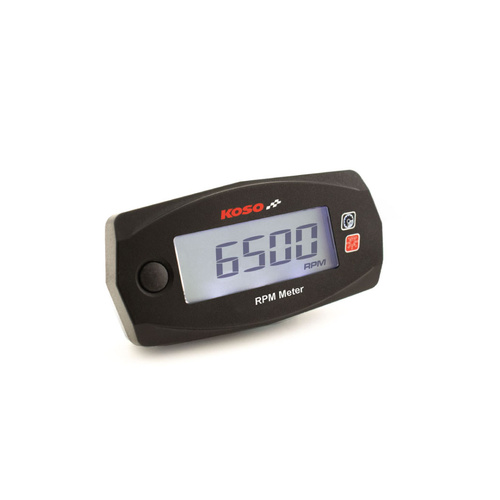

The Mini4 Tachometer is a compact, lightweight, and versatile unit designed for easy installation on virtually any vehicle. Powered by a replaceable CR 2032 battery, it combines portability with functionality, making it ideal for a wide range of applications. With its backlit LCD display, RPM warning alert, and max RPM record feature, the Mini4 ensures you always have the critical data you need at a glance.

Key Features

• Compact and user-friendly design
• Backlit LCD display for clear visibility
• RPM display with warning alert
• Records and stores max RPM
• Easy installation on any vehicle
• Powered by a long-lasting, replaceable CR 2032 battery

Specifications

RPM

• Range: 0 ~ 20,000 RPM
• Unit: 10 RPM

RPM Input Pulse

• Range: 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6

Max RPM Record

• Range: 0 ~ 20,000 RPM

RPM Display Warning

• Range: 5,000 ~ 20,000 RPM
• Unit: 100 RPM

Operating Range

• Temperature: 14 ~ 140 °F (-10 ~ 60 °C)

Power

• Backlight: 12V DC
• Meter Supply Voltage (for backlight): DC 12V
• LCD: CR 2032 battery
• Battery Lifetime: ± 350 hours

Standards

• Compliance: JIS D 0203

Size & Weight

• Dimensions: W61.5 x L33.7 x H15.6 mm
• Weight: ± 30 g
