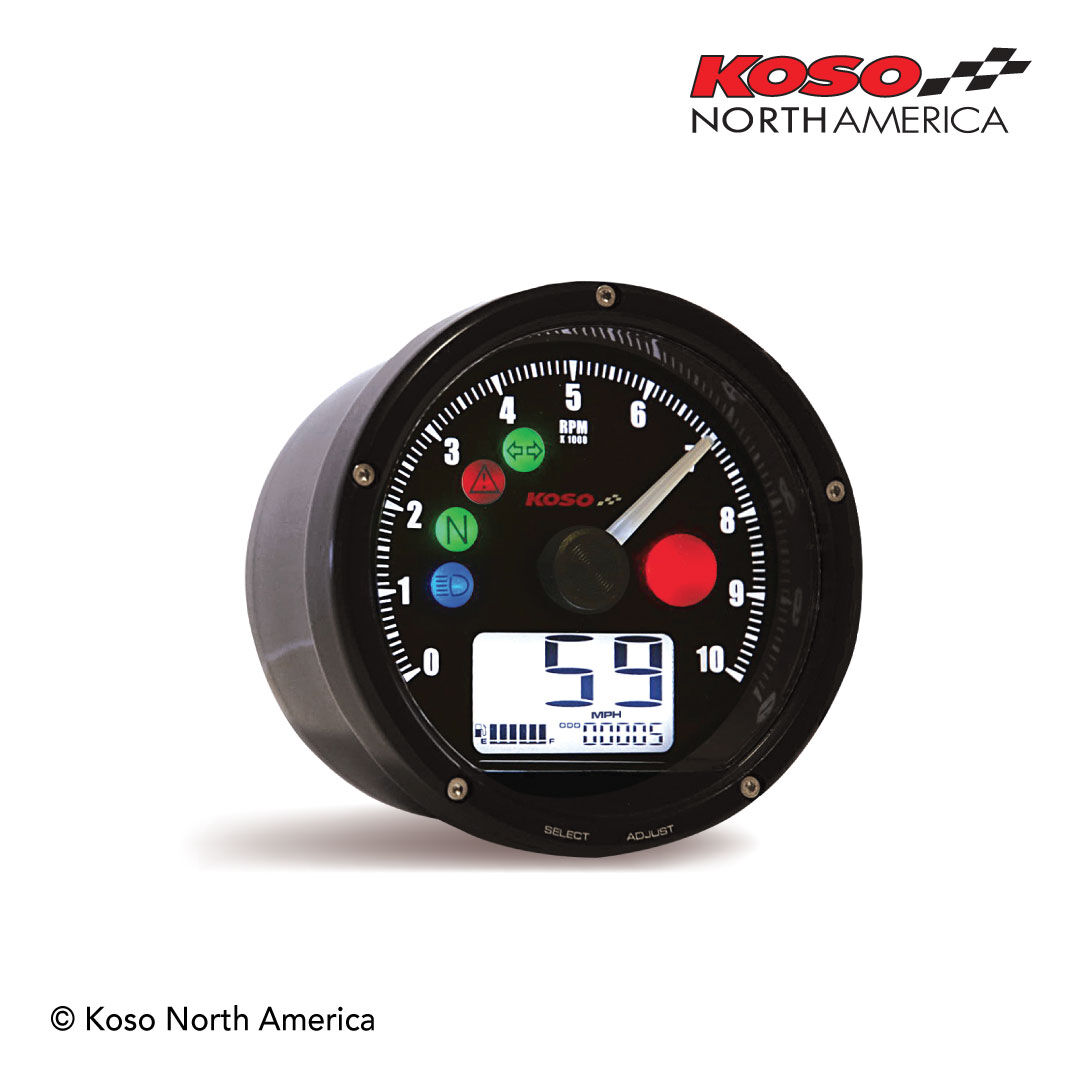

Our TNT‑01 multifunction meter is perfect for all the Café racers and special projects. The TNT‑01 meter uses a stepper motor for a fast and smooth response. The instrument features many functions such as, speed, odometer, tripmeter, RPM, fuel meter, clock, voltage, shift light, indicator lights and more… This meter is available in black or white face and includes the installation brackets and speed sensor.

Specifications (R= Range U=Unit)

Speedometer
R: 0 ~ 225 MPH (0 ~ 360 km/h)
U: MPH or km/h
Odometer
R: 0 ~ 99,999 miles (km)
U: 1 mile (km)
Tripmeter A/B
R: 0 ~ 999.9 miles (km)
U: 0.1 mile (km)
Tire circumference
R: 300 ~ 2,500 mm | U: 1 mm
Sensitive point: 1 ~ 20
Tachometer
R: 0~10,000 RPM
Shift‑light
R: 8,000 ~ 10,000 RPM | U: 100 RPM
Warning (shift light)
R: Light on (F‑OFF), Flash (F‑ON)
RPM input signal number
R: 0.5, 1 ~ 24
RPM input pulse
R: HI‑ACT (positive wave pulse)
LO‑ACT (negative wave pulse)

Fuel meter
R: 6 levels | U: 1 level = 16.6 %
Effective temperature range
14 ~ 140 °F (‑10 ~ 60 °C)
Fuel resistance
R: 100 Ω / 250 Ω / 510 Ω / 1,200 Ω / SW
Clock
R: 24 H format
Volt meter
R: DC 8 ~ 18 V | Flashing Warning light
(< DC 11.5 V or > DC 15.5 V).
Backlight brightness
R: 1/5 (darkest) ~ 5/5 (brightest)
Indicator lights
Neutral / High beam / Turn signals /
Check engine / Oil level / Temperature /
Speeding / RPM shift light
Effective voltage
DC 12 V
Sensor included
Active speed sensor : BF019005

Instructions

Download PDF
