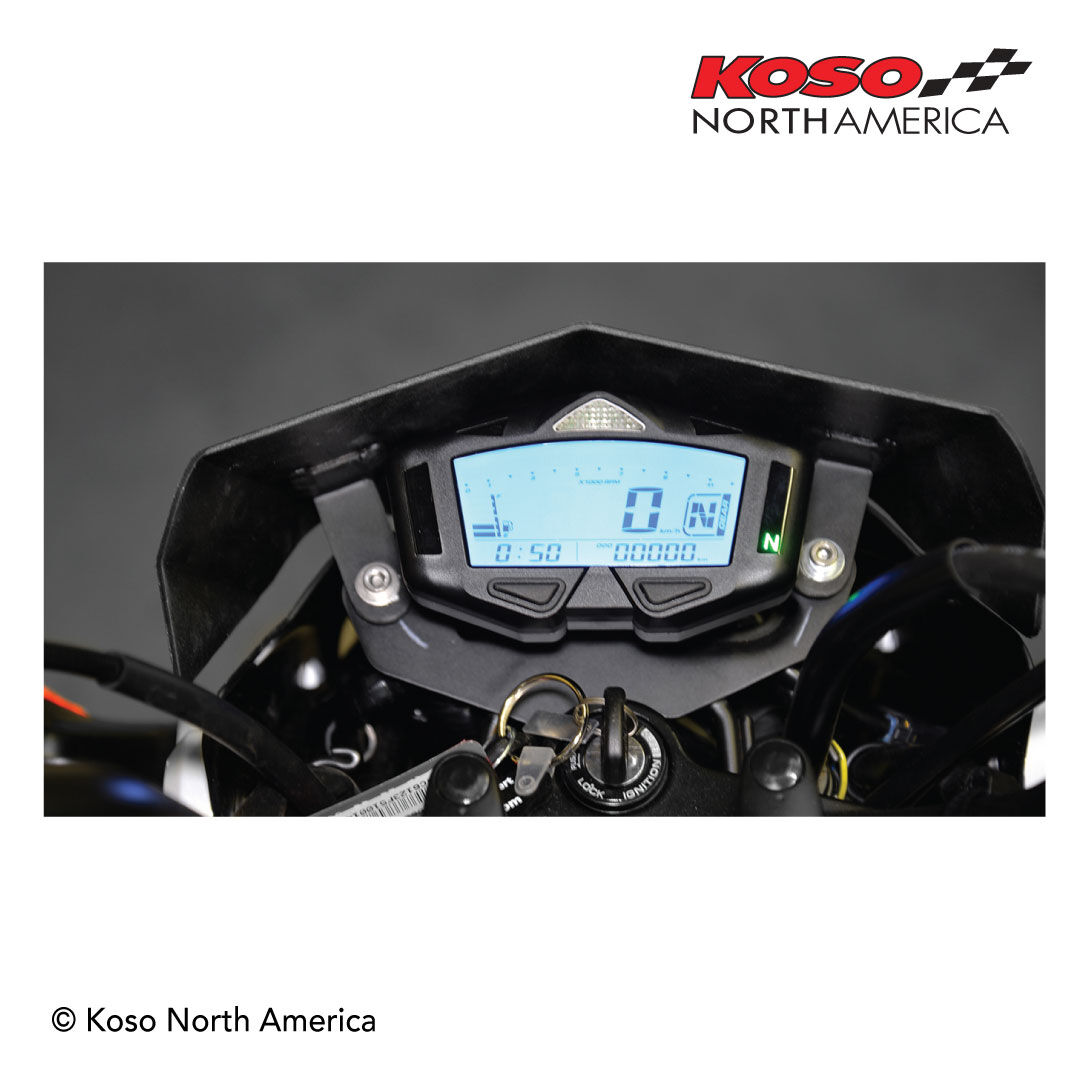

Specifications

(R= Range U=Unit)

• Speedometer
• R: 0 ~ 225 MPH (0 ~ 360 km/h U: MPH or km/h
• Odometer
  R: 0 ~ 99,999 miles (km) | U: 1 mile (km)
• Tripmeter A/B
  R: 0 ~ 999.9 miles (km) | U: 0.1 mile (km)
• Total hour meter R: 0 ~ 99,999 H | U: 1 H
• Hour meter A/B
  R: 0 ~ 999.9 H | Unit: 0.1 H
• Tire circumference
  R: 300 ~ 2,500 mm | U: 1 mm Sensitive point: 1 ~ 20
• Tachometer R:
  10,000 RPM (1 level = 166 RPM)
  12,000 RPM (1 level = 200 RPM)
  15,000 RPM (1 level = 250 RPM)

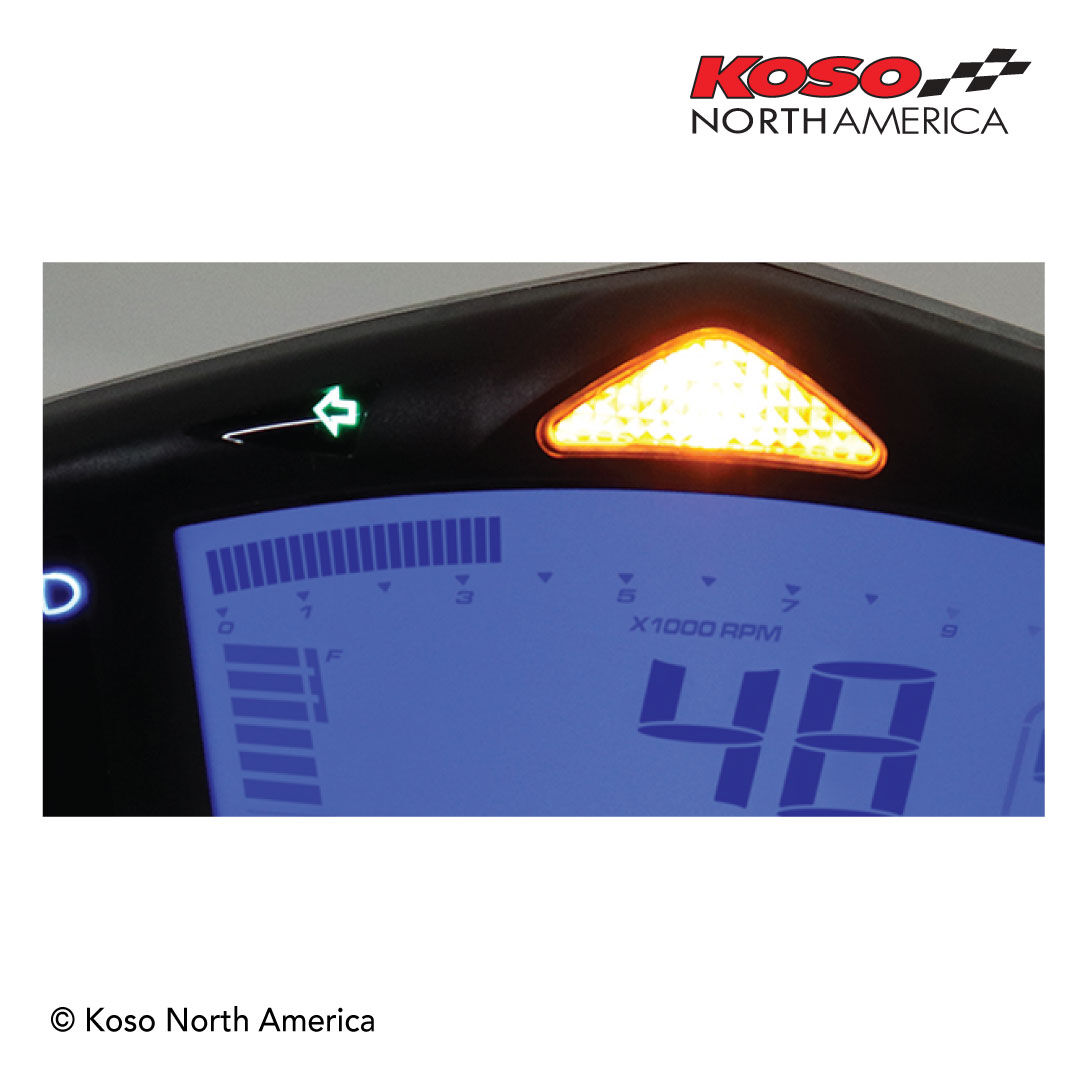

• RPM warning / shift‑light
  R: 1,000 ~ 15,000 RPM | U : 100 RPM
• Warning
  Light on (F‑OFF) | Flash (F‑ON)

• Maximum RPM record
  R: 0 ~ 10,000 / 12,000 / 15,000 RPM
• RPM input signal number setting
  R: 0.5, 1 ~ 24
• RPM input pulse
  R: HI‑ACT (positive wave pulse)
  LO‑ACT (negative wave pulse)
• Volt meter
  R: DC 8 ~ 18 V
  Flashing warning when voltage is lower than DC 11.5 V or higher than DC 15.5 V
• Thermometer
  R: 32 ~ 482 °F (0 ~ 250 °C) U: 0.1 °F or °C (alternative)
• Over temperature warning
  R: 140 ~ 482°F (60 ~ 250°C) | U: 1°F (°C)
• Top temperature record
  R: 0 ~ 482°F (250°C)
• Fuel meter
  R: 6 levels | U: 1 level = 16.6 %
• Fuel resistance
  R: 100 Ω / 250 Ω / 510 Ω / 1,200 Ω / SW

• Clock
  R: 24 H format
• Backlight brightness
  R: 1/5 (darkest) ~ 5/5 (brightest)

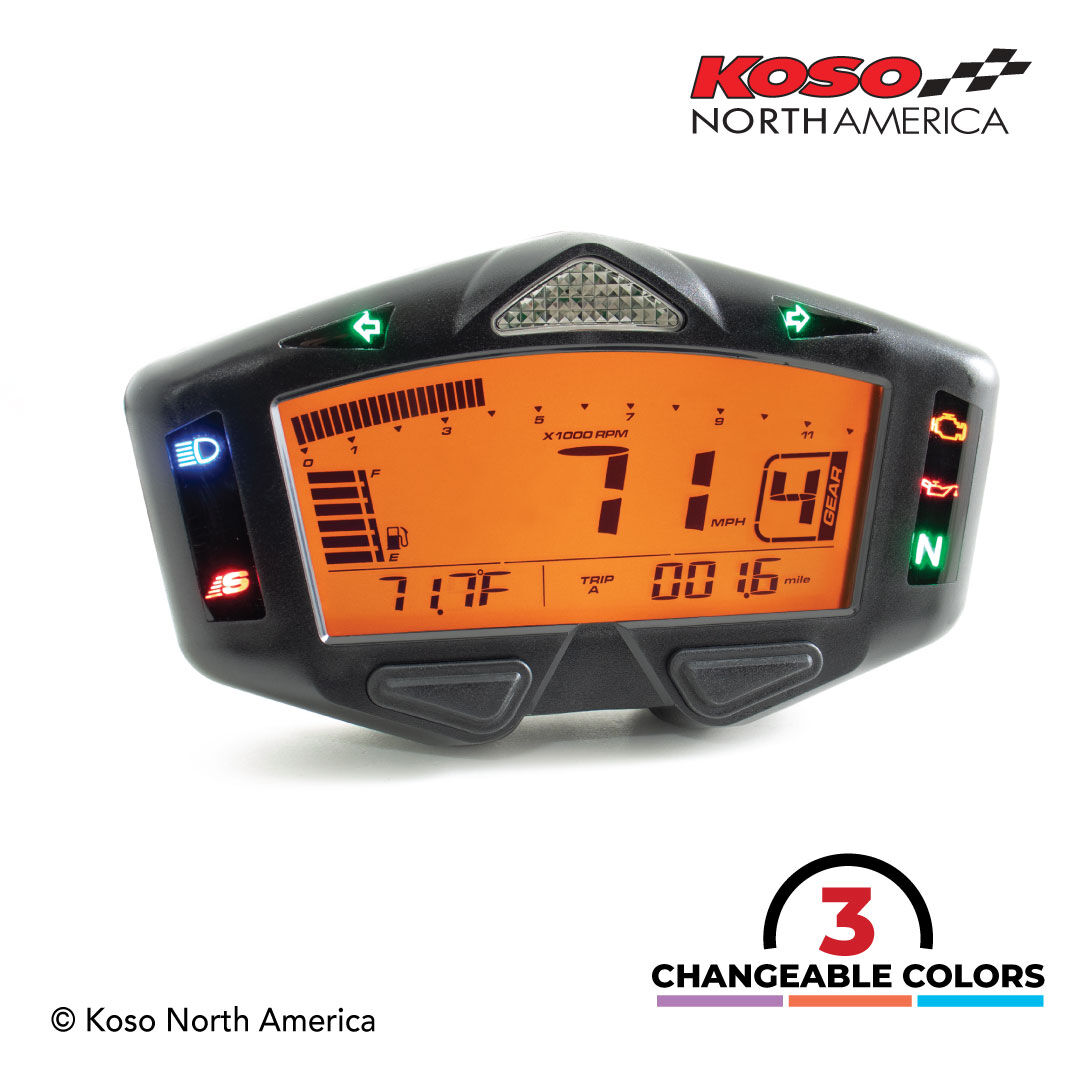

• Backlight colors

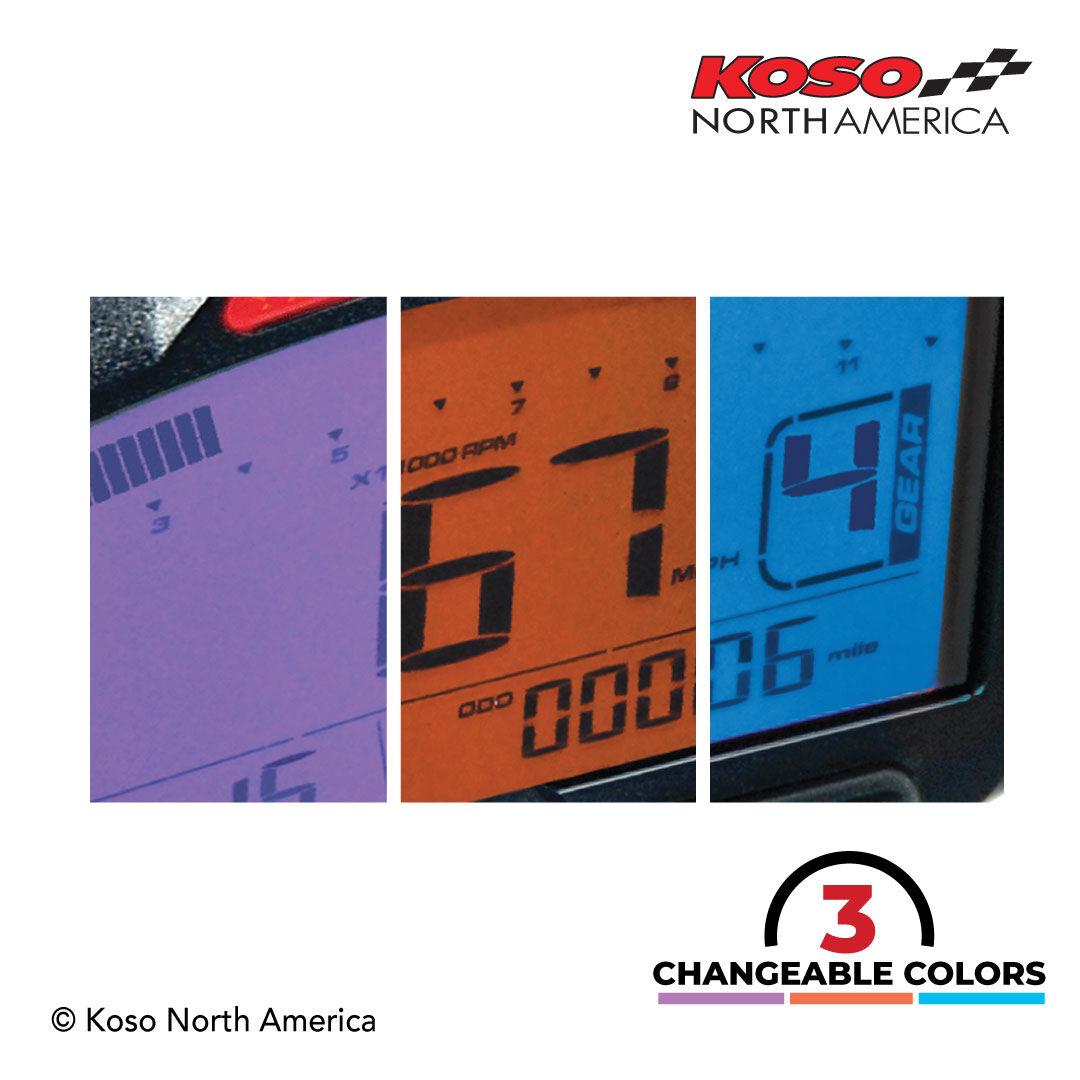

  Blue / Orange / Purple
• Indicator lights
  Neutral / High beam / Turn signals/ Check engine Oil level / Temperature / Speeding / RPM shift light
• Gear indicator
  R: N, 1, 2, 3, 4, 5, 6, 7, 8, 9
• Effective temperature range
  14 ~ 140 °F (‑10 ~ 60 °C)
• Effective voltage
  DC 12 V

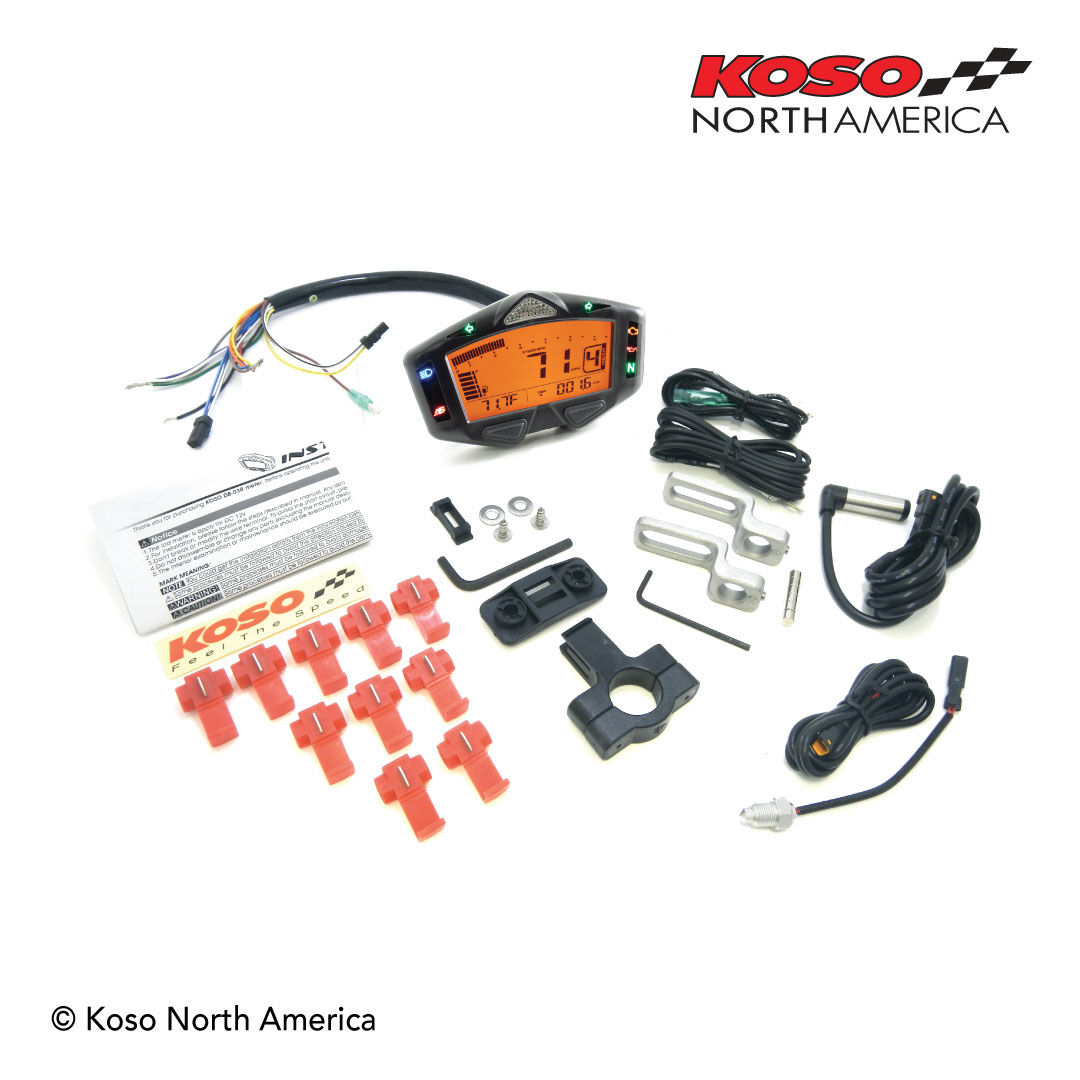

• Sensor included
  Passive speed sensor: BF019J06
  Temperature sensor: BF030000
• Meter standard
  JIS D 0203 S2
• Meter size (W x L x H)
  120 X 68.5 X 44.1 mm
• Meter weight
  ±127.3 g
