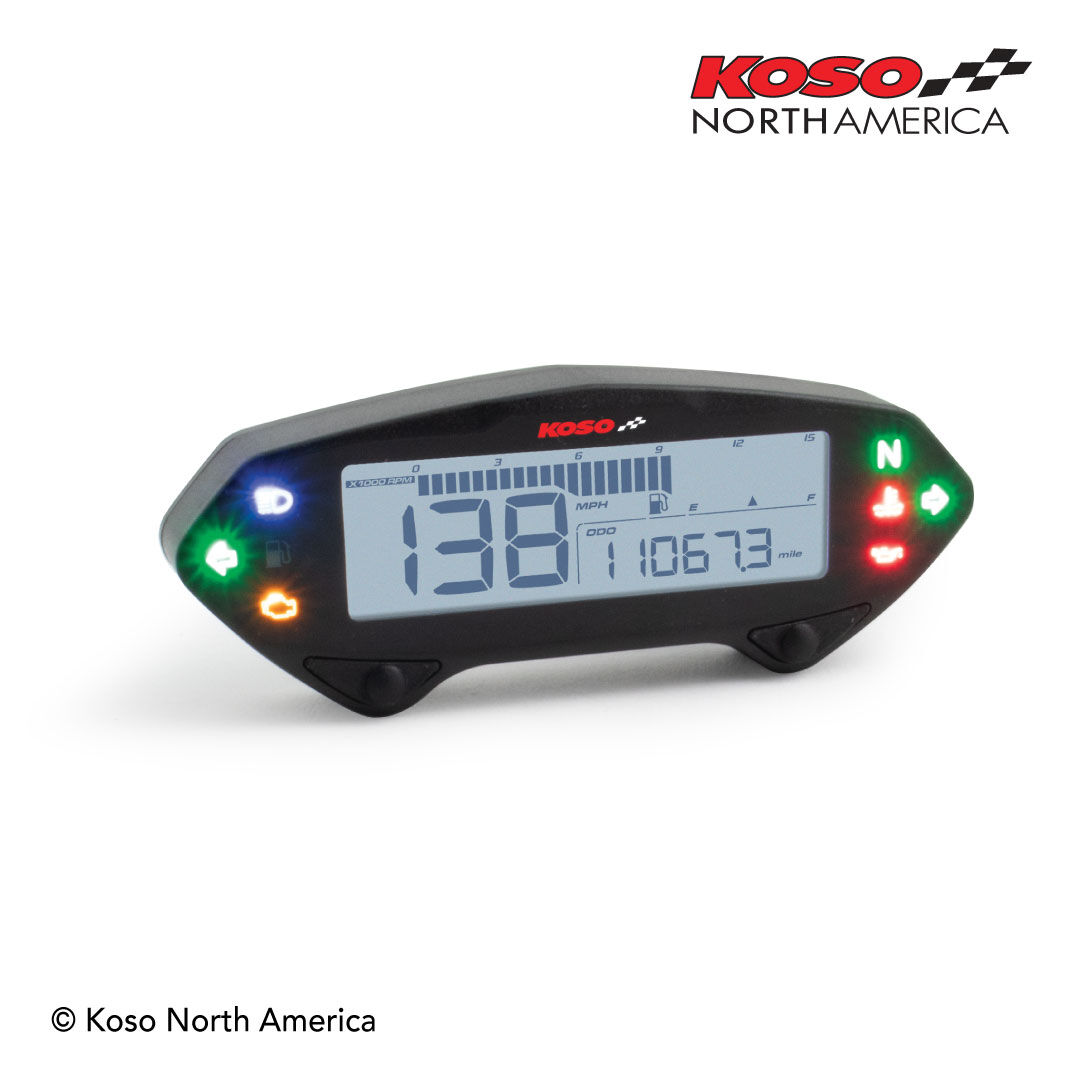

KOSO DB-01RN Multifunction Motorcycle Meter

The KOSO DB-01RN Multifunction Meter is a compact and comprehensive digital instrument designed to look great on a wide variety of motorcycles. Combining a large, easy-to-read display with an extensive range of functions, the DB-01RN provides essential riding information in one stylish and user-friendly unit.

From speed and RPM to fuel level, voltage, maintenance intervals and riding statistics, the DB-01RN delivers an impressive range of information at a glance. Its versatile design makes it an excellent choice for custom motorcycles, street bikes and other applications where a compact multifunction instrument is required.

Features

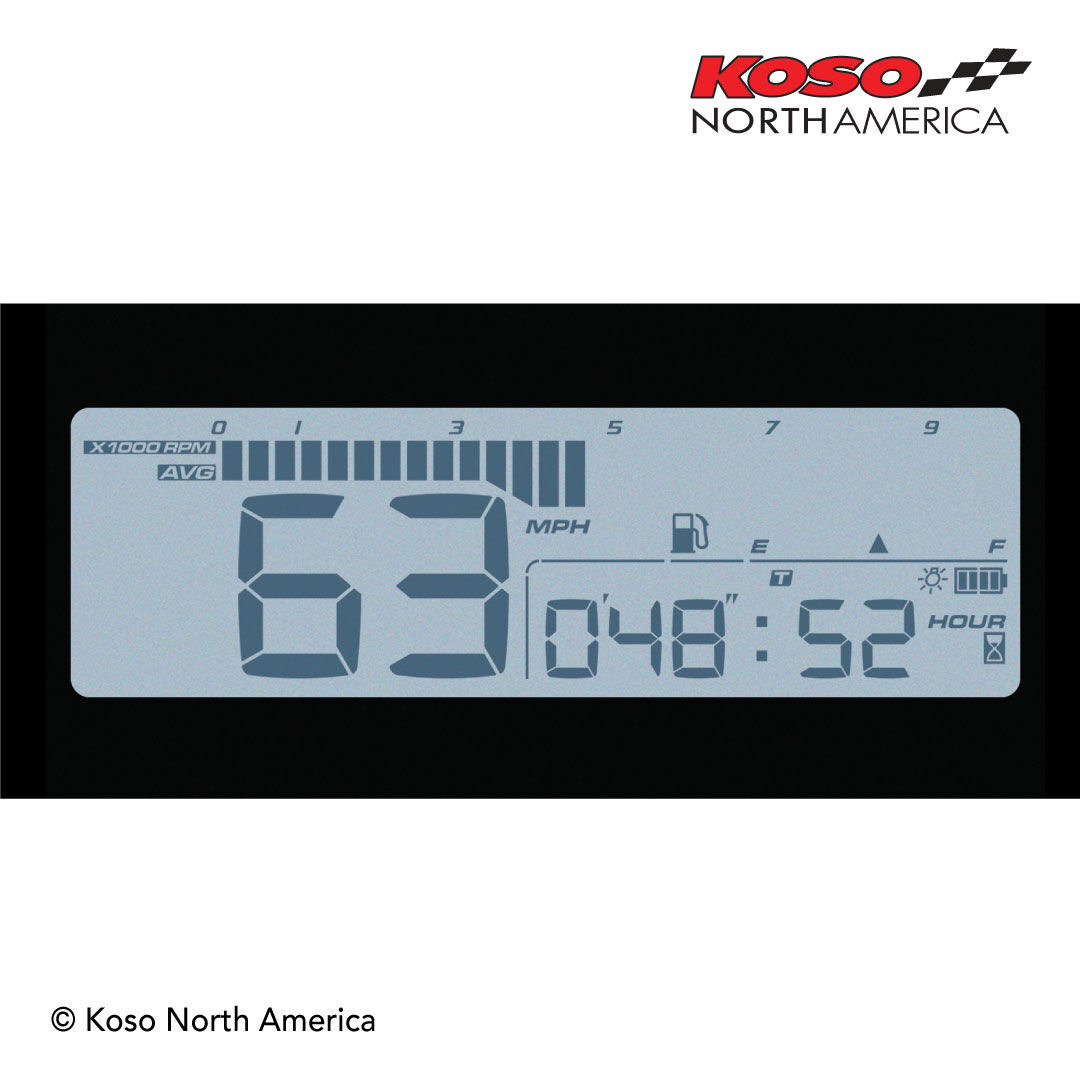

• Large, easy-to-read multifunction digital display.
• Speedometer with selectable MPH or km/h display.
• Internal and external odometers.
• Dual Trip A/B meters.
• Digital tachometer with maximum RPM recording.
• Top and average speed recording.
• Programmable speeding warning.
• Oil maintenance mileage reminder.
• Total and dual Trip A/B hour meters.
• Staged and digital fuel level display.
• Multiple fuel resistance settings for broad compatibility.
• Integrated voltmeter.
• 12-hour or 24-hour clock.
• Multiple warning and indicator lights.
• Adjustable tyre circumference and speed sensor settings.

Speedometer & Distance Functions

• Speedometer Range: 0-225 MPH / 0-360 km/h
• Speedometer Resolution: 1 MPH / 1 km/h
• Internal Odometer: 0-99,999 miles / km, 1 mile / km resolution (not user adjustable)
• External Odometer: 0-99,999 miles / km, 1 mile / km resolution
• Tripmeter A/B: 0-999.9 miles / km, 0.1 mile / km resolution
• Top Speed Record: 0-225 MPH / 0-360 km/h
• Average Speed Record: 0-225 MPH / 0-360 km/h
• Speed Warning: Adjustable from 20-110 MPH / 30-180 km/h

Tachometer Functions

• Tachometer Range: 0-15,000 RPM
• Digital Tachometer Resolution: 10 RPM
• Maximum RPM Record: 0-15,000 RPM
• Level Tachometer Options: 0-10,000 RPM, 0-12,000 RPM or 0-15,000 RPM
• RPM Input Signal: P-0.5, P-1 to P-25
• RPM Input Pulse: HI-ACT positive wave pulse or LO-ACT negative wave pulse

Fuel Functions

• Staged Fuel Level: 10 levels with programmable low-fuel warning.
• Digital Fuel Level: 0-100%.
• Low Fuel Warning: Adjustable from 10-50% in 10% increments.
• Fuel Resistance Settings: 100Ω / 250Ω / 270Ω / 510Ω / 1200Ω / Switch / User-defined.

Maintenance & Hour Meter Functions

• Oil Maintenance Interval: Adjustable from 300-5,000 miles / 500-8,000 km.
• Total Hour Meter: Up to 99,999.9 hours with 0.1-hour resolution.
• Hour Meter A/B: Up to 9,999.9 hours.

Additional Functions

• Voltmeter: DC 8-16 V.
• Clock: Selectable 12-hour or 24-hour format.
• Tyre Circumference Setting: 300-2,500 mm in 1 mm increments.
• Speed Sensor Points: Adjustable from 1-20.
• Indicator Lights: Neutral, high beam, turn signals, check engine, oil level, water temperature and low fuel.

Specifications

• Operating Voltage: DC 12 V
• Operating Temperature Range: -10°C to 60°C (14°F to 140°F)

With its extensive range of functions, flexible configuration options and compact modern design, the KOSO DB-01RN is an excellent all-in-one instrument solution for riders looking to upgrade or customise their motorcycle's dashboard.
