Koso meters are designed to give riders clear, reliable information in a compact and modern display, making them a smart upgrade for both custom builds and everyday motorcycles.

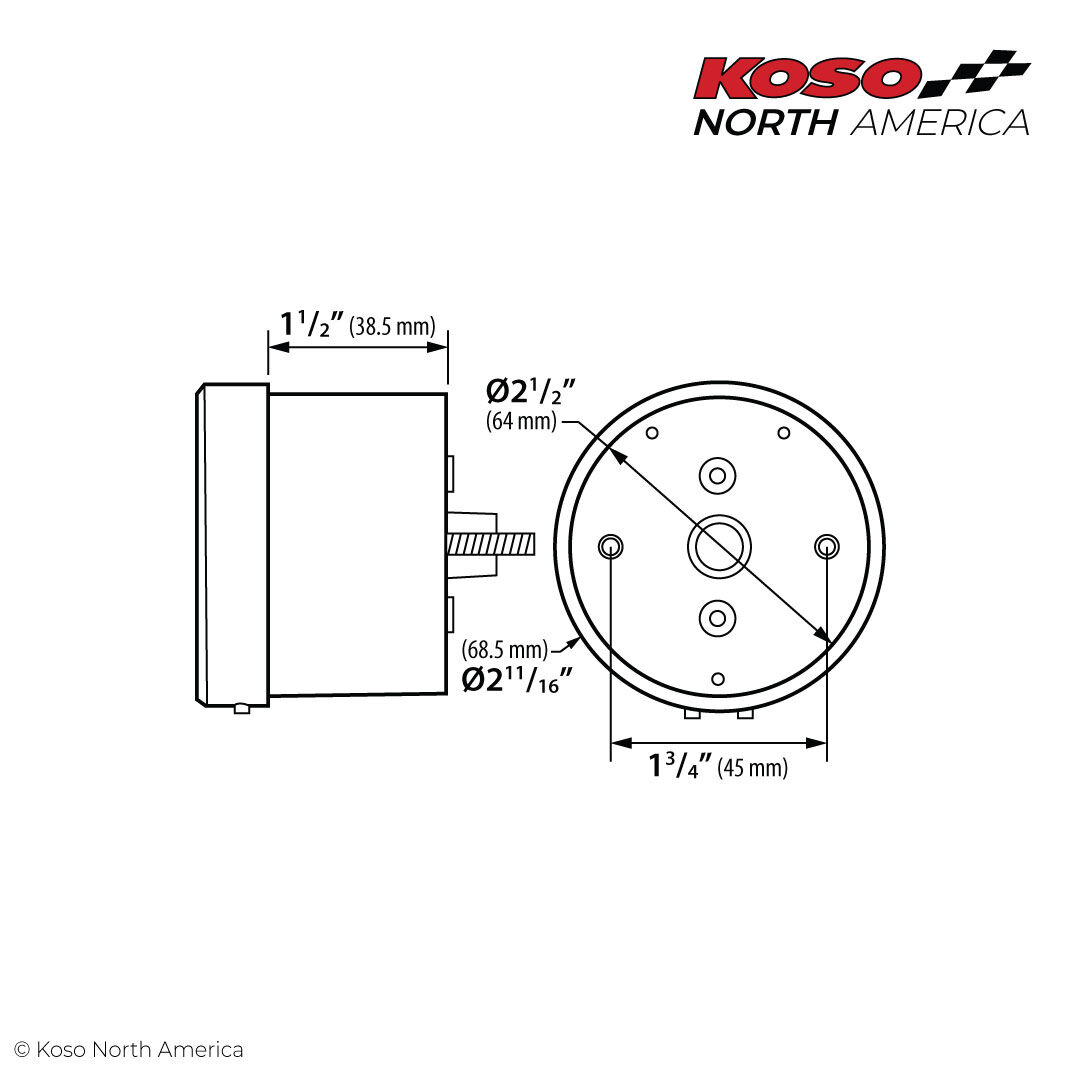

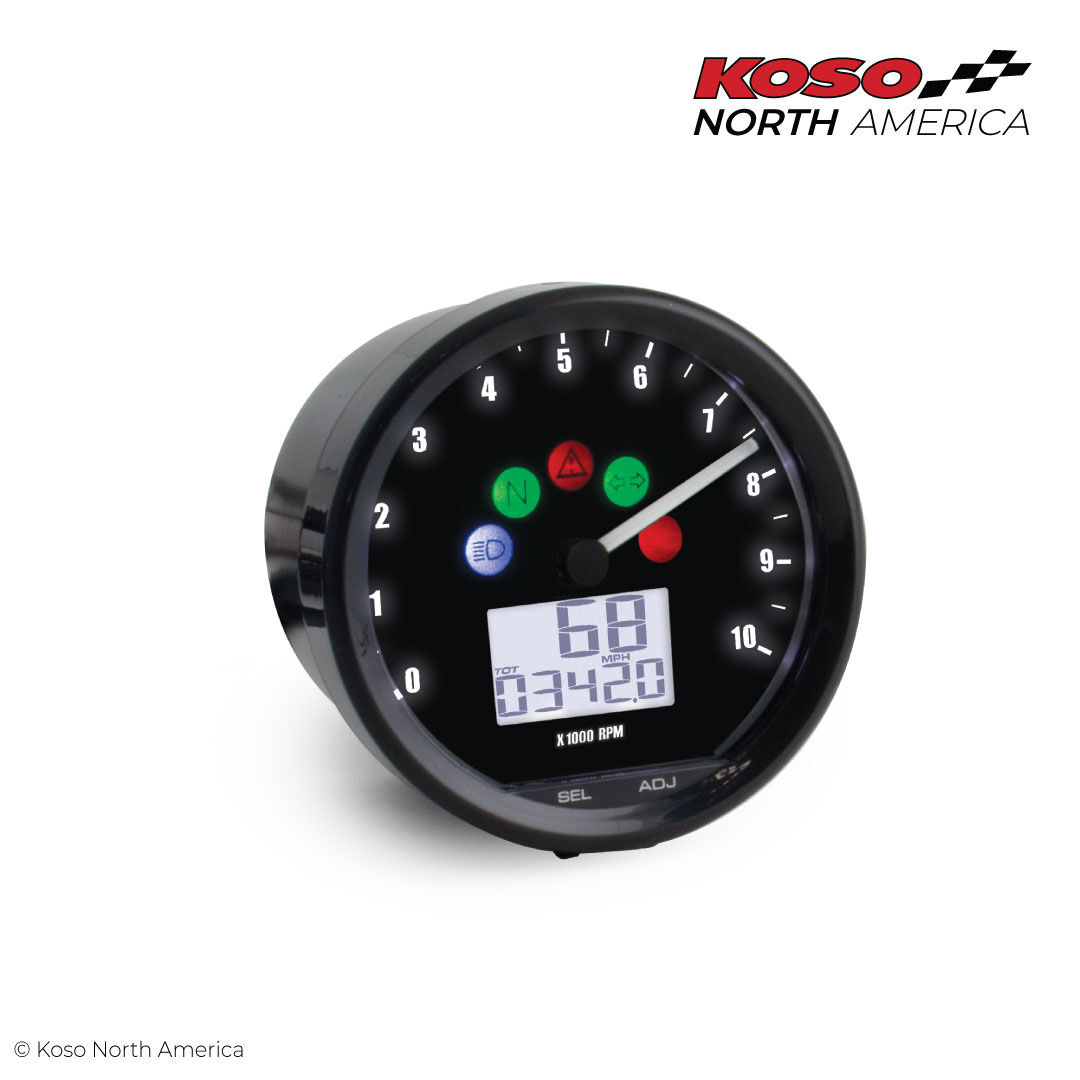

With its vintage look, our TNT‑02 is the perfect meter for all Café racers and special project bikes that require a small multifunction meter. This 64 mm instrument is a smaller version of our popular TNT‑01 and it has the same features such as; speedometer, odometer, tripmeter, tachometer, fuel meter, clock, shift light and indicator lights.

• Clear speed and distance information
• Tachometer/RPM information for performance monitoring
• Easy-to-read display with backlight functionality
• Temperature monitoring where supported
• Voltage monitoring where supported

Specifications

• Speedometer Range: 0 ~ 225 MPH (0 ~ 360 km/h) | Unit: MPH or km/h.
• Odometer Range: 0 ~ 99,999 miles (km) | | Unit: 1 mile (km)
• Tripmeter A/B Range: 0 ~ 999.9 miles (km) | | Unit: 0.1 mile (km)
• Tire circumference Range: 300 ~ 2,500 mm | | Unit: 1 mm Sensitive point: 1 ~ 20.
• Tachometer Range: 0~10,000 RPM.
• Shift‑light Range: 5,000 ~ 20,000 RPM | | Unit: 100 RPM.
• Warning (shift light) Range: Light on (F‑OFF), Flash (F‑ON)
• RPM input signal number Range: 0.5, 1 ~ 6.
• RPM input pulse Range: HI‑ACT (positive wave pulse) LO‑ACT (negative wave pulse)
• Fuel meter Range: 0 ~ 100% | | Unit: 1 %
• Clock Range: 24 H format.
• Backlight brightness Range: 1/5 (darkest) ~ 5/5 (brightest)
• Indicator lights Neutral / High beam / Turn signals / Warning / RPM shift light.
• Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C)
• Effective voltage DC 12 V.

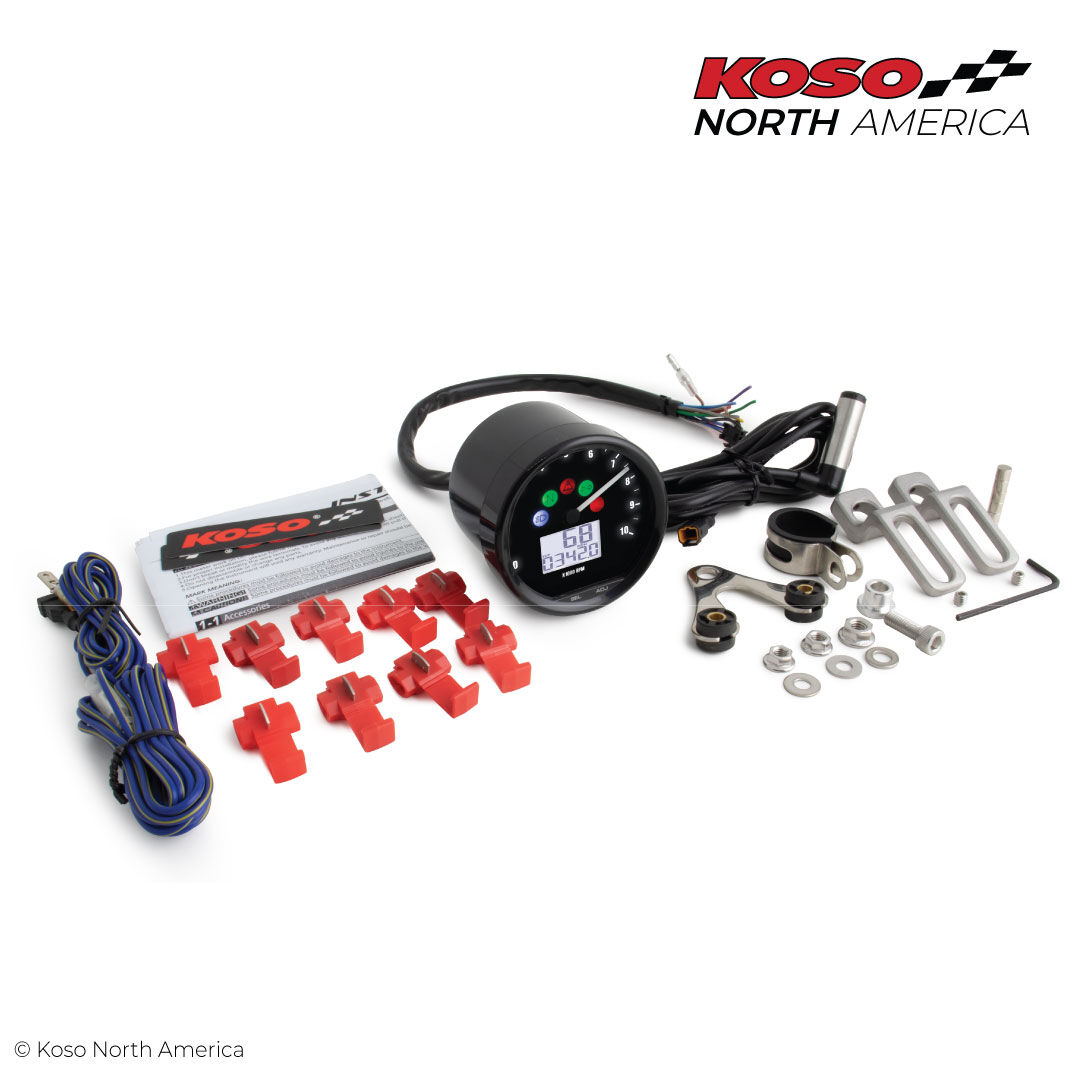

• Sensor included Active speed sensor : BF019005.
