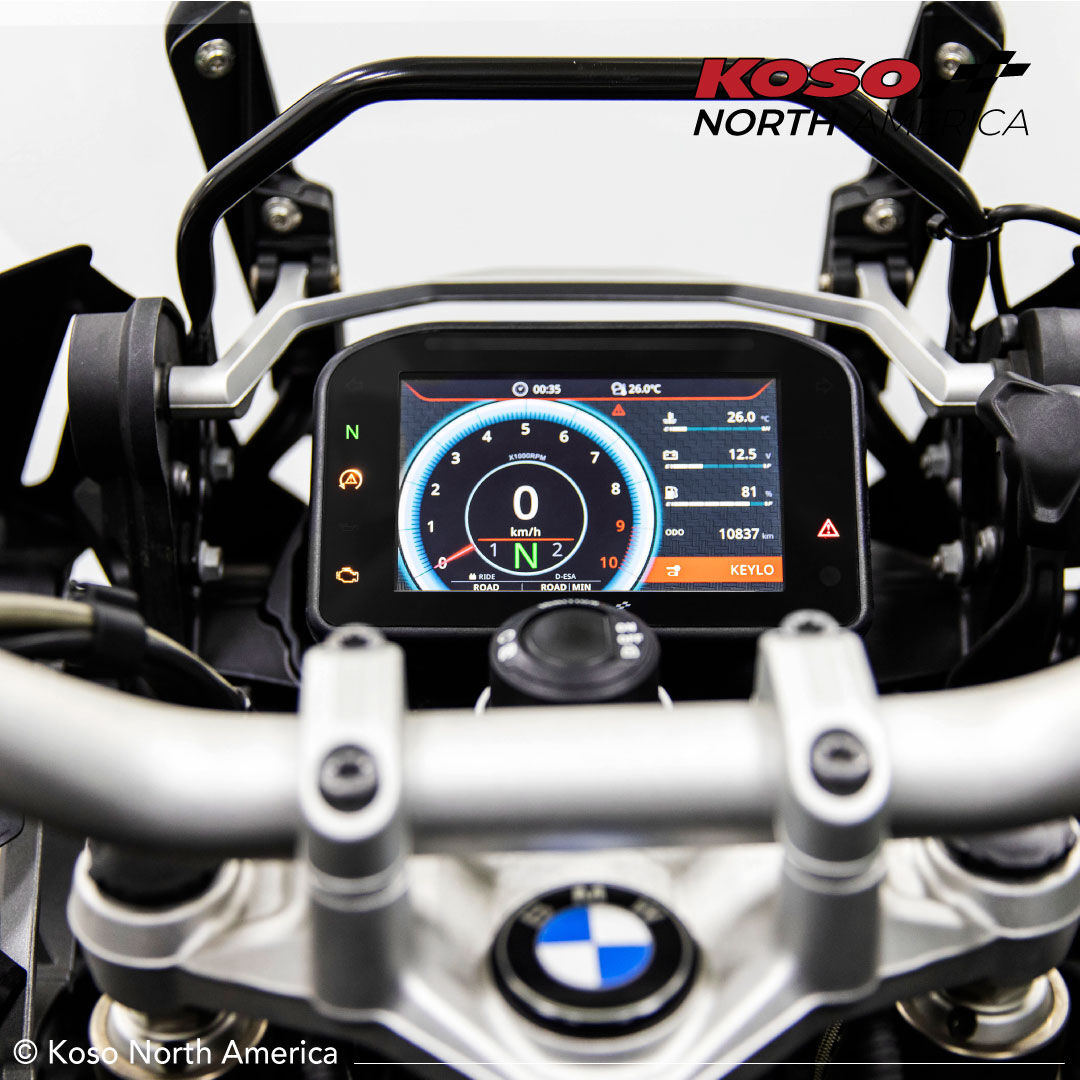

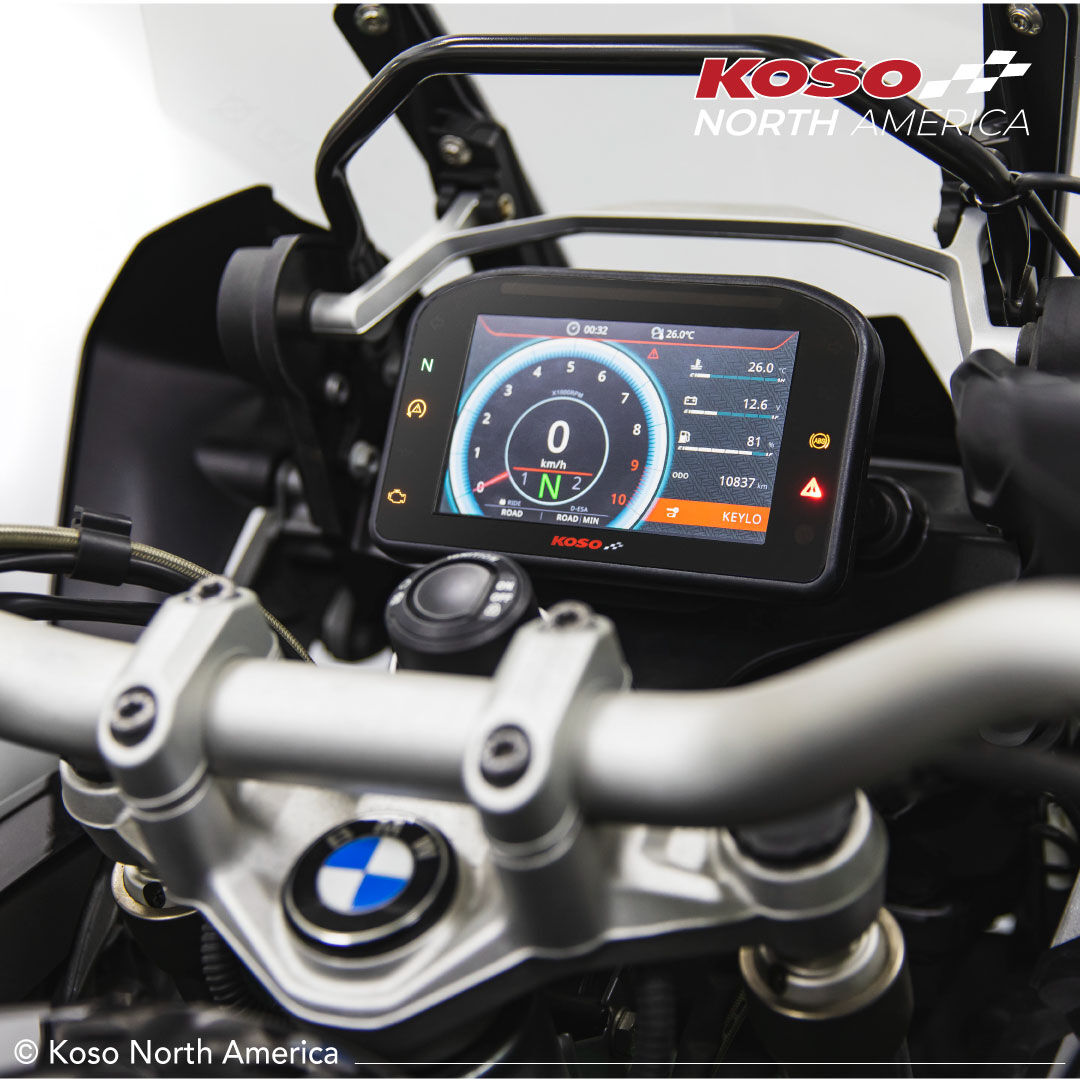

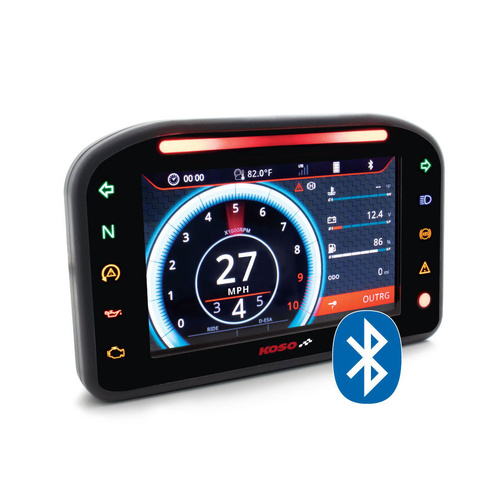

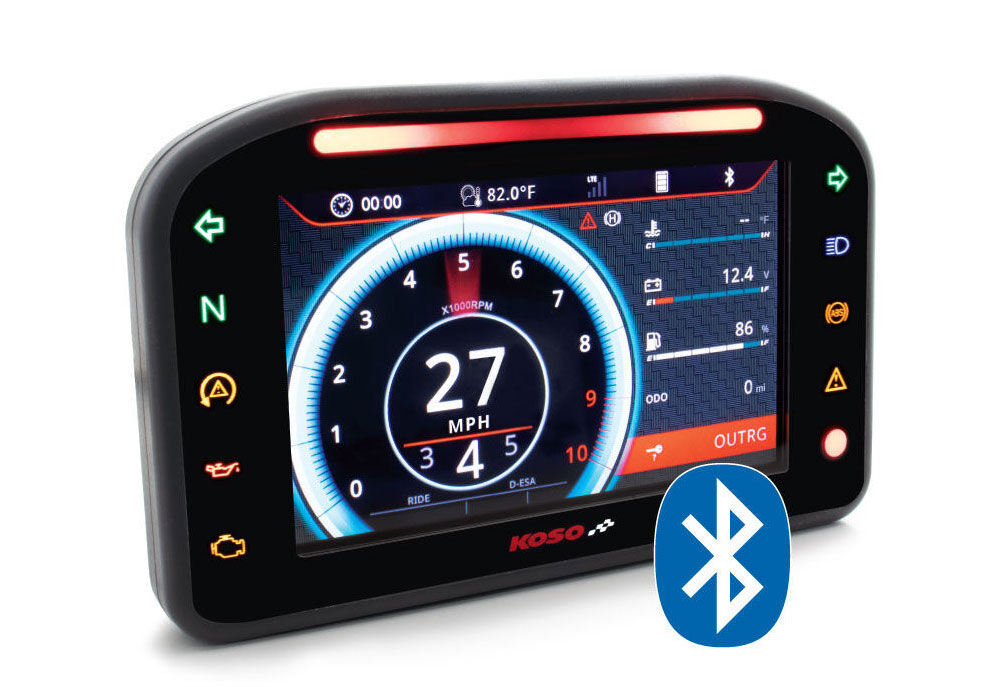

The Koso RX-5 multifunction TFT meter is a modern, plug-and-play upgrade designed specifically for the BMW® R1200GS. Featuring a wide, high-resolution TFT display, it delivers excellent visibility and an innovative, contemporary look that far surpasses standard OEM instrumentation.

Easy to install and intuitive to use, the RX-5 connects to your smartphone via Bluetooth®, allowing you to view incoming calls, navigation information, estimated arrival times and more directly on the display. With comprehensive ride data, multiple indicators and smart connectivity, it provides everything you need at a glance.

From speed and RPM to fuel level, riding mode and system warnings, the RX-5 ensures you stay fully informed whether commuting, touring or riding off-road.

Key Features

• Large TFT display for enhanced clarity and usability

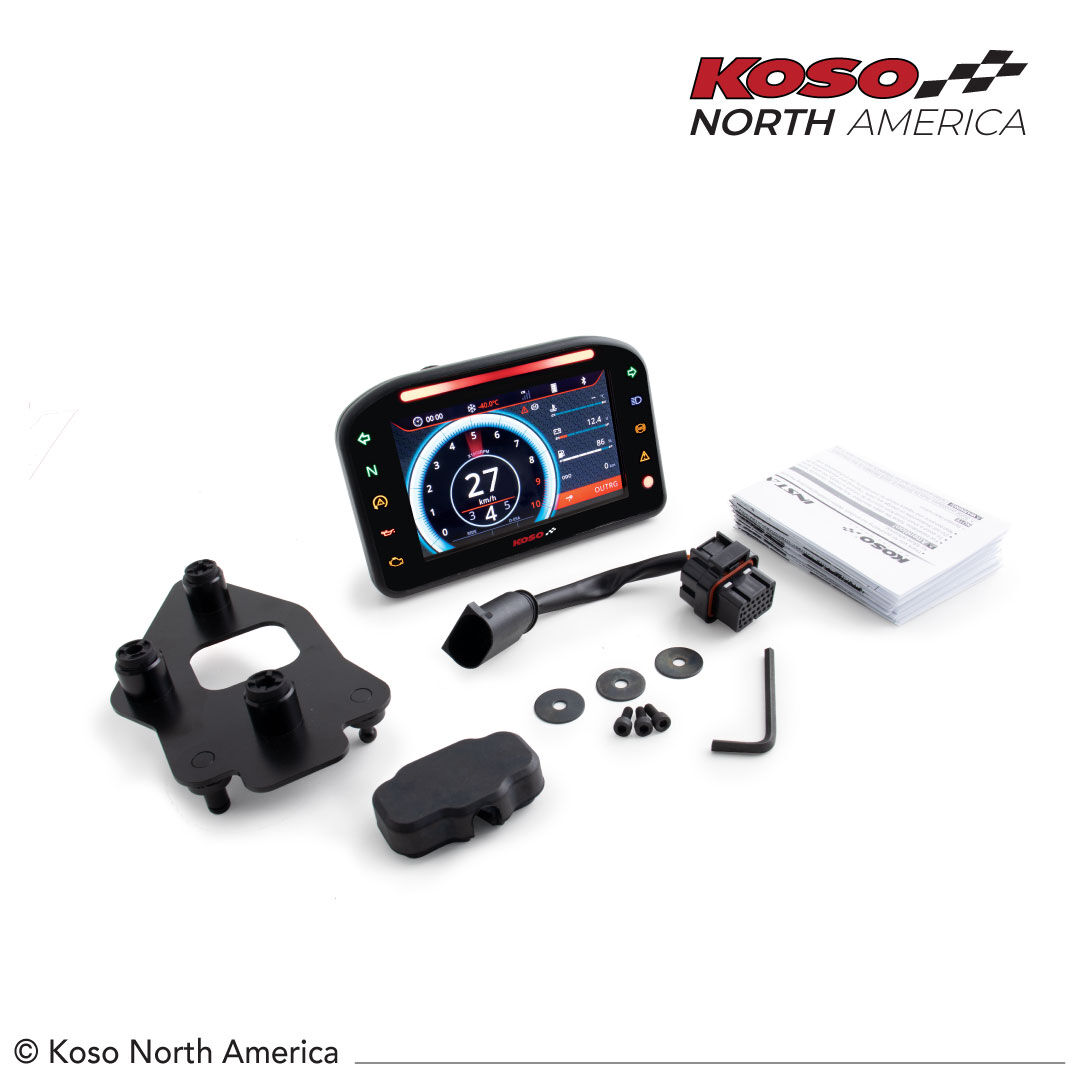

• Plug-and-play installation for BMW® R1200GS
• Bluetooth® connectivity for phone and navigation functions
• Modern design that transforms the cockpit appearance
• Comprehensive real-time riding and system information

Displayed Functions

• Speedometer, odometer, trip meters (1 & 2)
• Tachometer, shift light and max RPM display
• Fuel level, voltage and clock
• Riding modes: Rain, Road, Dynamic, Enduro, Enduro Pro, Dynamic Pro
• Gear indicator and max gear record
• Air temperature and tyre pressure monitoring
• Heated grip status
• Incoming call display and phone battery indicator
• Estimated arrival time and navigation prompts (Android only)

Indicator Lights

• Left & right indicators
• Neutral
• High beam
• ABS
• ASC
• Check engine
• Engine oil level warning
• RPM shift light
• Composite warning indicator

Technical Specifications

• Speedometer: 0–360 km/h (1 km/h increments)
• Odometer: up to 999,999 km
• Trip meters: up to 9,999.9 km
• Tachometer: 0–10,000 RPM
• Shift light: Adjustable from 2,000–10,000 RPM
• Fuel gauge: 0–100%
• Air temperature: −39.5 °C to 87 °C
• Voltage display: DC 8.0–18.0 V
• Tyre pressure: up to 3.5 bar
• Clock: 12 h or 24 h format
• Operating voltage: DC 12 V

Connectivity & Compatibility

• Bluetooth®: Displays call information and navigation data
• Android: Navigation, estimated arrival time and turn-by-turn supported
• iOS: Basic connectivity supported (navigation not supported)

Backlight & Display Modes

• Automatic brightness adjustment based on ambient light
• Manual Day and Night display modes

Environmental Limits

• Operating temperature: −20 °C to 85 °C
• Storage temperature: −30 °C to 90 °C

Installation Instructions (PDF)
