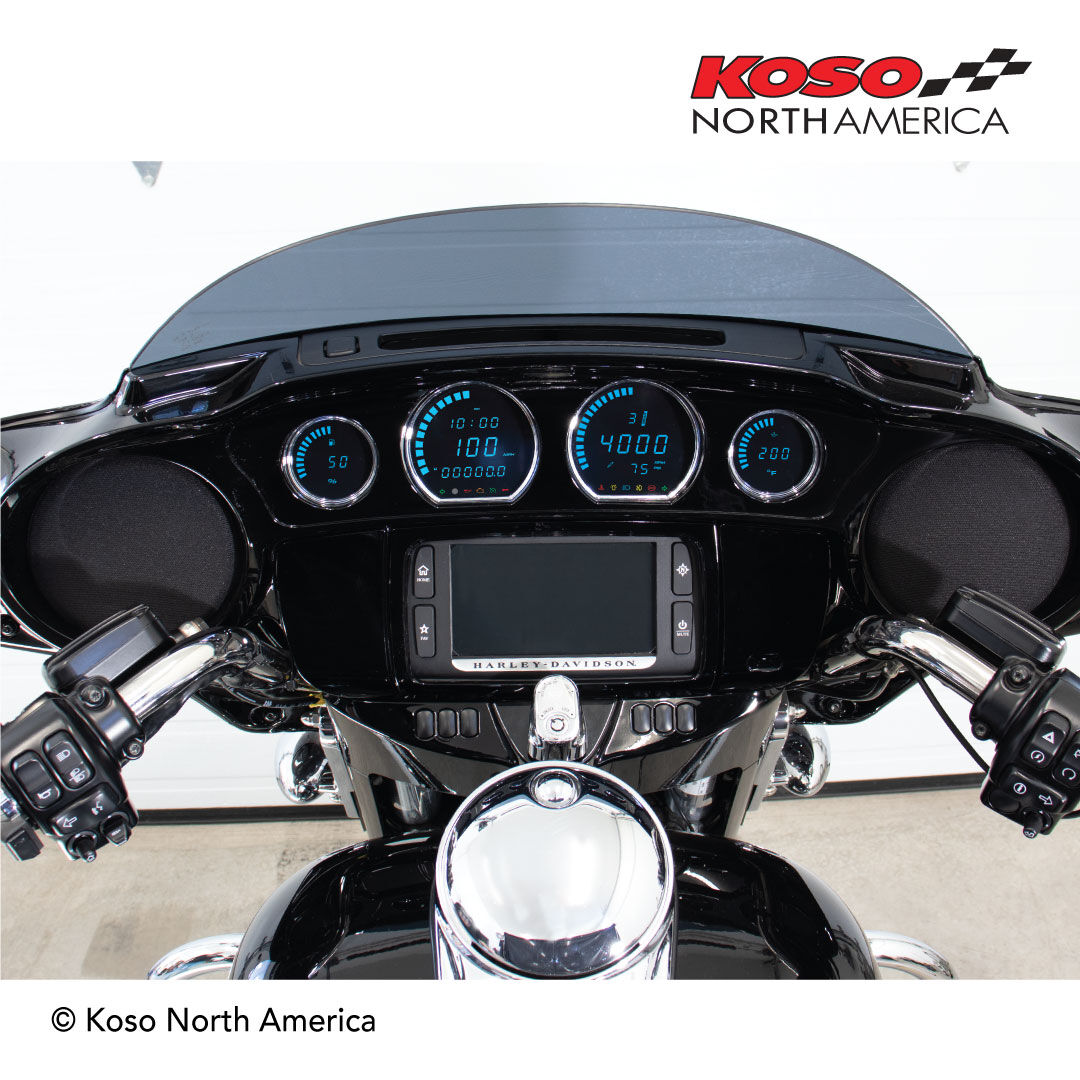

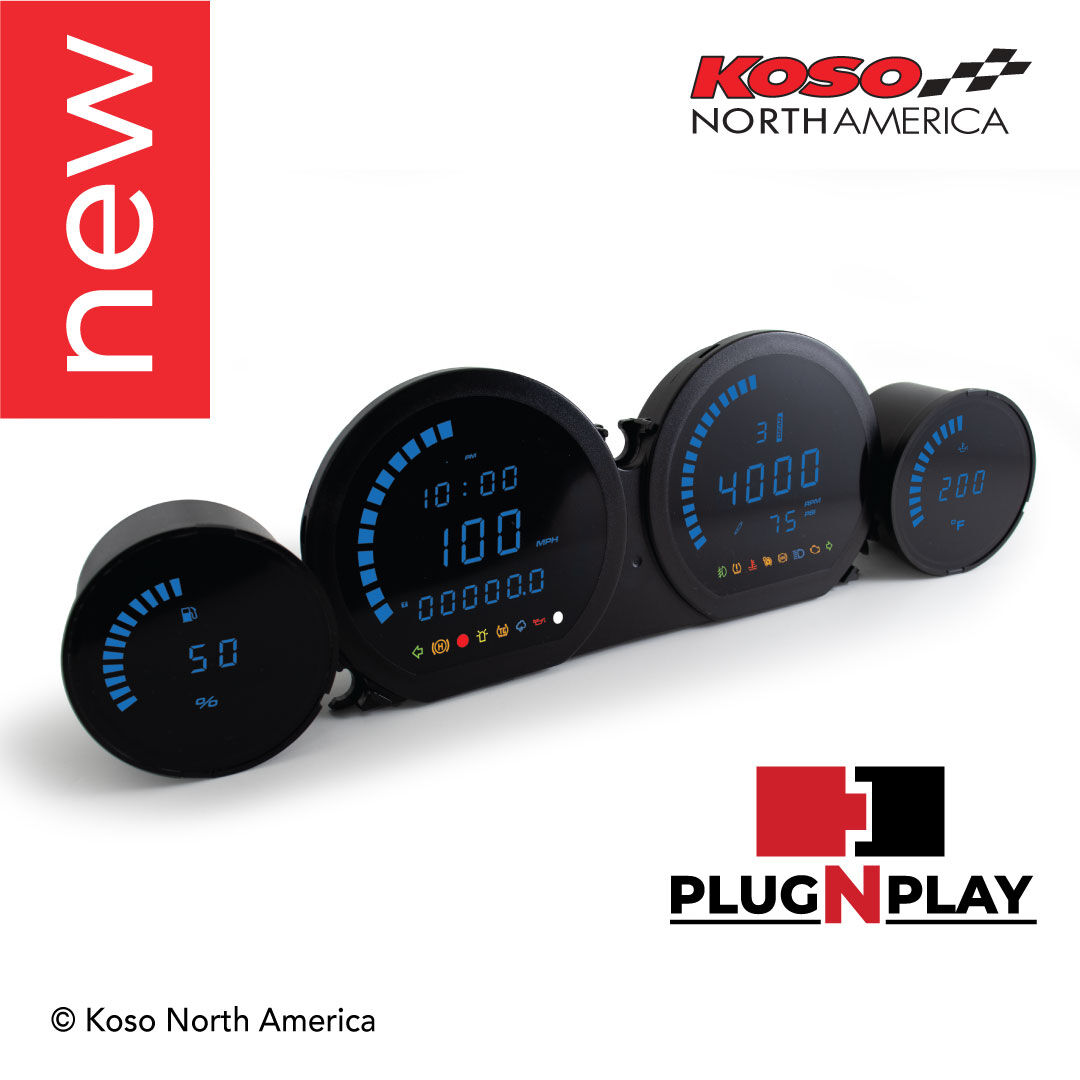

For the Harley enthusiasts, we decided to release the updated Baggers meter kit for touring models 2014 to 2023. This plug & play LED kit from Koso is now available to replace the stock meters without any hassle! There is no need to drill holes or to rewire the meters, they will fit directly in the OEM dash and connectors. This kit features a LED display (red or blue) for a custom look to fit your motorcycle. The HD‑03L kit includes a multifunction speedometer, tachometer, volt meter, a fuel level meter and an air suspension meter. If you’re looking to enhance the look of your Harley, Koso has the plug & play solution for you!

  Fitment chart

*To access settings on CVO models, you must turn ON the run/stop switch so that the bike will not turn off. Then you can make your adjustments to the settings on the gauge.

 Specifications
(R= Range U=Unit)

• Tachometer R: 0 ~ 9,999 RPM | U: 10 RPM
• RPM Shift‑light R: 2,000 ~ 8,000 RPM Warning lights on > value
• Maximum RPM R: 0 ~ 8,000 RPM | U: 100 RPM
• Speedometer R: 0 ~ 199 MPH (0 ~ 299 km/h) U: 1 MPH or km/h (alternative)
• Overspeed warning R: 19 ~ 199 MPH (30 ~ 299 km/h) Warning lights on ≥ value
• Maximum speed record R: 0 ~ 199 MPH (0 ~ 299 km/h)
• Odometer R: 0 ~ 999,999 miles (km) | U: 1 mile (km)

• Tripmeter A/B
  R: 0 ~ 9,999.9 miles (km) | U: 0.1 mile (km)
• Mileage maintenance
  R: Off / 300 ~ 10,000 miles
  (500 ~ 16,000 km) ~ -999 miles
  U : 100 miles (km)
• Engine temperature
  R: -40 ~ 300 °F (-40 ~ 572 °C)
• Fuel meter
  R: 0 ~ 100 %
• Fuel warning setting
  • 1-HD Standard
    Flashing LCD when > 211 Ω
    Off LCD when < 187 Ω
  • 2-HD Customize
    Flashing LCD when < 20%
    Off LCD when > 30%
• Fuel tank volume
  OFF / 1 ~ 9.9 US gallons
• Average fuel consumption
  OFF / MPG (US spec) / MPG (UK spec) L/ 100 km / km/L

• Remaining mileage
  R: 0 ~ 6,249 miles ( 0 ~ 9,999 km)
  LO RNG displayed when< 10 miles (16 km)
  U: 1 mile (km)
• Oil temperature meter
  R: 32 ~ 248 °F (0 ~ 400 °C) | U: 1 °F or °C (alt)
• Max. oil temperature record
  R: 32 ~ 248 °F (0 ~ 400 °C)
• Clock
  R: 12 H or 24 H format
• Volt meter
  R: DC 8 ~ 18 V

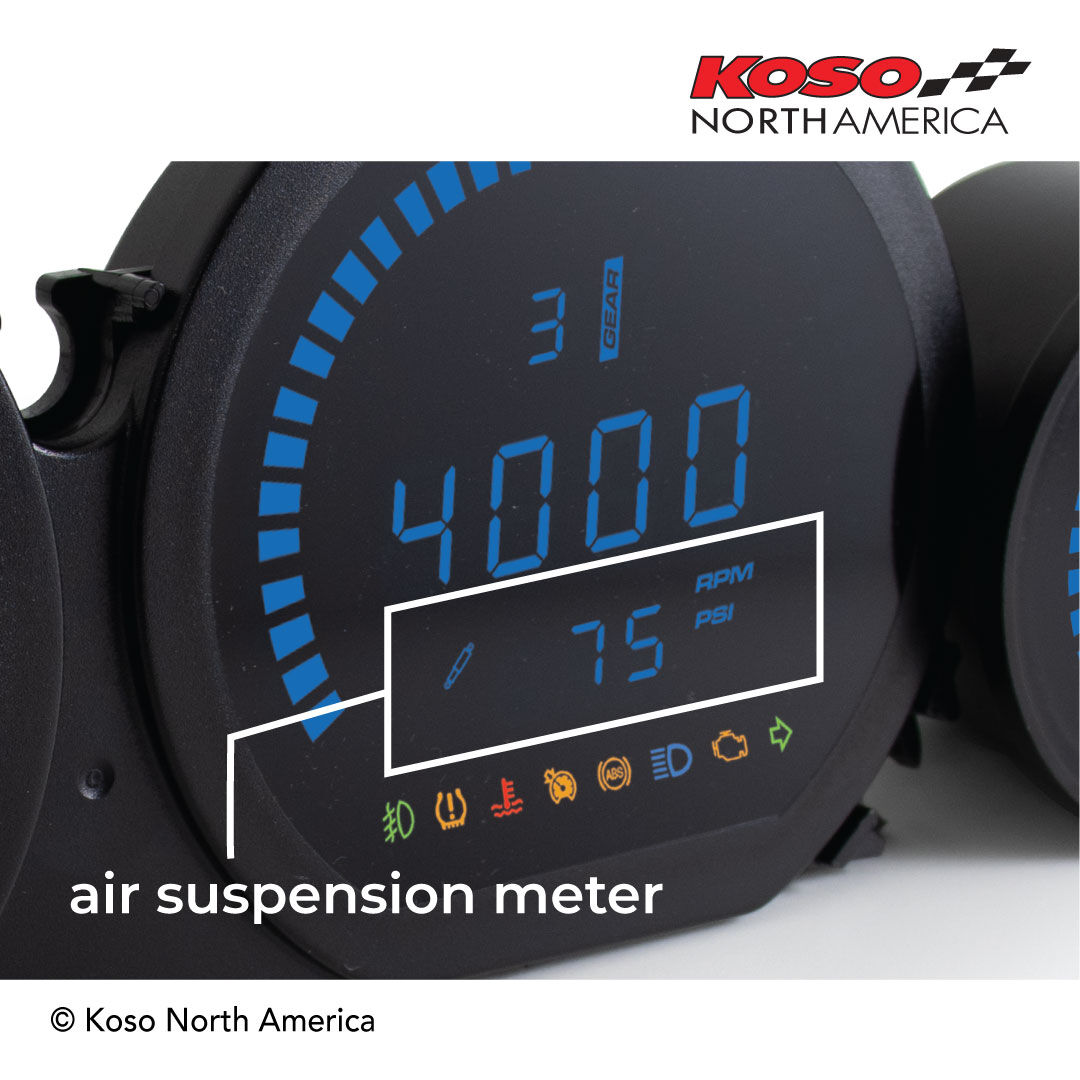

• Air suspension
  R: 0psi ~ 200psi
• Digits brightness
  R: 1/5 (darkest) ~ 5/5 (brightest)

• Indicator lights
  Turn signal / Water temp / Oil pressure / Photometric sensing / Warning light/ Check engine / High Beam / Fog light / Volt / Traction control / Cruise / ABS / Rain mode / Vehicle hold control / Fuel level / Low tire pressure / Security light
• Gear indicator
  OFF, N, P, 1, 2, 3, 4, 5, 6
• Effective temperature range
  14 ~ 140 °F (‑10 ~ 60 °C)
• Effective voltage
  DC 12 V
