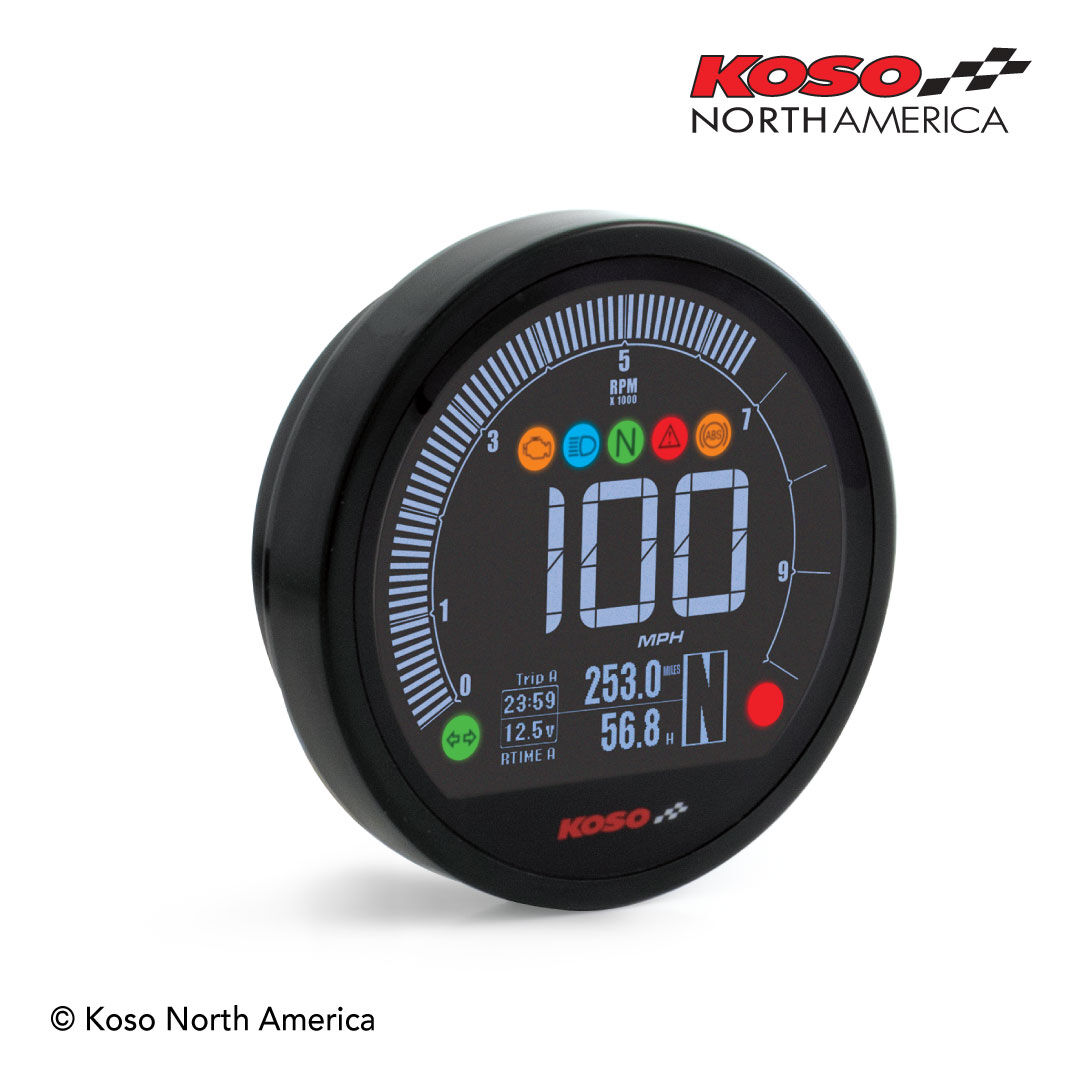

The universal version of the DL-04 gauge has been developed for all our motorcycle lovers. This multifunction meter has a modern negative LCD screen easy to read and which will give an urban look to any bike.

The DL-04 will give you all the information you need and a variety of features such as speed, odometer, tripmeter, hour meter, voltage and clock as well as 6 indicator lights.

 Specifications
(R= Range U=Unit)

• Speedometer
  R: 0 ~ 225 MPH (0 ~ 360 km/h)U: MPH or km/h (alternative)
• Tachometer
  R: 0 ~ 10,000 RPM - 0 ~ 15,000 RPM
• Odometer (internal and external)
  R: 0 ~ 99,999 miles (km) | U: 1 mile (km)
• Tripmeter 1, 2
  R: 0 ~ 9, 999.9 miles (km)
  U: 0.1 mile (km)
• Tripmeter A (Daily riding mileage)
  R: 0 ~ 9, 999.9 miles (km)
  U: 0.1 mile (km)
• Shift light warning
  R: 1,000~10,000 RPM
  U: 100 RPM

• Oil Maintenance
  R: 999~10,000 miles

• Fuel meter
  R: 6 levels
  U: 1 level(16.6 %)
• Fuel resistance
  R: 100 Ω, 250 Ω, 270 Ω, 390 Ω 510 Ω, 1200 Ω, Switch, Custom ,OFF

• Fuel warning setting
  R: 0 ~ 3/6 grid
  U: 1 grid
• Gear indicator
  R: N, 1 ~ 6

• Volt meter
  R: DC 8.0 ~ 18.0 V | U: DC 0.1 V

• Operating voltage
  R: DC 12V

• Clock
  R: 12 or 24 H format

• Temperature
  R: 32 ~ 482 °F (0 ~ 250 °C)

• Backlight brightness
  R: 1 - 5(darkest) ~ 5 - 5 (brightest)
• Indicator lights
  Turn signals / Neutral / Check engine /
  Warning / High beam / ABS /
  Over-running light
