Koso meters are designed to give riders clear, reliable information in a compact and modern display, making them a smart upgrade for both custom builds and everyday motorcycles.

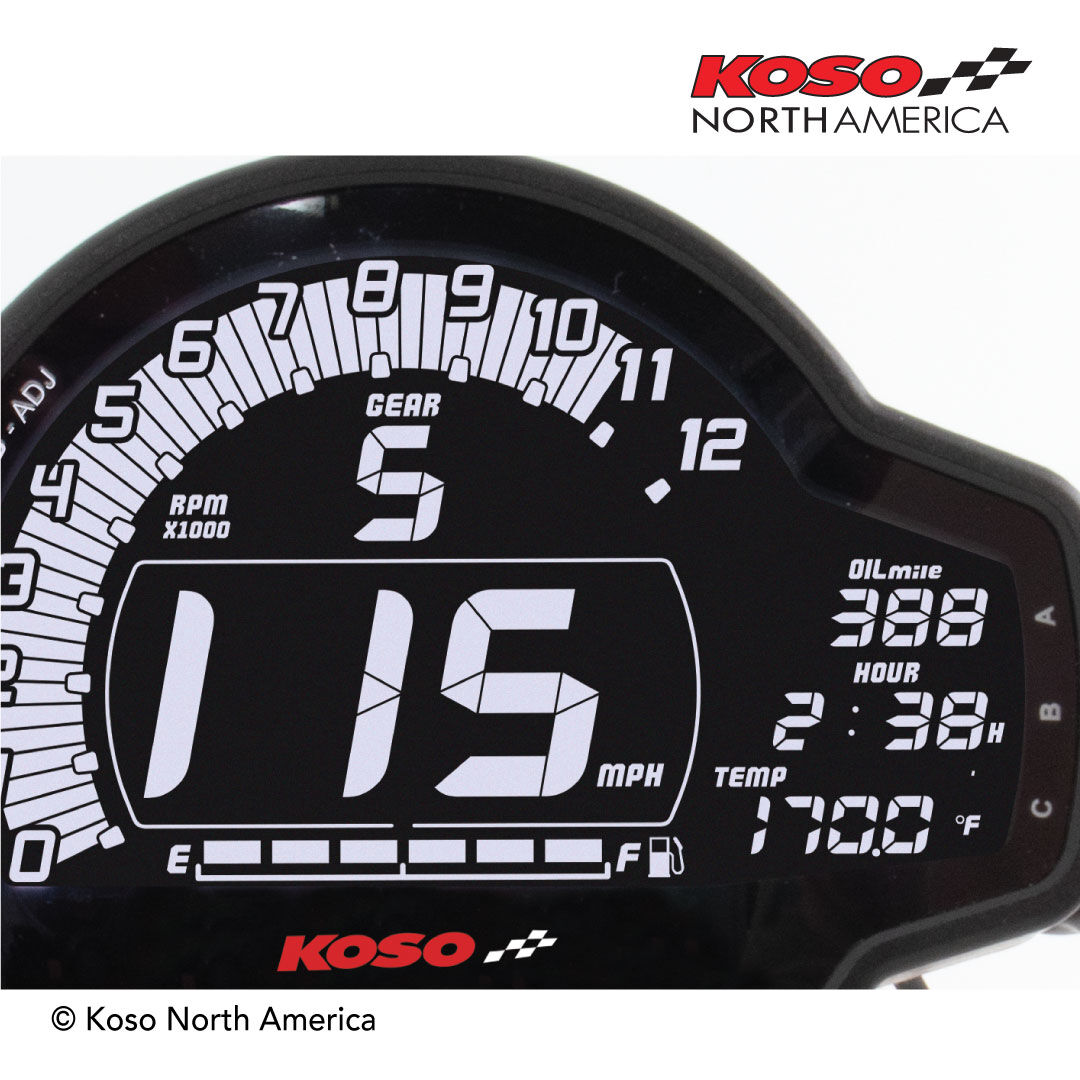

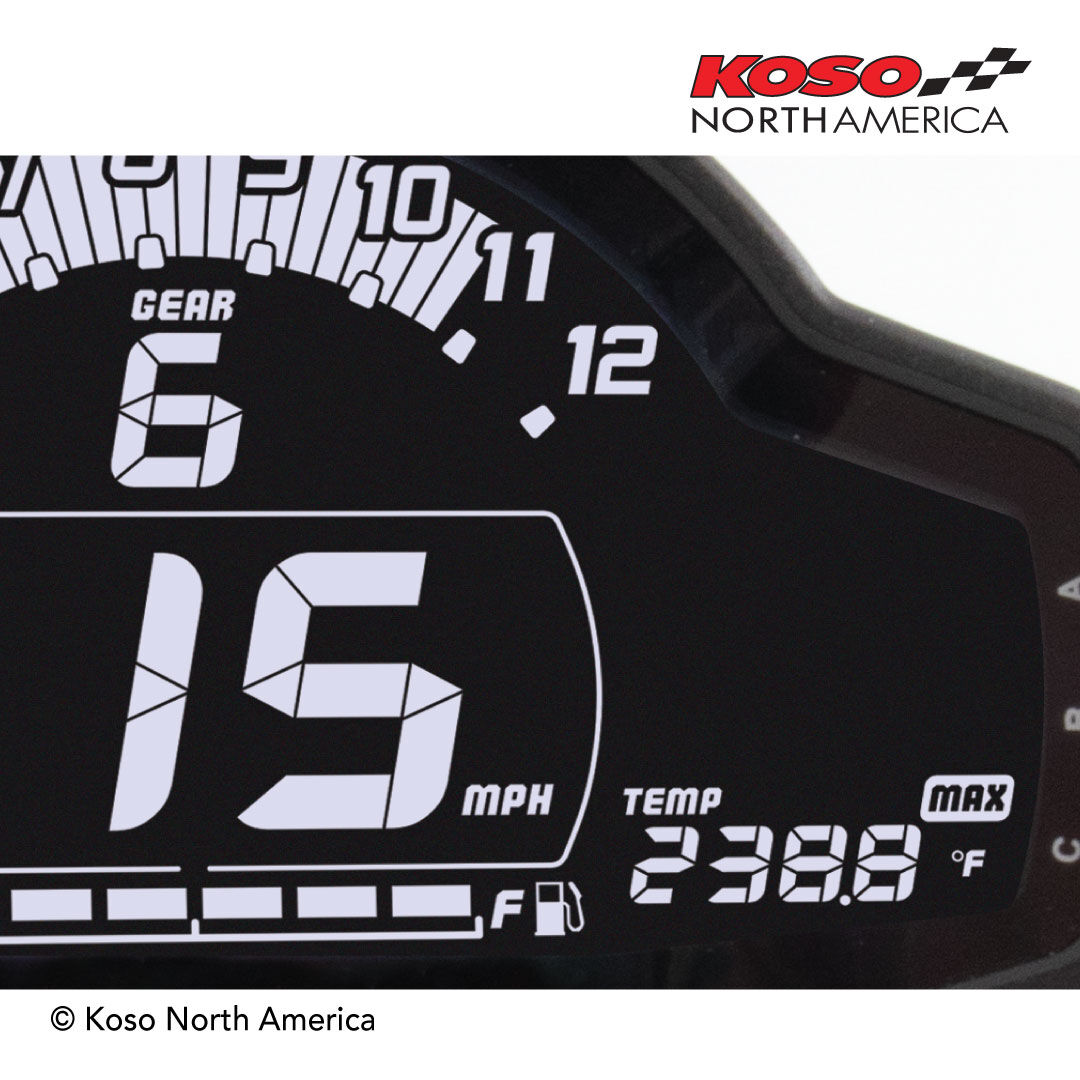

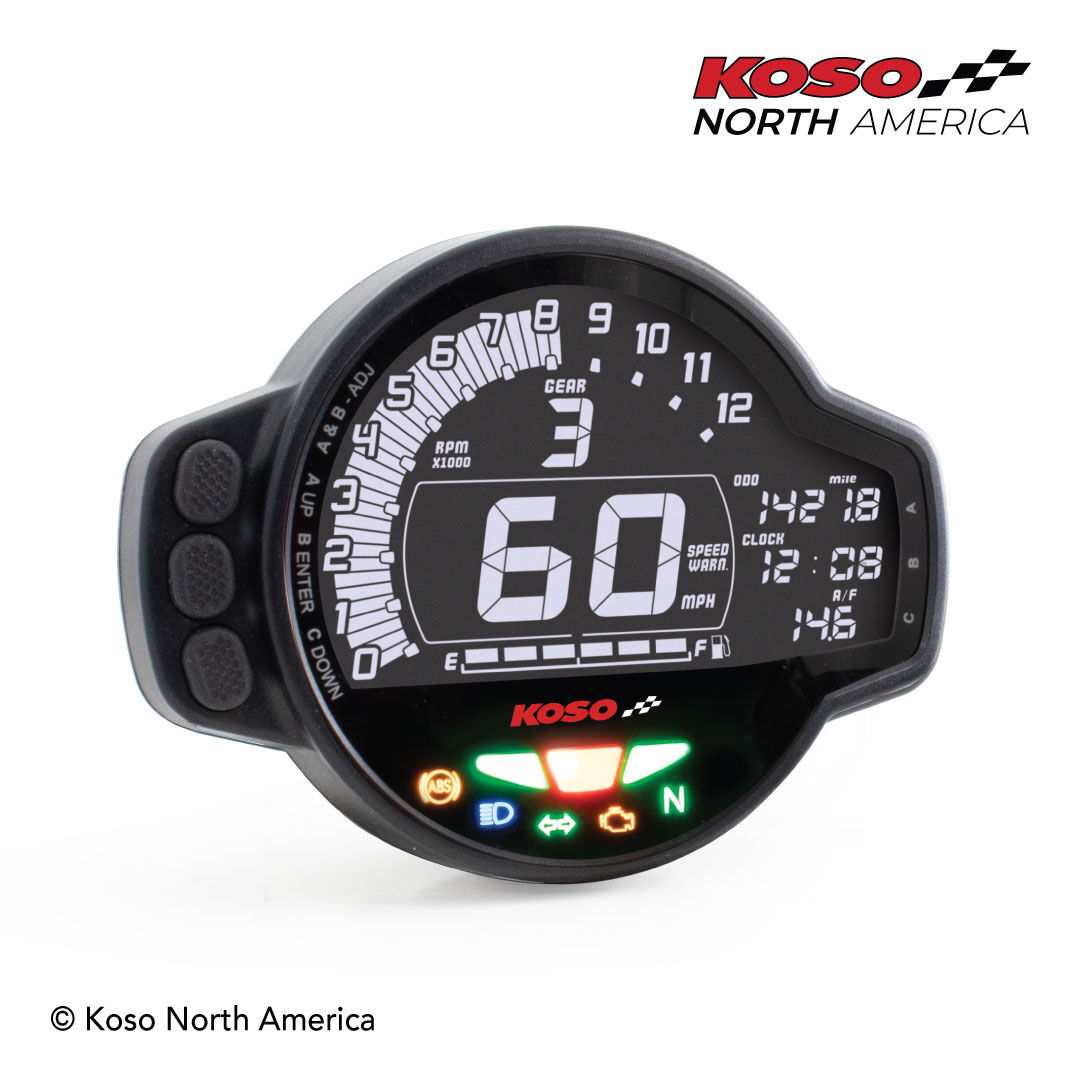

The MS-01 multifunction meter is the newest addition for enthusiasts who enjoy multiple readings from their ride. It features a modern negative LCD screen to display all of your information.

• Clear speed and distance information
• Tachometer/RPM information for performance monitoring
• Easy-to-read display with backlight functionality
• Temperature monitoring where supported
• Voltage monitoring where supported

Specifications

• Speedometer Range: 0 ~ 124 MPH (0 ~ 199 km/h) | Unit:1 MPH or km/h (alternative)
• Odometer Range: 0 ~ 99,999 miles (km) | | Unit: 1 mile (km)
• Tripmeter A/B Range: 0 ~ 9,999.9 miles (km) | | Unit: 0.1 mile (km)
• Speeding warning light Range: 19 ~ 124 MPH (30 ~ 199 km/h) | Unit: 1 MPH(km/h) warning light on when ≥ setting value.
• Tire circumference Range: 300 ~ 2,500 mm | | Unit: 1 mm Sensitive point: 1 ~ 40.
• Gear indicator (learning) Range: OFF, N, 1 ~6,the highest gear.
• Oil maintenace Range: 300 ~ 10,000 miles (500 ~ 16,000km), OFF | Unit: 100 miles (km)
• Bar segment tachometer Range: 0 ~ 10,000 RPM / 0 ~ 13,000 RPM | Unit: 0 ~ 10,000 RPM (250 RPM/segment) 0 ~ 13,000 RPM (250 RPM/segment)
• RPM input pulse Range: POS(+) / NEG(-)
• RPM signal.
• Range: P-0.5 / P-1 / P-1.5 / P-2 / P-2.5 / P-3 / P-4 / P-5 / P-6 / P-9 / P-10 / P-11 / P-12 / P-17 / P-18 / P-23 / P-24 / P-34 / P-36.
• First-stage warning for over-RPM (Illuminated) Range: 0 ~ 10,000 RPM Setting: 3,000 ~ 9,750 RPM Range: 0 ~ 13,000 RPM Setting: 3,000 ~ 12,750 RPM Signaling light on (green) for over-RPM when ≥ set value.
• Second-stage warning for over-RPM (Illuminated) Range: 0 ~ 10,000 RPM Setting: 3,000 ~ 9,750 RPM Range: 0 ~ 13,000 RPM Setting: 3,000 ~ 12,750 RPM Signaling light on (red) for over-RPM when ≥ set value.
• Third-stage warning for over-RPM (Blinking) Range: 0 ~ 10,000 RPM Setting: 3,250 ~ 10,000 RPM Range: 0 ~ 13,000 RPM Setting: 3,250 ~ 13,000 RPM Signaling light blinking (green/red) for over-RPM when ≥ set value | Unit: 100 RPM.
• Temperature & Max. temp record Range: 1- OFF 2- Cylinder head temperature P-1 -20 ~ 200˚C (-4 ~ 392°F) P-2 -40 ~ 185˚C (-40 ~ 365°F) P-3 -20 ~ 220˚C (-4 ~ 428°F) P-4 -20 ~ 200˚C (-4 ~ 392°F) P-5 -20 ~ 120˚C (-4 ~ 248°F) P-6 -30 ~ 200˚C (-22 ~ 392°F) P-1A -20 ~ 200˚C (-4 ~ 392°F) P-2A -40 ~ 185˚C (-40 ~ 365°F) P-5A -20 ~ 120˚C (-4 ~ 248°F) P-6A -30 ~ 200˚C (-22 ~ 392°F) 3- Temperature sensor P-250 0 ~ 250˚C (32 ~ 482°F)
• Thermometer Range: 32.0 ~ 482.0 ˚F (0 ~ 250 ˚C) | Unit: 0.1 °C (°F)
• Over Temperature warning Range: 122 ~ 356°F (50 ~ 180°C) | | Unit: 3°F (5°C) Temp warning on when > value.
• Fuel meter Range: 6 levels | | Unit: 1 level = 16.6 %
