Koso meters are designed to give riders clear, reliable information in a compact and modern display, making them a smart upgrade for both custom builds and everyday motorcycles.

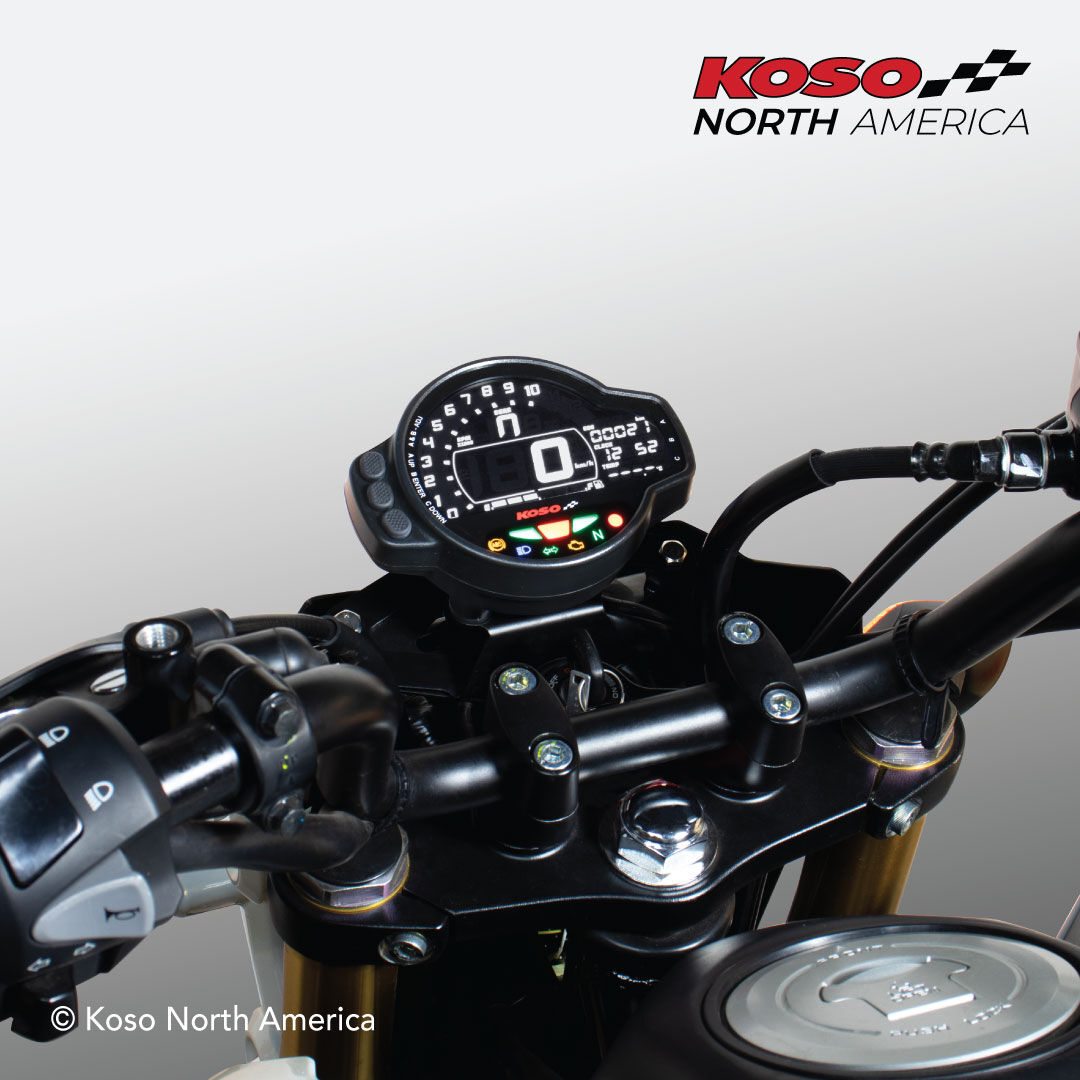

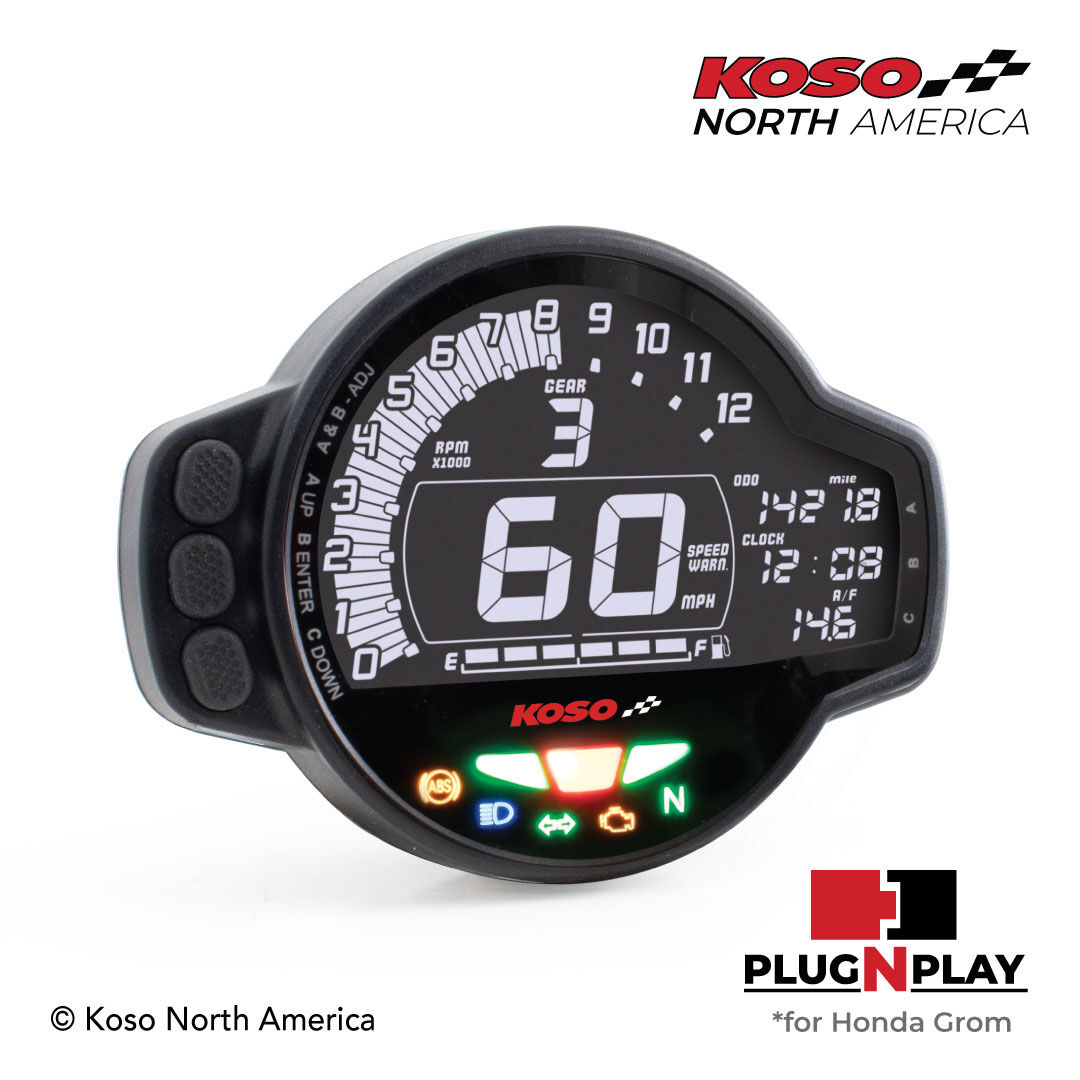

*Does not fit 2022+ models Compact, easy to operate and full of features, the new plug and play MS-01 multifunction meter for Honda Grom® offers a sleek looking exterior as well as a negative LCD screen to display necessary information such as: speed, RPM, indicator lights, fuel meter, gear indicator and much more. This easy to use and install plug and play display will offer you all the details needed for your ride, while customizing your bike with a modern look.

• Clear speed and distance information
• Tachometer/RPM information for performance monitoring
• Easy-to-read display with backlight functionality
• Temperature monitoring where supported
• Voltage monitoring where supported

Specifications

• Speedometer Range: 0 ~ 124 MPH (0 ~ 199 km/h) | Unit:1 MPH or km/h (alternative)
• Odometer Range: 0 ~ 99,999 miles (km) | | Unit: 1 mile (km)
• Tripmeter A/B Range: 0 ~ 9,999.9 miles (km) | | Unit: 0.1 mile (km)
• Speeding warning light Range: 19 ~ 124 MPH (30 ~ 199 km/h) | Unit: 1 MPH(km/h) warning light on when ≥ setting value.
• Tire circumference Range: 300 ~ 2,500 mm | | Unit: 1 mm Sensitive point: 1 ~ 40.
• Gear indicator (learning) Range: OFF, N, 1 ~6,the highest gear.
• Oil maintenace Range: 300 ~ 10,000 miles (500 ~ 16,000km), OFF | Unit: 100 miles (km)
• Bar segment tachometer Range: 0 ~ 10,000 RPM / 0 ~ 13,000 RPM | Unit: 0 ~ 10,000 RPM (250 RPM/segment) 0 ~ 13,000 RPM (250 RPM/segment)
• RPM input pulse Range: POS(+) / NEG(-)
• RPM signal.
• Range: P-0.5 / P-1 / P-1.5 / P-2 / P-2.5 / P-3 / P-4 / P-5 / P-6 / P-9 / P-10 / P-11 / P-12 / P-17 / P-18 / P-23 / P-24 / P-34 / P-36.
• First-stage warning for over-RPM (Illuminated) Range: 0 ~ 10,000 RPM Setting: 3,000 ~ 9,750 RPM Range: 0 ~ 13,000 RPM Setting: 3,000 ~ 12,750 RPM Signaling light on (green) for over-RPM when ≥ set value.
• Second-stage warning for over-RPM (Illuminated) Range: 0 ~ 10,000 RPM Setting: 3,000 ~ 9,750 RPM Range: 0 ~ 13,000 RPM Setting: 3,000 ~ 12,750 RPM Signaling light on (red) for over-RPM when ≥ set value.
• Third-stage warning for over-RPM (Blinking) Range: 0 ~ 10,000 RPM Setting: 3,250 ~ 10,000 RPM Range: 0 ~ 13,000 RPM Setting: 3,250 ~ 13,000 RPM Signaling light blinking (green/red) for over-RPM when ≥ set value | Unit: 100 RPM.
• Temperature & Max. temp record Range: 1- OFF 2- Cylinder head temperature P-1 -20 ~ 200˚C (-4 ~ 392°F) P-2 -40 ~ 185˚C (-40 ~ 365°F) P-3 -20 ~ 220˚C (-4 ~ 428°F) P-4 -20 ~ 200˚C (-4 ~ 392°F) P-5 -20 ~ 120˚C (-4 ~ 248°F) P-6 -30 ~ 200˚C (-22 ~ 392°F) P-1A -20 ~ 200˚C (-4 ~ 392°F) P-2A -40 ~ 185˚C (-40 ~ 365°F) P-5A -20 ~ 120˚C (-4 ~ 248°F) P-6A -30 ~ 200˚C (-22 ~ 392°F) 3- Temperature sensor P-250 0 ~ 250˚C (32 ~ 482°F)
• Thermometer Range: 32.0 ~ 482.0 ˚F (0 ~ 250 ˚C) | Unit: 0.1 °C (°F)
• Over Temperature warning Range: 122 ~ 356°F (50 ~ 180°C) | | Unit: 3°F (5°C) Temp warning on when > value.
• Fuel meter Range: 6 levels | | Unit: 1 level = 16.6 %
