(for 2018-2022 Street bob, 2018+ Breakout, 2022+ Low Rider ST & 2022+ Softail Standard)

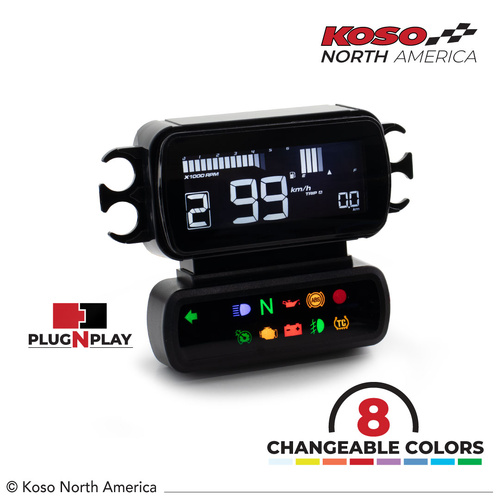

Our new high quality 100% plug & play D2 meter is equipped with an 8-color changeable LCD display. This gauge features a tach and speedo combo with a programmable shift light and includes a gear indicator for easily seeing what gear you’re in.

This gauge also features vital readings such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor your bikes vital signs. This gauge will fit directly into the stock harness and works directly with your bikes CANBUS system.

Optional accessories :

12'' extension wire (part# 20-A91803A)

Rubber gasket (part# BZ080000)

 Specifications
(R= Range U=Unit)

• Speedometer
  R: 0~199 km (0~124 mile) switchable
  U: 1 km (mile)
• Display interval
  <0,5 second
• Internal and external odometer
  R: 000,000 ~ 999,999 km (mile) returns to zero upon exceeding
  U: 0,1 km (mile)
• Trip meter A,B
  R: 0,000,0 ~ 9,999,9 km (mile) returns to zero upon exceeding
  U: 0,1 km (mile)
• Tire circumference
  R: 50 ~ 210 %
  U: 1 %
• Tachometer
  R: 0 ~ 10,000 RPM

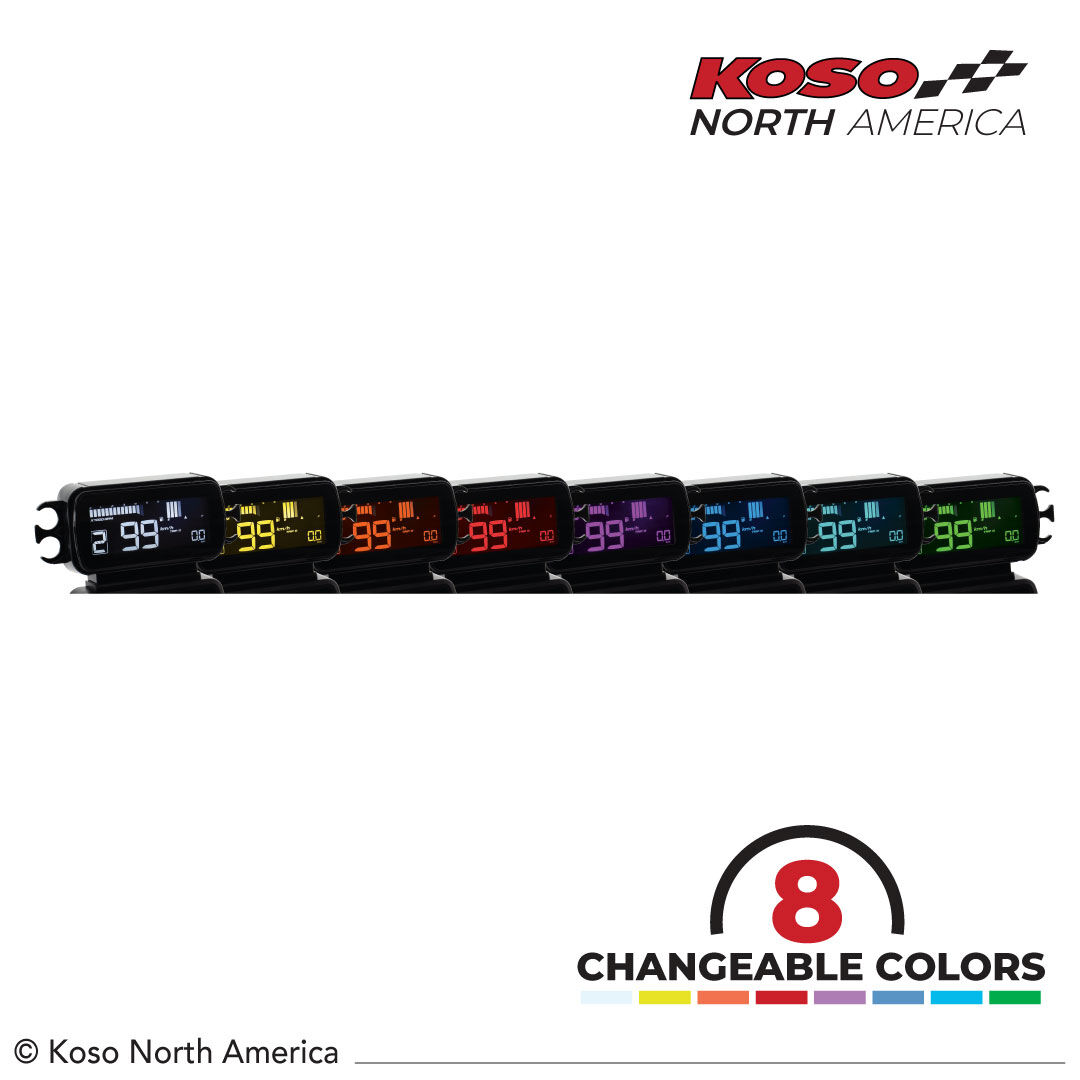

• • Backlight color
    R: white, red, orange, yellow, blue, light blue, purple, green
  • Mileage maintenance
    R: Off, 500 ~ 16,000 km (300 ~ 10,000 mile)
    U: 100 km (miles)
  • Indication light
    R: Traction control (Amber) / Right indication light (Green) / Security light (Red) / ABS light (Amber) / Motor oil light (Red) / Neutral light (Green) / High beam light (Blue) / Low fuel warning light (Amber) / Left indication light (Green) / Fog light (Green) / Battery discharge light (Red) / Engine light (Amber) / Cruise light (Green/Amber) / Tire pressure warning light (Amber)

• Shift light warning
  R: 2,000 ~ 10,000 RPM
  When it is higher than the setting value (including),
  the backlight will blink in re and white as a warning
  U: 100 RPM
• Engine temperature
  R: -38 ~ 572 °F (-39 ~ 300 °C)
• Clock
  R: 12 / 24 hour format
• Voltmeter
  R: 8 ~ 18 V
• Backlight brightness
  R: 1/5 (darkest) ~ 5/5 (brightest)
• Meter weight
  Around 70g

• • Tire pressure
    (TPMS, FR/RR/LR shall be displayed when the vehicle supports TPMS)
    R:---, HI, 0 ~ 73 PSI, 0~506 kPa, 0,0~5,0 bar
    U: 1 PSI, 1 kPa, 0,1 bar
  • Fuel Meter
    R: 10 levels
  • Operating voltage
    DC 12 V
  • Operating temperature
    -20 ~ 85 °C
  • Storage temperature
    -30 ~ 90 °C
  • Specifications
    JIS D 0203 (S2)

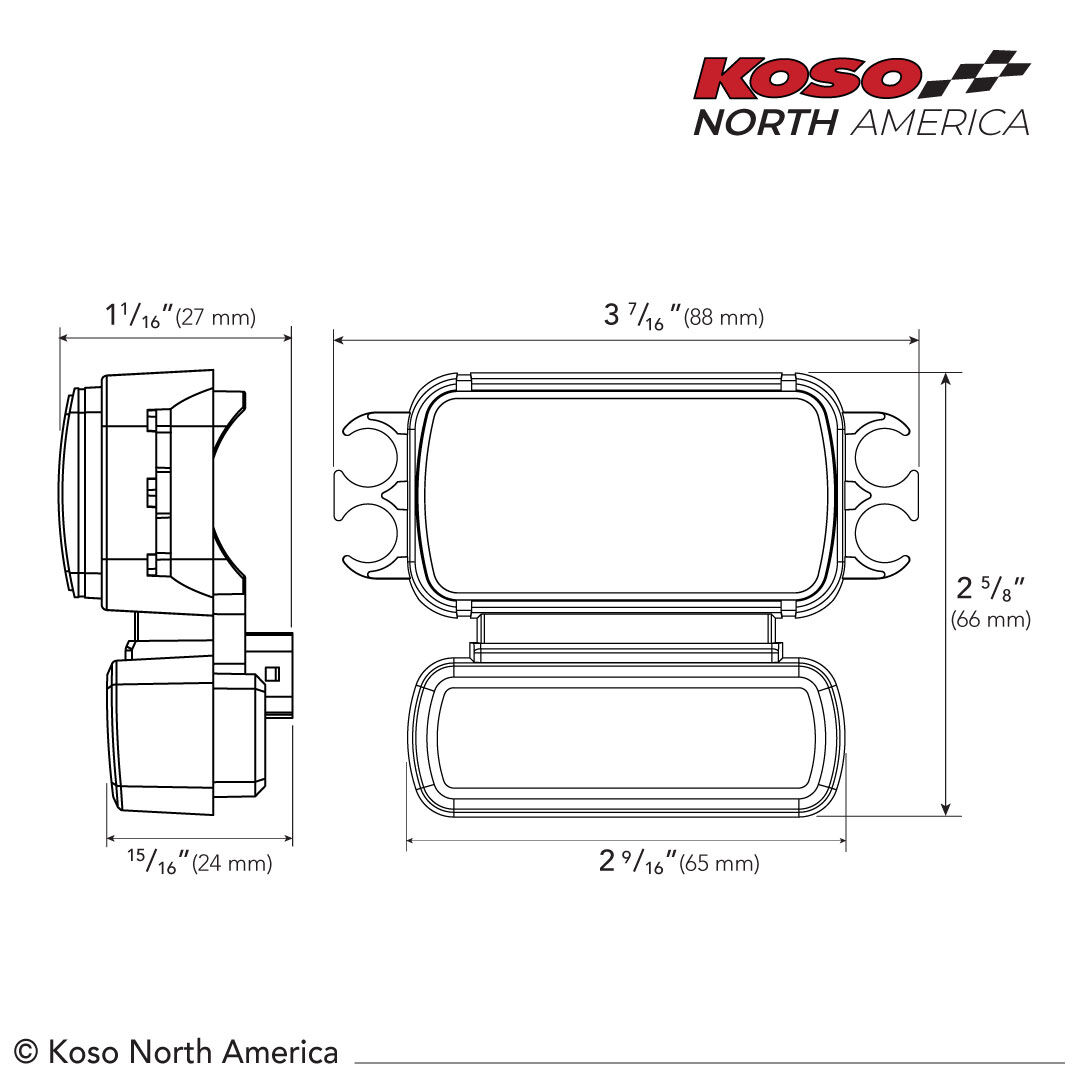

  • Meter size
    88,2 x 67,0 x 35,2 mm
