Koso meters are designed to give riders clear, reliable information in a compact and modern display, making them a smart upgrade for both custom builds and everyday motorcycles.

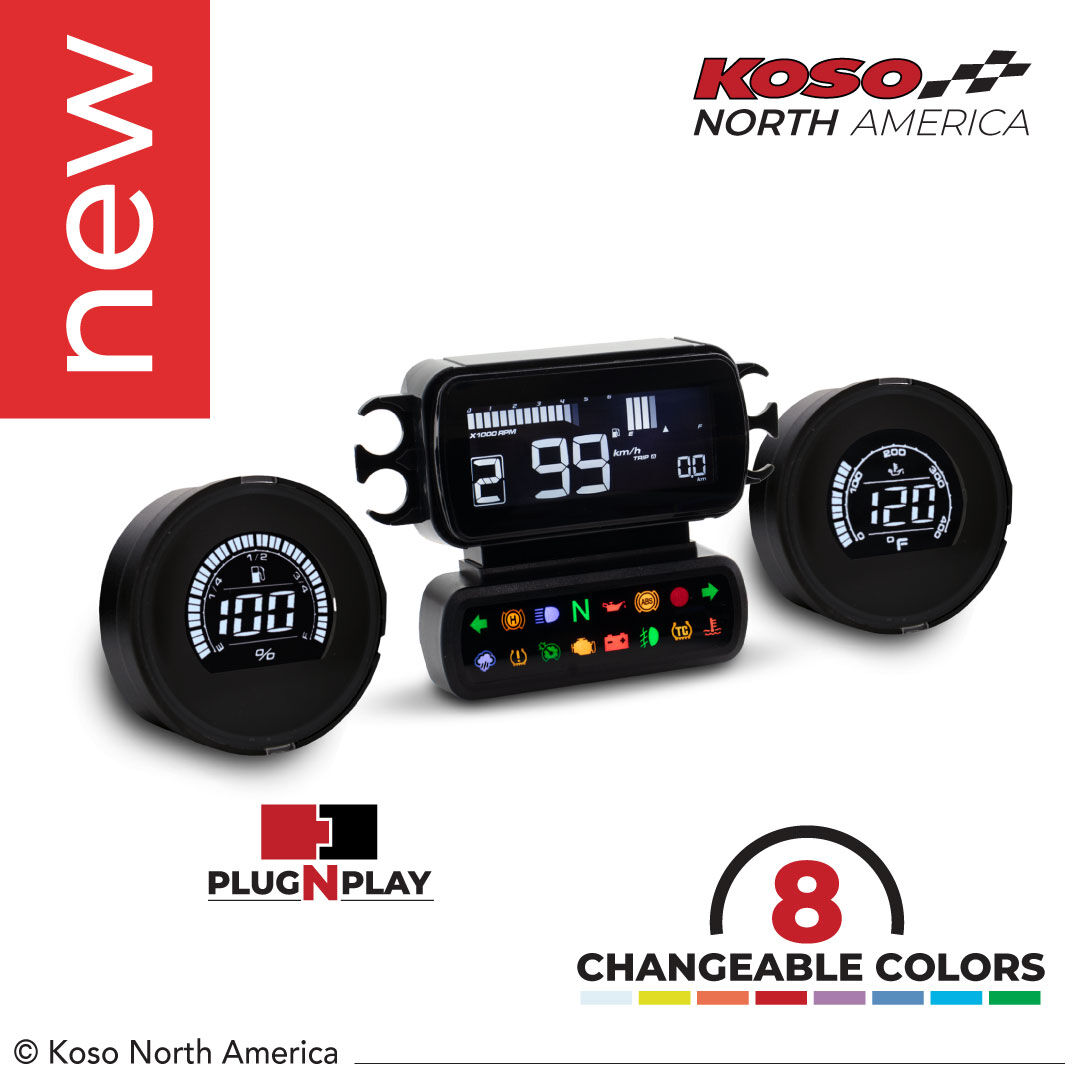

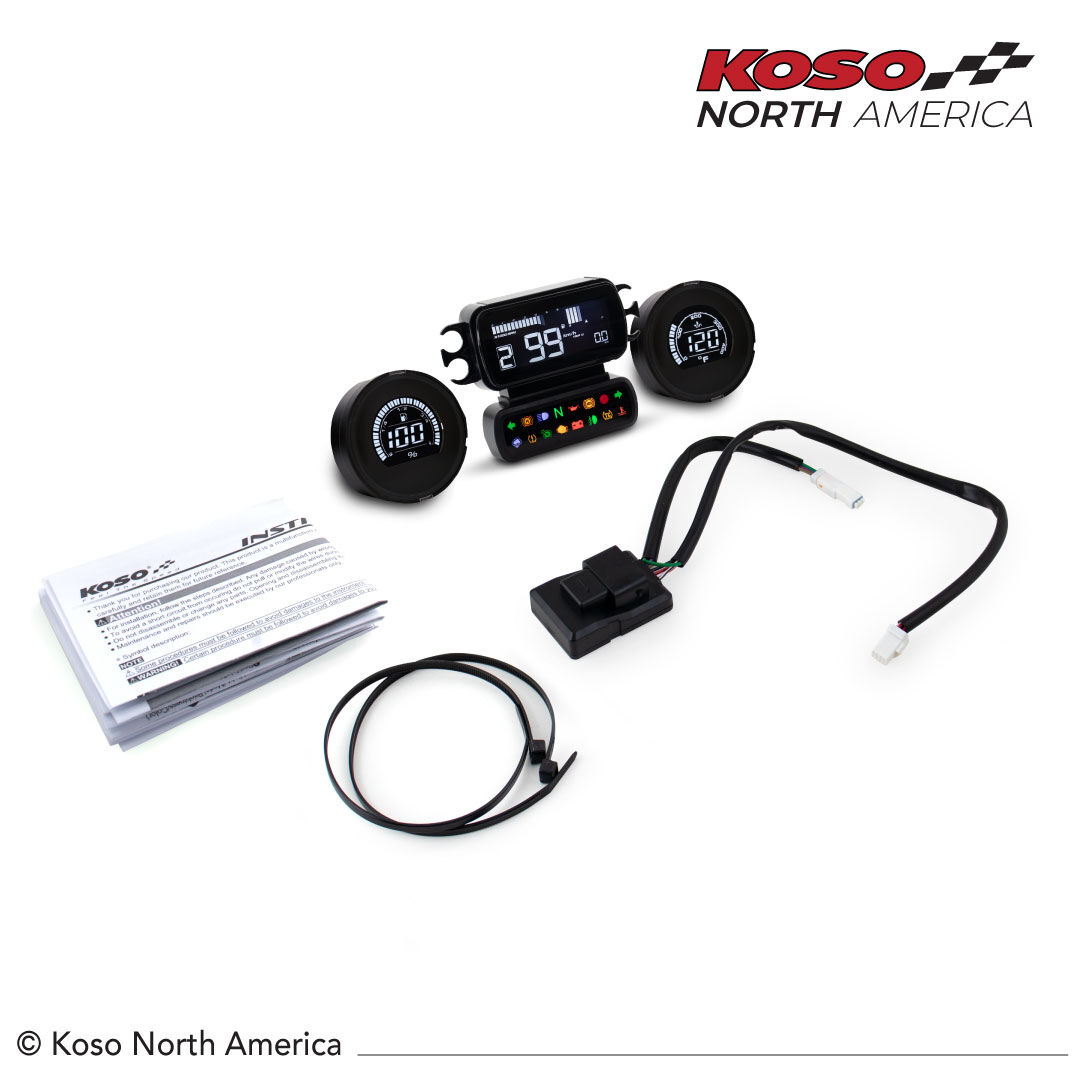

(for Baggers 2014-2023) This new plug and play D2 gauge kit for Baggers now comes with the fuel level & engine temperature meters, giving a unique look and experience to your motorcycle. It is also equipped with an 8-color changeable LCD display and features vital readings such as engine temperature, battery voltage, tire pressure, gear indicator and a complete system of indicator lights to monitor your bike’s vital signs.

• Easy-to-read display with backlight functionality
• Temperature monitoring where supported
• Voltage monitoring where supported
• Fuel level display where supported
• Designed for straightforward installation where applicable

Specifications

• Backlight color Range: white, red, orange, yellow, blue, light blue, purple, green.
• Engine temperature Range: -38 ~ 572 °F (-39 ~ 300 °C)
• Backlight brightness Range: 1/5 (darkest) ~ 5/5 (brightest)
• Fuel Meter Range: 10 levels.
• Operating voltage DC 12 V.
• Operating temperature -20 ~ 85 °C.
• Storage temperature -30 ~ 90 °C.
• Specifications JIS D 0203 (S2)
