Koso meters are designed to give riders clear, reliable information in a compact and modern display, making them a smart upgrade for both custom builds and everyday motorcycles.

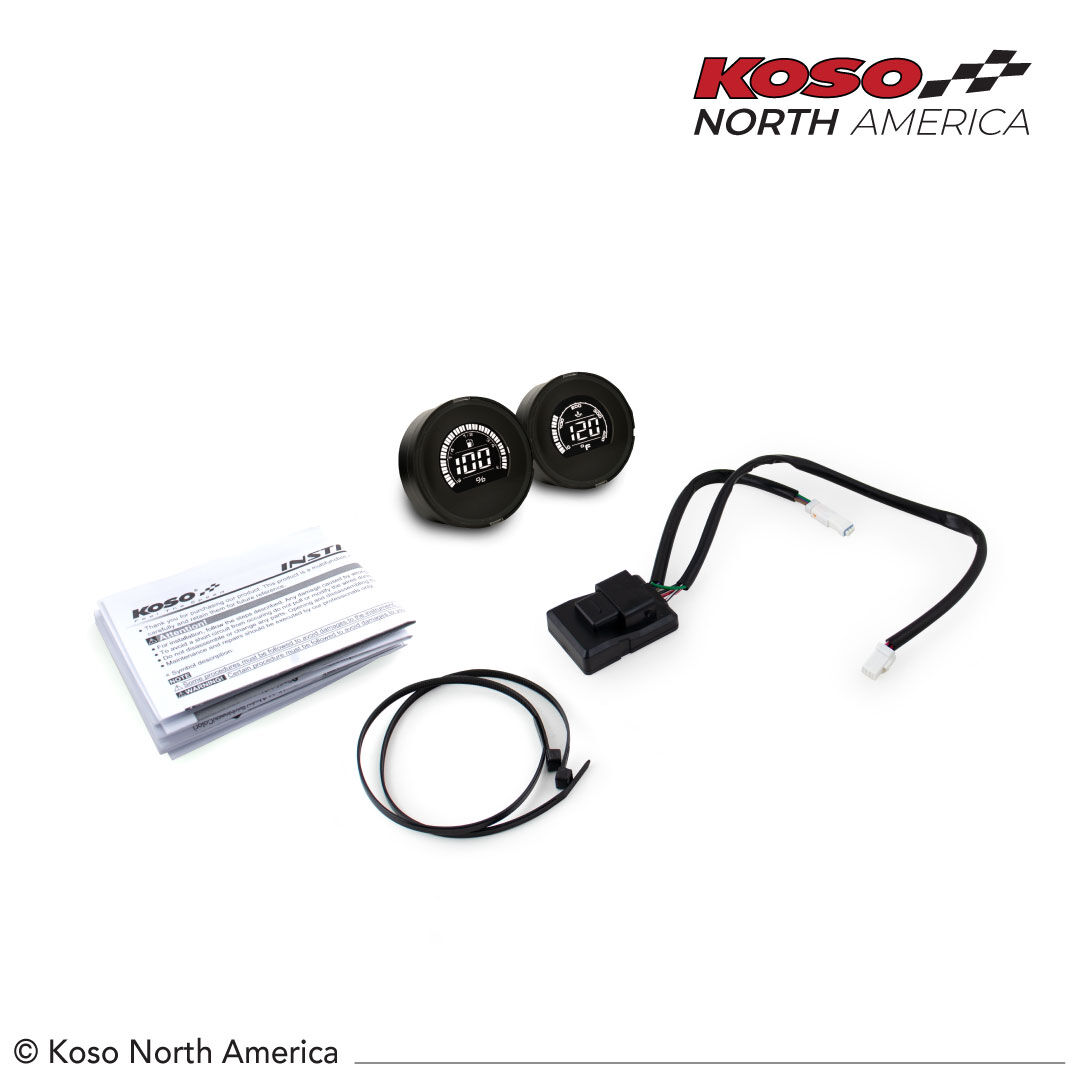

(for Baggers 2014-2023) If you already own the D2 gauge for Baggers (BA080030), you can purchase this kit as an add-on to your gauge. (Includes fuel level, engine temp meter & adapter harness.) *This is only an add-on to your existing D2 gauge.

• Clear speed and distance information
• Tachometer/RPM information for performance monitoring
• Easy-to-read display with backlight functionality
• Temperature monitoring where supported
• Voltage monitoring where supported

Specifications

• Speedometer Range: 0~199 km (0~124 mile) switchable | Unit: 1 km (mile)
• Display interval <0,5 second.
• Internal and external odometer Range: 000,000 ~ 999,999 km (mile) returns to zero upon exceeding | Unit: 0,1 km (mile)
• Trip meter A,B Range: 0,000,0 ~ 9,999,9 km (mile) returns to zero upon exceeding | Unit: 0,1 km (mile)
• Tire circumference Range: 50 ~ 210 % | Unit: 1 %
• Tachometer Range: 0 ~ 10,000 RPM.

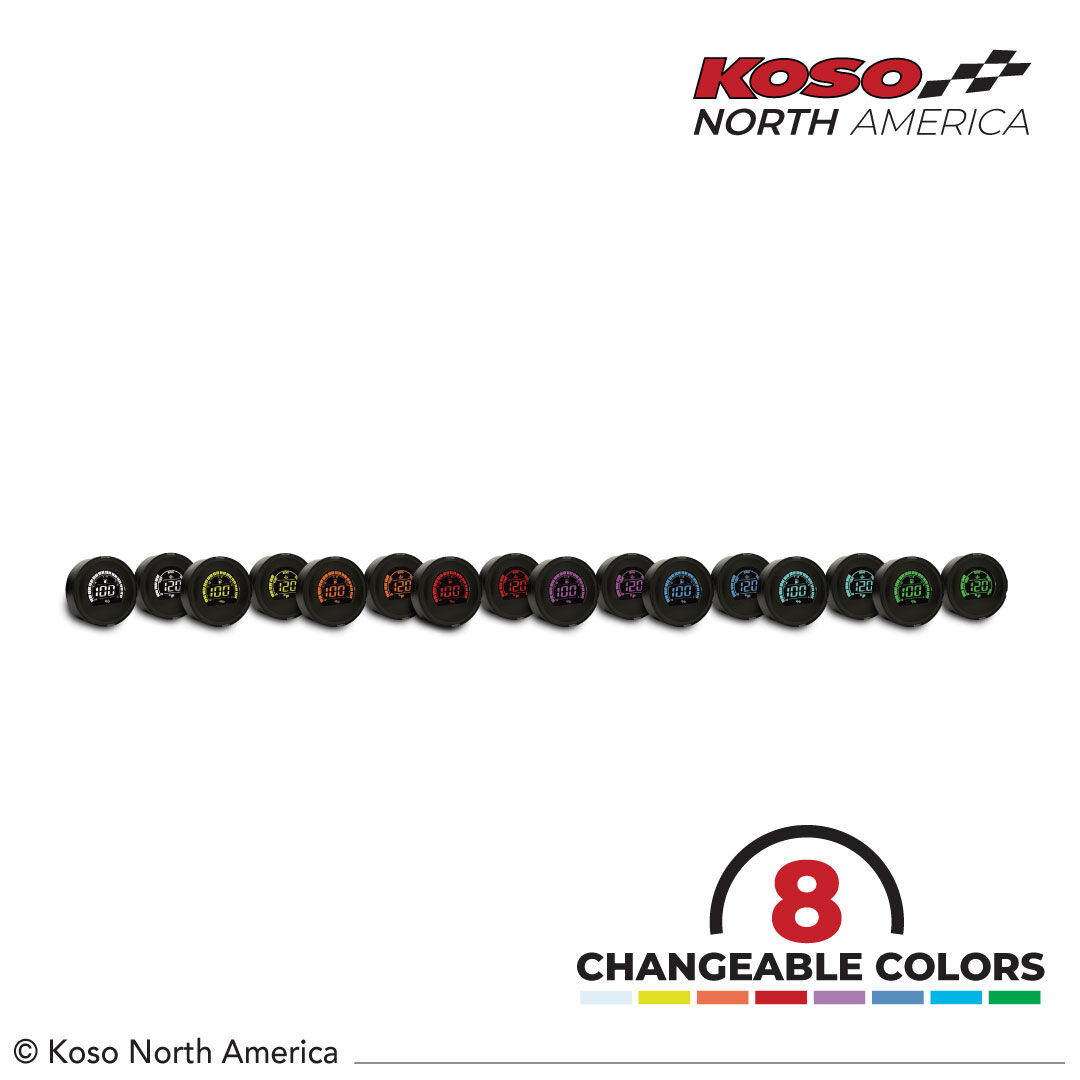

• Backlight color Range: white, red, orange, yellow, blue, light blue, purple, green.
• Mileage maintenance Range: Off, 500 ~ 16,000 km (300 ~ 10,000 mile) | Unit: 100 km (miles)
• Indication light Range: Turn signal / Water temp / Oil pressure / Photometric sensing / Warning light/ Check engine / High Beam / Fog light / Volt / Traction control / Cruise / ABS / Rain mode / Vehicle hold control / Fuel level / Low tire pressure / Security light.
• Shift light warning Range: 2,000 ~ 10,000 RPM When it is higher than the setting value (including), the backlight will blink in re and white as a warning | Unit: 100 RPM.
• Engine temperature Range: -38 ~ 572 °F (-39 ~ 300 °C)
• Clock Range: 12 / 24 hour format.
• Voltmeter Range: 8 ~ 18 V.
• Backlight brightness Range: 1/5 (darkest) ~ 5/5 (brightest)
• Meter weight Around 70g.
• Tire pressure (TPMS, FR/RR/LR shall be displayed when the vehicle supports TPMS) Range: ---, HI, 0 ~ 73 PSI, 0~506 kPa, 0,0~5,0 bar | Unit: 1 PSI, 1 kPa, 0,1 bar.
• Fuel Meter Range: 10 levels.
• Operating voltage DC 12 V.
