Koso meters are designed to give riders clear, reliable information in a compact and modern display, making them a smart upgrade for both custom builds and everyday motorcycles.

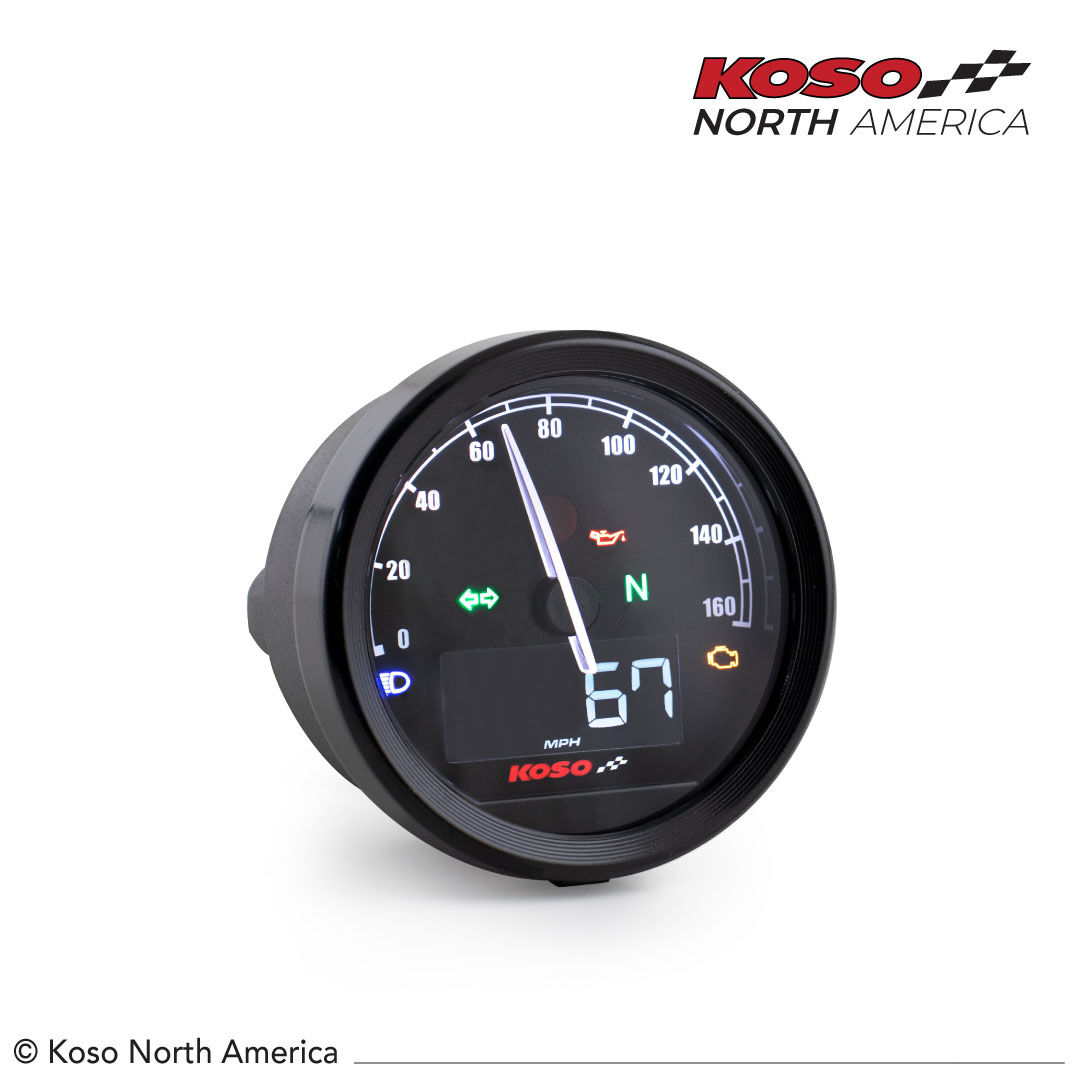

Providing basic functions such as speed, odometer, tripmeter, hour meter, fuel, voltage, clock and stopwatch, the TNT-05S speedometer is equipped with 8 changeable LCD display colors that also includes all the necessary indicator lights to give you all the data you need. The illuminated backlight makes the instrument very easy to read even in the darkest conditions.

• Clear speed and distance information
• Easy-to-read display with backlight functionality
• Temperature monitoring where supported
• Voltage monitoring where supported
• Fuel level display where supported

Specifications

• Speedometer Range: 0 ~ 160 km/h (MPH) | Unit: 20 km/h (MPH) (Large grid), 10 km/h (MPH) (small grid)
• Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C)
• Effective voltage DC 12 V.
• Indicator lights Composite warning light / Speeding warning light / Neutral / High beam / Turn signals / Check engine / Motor oil light.
• Fuel meter Range: 10 levels | | Unit: 1 level = 10 %
• Fuel resistance Range: 100 Ω / 250 Ω / 270 Ω / 390 Ω /510 Ω / 1,200 Ω / Sw / Custom (learning mode) / OFF.
• Clock 12 H or 24 H format.

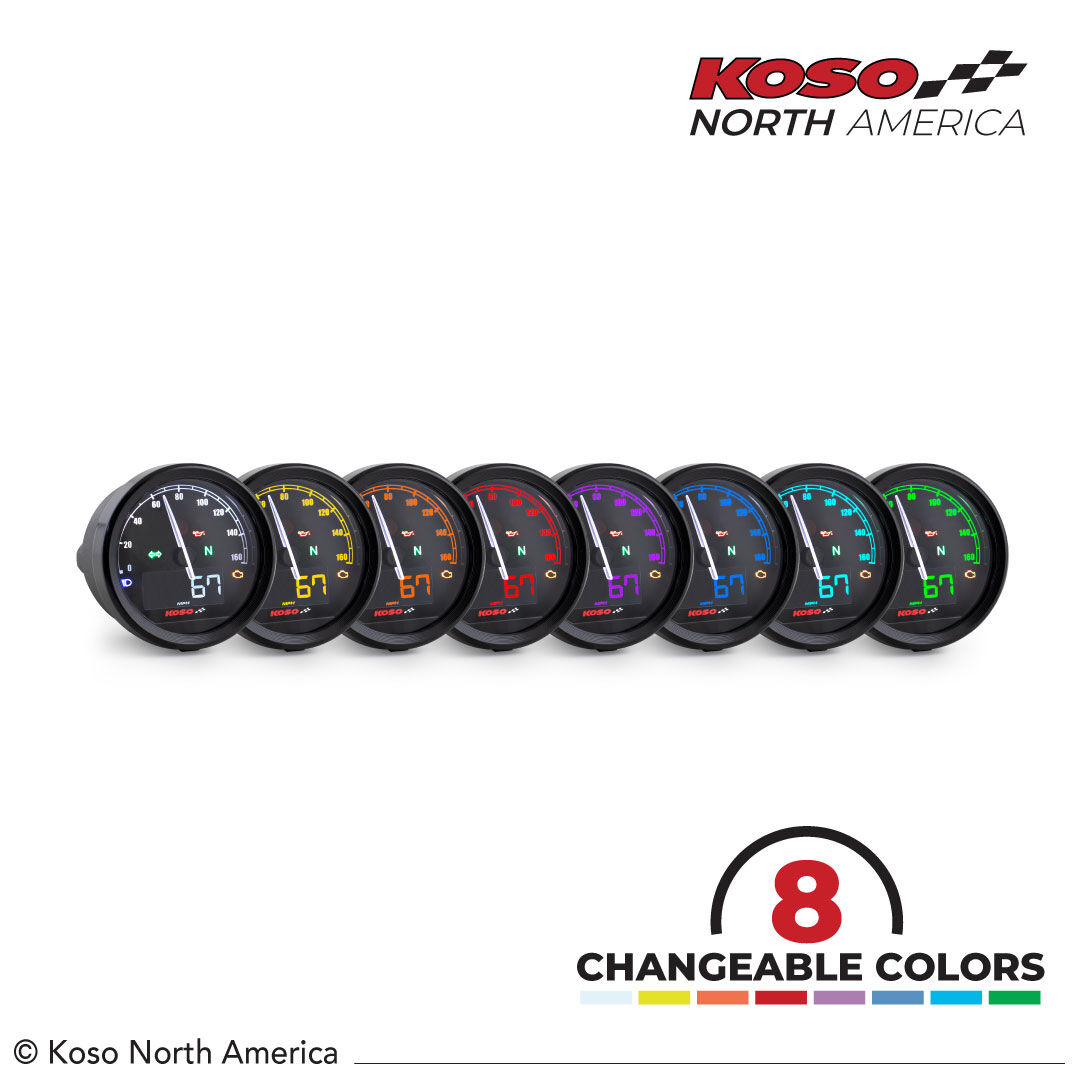

• Backlight colors White / Yellow / Orange / Red / Purple / Blue / Light blue / Green.
• Overspeeding warning Range: 19 ~ 100 MPH (30 ~ 160 km/h) | Unit: MPH or km/h, can return to zero manually.
• Odometer Range: 0 ~ 99,999 miles (km) | Unit: 1 mile (km)
• Tripmeter A/B Range: 0 ~ 9,999.9 miles (km) | Unit: 0.1 mile (km)
• Tire circumference Range: 300 ~ 2,500 mm | Unit: 1 mm Sensitive point: 1 ~ 20.
• Thermometer Range: 32 ~ 482 °F (0 ~ 250 °C) | Unit: 0.1 °F or °C (alternative)
• Over temperature warning Range: 140 ~ 482°F (60 ~ 250°C) | Unit: 1°F (°C)
• Volt meter Range: DC 8 ~ 18 V | Flashing Warning light ≤ value.
• Backlight brightness Range: 1/3 (darkest) ~ 3/3 (brightest)
