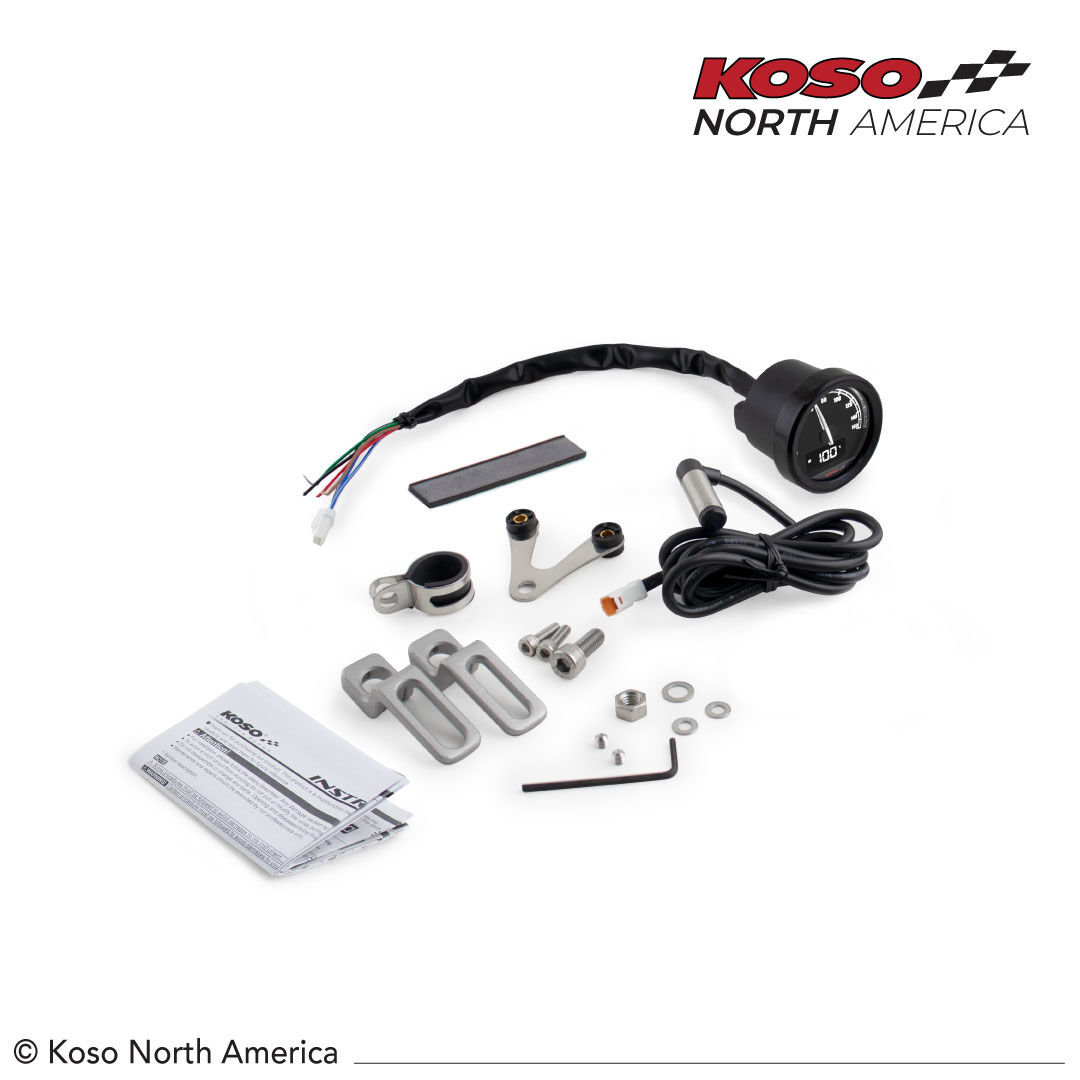

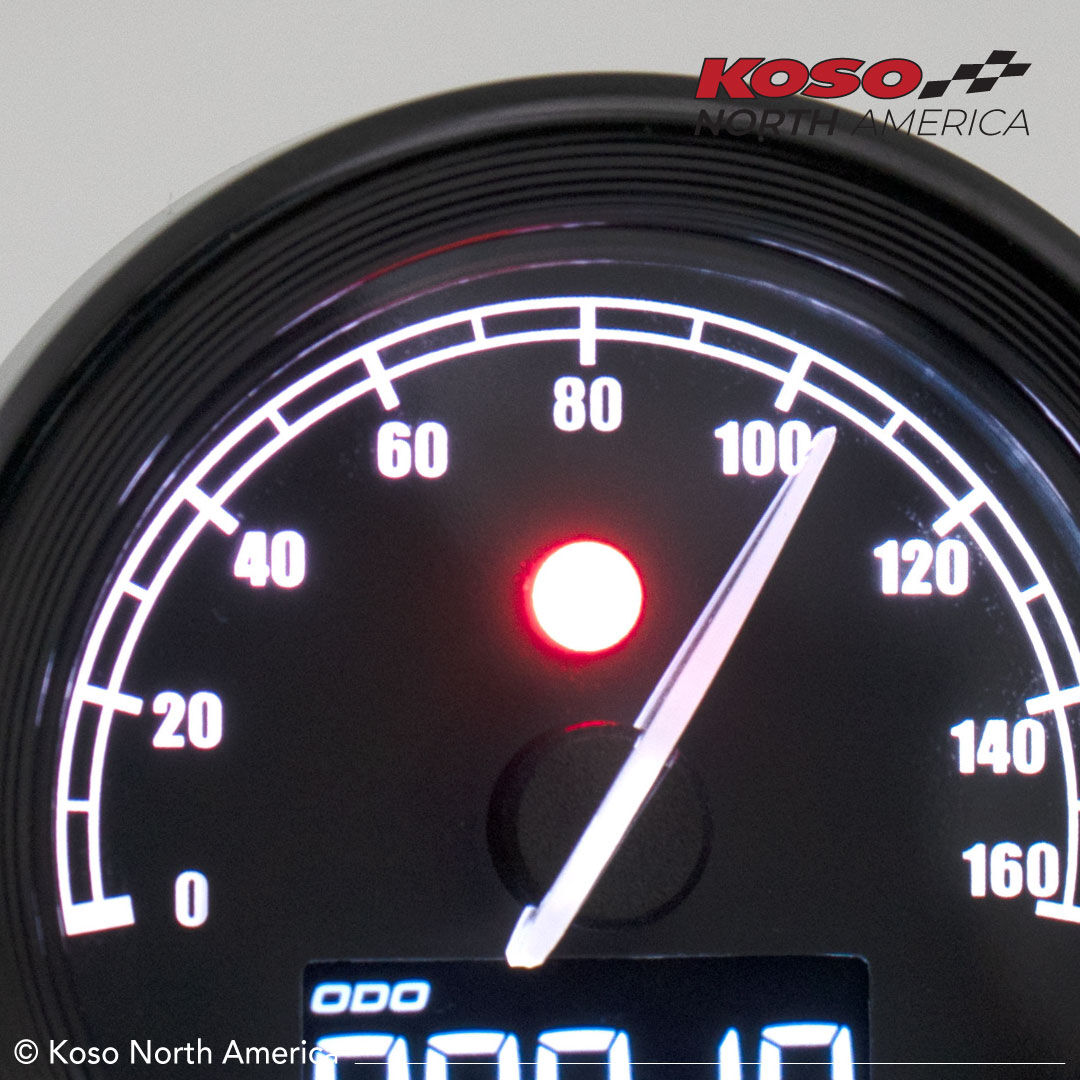

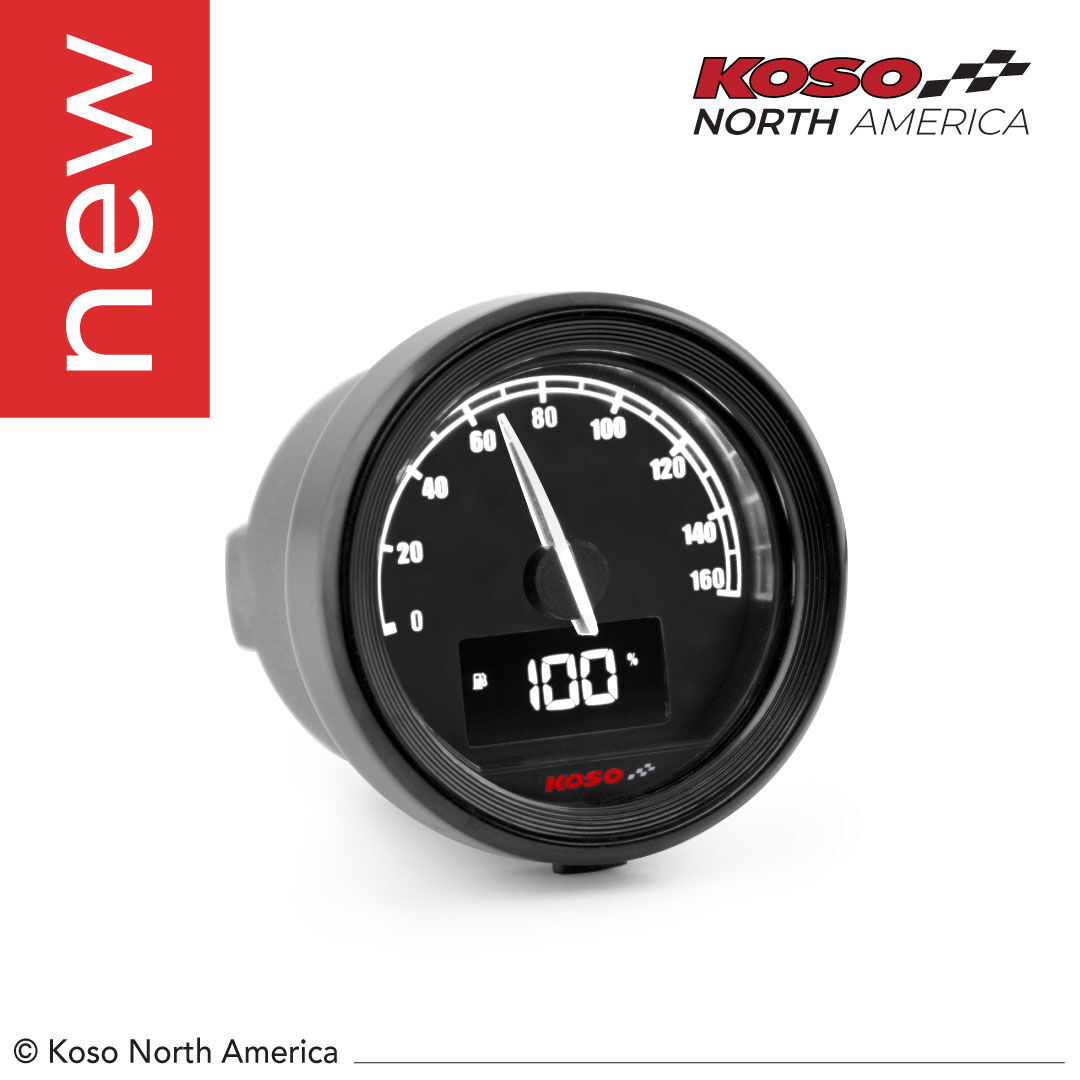

This smaller version of the TNT-05 speedometer can fit various locations and models while providing basic functions such as speed, odometer, tripmeter, fuel and voltage.Its compact LCD display is very easy to read even in the darkest conditions. It is equipped with all the necessary indicator lights and features 7 changeable display colors to fit your style.



 Specifications
(R= Range U=Unit)

  • Speedometer
    R:0 ~ 160 km/h (MPH)
    U:20 km/h (MPH) (Large grid), 10 km/h (MPH) (small grid)
  • Effective temperature range
    14 ~ 140 °F (‑10 ~ 60 °C)
  • Effective voltage
    DC 12 V
  • Indicator lights
    Over-running light
  • Fuel meter
    R:10 levels |U:1 level = 10 %
  • Low fuel warning
    R:10 ~ 30 % |U:10 % | Flashing Warning light ≤ value.
  • Fuel resistance
    R:100 Ω / 250 Ω / 270 Ω / 390 Ω /510 Ω / 1,200 Ω / Sw / Custom (learning mode) / OFF

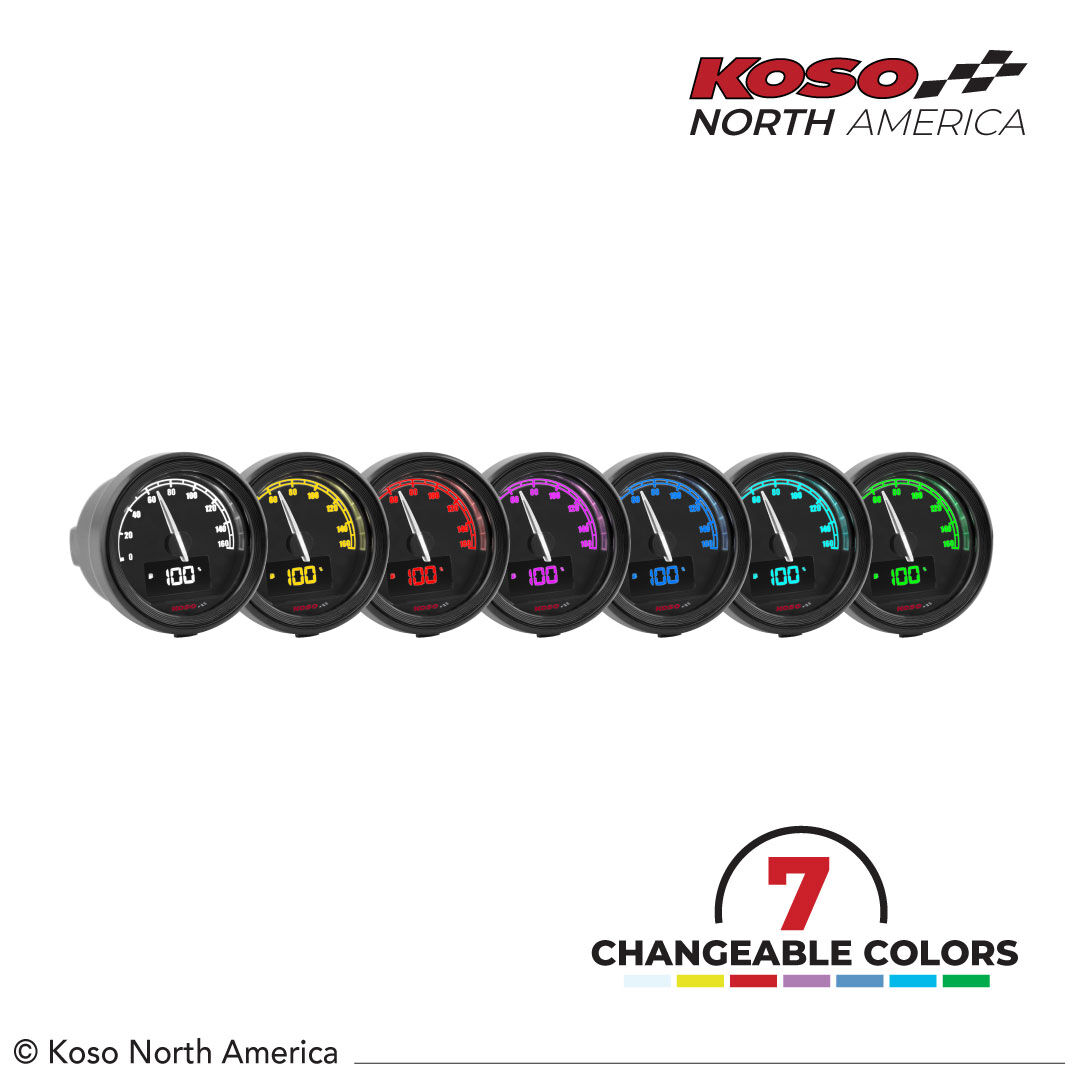

  • Backlight colors
    White / Yellow / Red / Purple / Blue / Light blue / Green
  • Overspeeding warning
    R:19 ~ 100 MPH (30 ~ 160 km/h)
    U:MPH or km/h, can return to zero manually
  • Odometer
    R:0 ~ 99,999 miles (km)U:1 mile (km)
  • Tripmeter A/B
    R:0 ~ 9,999.9 miles (km)U:0.1 mile (km)
  • Tire circumference
    R:300 ~ 2,500 mm
    U:1 mm Sensitive point: 1 ~ 20
  • Thermometer
    R:32 ~ 482 °F (0 ~ 250 °C)
    U:0.1 °F or °C (alternative)
  • Volt meter
    R:DC 8 ~ 13 V | Flashing Warning light ≤ value.
