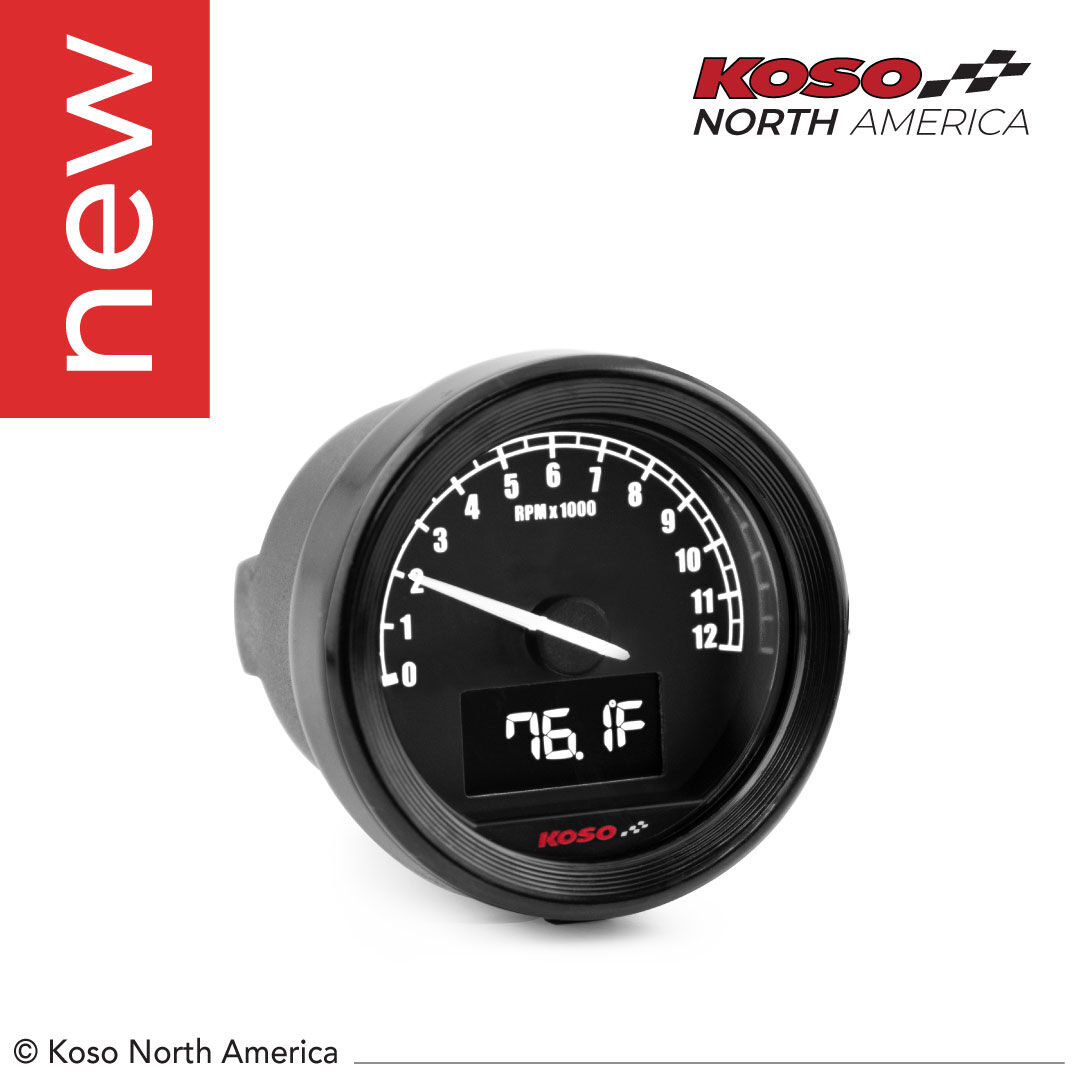

Whether it is day or night, this small-scaled TNT-05 tachometer will prevent your engine from being damaged with its warning function for temperature and voltage. You can also give different looks to your motorcycle with its 7 changeable LCD display backlight colors.

 Specifications
(R= Range U=Unit)

• Tachometer
  R: 0 ~ 12,000 RPM
  U: 1,000 (Large grid), 500 RPM (small grid)
• Effective temperature range
  14 ~ 140 °F (‑10 ~ 60 °C)
• Effective voltage
  DC 12 V
• Indicator lights
  Over-running light (red)

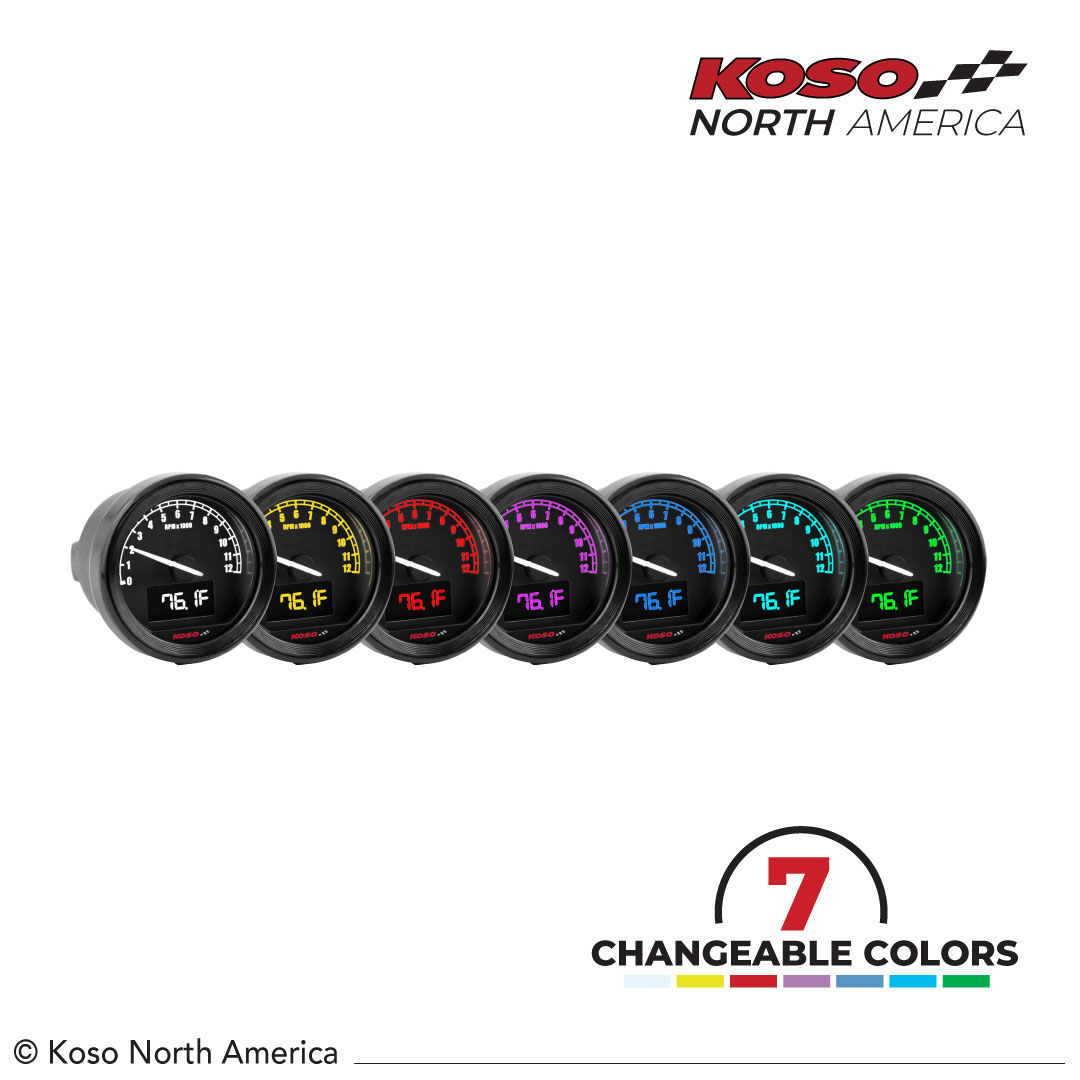

• Backlight colors
  White / Yellow / Red / Purple / Blue / Light blue / Green
• Volt meter
  R: DC 8 ~ 18 V | Flashing Warning light ≤ value.
• Max temperature record
  R: 32 ~ 482 °F (0 ~ 250 °C)| U: 0,1 °F (°C)
  Return to zero manually
• Low voltage warning
  R: 3 ~ 18 V | Flashing Warning light ≤ value.

• Pre-Shift light warning
  R: 1,000 ~ 11,00 RPM, when setting value is reached or above, warning light will illuminate
  U: 100 RPM
• RPM input pulse
  R: HI-ACT (positive wave pulse) / LO-ACT (negative wave pulse)
• RPM input signal number setting
  R: P - 0.5, 1 ~ 6
• Max. rotating speed
  R: 0 ~ 12,000 RPM (km) U: 1,000 (Large grid), 500 RPM (small grid)
• RPM Shift-light
  R: +100 ~ 12,000 RPM U: 100 RPM, warning light on > value
• Thermometer
  R: 32 ~ 482 °F (0 ~ 250 °C)
  U: 0.1 °F or °C (alternative)
• Over temperature warning
  R: 140 ~ 482°F (60 ~ 250°C) U: 1°F (°C)
