Koso meters are designed to give riders clear, reliable information in a compact and modern display, making them a smart upgrade for both custom builds and everyday motorcycles.

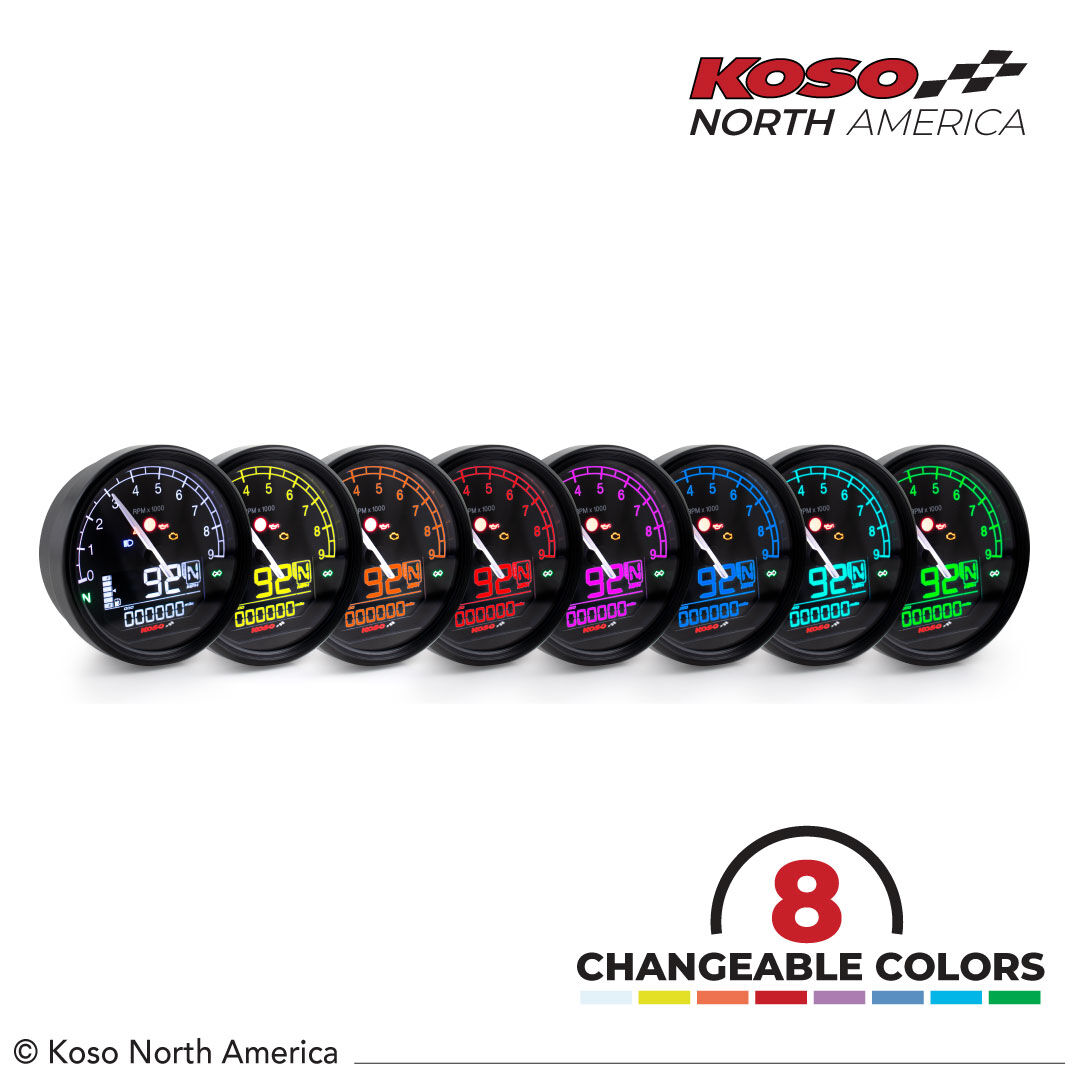

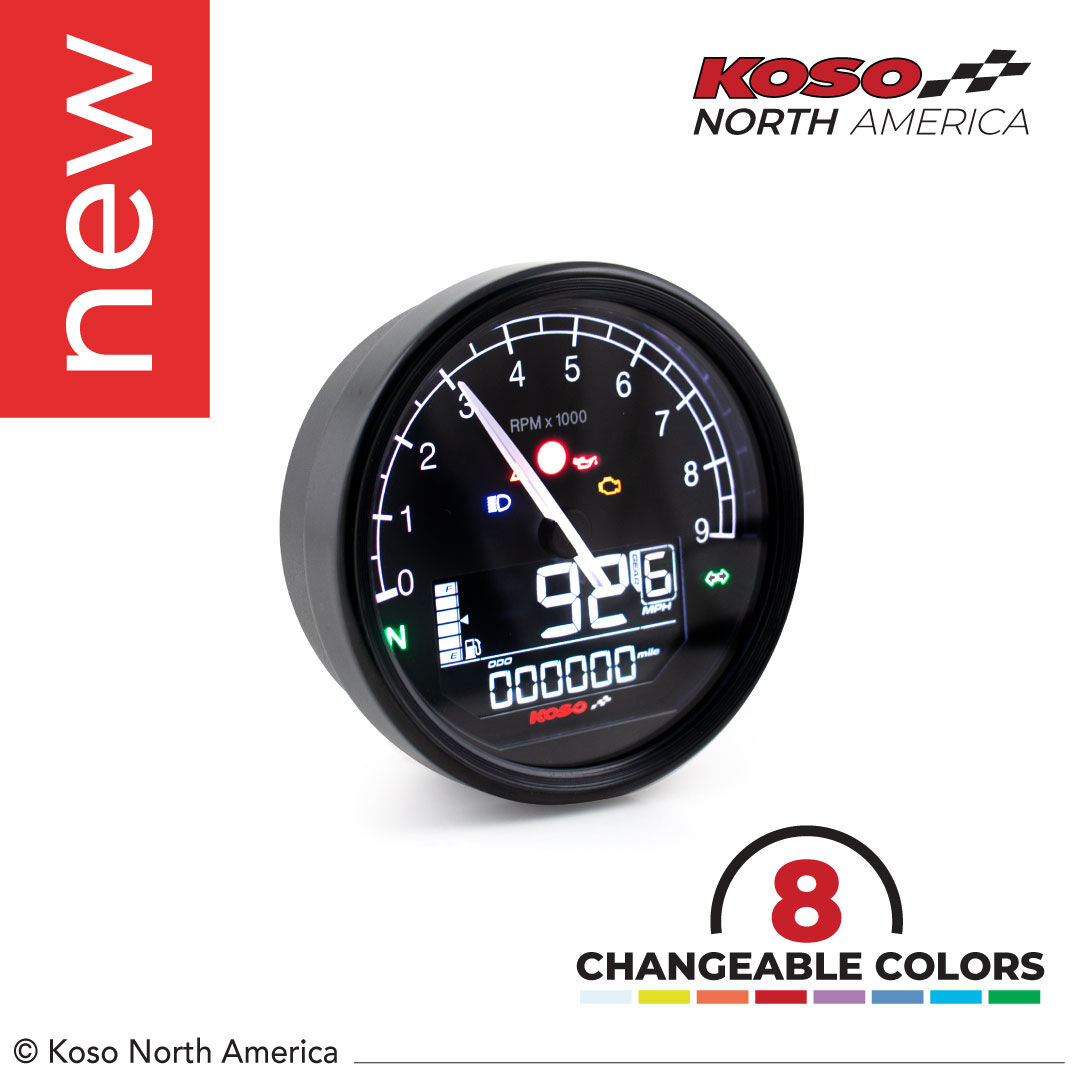

Koso decided to release a bigger version of the TNT-05 that combines a tachometer and speed option. Its 8 changeable LCD backlight colors and indicator lights will give you all the data you need with style even in the darkest conditions.

• Clear speed and distance information
• Tachometer/RPM information for performance monitoring
• Easy-to-read display with backlight functionality
• Temperature monitoring where supported
• Voltage monitoring where supported

Specifications

• Tachometer Range: 0 ~ 9,000 RPM | | Unit: 1000 RPM / 500 RPM.
• Odometer Range: 0 ~ 99,999 miles (km) | Unit: 1 mile (km)
• Shift‑light warning Range: 2,000 ~ 10,000 RPM | Unit: 100 RPM Warning lights on ≥ value.
• Speedometer Range: 0 ~ 225 MPH (0 ~ 360 km/h) | Unit: MPH or km/h.
• Max speed record Range: 0 ~ 360 miles (km)
• Overspeeding warning Range: 19 ~ 225 MPH (30 ~ 360 km/h) | Unit: MPH or km/h, Warning lights on ≥ value.
• Tripmeter A/B Range: 0 ~ 9999.9 miles (km) | Unit: 0.1 mile (km)
• Tire circumference Range: 300 ~ 2,500 mm | Unit: 1 mm Sensitive point: 1 ~ 20.
• Over temperature warning Range: 14 ~ 482°F (60 ~ 250°C) | Unit: °F or °C (alternative)
• Fuel meter Range: 6 levels | Fuel light will flash if the level is below 1.
• Fuel resistance Range: 100 Ω / 250 Ω / 270 Ω / 390 Ω /510 Ω / 1,200 Ω / Sw / Custom (learning mode) / OFF.
• Volt meter Range: DC 8 ~ 18 V | Flashing Warning light ≤ value.
• Backlight brightness Range: 1/3 (darkest) ~ 3/3 (brightest)
• Backlight colors White / Yellow / Orange / Red / Purple / Blue / Light blue / Green.
• Indicator lights RPM shift light / Check engine / Oil level / High beam / Turn signals / Water temp light / Warning light / Neutral.
• Gear indicator Range: 1 ~ 9.
• Effective temperature range 32 ~ 482 °F (0 ~ 250 °C)
• Under voltage warning Range: DC 8 ~ 18 V / DC 0.1 V.
