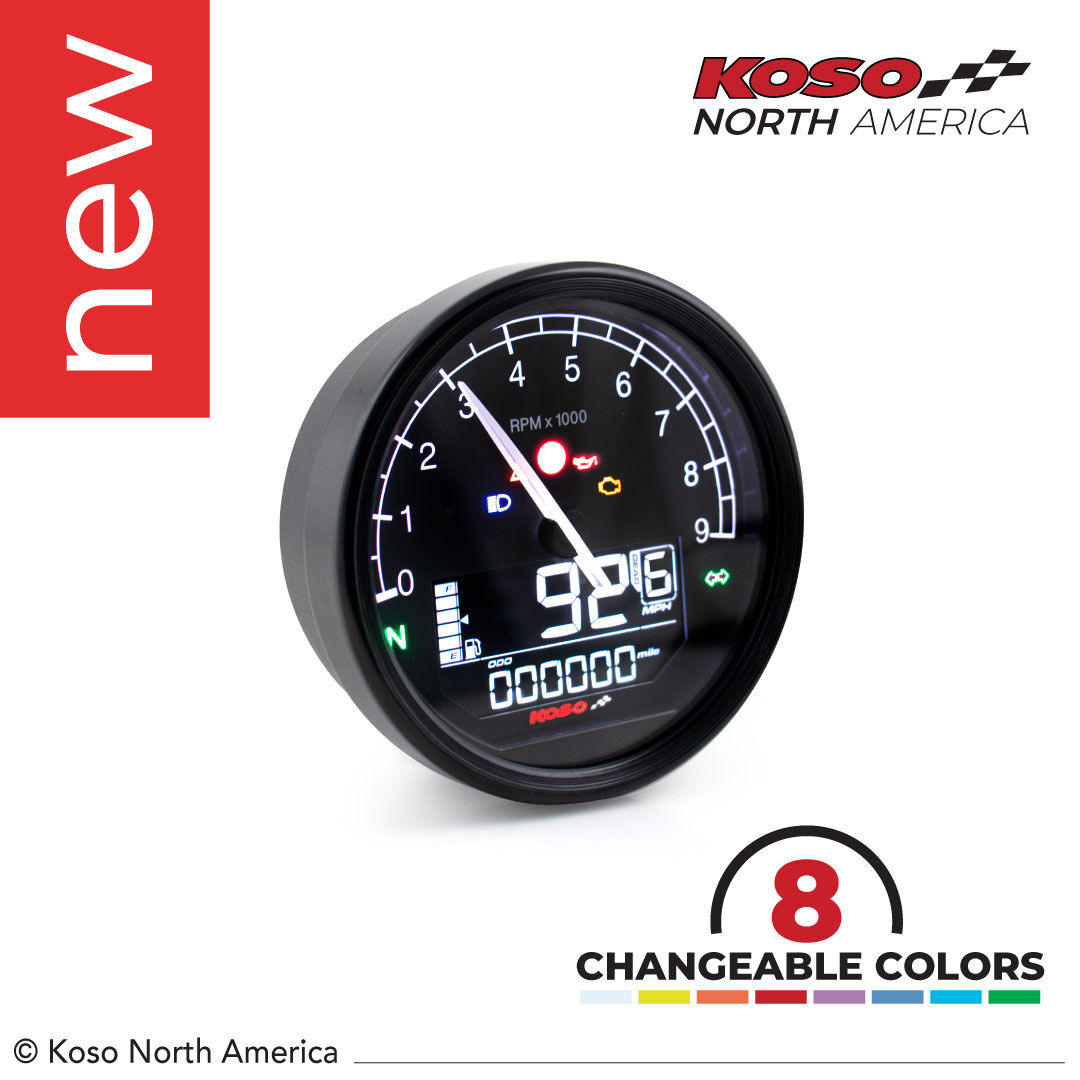

Koso decided to release a bigger version of the TNT-05 that combines a tachometer and speed option. This version for Harley-Davidson® bikes has 8 changeable LCD backlight colors and indicator lights that will give you all the data you need with style even in the darkest conditions. The TNT-05 D80 also provide basic functions such as tripmeter, hour meter, fuel, voltage, clock, gear indicator and more.

 Specifications
(R= Range U=Unit)

• Tachometer
  R: 0 ~ 9,000 RPM | U:1000 RPM / 500 RPM
• Odometer
  R: 0 ~ 99,999 miles (km) U: 1 mile (km)
• Shift‑light warning
  R: 1,000 ~ 8,000 RPM
  U: 100 RPM Warning lights on ≥ value
• Speedometer
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
  U: MPH or km/h
• Max speed record
  R: 0 ~ 360 miles (km)


• Overspeeding warning
  R: 19 ~ 225 MPH (30 ~ 360 km/h)
  U: MPH or km/h, Warning lights on ≥ value
• Tripmeter A/B
  R: 0 ~ 9999.9 miles (km) U: 0.1 mile (km)
• Tire circumference
  R: 300 ~ 2,500 mm
  U: 1 mm Sensitive point: 1 ~ 20
• Over temperature warning
  R: 14 ~ 482°F (60 ~ 250°C)
  U: °F or °C (alternative)
• Motor oil maintenance
  R: User adjustable (500 ~ 16,000 km / 300 ~ 10,000 miles) ~ -999 km (miles), automaticly decrease according to the increase of total mileage. | U: 1 mile (km/h)

• Fuel meter
  R: 6 levels | Fuel light will flash if the level is below 1
• Fuel resistance
  R: 100 Ω / 250 Ω / 270 Ω / 390 Ω /510 Ω / 1,200 Ω / Sw / Custom (learning mode) / OFF
• Under voltage warning
  R: DC 8 ~ 13 V | Flashing Warning light ≤ value.
• Backlight brightness
  R: 1/3 (darkest) ~ 3/3 (brightest)

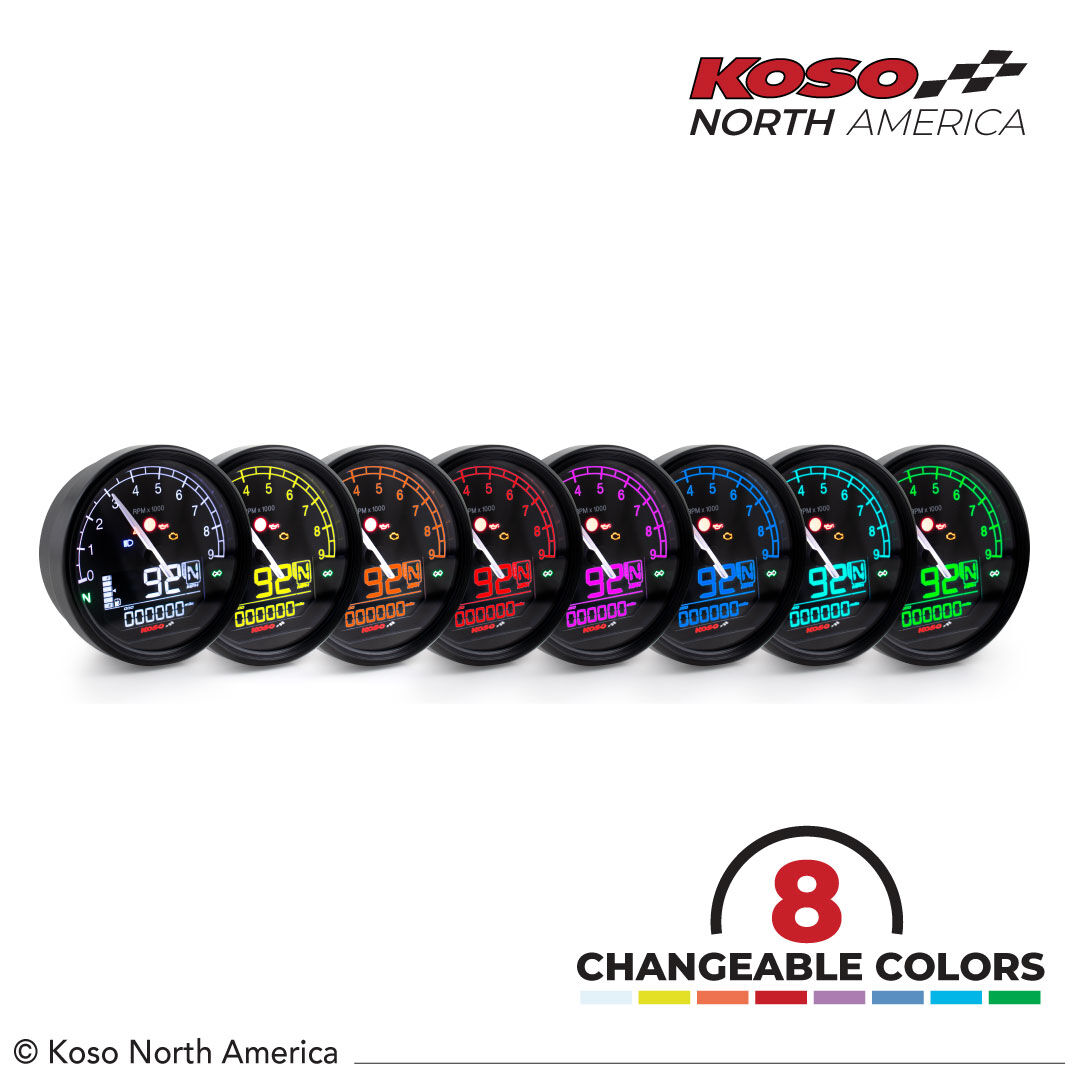

• Backlight colors
  White / Yellow / Orange / Red / Purple / Blue / Light blue / Green

• Indicator lights
  RPM shift light / Check engine / Oil level / High beam / Turn signals / Water temp light / Warning light / Neutral
• Gear indicator
  R: 1 ~ 9
• Effective temperature range
  32 ~ 482 °F (0 ~ 250 °C)
• Volt meter
  R: DC 8 ~ 18 V / DC 0.1 V
• Clock
  12 H or 24 H format
