Koso meters are designed to give riders clear, reliable information in a compact and modern display, making them a smart upgrade for both custom builds and everyday motorcycles.

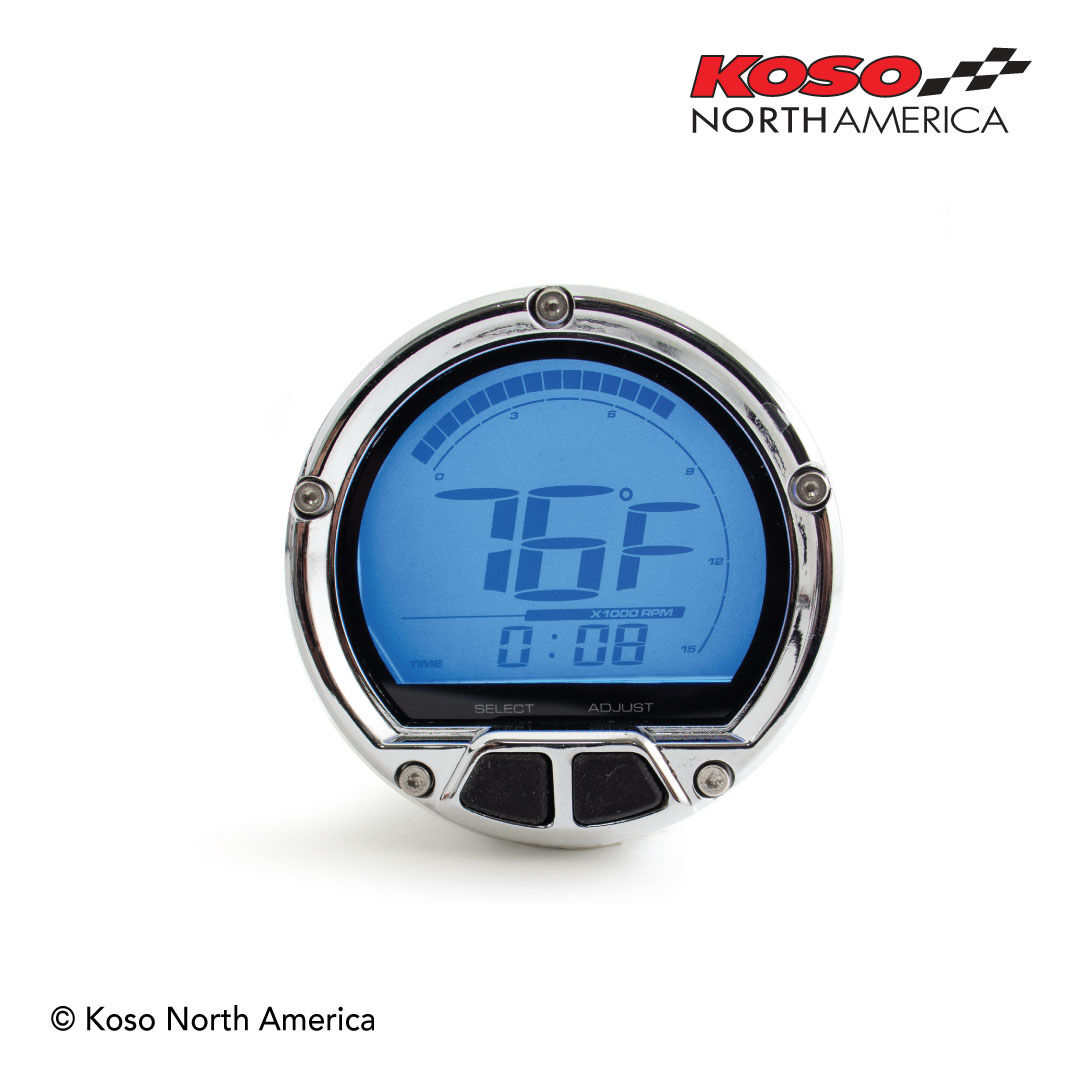

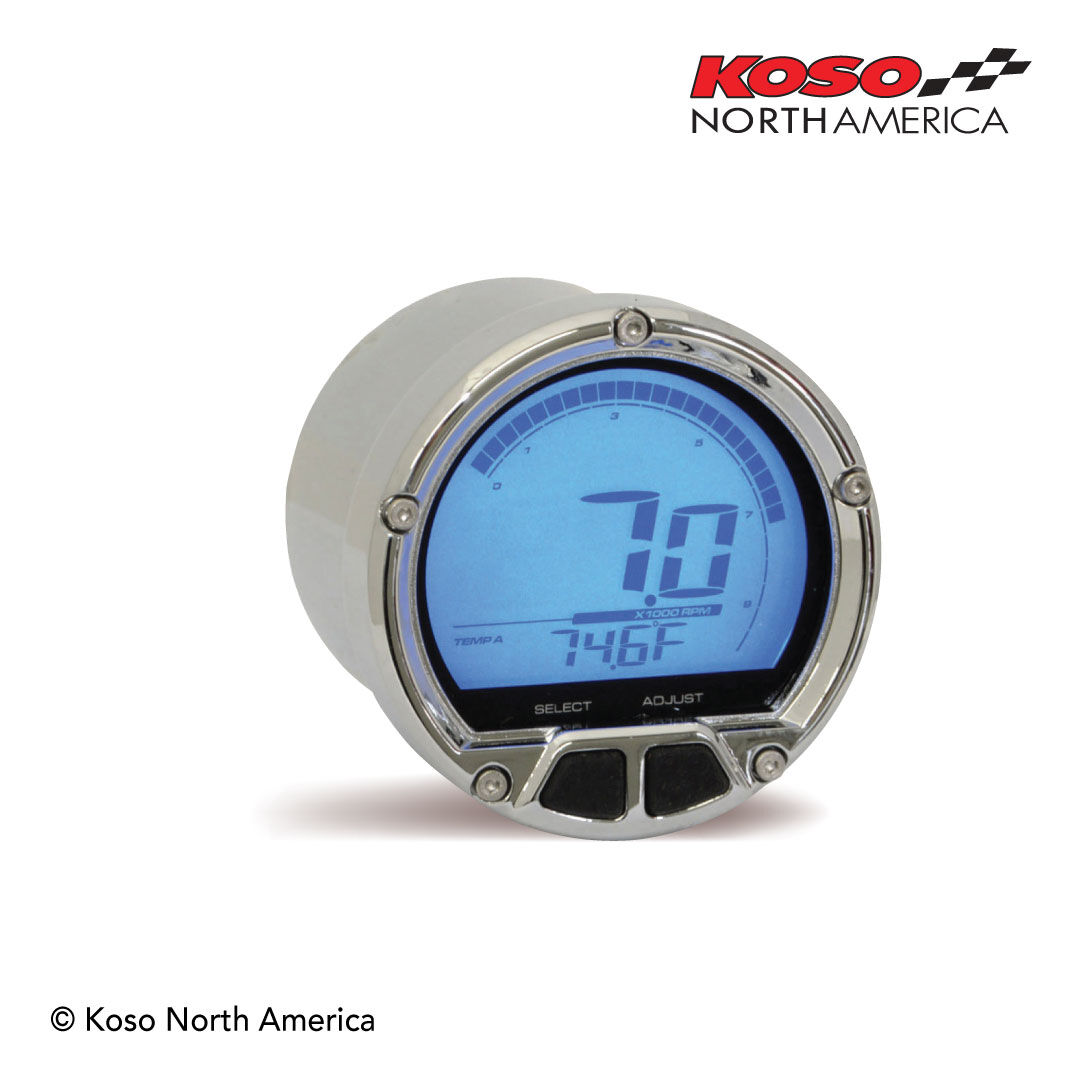

The DL‑02R tachometer has been developed with the latest technology. Its unique casing allows the adjust buttons to be right in the front.

  • Tachometer/RPM information for performance monitoring
  • Easy-to-read display with backlight functionality
  • Temperature monitoring where supported
  • Voltage monitoring where supported

Specifications

  • Tachometer Range: 0 ~ 20,000 RPM | | Unit: 100 RPM.
  • Tachometer level Range: 0 ~ 10,000 / 15,000 / 20,000 RPM | Unit: 30 levels ■ 10, 000 RPM: 1 level = 333 RPM ■ 15, 000 RPM: 1 level = 500 RPM ■ 20, 000 RPM: 1 level = 666 RPM.
  • Stroke / piston setting 2 stroke: 1, 2, 3, 4 pistons 4 stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons.
  • Thermometer A/B Range: 32 ~ 482 °F (0 ~ 250°C) | Unit: 0.1°F or °C (alt)
  • Clock Range: 24 H format.
  • Effective temperature Range:14 ~ 140 °F (‑10 ~ 60 °C)
  • Effective voltage DC 12 V.
  • Sensor included Temp sensor : BF030000 1/8 (BSP) x 28.
  • Effective temp. range -10 ~ 60ºC (14 ~ 140ºF)
  • Meter standard JIS D 0203 S2.

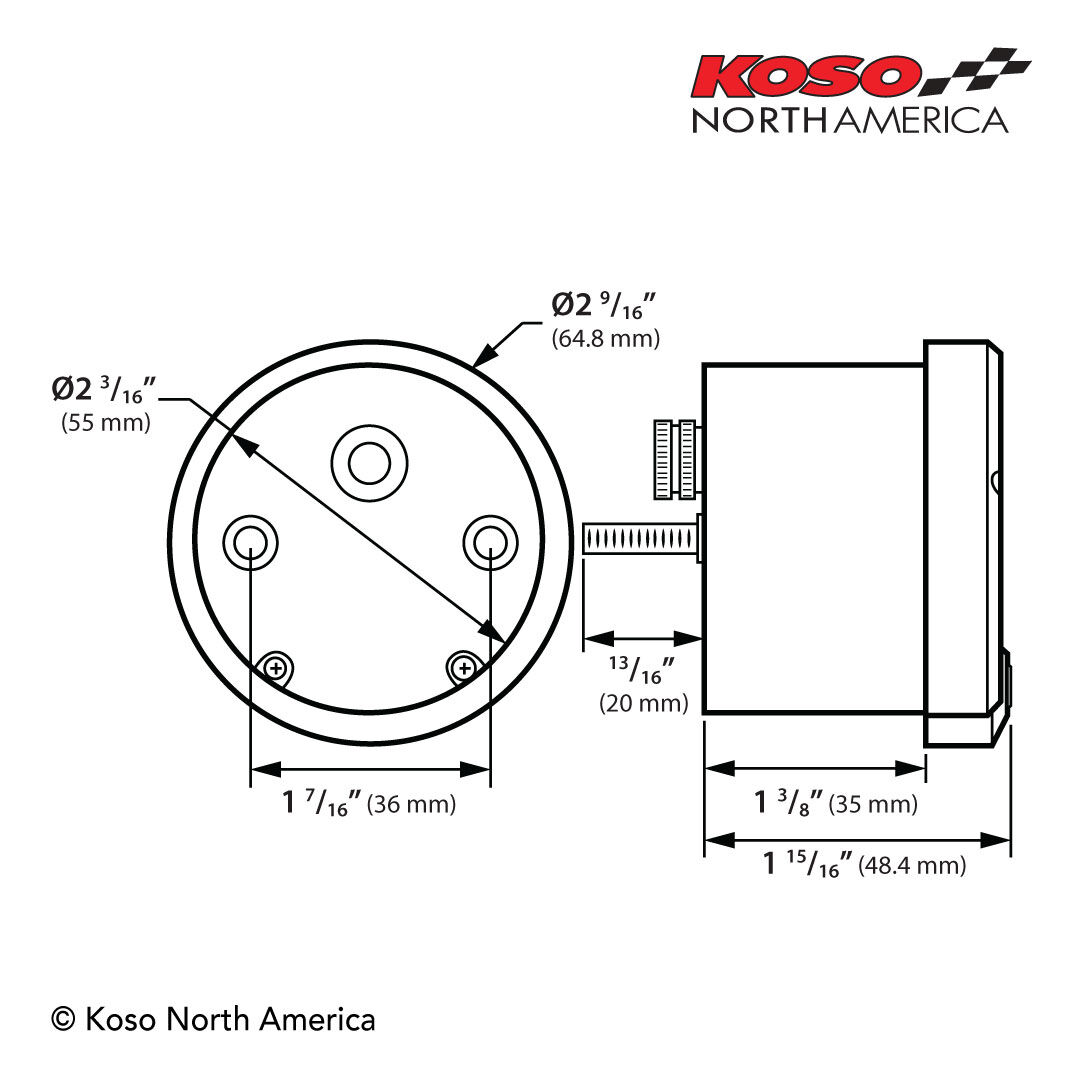

  • Meter size (DxH) D55 X 48.4 mm.

Why Buy From Hurtle Gear?

  • 100% Genuine Parts
    We supply only authentic motorcycle parts and accessories from trusted, authorised brands.
  • Fast Dispatch from Western Australia
    In-stock items ship quickly from our WA warehouse for reliable Australian delivery.
  • Australian-Based Support
    Get help from real riders who understand the products we sell and the bikes they fit.
  • Trusted by Riders Australia-Wide
    We’ve received thousands of positive reviews across platforms including Google, SmartCustomer, TrustPilot, eBay, Facebook and more.
  • Over 13 Years in Business
    Hurtle Gear has been supporting Australian motorcyclists for more than 13 years.
SKU BA555B19-HD-W
Brand Koso
Product Specifications
