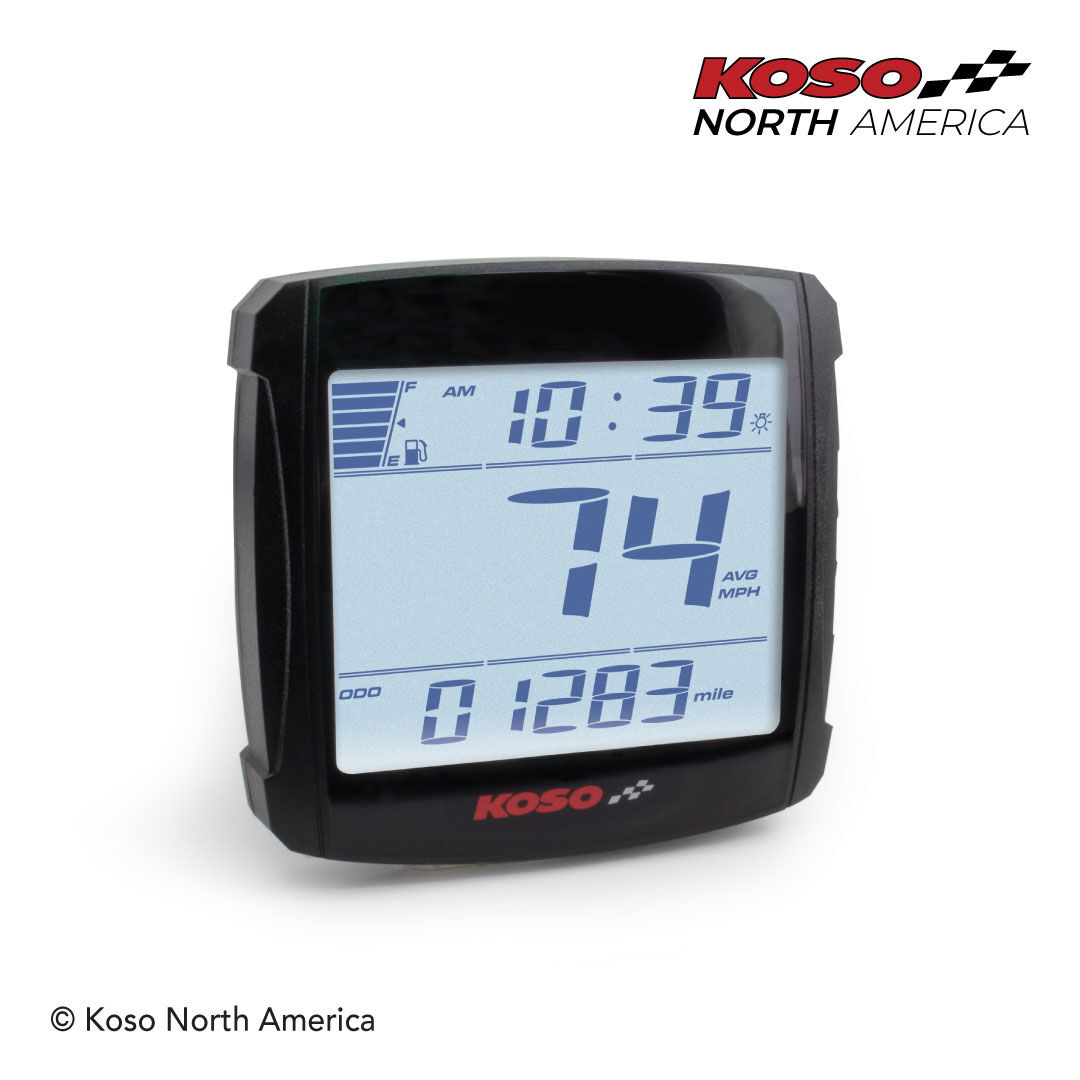

Koso XR-01 | Speedometer | Off-Road version (LN-01)

Koso meters are designed to give riders clear, reliable information in a compact and modern display, making them a smart upgrade for both custom builds and everyday motorcycles.

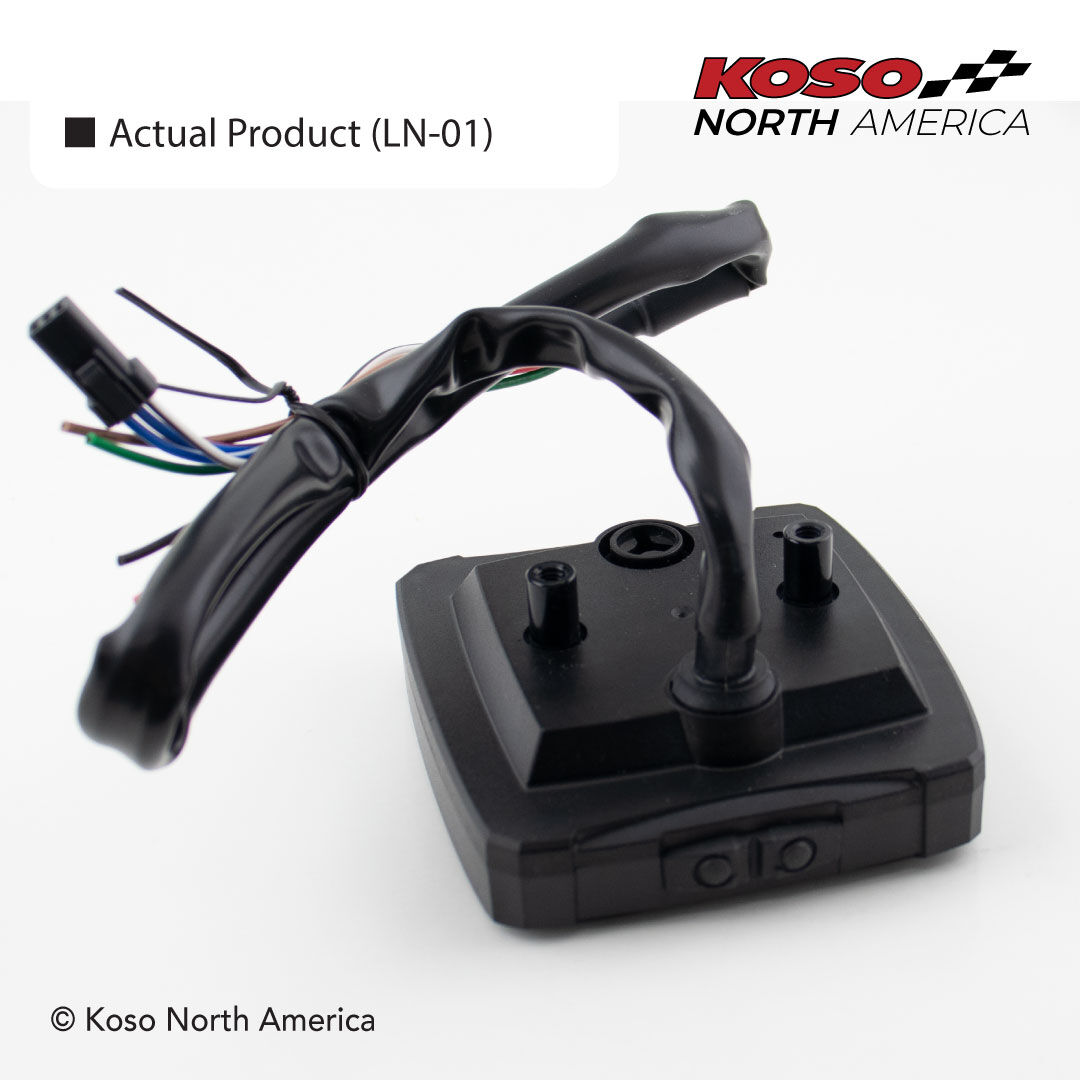

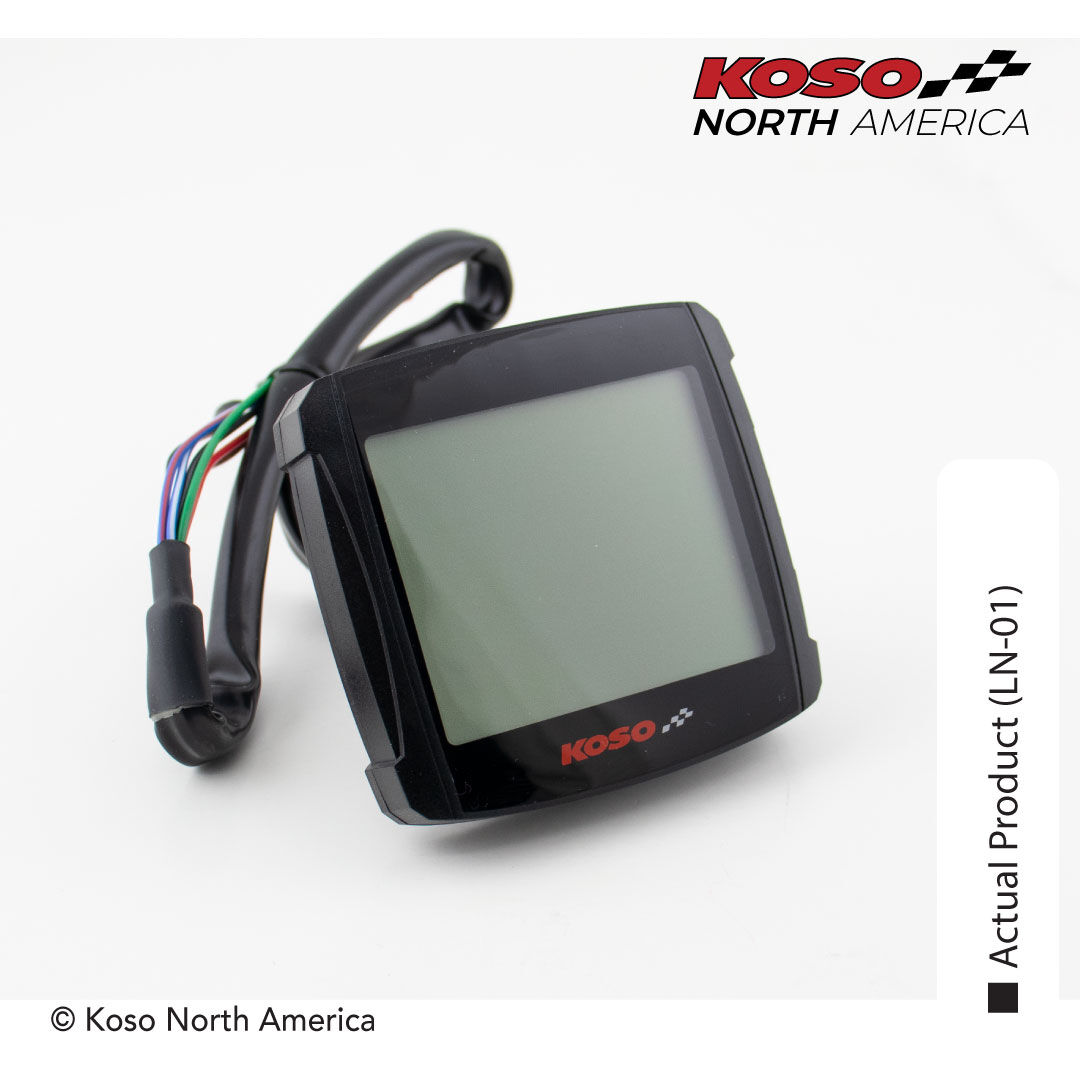

This XR-01 speedometer was used in a video and photoshoot. The meter was connected to a simulator has never seen any daylight or bad weather.

• Clear speed and distance information
• Easy-to-read display with backlight functionality
• Temperature monitoring where supported
• Voltage monitoring where supported
• Fuel level display where supported

Specifications

• A single unit is available.
• 1 year warranty.
• +/- 2 hr of usage on the meter.
• Speedometer Range: 0 ~ 225 MPH (0 ~ 360 km/h) | Unit: 1 MPH or km/h (alternative)
• Odometer Range: 0 ~ 99,999 miles (km) | | Unit: 1 mile (km)
• Tripmeter A/B Range: 0 ~ 9, 999.9 miles (km) | Unit: 0.1 mile (km)
• Oil maintenance mileage Range: 300 ~ 5,000 Miles (km) | | Unit: 1 MPH(km)
• Hour meter Range: 0 ~ 99,999 hours | | Unit: 1 H.
• Hour meter A/B Range: 0 ~ 9,999 hours | | Unit: 0.1 H.
• Top speed record Range: 0 ~ 225 MPH (0 ~ 360 km/h)
• Average speed record Range: 0 ~ 225 MPH (0 ~ 360 km/h)
• Tire circumference Range: 300 ~ 2,500 mm | | Unit: 1 mm Sensitive point: 1 ~ 6.
• Volt meter Range: DC 8 ~ 18 V Flashing light when DC 15.5 V.
• Backlight brightness Range: 1/5 (darkest) ~ 5/5 (brightess)
• Fuel level Range: 6 levels.
• Fuel resistance Range: 100 Ω / 250 Ω / 510 Ω / USER.
• Clock Range: 24 H format.
• Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C)
