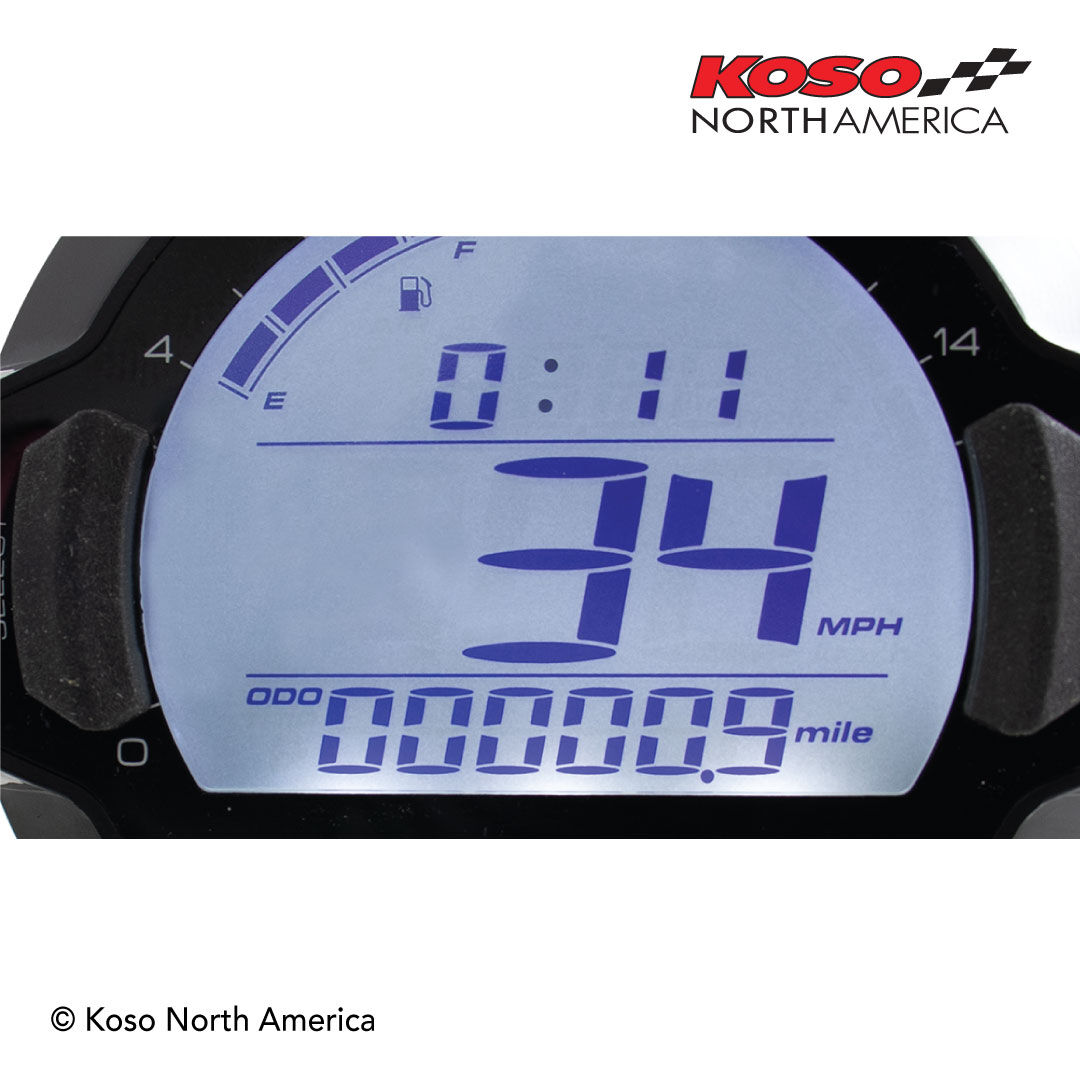

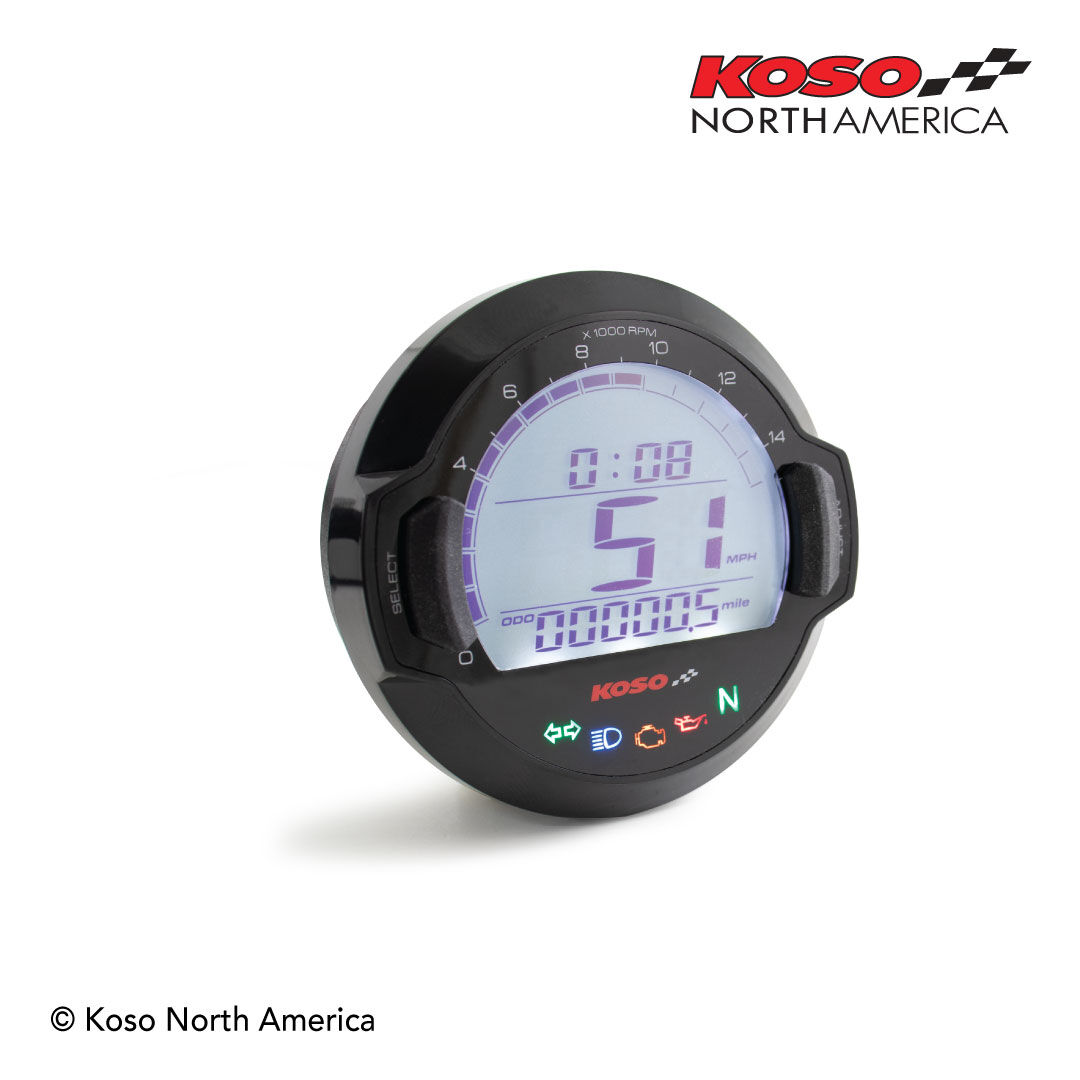

The DL‑03SR GP Style multifunction meter features about all the functions you need to go on the street. The large digits, indicator lights and backlight make this instrument easy to read, even at night. The universal speed sensor and bracket allow to install this meter on about any applications. Compact, lightweight, easy to operate, this is our DL‑03SR GP Style multifunction meter.

 Specifications (R= Range U=Unit)

  • Speedometer
    R: 0 ~ 225 MPH (0 ~ 360 km/h)
    U: 1 MPH or km/h
  • Odometer
    R: 0 ~ 99,999 miles (km)
    U: 1 mile (km)
  • Tripmeter A/B
    R: 0 ~ 999.9 miles (km)
    U: 0.1 mile (km)
  • Fuel / remaining distance
    R: 0 ~ 999.9 miles (km)
    U: 0.1 mile (km)
  • Tire circumference
    R: 300 ~ 2,500 mm | U: 1 mm
    Sensor point: 1 ~ 60
  • Tachometer
    R: 0 ~ 15,000 RPM
    U: 1 level = 1,000 RPM
  • Fuel level
    R: 4 levels
    Flashing fuel symbol when 1 level left
  • Fuel resistance
    R: 100 Ω / 250 Ω / 510 Ω/ 1,200 Ω
  • Clock
    R: 24 H format
  • Digital volt meter
    R: DC 5 ~ 24 V
    Flashing warning light when
    < DC 8 V or > DC 18 V.
  • Volt meter
    R: 4 levels
    Flashing volt symbol when 1 level left
  • Backlight brightness
    R: 1/5 (darkest) ~ 5/5 (brightest) Indicator lights
    Neutral / Check engine / Oil level /
    High beam / Turn signals /
  • Effective temperature
    R:14 ~ 140 °F (‑10 ~ 60 °C)
  • Effective voltage
    DC 12 V

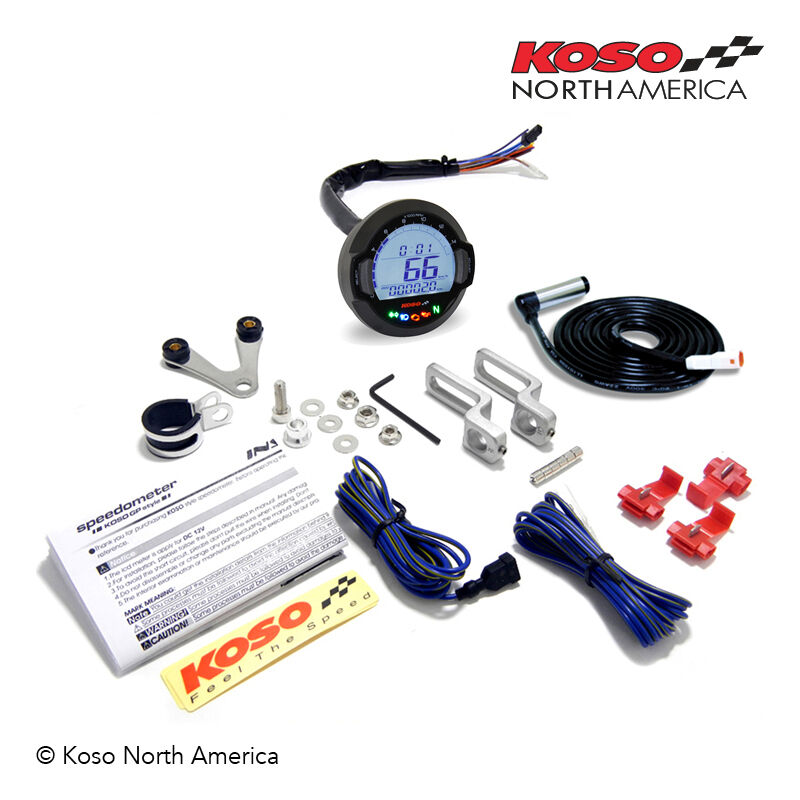

  • Sensor included
    Passive speed sensor : BF019J06
