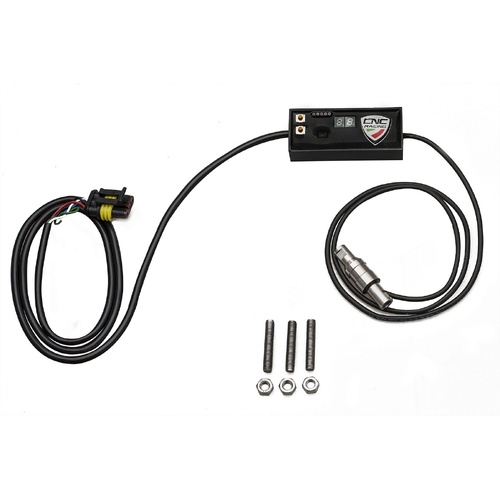

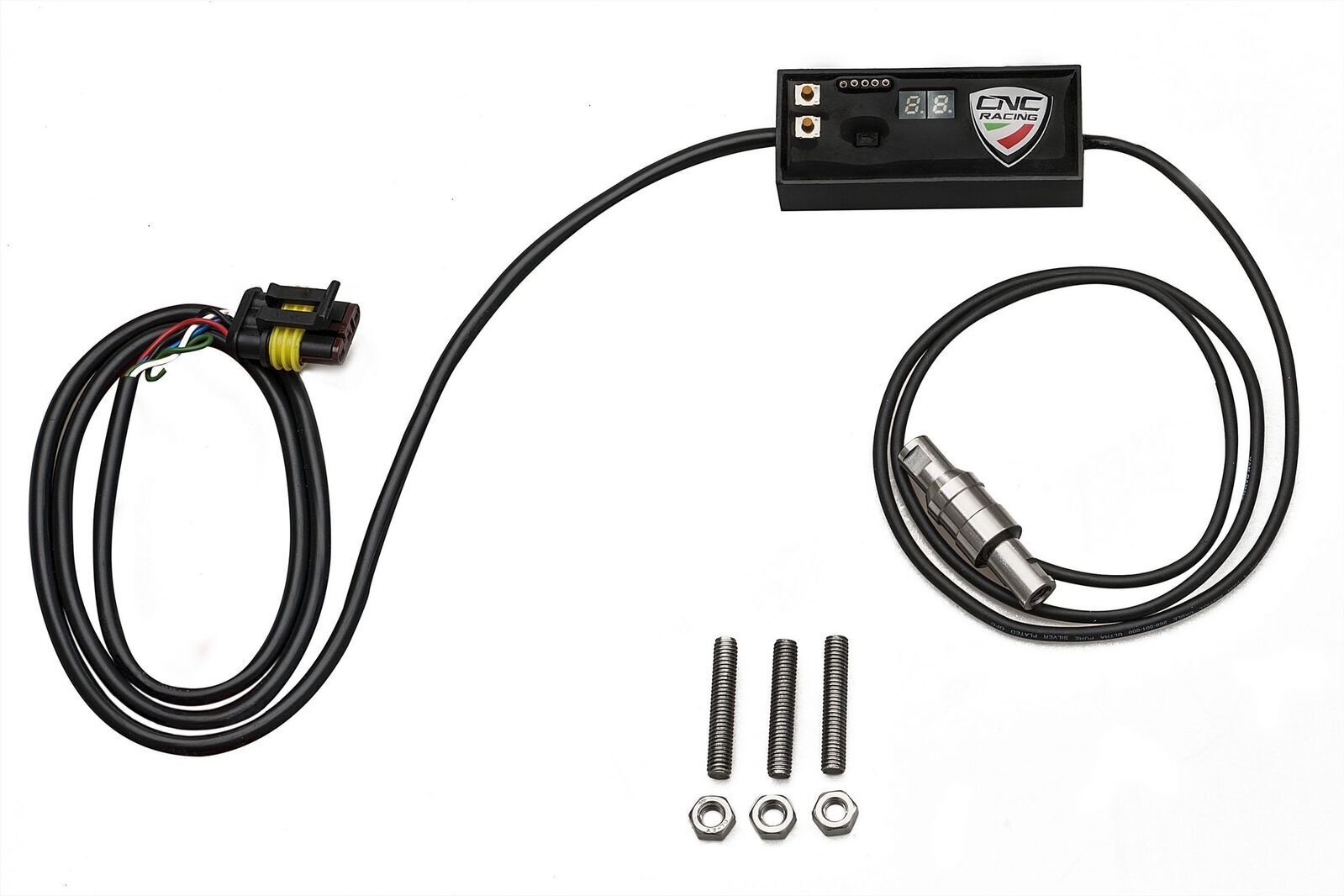

Product: CNC Racing Load Cell Quickshifter – Strain Gauge Technology

Description:
Professional-grade load cell quickshifter designed for racing and high-performance road use. Featuring strain gauge technology, this system can operate in both push and pull configurations, ensuring compatibility with a wide range of motorcycles. Equipped with both digital and analog outputs, it integrates seamlessly with major tuning and ECU systems like Dynojet Power Commander, Rapid Bike, Marelli, and Motec, offering full programmability, calibration, and data logging.

This CNC Racing load cell quickshifter combines durability, precision, and advanced shifting logic through its Compushift and Smoothshift features — optimizing upshift timing dynamically for faster, smoother, and safer gear changes, even at full throttle and lean angle.

Technical Features & Benefits:

• Load Cell (Strain Gauge) Technology – works under both push and pull operations.

• Dual Parallel Outputs:

  • Digital (configurable NO/NC) – for Dynojet Power Commander & Rapid Bike.

  • Analog (0–5V) – for Marelli, Motec, similar systems, and Data Loggers.

• Fully Programmable:

  • Compatible with YEC, HRC, and YOSHIMURA ECUs.

  • Adjustable killtime: 40–99 ms.

  • Programmable on/off RPM threshold.

• Real-Time Functions:

  • MAX LOAD recording and CURRENT LOAD display.

  • Automatic temperature, vibration, and creep compensation.

  • Failure Check warning for diagnostics.

• Compushift Technology – automatically selects optimal killtime (500 levels, 20–180 ms) based on engine RPM, load, and acceleration.

• Smoothshift Technology – reduces gearbox shock, chain stress, and traction loss during full-throttle upshifts.

• Physical Specifications:

  • Size: Ø15 mm x L55 mm.

  • Rod: pre-drilled and threaded, cut-to-length (available in M6 or M8).

  • Water & dust resistant: IP65 rated.

  • Durability: tested for over 1,500,000 cycles @65 kg load.

• Plug & Play Compatibility:
  Available for most Japanese sportbikes, Ducati, Aprilia, KTM, Triumph, BMW, Moto Guzzi, Benelli, Bimota, and Morini.
  Wiring diagrams provided for other models.

• Miniature LED Control Panel: setup and calibration without PC.

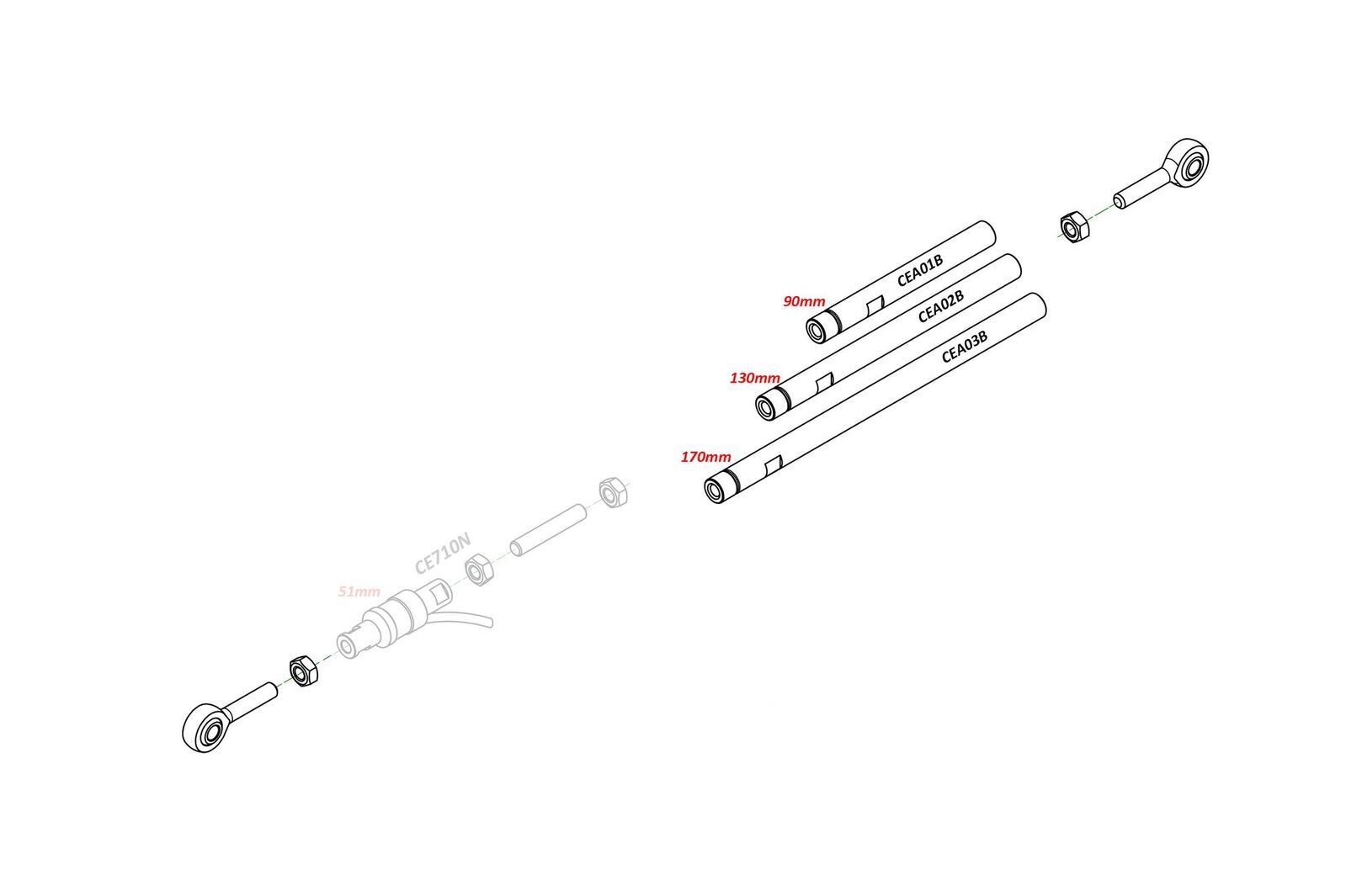

• Optional Rod Link Lengths:

  • CEA01B – 90 mm

  • CEA02B – 130 mm

  • CEA03B – 170 mm

Notice: Please indicate the motorcycle model and year in the order notes for correct configuration.

Important Note:
Please check Specifications for model compatibility.
