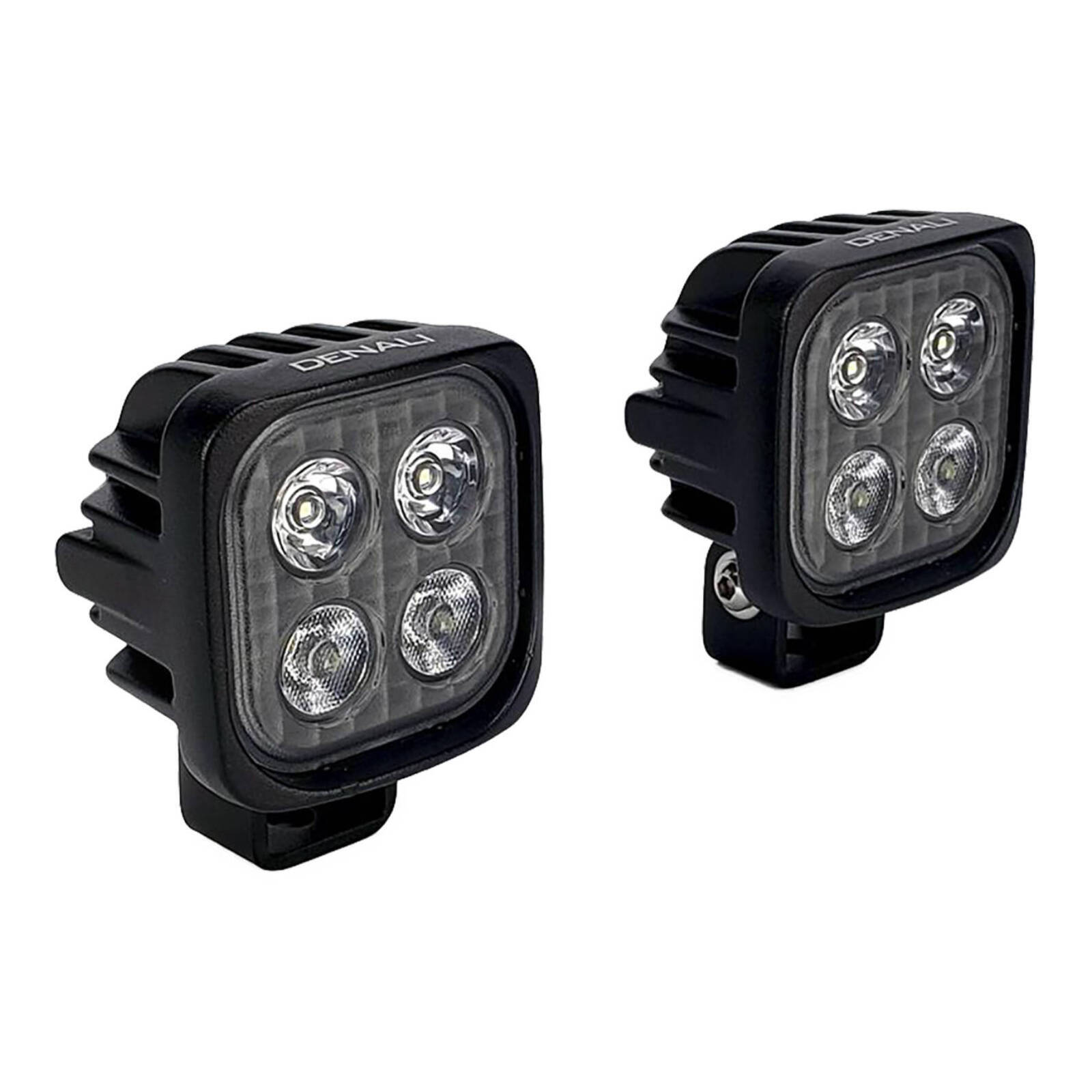

The S4 is the first light we developed as part of our new S-Series product line. The new S-Series lights were specifically engineered to reduce cost without sacrificing performance quality or durability.

In fact the S4 features the same high-intensity LEDs as the D-Series lights but utilize a single-piece optic and sealed beam construction to reduce the number of unique components. The result is a super durable high performing light that won't break the bank. The fixed lens features two flood optics and two spot optics to create the ultimate hybrid beam pattern; a super-wide close-range flood and a piercing spot beam in one housing. Consistent with D-Series lights the S4 features DENALI’s innovative DataDim™ Technology that enables the lights to be upgraded in seconds to dual intensity by connecting a plug-n-play DataDim™ Controller (DNL.WHS.11000) that will automatically switch the lights between half and full intensity with your vehicle's original high beam switch. S4 Kit Features High-Intensity Series Cree LEDs outputting 6132 lumens per kit. DrySeal™ Submersible Waterproof light can withstand the most extreme environments LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating Low profile mounting bracket with stainless steel hardware included S4 Kit Specs LED’s: (8x) 7 Watt Cree XPL HI Power Draw: 4.6 Amps Beam Distance: 540 Feet Beam Width: 100 Feet Raw Lumens: 6132 Intensity: Single Intensity Harness DataDim™ Compatible: Yes Operating Voltage: 12 VDC Pod Size: 2.75” Square x 1.97” Deep (each) Pod Weight: 0.8 lbs (each) IP67 Waterproof & Submersible S4 Kit - What’s In The Box? (2x) LED Light Pods (1x) Standard Single Intensity Wiring Harness (2x) Hinge Mounts with M8 Stainless Steel Hardware (4x) Zip Ties & (1x) Adhesive Mounting Square

• High-performance LED technology
• Weather-resistant construction
• Complete wiring solution included
• Secure and reliable mounting design
