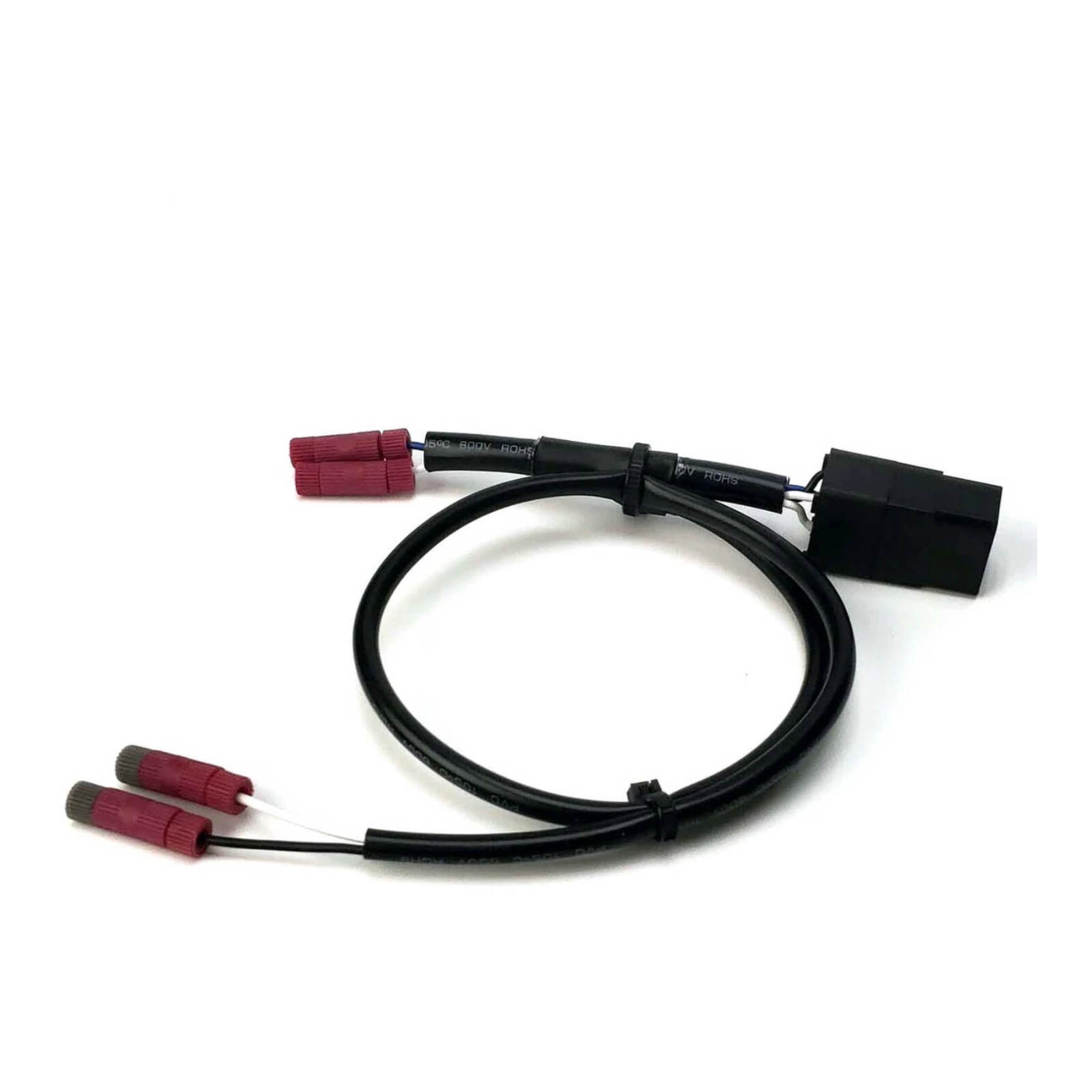

DENALI Trigger Wizard - Universal High Beam Trigger for Ground-Switched LED Headlights

The DENALI Trigger Wizard is a simple wiring adapter designed to convert a ground-switched vehicle high beam signal into a conventional 12V high beam trigger. This allows compatible DENALI auxiliary lighting systems to respond correctly to the motorcycle's factory high beam switch.

When used on a vehicle with a ground-switched LED headlight circuit, the Trigger Wizard reverses the high beam signal so DENALI lights can change intensity when the factory high beam is activated.

Designed for Ground-Switched Headlights

In a traditional power-side switched headlight circuit, the high beam trigger wire typically measures 0V with the high beam switched off and 12V or more when the high beam is activated. A ground-switched circuit operates in the opposite way, typically measuring 12V or more when the high beam is off and dropping below 1V when the high beam is activated.

The Trigger Wizard converts this ground-switched signal into the conventional 12V trigger required by compatible DENALI lighting systems.

Features

  • Converts a ground-switched high beam signal into a conventional 12V high beam trigger.
  • Allows compatible DENALI auxiliary lights to respond to the factory high beam switch.
  • Designed for vehicles using ground-switched LED headlight circuits.
  • Compatible with DENALI DataDim driving light harnesses.
  • Compatible with the DENALI DialDim Lighting Controller.
  • Simple in-line wiring solution.
  • Universal design suitable for a range of compatible vehicles.

Installation

The colour-coded white and blue connections attach to the corresponding DENALI wiring harness trigger wires. The black and white leads are then connected to the vehicle's high beam and switched power wires respectively.

Before installation, the vehicle's high beam circuit should be checked to confirm that it uses ground switching. DENALI recommends using a voltmeter to measure the high beam wire while switching the high beam on and off.

Important Information

Not all LED headlights use ground-switched circuits, so the Trigger Wizard is only required where this type of high beam switching is present. This is a universal-fit component and compatibility is not guaranteed for every vehicle. Depending on the application, additional vehicle-specific components or installation work may be required.

The DENALI Trigger Wizard provides a straightforward solution for integrating compatible DENALI auxiliary lighting with motorcycles and other vehicles that use ground-switched high beam circuits.

Installation Instructions
