Drawing on decades of testing and high-tier racing experience, the Öhlins NIX 22 cartridge kits represent the pinnacle of performance and precision. Engineered to deliver exceptional damping, comfort, and stability, these kits inspire rider confidence and are now available for motorcycles with conventional front forks.

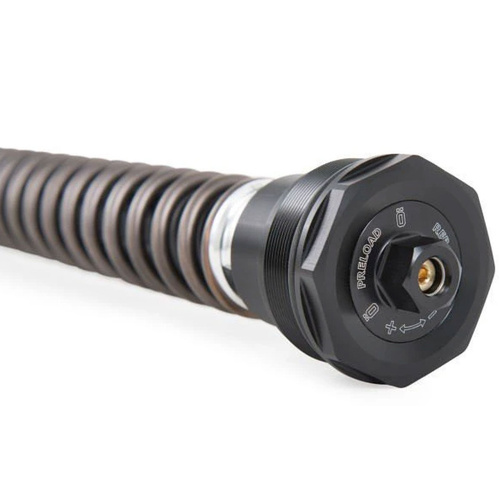

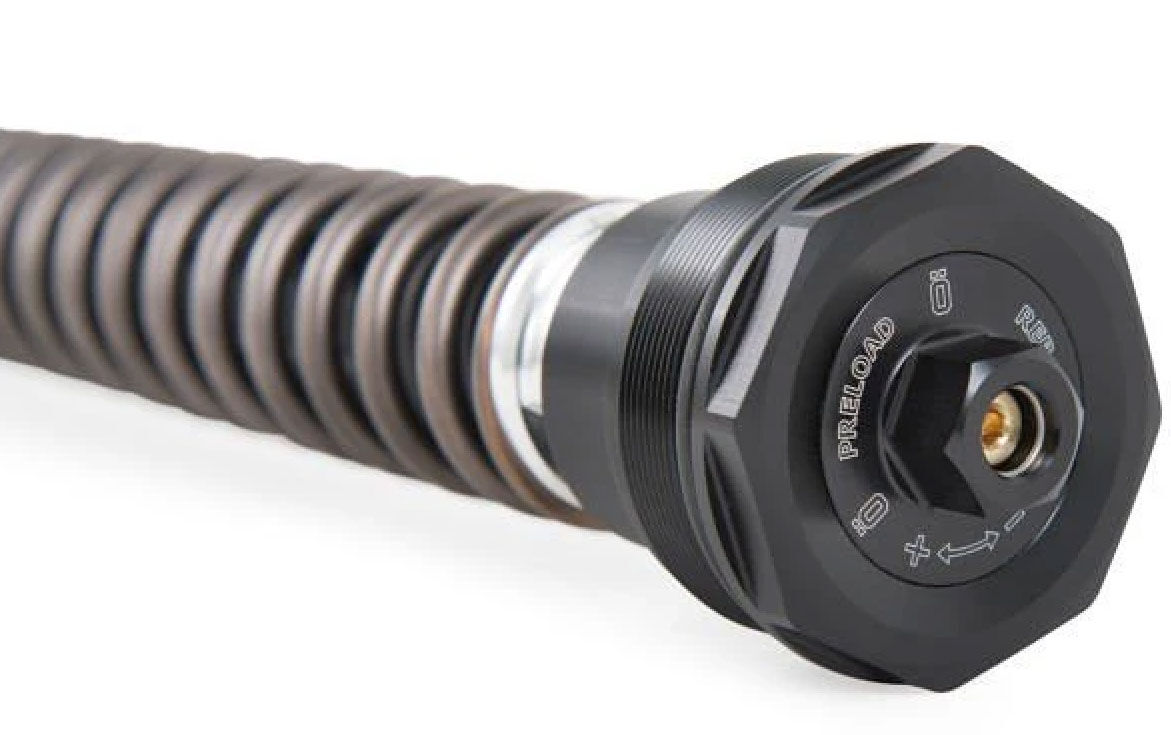

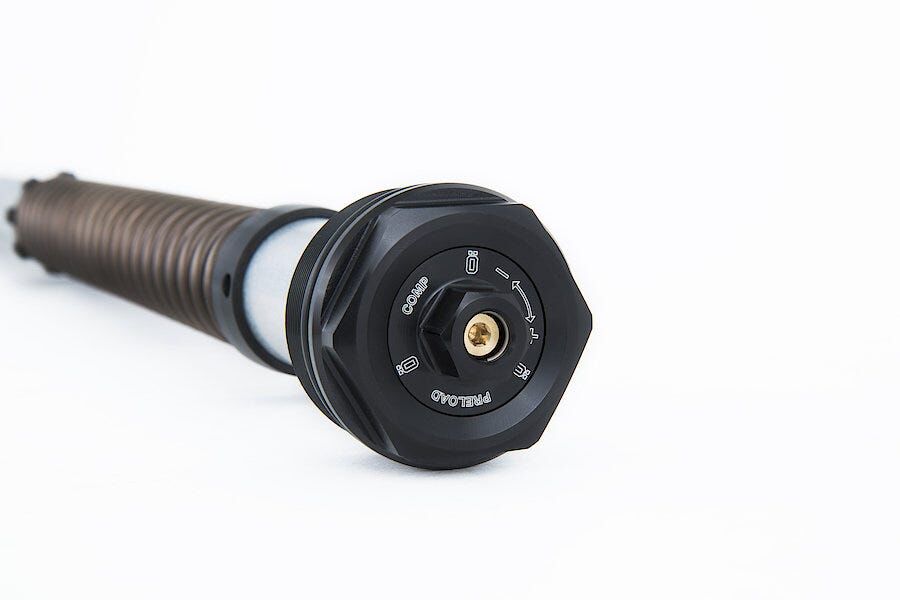

Each NIX 22 cartridge kit is extensively tested and meticulously tailored to meet the unique requirements of every bike. Featuring the proven “NIX” design—with compression damping on the left leg and rebound damping on the right leg—these kits deliver precise performance and improved stability. All adjustments, including spring preload, are conveniently made at the top cap for effortless tuning.

The cartridge system is designed to fit directly into the original front fork and includes high-quality springs. Please refer to the specific cartridge kit’s mounting instructions for recommendations on spring rates and oil selection based on rider weight and preference.

Installation Tools & Additional Consumables
For correct installation into the standard front fork, the following tools are required (available separately from the Öhlins online shop):

• Stopper Plate (8/10/12): Part no. 02810-03
• Pull-Up Tool, M8: Part no. 01765-08

Additional consumables, also available via the Öhlins online shop, include:

• Red Grease (100 g): Part no. 00146-01
• Grease Statoil CaH 92 (100 g): Part no. 00159-02
• Loctite 2400 (50 ml): Part no. 01791-25
• Loctite 2700 (50 ml): Part no. 01791-27

Professional Installation Recommendation
To ensure optimal performance and safety, we strongly recommend that the cartridge kit be installed by a professional motorcycle or suspension workshop.

Compatible Vehicles
These cartridge kits are designed for the following vehicles (please note that compatibility excludes bikes with a 21-inch [533 mm] front wheel):

• Harley-Davidson Road Glide Custom CVO FLTRXSE (FL3): 2017 – 2022, ABE (Germany)
• Harley-Davidson Road Glide Special FLTRXS (FL3): 2017 – 2022, ABE (Germany)
• Harley-Davidson Road Glide ST FLTRXST (FL3): 2022 – Present, ABE in preparation (Germany)
• Harley-Davidson Road Glide Ultra CVO FLTRUSE (FL3): 2017 – 2022, ABE (Germany)
• Harley-Davidson Road Glide Ultra FLTRU (FL3): 2017 – 2020, ABE (Germany)
• Harley-Davidson Street Glide CVO FLHXSE (FL3): 2017 – 2022, ABE (Germany)
• Harley-Davidson Street Glide FLHX(S) (FL3): 2017 – 2022, ABE (Germany)
• Harley-Davidson Street Glide ST FLHXST (FL3): 2022 – Present, ABE in preparation (Germany)
• Harley-Davidson Ultra Glide Classic FLHTCU (FL3): 2017 – 2022, ABE in preparation (Germany)

Additional Specifications:

• Position: Front
• Spring Series: 08790-xx
• Recommended Oil: 01309-01
• Oil Level: 140 mm
• Packaging Unit: Pair

Elevate your motorcycle’s performance with the Öhlins NIX 22 cartridge kits—where precision engineering meets uncompromised quality for an outstanding riding experience.
