TRAX ADV aluminium case system TEST WINNER in the magazine MOTORRAD issue 05/2020.

Test result: VERY GOOD Durable TRAX ADV aluminium cases feeL at home on any stretch of road: embossed patterns add stability to the 1.5 millimeter-thick, welded aluminium wall Material.

A completely removable lid equipped with carrying handles made of anodized aluminium and quick release fasteners makes loading and unloading of motorcycle luggage easier; the beveled side edge delivers high ground clearance when cornering.

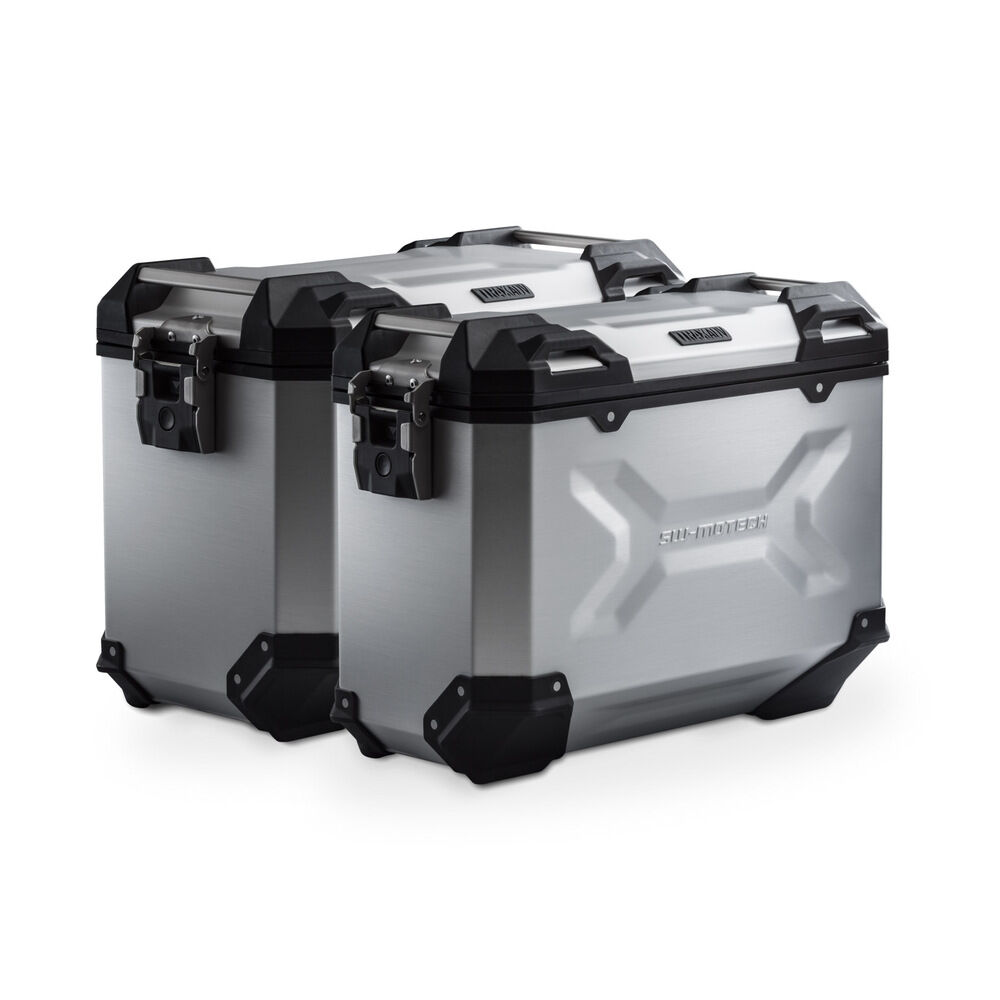

equipped with this complete solution, you have all the components you need to travel equipped with TRAX: two waterproof TRAX ADV side cases, two detachable SW-MOTECH side carriers, adapter kit, lock set, lid limiter and anti-theft protection at an attractive price.

The bike-specific carrier and the size of the cases are perfectly matched to the rear shape and exhaust system of the motorcycle.

A motorcycle case without compromise: the development of the TRAX ADV focused on stability and impermeability against dust and water as welL as simple handling.

Whether on an off-road adventure, road trip or short haul, the premium aluminium case equipped with a wall thickness of 1.5 millimeters will come out on top in any challenge.

EVO Side carrier Detachable carrier ideal for use equipped with almost all common case systems Attachment and removaL within seconds equipped with quick-release fasteners at inconspicuous attachment points The SW-MOTECH case adapter (available separately) makes it ideal for TRAX, AERO, Givi/Kappa, Krauser, Hepco & Becker, Shad cases Made of ovaL round tube close to the vehicle High functionality and stability Details Material: Steel Surface: powder coated Colour: Black Total Weight: appr. 4.6 kg / appr. 10.2 lb Width built onto motorcycle: 49.0 cm / 19.3 in Note We recommend QLS.00.046.10100/B anti-theft protection Please note that an adapter kit corresponding to the attached case is required!

(Listed under accessories) Adapter kit ideal for EVO side carriers Adapter kit ideal for attaching TRAX ADV/ION/EVO or NANUK side cases to SW-MOTECH EVO side carriers Mounted on to the existing holes of the SW-MOTECH EVO side carrier ideal for left and right sides Details Color: silver Total Weight: appr. 0.3 kg / appr. 0.8 lb TRAX ADV L Aluminium case ModeL ideal for the left side of the motorcycle Protection against oxidation and abrasion thanks to anodized finish Sturdy and watertight side case made from aluminium Large chamfer on sides ideal for plenty of ground clearance ideal for cornering, additional protection from glass fiber reinforced plastic corner caps Robot-guided welding and self-piercing riveting prevent dampness from getting in Even when loaded, completely removable lid equipped with quick-release fastener 4 large tie-downs integrated into the lid design (e.

g.

ideal for a tent or accessory bag) High stability thanks to the embossed patterns, welded edges and pre-installed retaining raiL Hinges made from stainless steel, handles made from anodized aluminium Lid limiters provide additional stability when using extra luggage on the lid Exchangeable cover gasket The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately) Adapter kits also available ideal for mounting on to girders from other manufacturers such as Givi and Hepco & Becker A lock set equipped with 6 identicaL locks is available as an option and is not

Specifications:
Material: aluminium
Material strength: 0.15 cm / 0.06 in
Surface: anodized
Color: silver
Size: 49.0 × 28.0 × 37.0 cm / 19.3 × 11.0 × 14.6 in
Total Weight: appr. 5.4 kg / appr. 11.9 lb
Total Volume: 45.0 L Note Also available as a TRAX ADV aluminium case system equipped with 2 side cases, bike-specific side carriers, adapters and lock set.

Required ideal for mounting Side carrier, adapter kit, TRAX lock set TRAX ADV M Aluminium case ModeL ideal for the right side of the motorcycle Protection against oxidation and abrasion thanks to anodized finish Sturdy and watertight side case made from aluminium Large chamfer on sides ideal for plenty of ground clearance ideal for cornering, additional protection from glass fiber reinforced plastic corner caps Robot-guided welding and self-piercing riveting prevent dampness from getting in Even when loaded, completely removable lid equipped with quick-release fastener 4 large tie-downs integrated into the lid design (e.

g.

ideal for a tent or accessory bag) High stability thanks to the embossed patterns, welded edges and pre-installed retaining raiL Hinges made from stainless steel, handles made from anodized aluminium Lid limiters provide additional stability when using extra luggage on the lid Exchangeable cover gasket The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately) Adapter kits also available ideal for mounting on to girders from other manufacturers such as Givi and Hepco & Becker A lock set equipped with 6 identicaL locks is available as an option and is not included in delivery Details
Material: aluminium
Surface: anodized
Color: silver
Size: 49.0 × 23.0 × 37.0 cm / 19.3 × 9.1 × 14.6 in
Total Weight: appr. 5.1 kg / appr. 11.2 lb
Total Volume: 37.0 L Note Also available as a TRAX ADV aluminium case system equipped with 2 side cases, bike-specific side carriers, adapters and lock set.

Required ideal for mounting Side carrier, adapter kit, TRAX lock set TRAX lock set equipped with EVO anti-theft device Nine matching locks equipped with anti-theft device ideal for the EVO side carrier Compatible equipped with side cases and top cases of the TRAX ADV and TRAX ION series as welL as the TRAX Toolbox One key ideal for all locks Details
Colour: Black
Total Weight: appr. 0.5 kg / appr. 1.0 lb Multi-tool key chain attachment Multitool as practicaL key chain Quick-release fastener opener ideal for EVO and PRO side carriers Hex key (14 mm) - ideal ideal for many motorcycle mirrors Hex keys in four additional sizes (8, 10, 12, 13 mm) Bottle opener Key chain eyelet equipped with laser-etched SW-MOTECH logo Details
Material: Stainless steel
Surface: brushed
Color: silver
Total Weight: appr. 0.0 kg / appr. 0.1 lb Included in delivery 1 × TRAX ADV L Aluminium case, 45.00 L, left, silver 1 × TRAX ADV M Aluminium case, 37.00 L, right, silver 2 × EVO Side carrier 2 × Adapter kit ideal for EVO side carriers 1 × TRAX lock set equipped with EVO anti-theft device 1 × Multi-tool key chain attachment 4 × Lid limiter 2 × Storage bag Mounting instructions Mounting Material Details
Color: silver
Total Weight: appr. 20.2 kg / appr. 44.4 lb
Total Volume: 82.0 L

NOTE: If this item is on pre-order (see above), it should arrive from the Australian warehouse in 1-2 weeks. But there may be some items that are not in stock in Australia and have to be ordered in from Germany, which could take 4-6 weeks. If you'd like to confirm Australian warehouse levels before ordering, please contact us.
