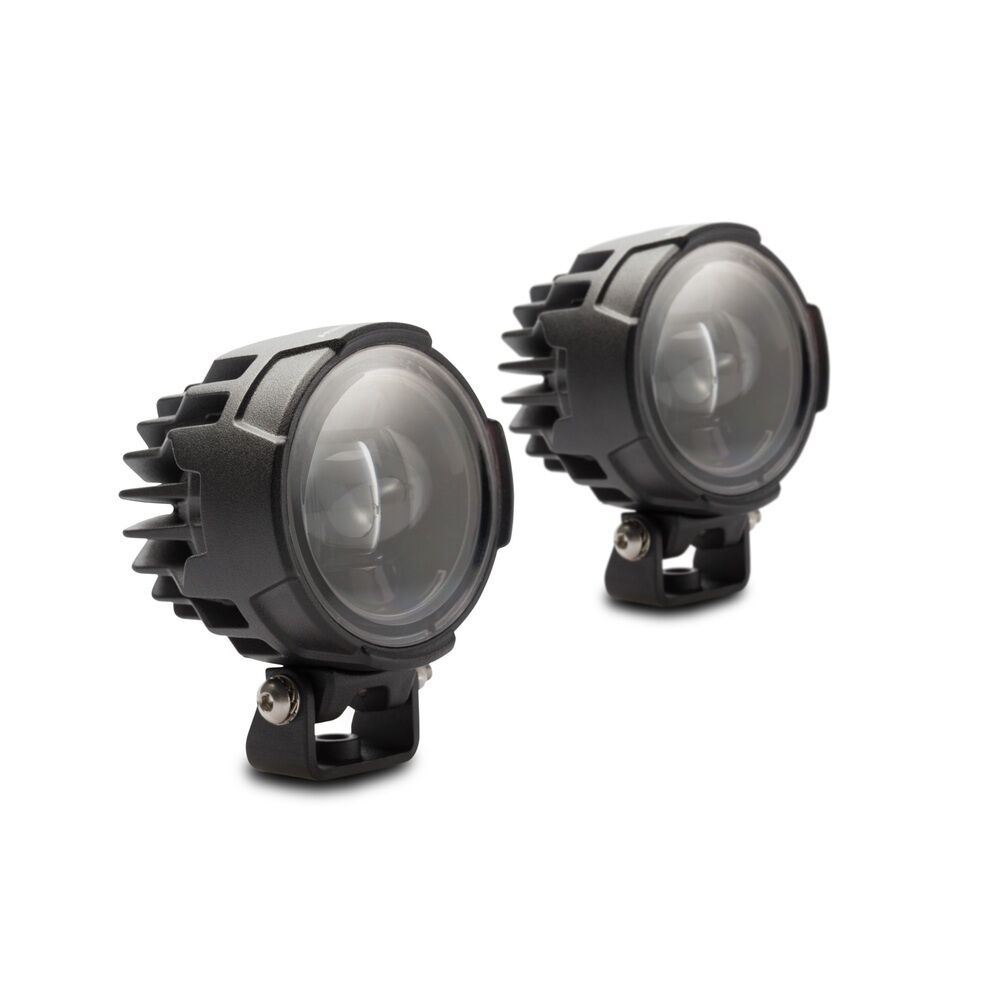

EVO High beams The highly concentrated light of the EVO high beams has a particularly wide range.

This delivers optimal lighting ideal for the rider's view and guarantees safety during on- or off-road riding.

SW-MOTECH sought out a reliable partner ideal for the development of the new EVO fog lights and relied on the expertise of a long-standing top manufacturer from the automotive sector.

Development is focused on meeting the strictest quality standards while also maintaining a compact shape: the EVO high beams are resistant to water and dust, equipped with an IP69 protective class rating.

PowerfuL LEDs provide the best view, while wear-resistant housings ensure long life.

Trouble- and maintenance-free operation due to almost wear-free LED, considerably reduced energy consumption Power output: 12 W each light Luminous flux: 800 LM each light ECE test mark: ECE R113 Rev.2 Highly concentrated beam equipped with long-distance range Compact size equipped with a diameter of 7.1 cm Water- and dustproof (safety class: IP69) Voltage: 12 V.

Cable harness ideal for easy connection to the motorcycle battery included in delivery, no change to motorcycle electric required Splash-protected, blue glowing handlebar switch ideal for comfortable operation (Protection class: IPX4) Mounting points on all four sides Installation on headlight clamps ideal for crash bar ( 22, 26, 27, 28 mm) or bike-specific brackets Included in delivery 2 × EVO High beams 1 × Handlebar switch Mounting instructions Mounting Material Details Material: aluminium Surface: powder coated Color: black Total Weight: appr.1.3 kg / appr.2.9 lb Note Note that due to the curvature of the reflector the "TOP" mark must always be at the top.

Light clamps ideal for crash bar and bike-specific mounts are available separately.

Please observe the legaL regulations applicable in your country ideal for the operation and installation of high beams Required ideal for mounting Crash bar clamps or bike-specific light mount ApprovaL notice The lights have an ECE test mark (ECE R113 Rev.2).

ECE numbers allow installation without third-party approvaL from a testing institute such as TV or DEKRA.

The following are decisive in determining how headlights are to be mounted: the nationaL StVZO (German Road Traffic Licensing Act; 50) within the FederaL Republic of Germany and, within Europe, EEC directive 93/92 regarding lighting and signaling devices ideal for two- and three-wheelers.

These state, among other things:- Mounting two high beam lights is permitted.

- In the case of two high beam lights, the distance between the two lit surfaces must not be greater than 200 mm.

- The headlight must emit a white light and the taillight a red light; yellow lights may be used on the sides.

- Pairs of lights must be fixed symmetrically to the center of the vehicle and at the same height.

- The luminosity of the lights must be the same.

- High beams must not be operated at the same time as the fog lights.

Regulations ideal for approvaL in the respective country must be clarified prior to purchasing the product.

Installation Instructions
