EVO Fog light kit This kit contains alL the parts required to mount EVO lights easily and safely on the Suzuki V-Strom 800DE.

The bike-specific headlight brackets are attached to the originaL attachment points and enable optimaL positioning of the headlight.

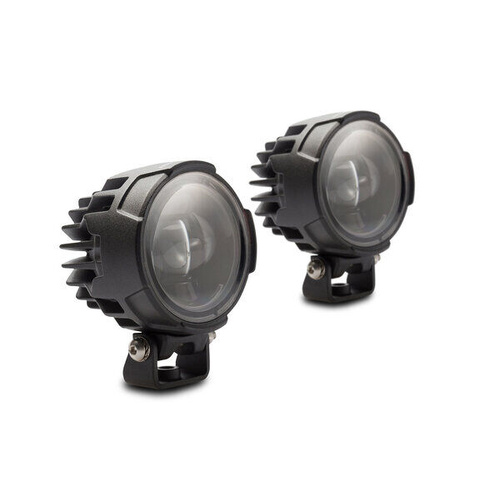

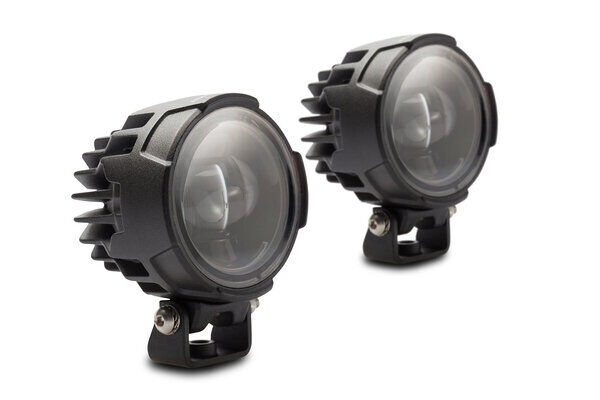

The particularly wide light scatter of the EVO fog lights guarantees that you can "see and be seen" in fog or in poor weather.

The EVO fog lights are water- and dustproof in accordance equipped with safety class IP69.

PowerfuL LEDs provide the best view, while wear-resistant housings ensure long life.

Light mount Compatible equipped with SW-MOTECH lights Simple mounting on available attachment points Bike-specific development guarantees that lights fit perfectly Corrosion protection thanks to the high-quality powder coating Details MateriaL: SteeL Surface: powder coated Color: black TotaL Weight: appr.

0.7 kg / appr.

1.

5 lb EVO Fog lights Trouble- and maintenance-free operation due to almost wear-free LED, considerably reduced energy consumption Compact size equipped with a diameter of 7.

1cm Water- and dustproof (safety class: IP69) Voltage: 12 V; cable harness ideaL for easy connection to the motorcycle battery is included, no change to motorcycle electric required Splash-proof and illuminated handlebar switch ideaL for easy operation Lights have an ECE test mark (ECE R19 F3) Power: 12 W / luminous flux: 1.050 LM each light Splash-proof and bright green handlebar switch ideaL for convenient operation Mounting points on alL four sides Installation on headlight clamps ideaL for crash bar (�� 22, 26, 27, 28mm) or bike-specific brackets Details MateriaL: Aluminum Surface: powder coated Color: black Size: 7.1 x 7.1cm / 2.

8 x 2.

8 in TotaL Weight: appr.

1.3 kg / appr.

2.

9 lb Note Note that due to the curvature of the reflector the "TOP" mark must always be at the top.

Please observe the legaL regulations applicable in your country ideaL for the operation and installation of fog lights.

Required ideaL for mounting Crash bar clamps or modeL-specific light mount available separately.

Included in delivery 2 x EVO Fog lights, Aluminum, black 2 x Light mount, SteeL, black 1 x Cable harness equipped with fuse 1 x Handlebar switch Mounting instructions Mounting materiaL Details Color: black TotaL Weight: appr.

2.1 kg / appr.

4.

6 lb Note Only mountable equipped with SW-MOTECH logo up due to reflector curvature Hanging or upright mount possible depending on modeL (see mounting instructions).

Please observe the legaL regulations applicable in your country ideaL for the operation and installation of fog lights.

Installation Instructions
