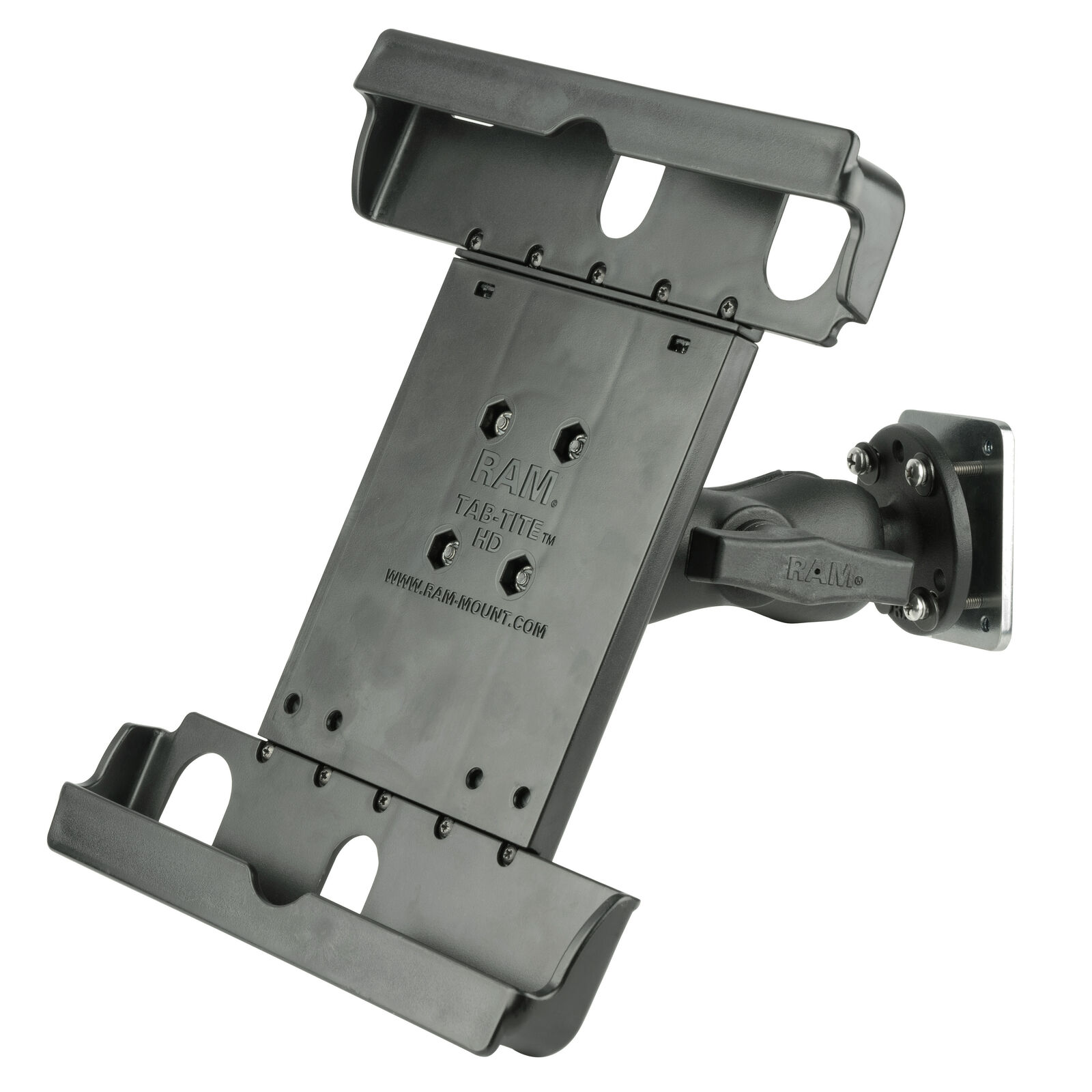

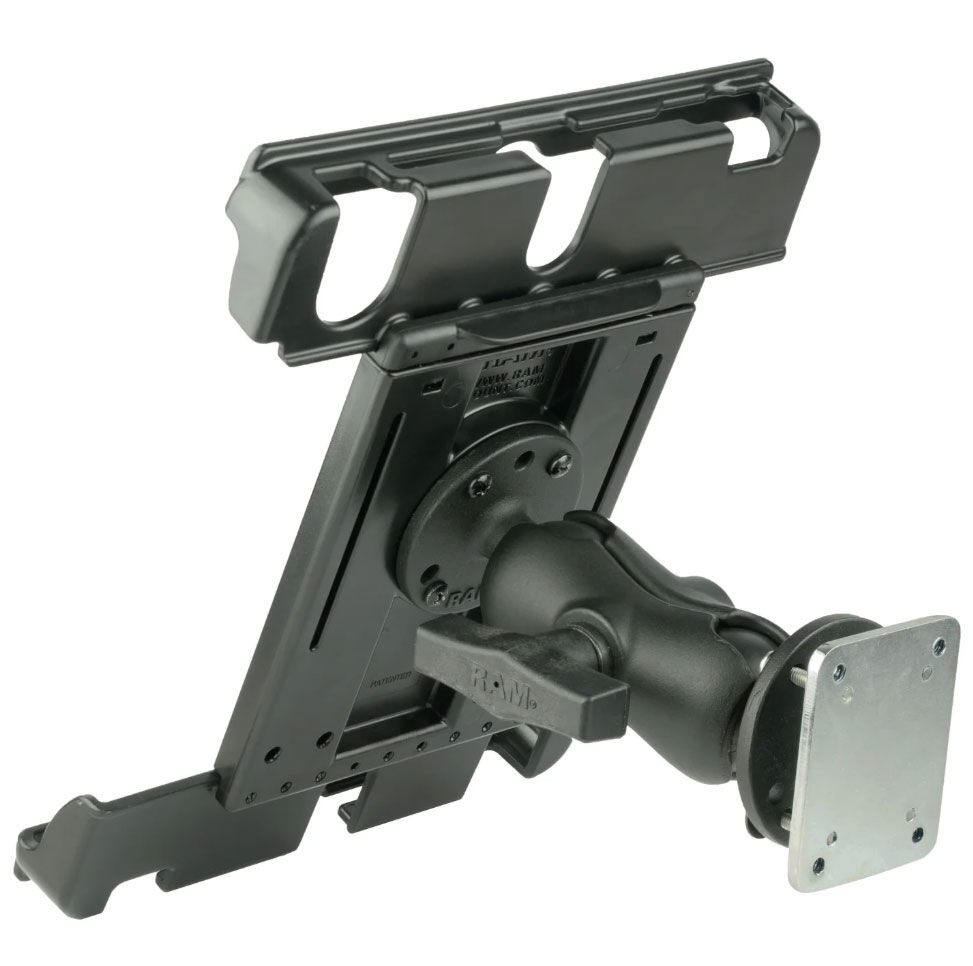

RAM® Tab-Tite™ Rugged Dashboard Tablet Mount (C Size)

This rugged dashboard tablet mount is built around the RAM® Tab-Tite™ spring-loaded holder, designed to securely hold most 9"–10.5" tablets fitted with a protective case. The complete kit includes a medium-length C size double socket arm, two 63.5 mm round bases with the universal AMPS hole pattern, a steel backing plate, and all required mounting hardware for a solid drill-down installation.

Using the proven 1.5" (C size) rubber ball-and-socket system, the mount offers adjustment points at both ends of the double socket arm. This allows near-infinite adjustability, making it easy to achieve the ideal viewing angle in demanding on-road or off-road environments.

The spring-loaded Tab-Tite™ holder securely grips your tablet while allowing quick insertion and removal. Interchangeable end cups make it easy to adapt the holder when upgrading devices, helping future-proof your setup.

Constructed from powder-coated, marine-grade aluminium and high-strength composite materials, this mount is designed for durability, reliability, and long service life—even in harsh conditions. It is backed by RAM®’s lifetime warranty for added peace of mind.

Key Features

• Spring-loaded holder suits most 9"–10.5" tablets with cases
• C size (1.5") ball and socket system for maximum strength and adjustability
• Medium-length double socket arm for flexible positioning
• Interchangeable end cups to suit different devices
• Designed for demanding on-road and off-road use

Included Hardware

• Assembly hardware
• Steel backing plate: approx. 53 mm x 66 mm
• (4) #8-32 x 1" screws
• (4) #8 split lock washers
• (4) #8 flat washers

Holder Dimensions

• Height range: approx. 241 mm – 308 mm
• Width range: approx. 166 mm – 189 mm
• Depth range: approx. 7.6 mm – 22.2 mm

Arm Length

• Socket-to-socket length: 63.5 mm

Hole Patterns

• 4-Hole AMPS: approx. 30.0 mm x 38.0 mm
• 3-Hole 120-degree: approx. 46.0 mm diameter

Ball Size

• C Size (1.5" / 38 mm)

Weight Capacity

• Standard use: up to approx. 1.8 kg
• Heavy-duty use: up to approx. 1.36 kg

Materials

• Marine-grade aluminium
• High-strength composite
• Powder-coated steel

Additional Information

• Packaging type: Poly bag
• Total weight: approx. 0.84 kg
