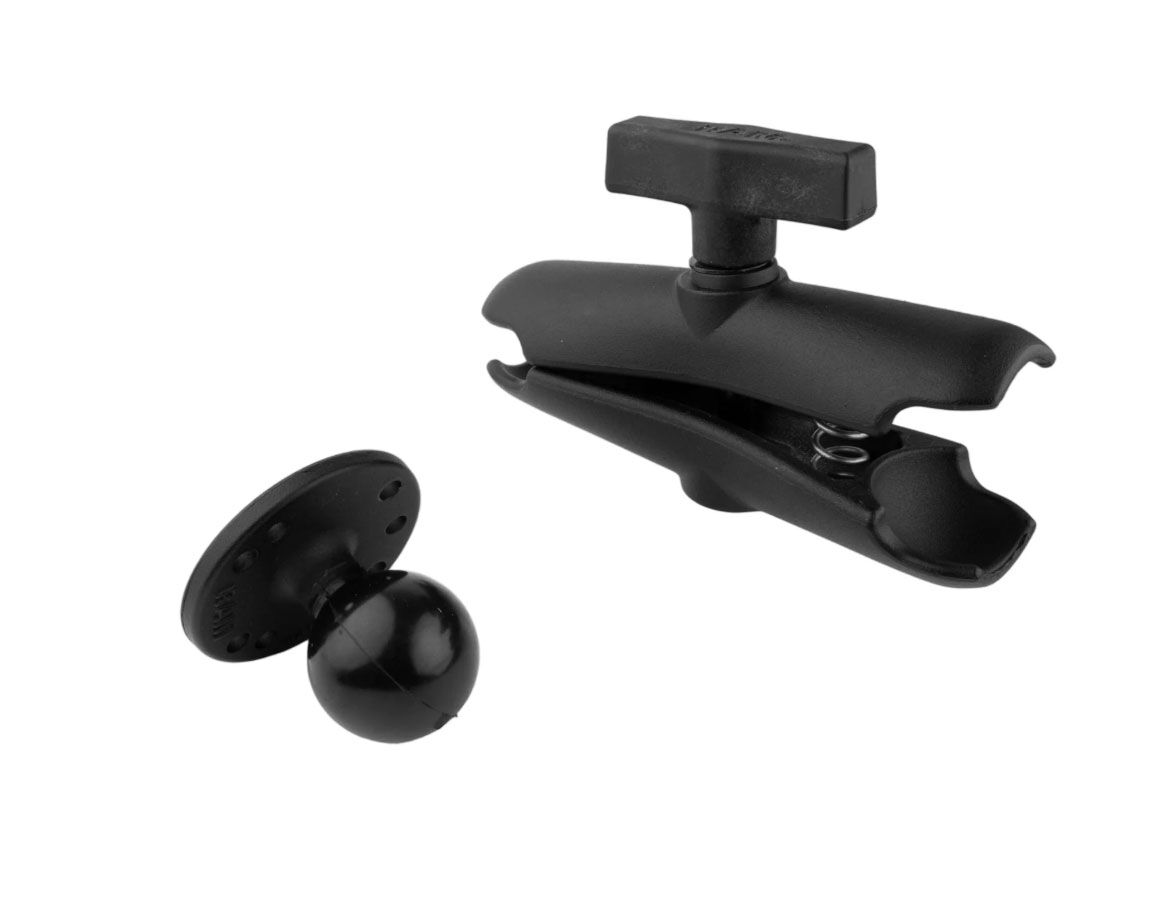

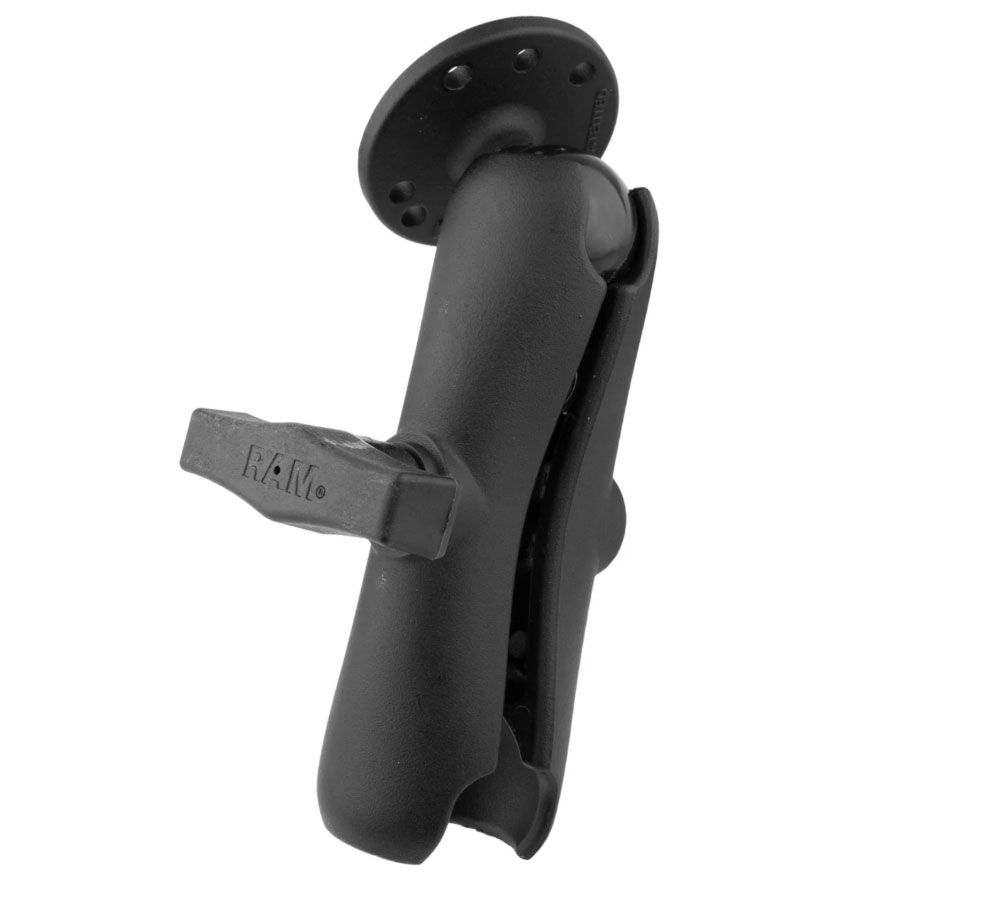

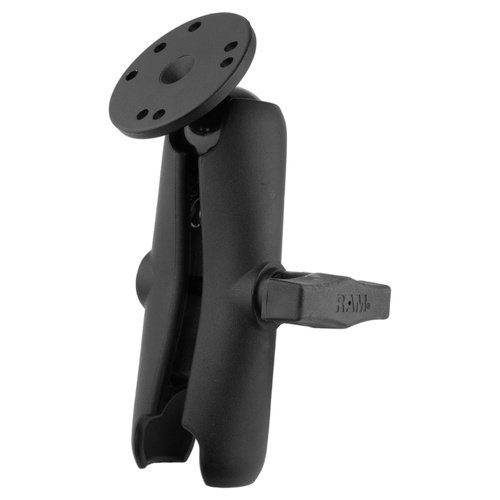

RAM® RAM-103U Mounting Kit – C Size Ball & Socket System

The RAM-103U is a versatile and reliable mounting solution built around RAM®’s proven 38 mm (C size) ball-and-socket system. Designed for compatibility with a wide range of RAM® mounting bases and device cradles, it provides a strong and flexible foundation for achieving the ideal viewing position.

This mount features a 38 mm rubber ball set at right angles to a 63.5 mm round base. The base is pre-drilled with the universal AMPS hole pattern, making it easy to connect to a broad range of RAM® device holders and accessories.

The included medium-length double socket arm allows adjustment at both ends, delivering near-infinite positioning flexibility while helping to dampen vibration for a more stable and secure setup.

Manufactured from powder-coated, marine-grade aluminium, the RAM-103U is built for durability and long-term reliability in demanding environments. Like all genuine RAM® products, it is backed by a lifetime warranty for added peace of mind.

Key Features

• 63.5 mm round base compatible with universal AMPS hole pattern
• C size (38 mm / 1.5") rubber ball and socket system
• Medium-length double socket arm for flexible positioning
• Near-infinite adjustability with excellent vibration damping
• Suitable for on-road, off-road, and marine applications

Specifications

• Socket-to-socket arm length: approx. 118 mm
• Plate diameter: 63.5 mm
• Hole pattern: 4-Hole AMPS (approx. 30.0 mm x 38.0 mm)
• Alternative hole pattern: 3-Hole 120-degree (approx. 46.0 mm diameter)
• Ball size: C Size (38 mm)

Load Rating

• Standard use: up to approx. 1.8 kg
• Heavy-duty use: up to approx. 1.36 kg

Materials & Additional Information

• Material: Marine-grade aluminium
• Packaging type: Poly bag
• Total weight: approx. 0.42 kg
