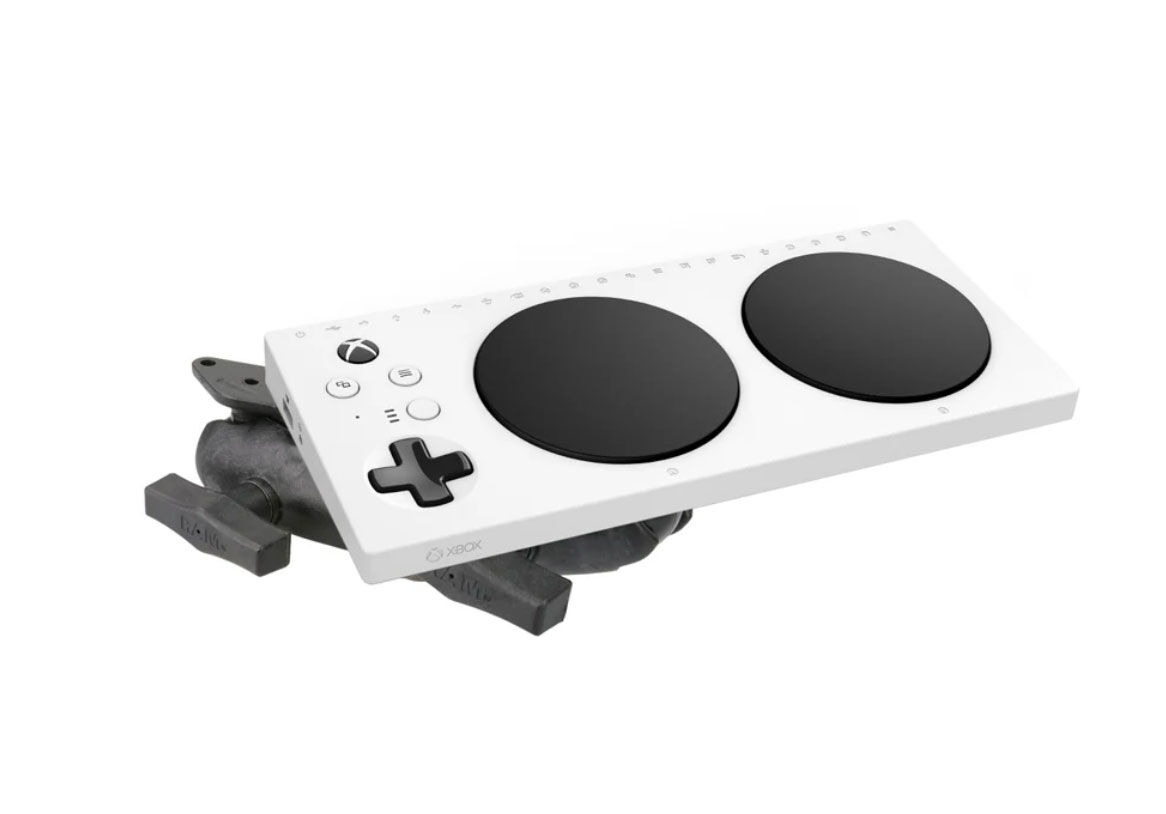

This wheelchair arm track mount is designed to securely attach a Microsoft Xbox Adaptive Controller to your wheelchair, creating a flexible and customisable setup for accessible gaming. Engineered for compatibility with most arm track systems, it offers a stable and adjustable mounting solution for a wide range of users.

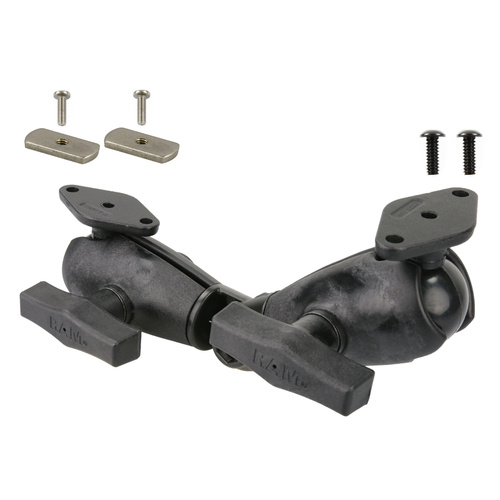

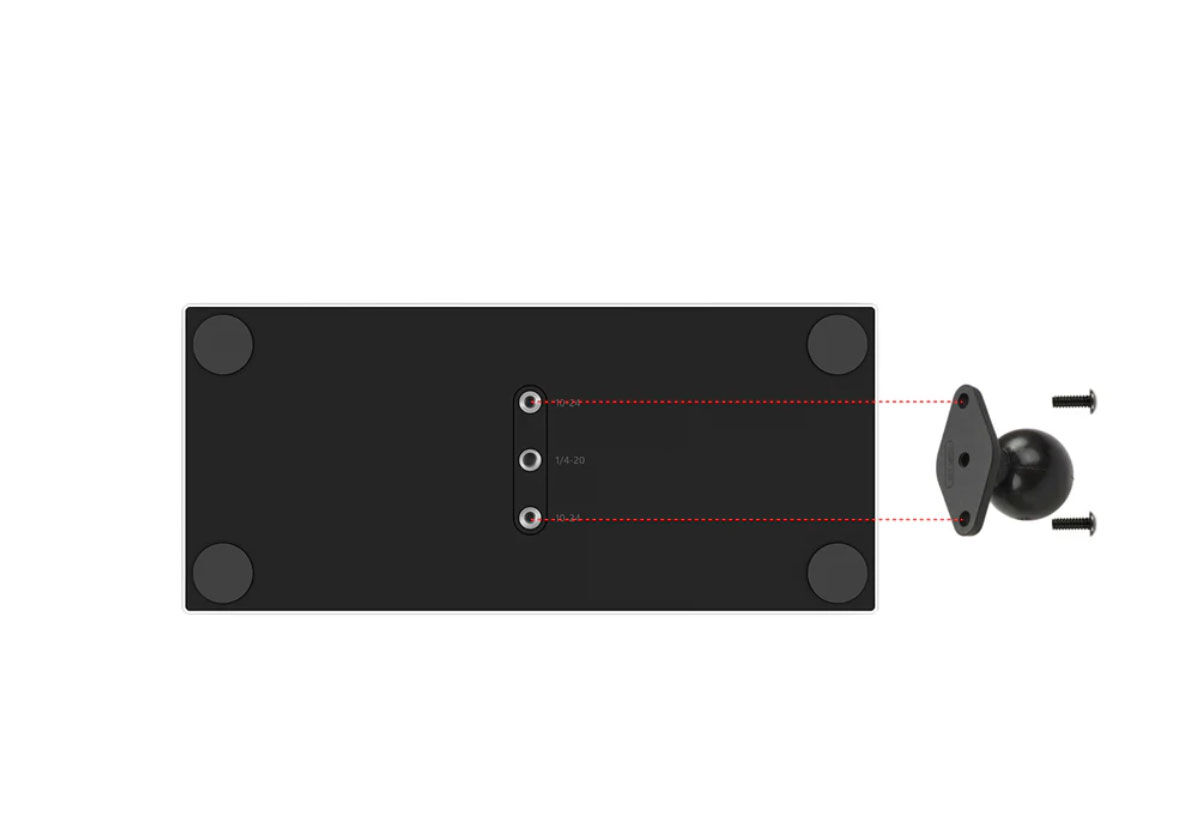

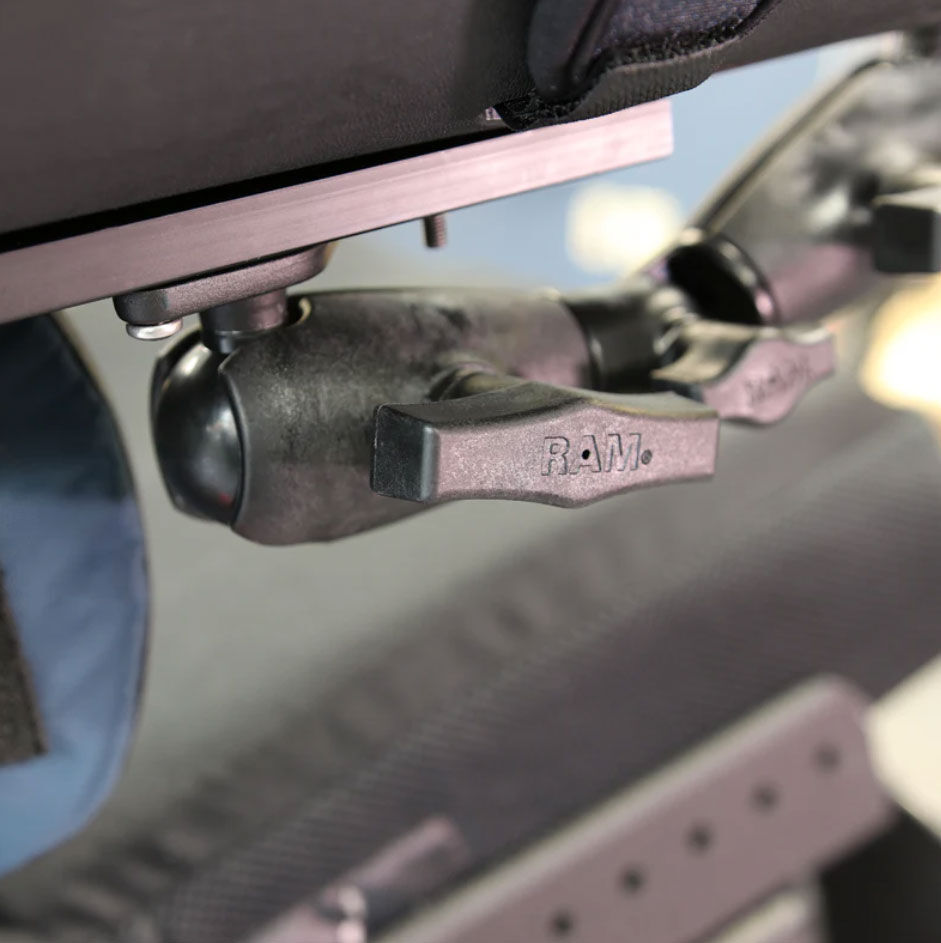

The kit includes a RAM® diamond base adapter with a 1.5” ball and a double socket arm, allowing smooth adjustment and up to 90-degree tilt. This enables you to position the controller exactly where it is most comfortable and functional. On the opposite end, a second diamond base connects to most wheelchair arm track systems, including popular brands such as Invacare, Permobil, and Quickie.

When not using the Xbox Adaptive Controller, the mount can be easily adapted to support other RAM® 1.5” ball accessories, such as phone or tablet holders, offering added versatility.

• Designed for mounting the Microsoft Xbox Adaptive Controller
• Compatible with most wheelchair arm track systems
• Adjustable double socket arm allows up to 90° tilt
• 1.5” RAM® ball system for secure and flexible positioning
• Compatible with other RAM® 1.5” ball accessories
• Includes full hardware kit for installation
• Constructed from marine-grade aluminium and high-strength composite materials

Specifications

• Ball Size: C Size (1.5")
• Socket-to-Socket Length: 7.16"
• Hole Pattern: 2-hole AMPS (1.912")
• Weight Capacity: Standard use: 4 lb / Heavy-duty use: 3 lb
• Weight: 1.05 lb

T-Bolt Dimensions

• Large: 0.48" × 0.95"
• Small: 0.375" × 0.593"

Materials

• Marine-grade aluminium
• High-strength composite

Included Hardware

• (2) #10-24 × 1/2" machine screws
• (1) 5/32" hex key wrench
• (2) #10-32 T-nuts
• (2) #10-32 flat weld nuts
• (2) #10-32 × 1/2" machine screws
• (2) M4 × 12 mm machine screws
• (2) M4 × 20 mm machine screws
• (2) M4 stainless steel washers
• (2) M4 Nylock nuts
