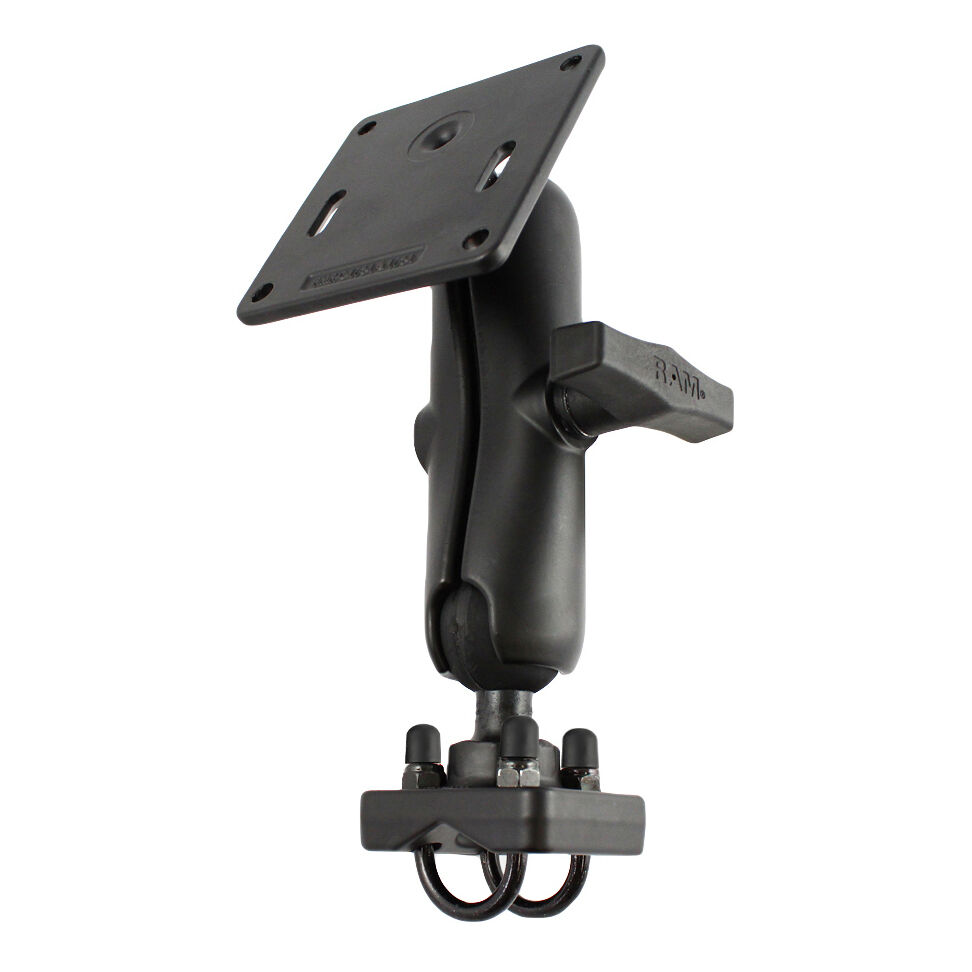

The RAM® RAM-334-1U is a versatile mounting solution designed to securely attach devices using a VESA-compatible base and U-bolt clamp system. Ideal for a wide range of applications, it provides a stable and highly adjustable platform for mounting displays and accessories.

This kit includes a double socket arm, a 75 × 75 mm VESA plate, and a stainless steel double U-bolt base designed to fit rails and pipes. The integrated 1.5" C-size ball and socket system allows for near-infinite adjustment, enabling you to position your device at the perfect viewing angle.

Constructed from marine-grade aluminium, the RAM-334-1U is built for durability and reliable performance in demanding environments.

• Complete mounting system with VESA plate and U-bolt base
• Compatible with 75 × 75 mm VESA mounting pattern
• Double socket arm for flexible positioning
• Fits rails and pipes from 19 mm to 25.4 mm in diameter
• 1.5" C-size ball system for secure and adjustable mounting
• Durable marine-grade aluminium construction

Specifications

• Clamp Range: 19 mm – 25.4 mm diameter
• Socket-to-Socket Length: 118 mm
• Plate Size: 92 × 92 mm
• Hole Pattern: 75 × 75 mm VESA
• Ball Size: C Size (1.5")
• Weight Capacity: Standard use: 1.8 kg / Heavy-duty use: 1.36 kg
• Weight: Approximately 0.73 kg

Included Hardware

• (2) U-bolts for 19 mm – 25.4 mm rails
• (4) 1/4"-20 Nylock nuts
• (4) Rubber caps

Materials

• Marine-grade aluminium

Availability:

RAM Mounts supply is pretty good in Australia, but they have thousands of parts so we can't stock them all on our shelves. If our site shows this item as in stock in our warehouse (see above), great! It will ship immediately from our warehouse. If it shows as Pre-Order, we get fortnightly shipments from RAM Mounts and our site should show if it's in stock in Australia.

• If in stock in Australia we can have it in about a week or less
• If it's not in stock in Australia, unfortunately the ETA can be quite long, as RAM Mounts in the USA have a manufacturing lead time of 6-8 weeks. But if you'd like to contact us we can find out a more accurate ETA for you
