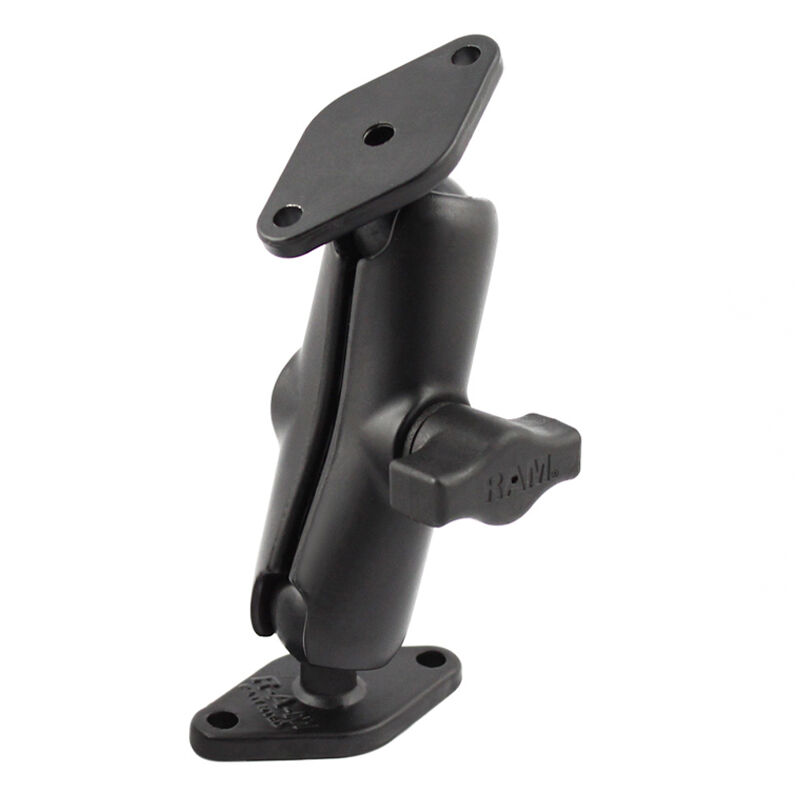

RAM Mounts Double Socket Arm with Dual Diamond Bases - RAM-B-102U

The RAM-B-102U is a versatile mounting solution combining a double socket arm with two RAM diamond bases. Featuring the proven RAM 1-inch B Size rubber ball and socket system, this kit provides excellent adjustability and secure positioning for a wide range of compatible devices and mounting applications.

Each diamond base measures approximately 2.43 x 1.31 inches and features the industry-standard 2-hole AMPS pattern, with holes positioned 1.912 inches centre-to-centre. This allows the bases to connect with a wide range of RAM cradles and holders, as well as many compatible third-party devices using the AMPS mounting pattern.

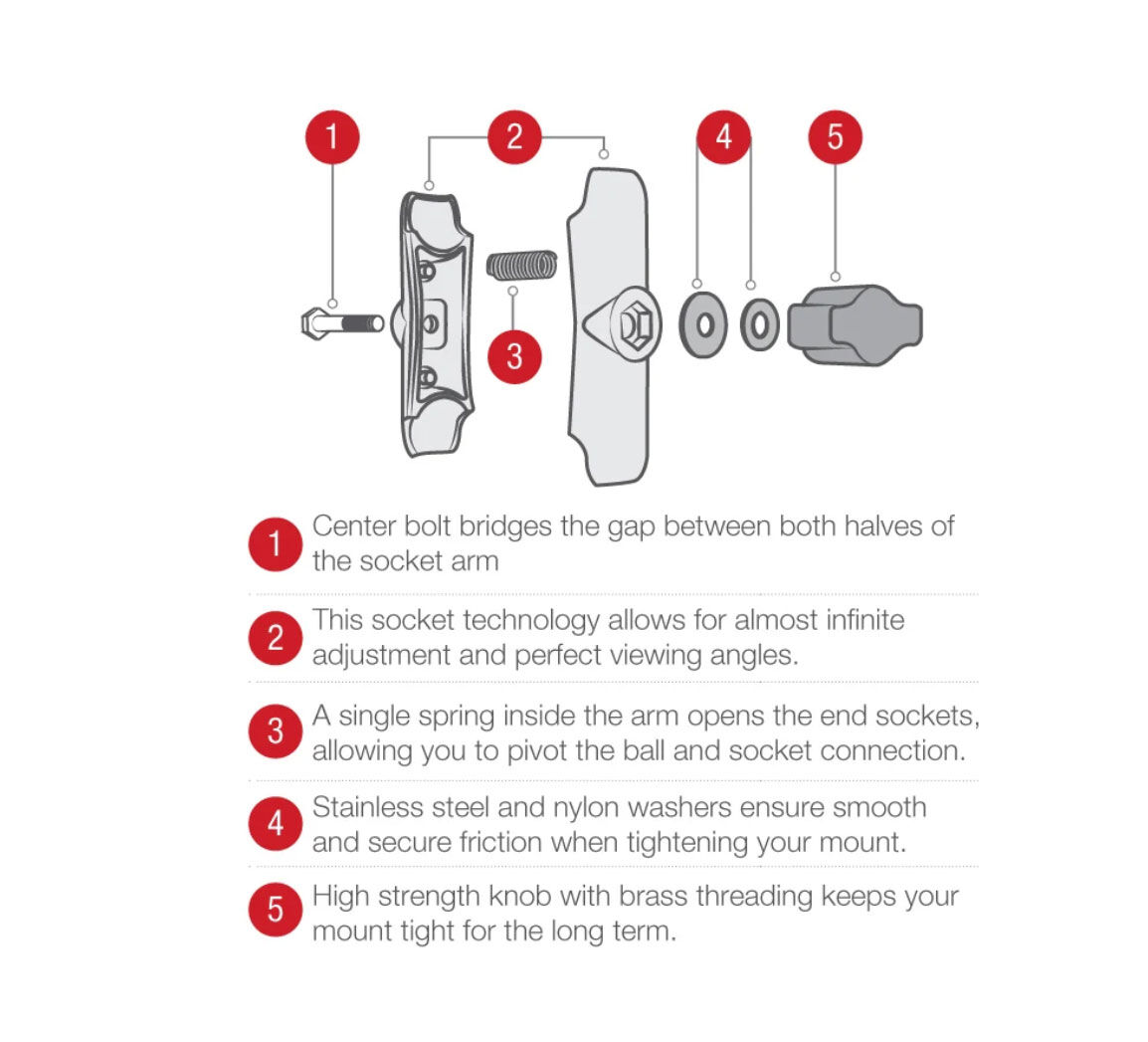

The double socket arm provides adjustment at both ends, allowing the attached device to be positioned at the ideal viewing or operating angle. Once positioned, the mount can be securely tightened for a strong and dependable hold.

Features

• Complete mounting assembly with double socket arm and two diamond bases.
• RAM B Size 1-inch rubber ball and socket system.
• Multiple adjustment points provide excellent positioning flexibility.
• Both diamond bases feature the industry-standard 2-hole AMPS mounting pattern.
• Compatible with a wide range of RAM device cradles and holders.
• Suitable for compatible third-party devices using the AMPS hole pattern.
• Manufactured from durable marine-grade aluminium.
• Proven RAM Mounts construction for dependable everyday use.

Specifications

• Overall Height: 5 inches
• Socket-to-Socket Length: 3 inches
• Hole Pattern: 2-Hole AMPS, 1.912 inches centre-to-centre
• Ball Size: B Size (1 inch)
• Standard Use Weight Capacity: 2 lbs (approximately 0.91 kg)
• Heavy-Duty Use Weight Capacity: 1 lb (approximately 0.45 kg)
• Material: Marine-grade aluminium
• Weight: 0.47 lb (approximately 0.21 kg)

Package Includes

• 1 x RAM B Size double socket arm.
• 2 x RAM B Size diamond ball bases.

With its highly adjustable design, durable aluminium construction and widely compatible AMPS mounting pattern, the RAM-B-102U provides a flexible and reliable foundation for building your ideal RAM mounting setup.

Availability:

RAM Mounts supply is pretty good in Australia, but they have thousands of parts so we can't stock them all on our shelves. If our site shows this item as in stock in our warehouse (see above), great! It will ship immediately from our warehouse. If it shows as Pre-Order, we get fortnightly shipments from RAM Mounts and our site should show if it's in stock in Australia.

• If in stock in Australia we can have it in about a week or less
• If it's not in stock in Australia, unfortunately the ETA can be quite long, as RAM Mounts in the USA have a manufacturing lead time of 6-8 weeks. But if you'd like to contact us we can find out a more accurate ETA for you
