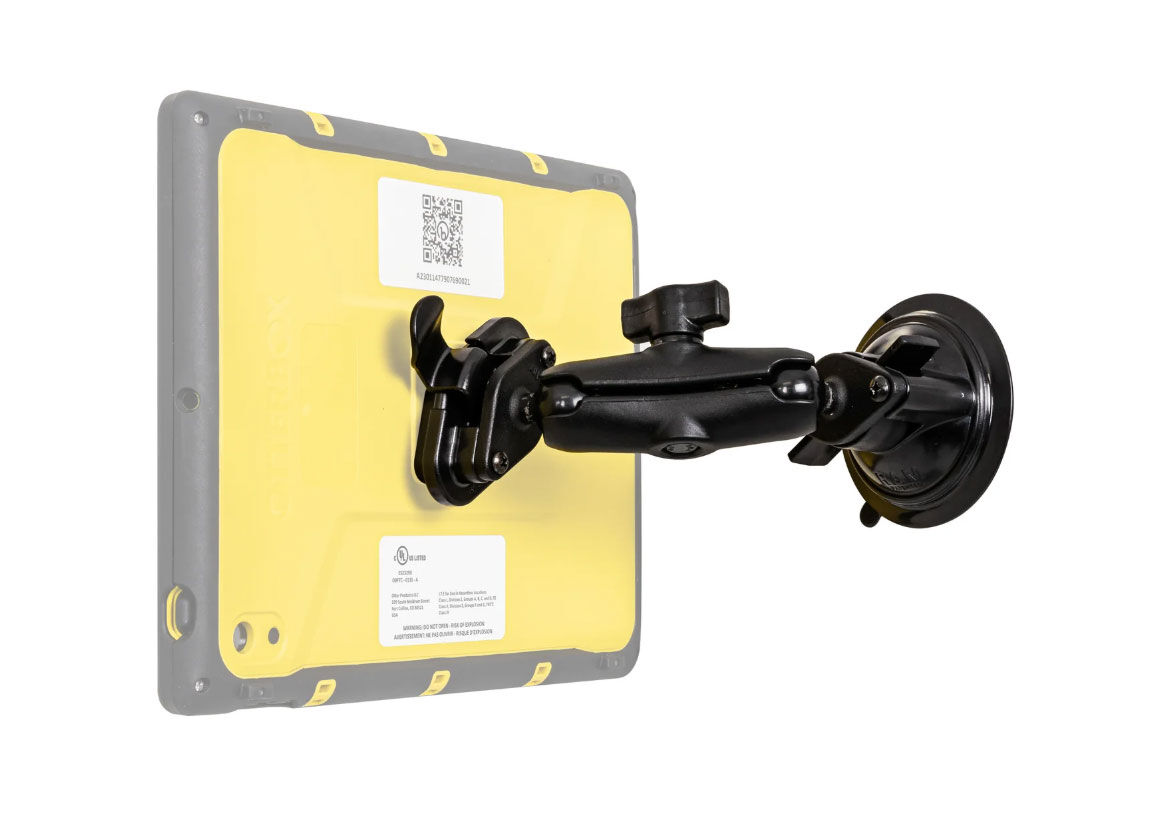

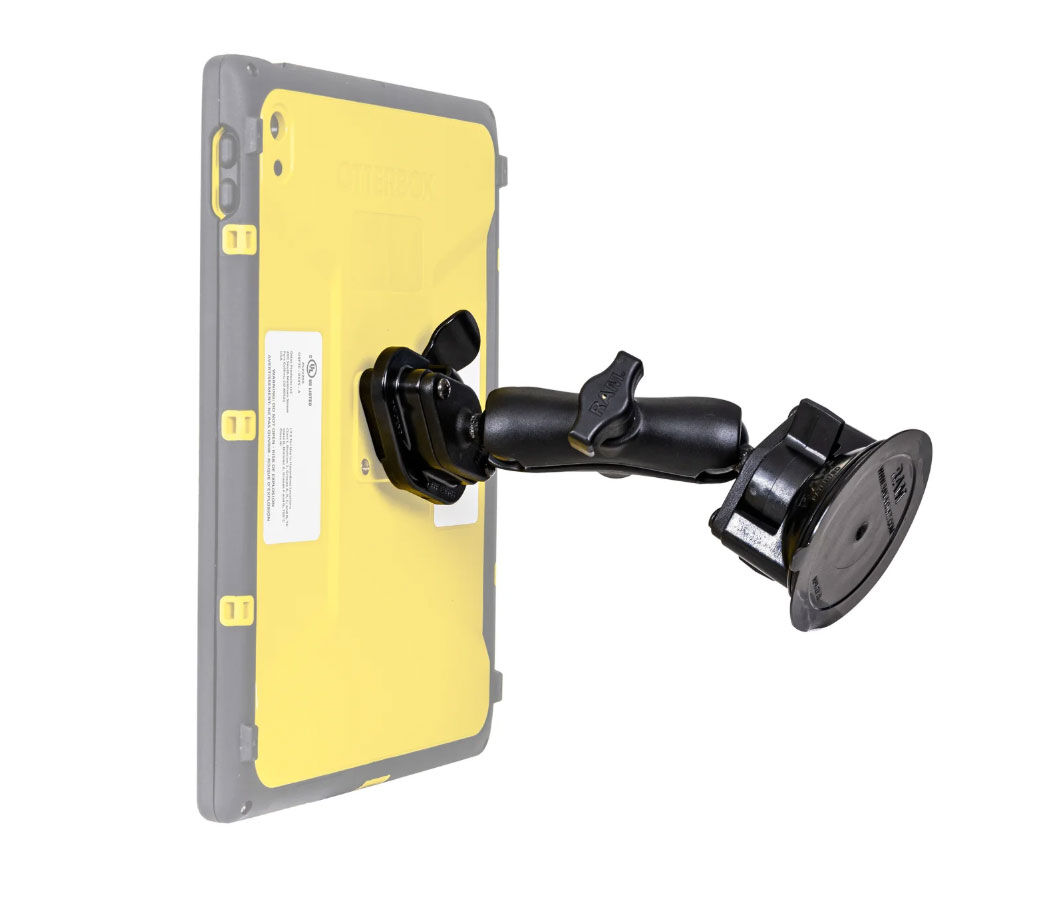

The RAM® RAM-B-166-326U Single Suction Cup Mount was developed in collaboration with the OtterBox Hardline Series to provide a secure and efficient mounting solution for industrial and vehicle-based applications. Combining RAM®’s proven mounting system with a quick-release adapter, it delivers convenience, flexibility, and durability in demanding environments.

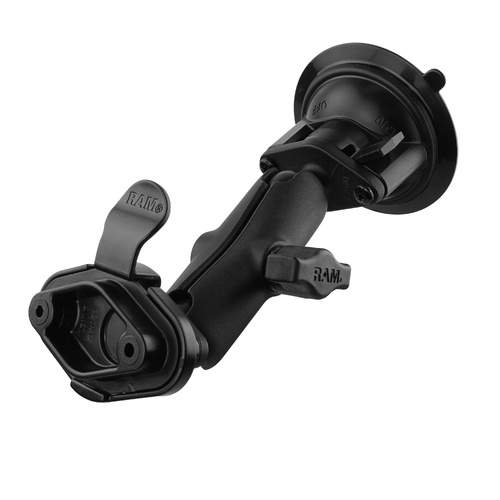

This kit includes a RAM® Twist-Lock™ suction cup base, medium-length socket arm, and RAM® EZY-Mount™ Quick Release Adapter for OtterBox Hardline Series cases. The integrated quick-release tab allows for fast docking and removal of your device without needing to reposition the mount.

The 3.3" Twist-Lock™ suction cup offers a strong and reliable hold on smooth, non-porous surfaces such as vehicle windscreens, making it ideal for industrial vehicles, service fleets, and mobile workstations.

• Designed in collaboration with OtterBox Hardline Series
• Ideal for industrial and vehicle applications
• RAM® Twist-Lock™ suction cup for secure mounting on smooth surfaces
• Includes RAM® EZY-Mount™ Quick Release Adapter
• Quick-release tab for fast device docking and removal
• B-size 1" ball system for flexible adjustment
• Medium-length socket arm for optimal positioning
• Backed by a lifetime warranty

Specifications

• Suction Cup Diameter: 83.8 mm
• Socket-to-Socket Length: 76 mm
• Hole Pattern: 2-Hole AMPS (48.6 mm)
• Ball Size: B Size (1")
• Weight Capacity: Standard use: 0.9 kg / Heavy-duty use: 0.45 kg
• Weight: Approximately 0.34 kg

Materials

• Marine-grade aluminium
• High-strength composite
• Cast acrylic

Included in Delivery

• Assembly hardware

Availability:

The RAM Mounts warehouse in Australia is well stocked with the most popular products, but for the less popular products they may need to be ordered in from the USA. That's fine, but RAM Mounts have an approximate 2 month manufacturing lead time.

If our site shows this item as in stock (see above), great! It will ship immediately from our warehouse. If it shows as Pre-Order, this means it will need to be ordered in from the USA, which may take some time unfortunately.
