RAM-B-189-PIV1-A-UN9U :: RAM Twist-Lock Pivot Suction With X-Grip For 9"-10" Tablets - Short Arm

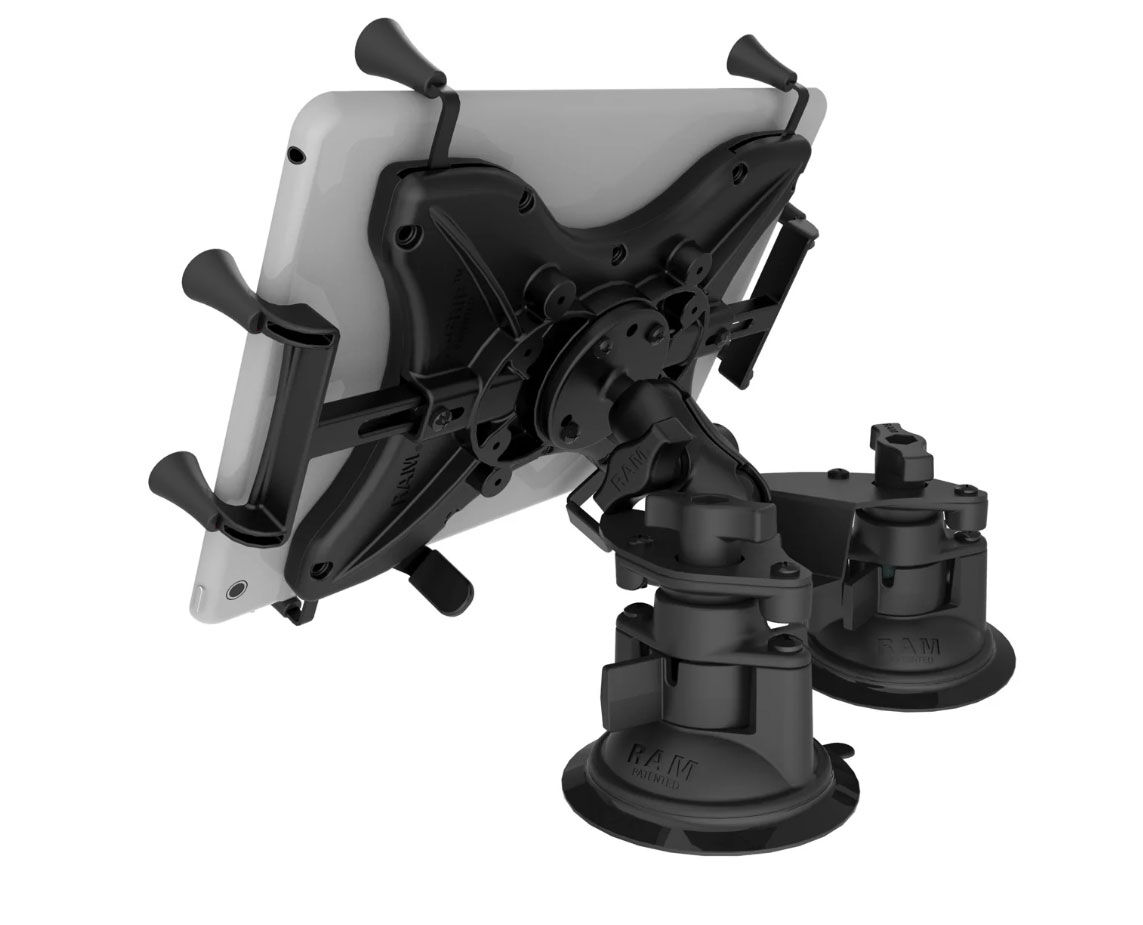

BRAND: RAM Mounts SKU: RAM-B-189-PIV1-A-UN9USecurely mount your tablet in virtually any environment with the RAM® Dual Articulating Suction Cup Mount. Designed for 9"-11" tablets, this innovative system provides unmatched versatility and strength – perfect for vehicles, boats, or curved surfaces.
Key Features:
- Dual Articulating Suction Cups: Two 3.3" diameter twist-lock suction bases allow independent articulation for mounting on curved or uneven surfaces.

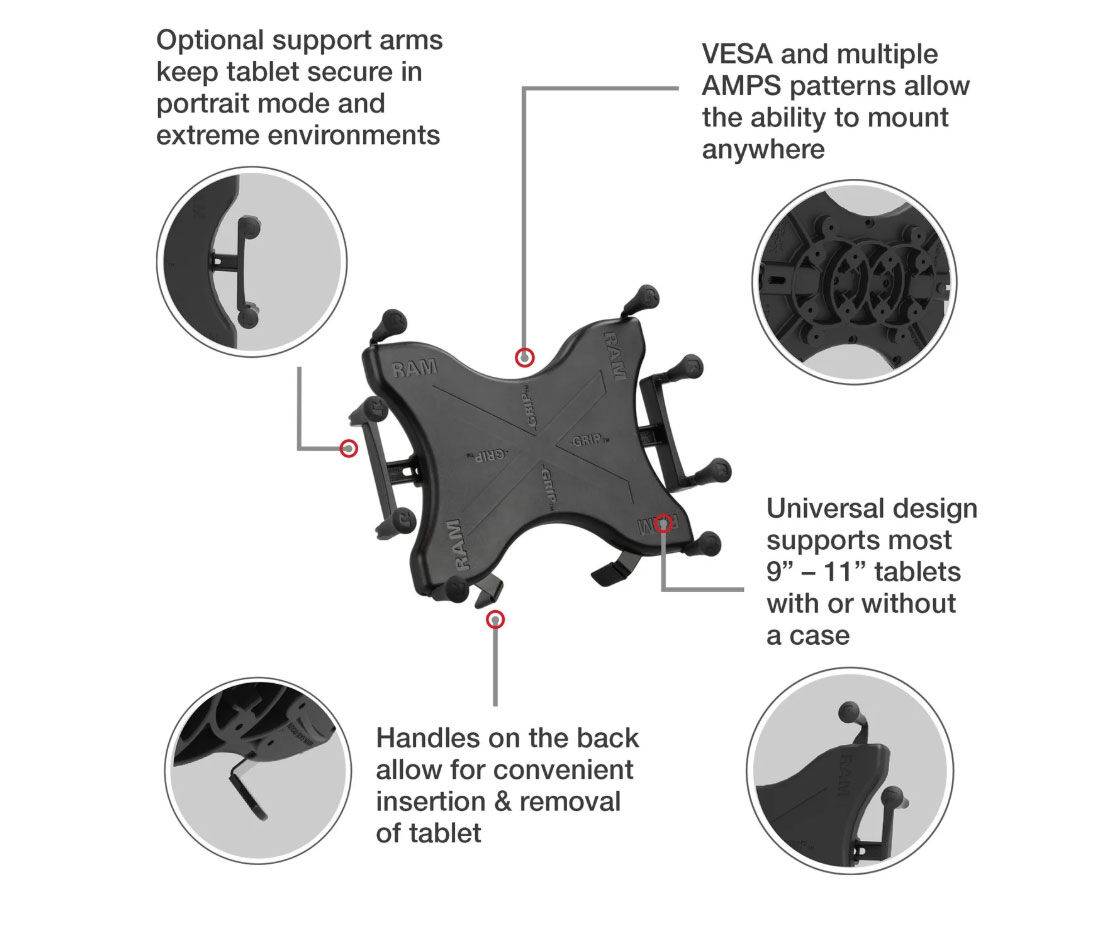

- Universal X-Grip® Holder: Compatible with tablets 9"–11", providing a secure grip while allowing full access to your device.
- Quick-Release Design: Easy-access grip knobs on the cradle for fast insertion and removal of your tablet.
- Durable Construction: Made from marine-grade aluminium, powder-coated steel, and high-strength composite for long-lasting performance.
- Compact Size: Includes a short double socket arm (1.75" socket-to-socket length) for low-profile mounting.
- Complete Kit: Comes with all necessary assembly hardware for a simple setup.
Specifications:
- Holder Dimensions:
- Max Height: 10.25" (with optional supports)
- Width Range: 6.25" – 8.1"
- Max Depth: 0.875"
- Suction Size: Two 3.3" diameter bases; total width 7.95"
- Socket-to-Socket Length: 1.75"
- Ball Size: B Size (1")
- Weight Capacity: Standard Use: 0.9 kg (2 lbs); Heavy-Duty Use: 0.45 kg (1 lb)
- Materials: Marine-grade aluminium, powder-coated steel, high-strength composite
- Weight: 2.48 lbs (1.12 kg)
- Packaging: Poly Bag
Note: The rubber suction cups are considered general wear items and are not covered under the lifetime warranty.
SKU | RAM-B-189-PIV1-A-UN9U |
Barcode # | 793442944352 |
Brand | RAM Mounts |
Country Of Manufacture | United States |
Product Specifications | Type: Tablet Mount |
