RAM® RAM-B-231Z-2U Rail & Bar Base – B Size

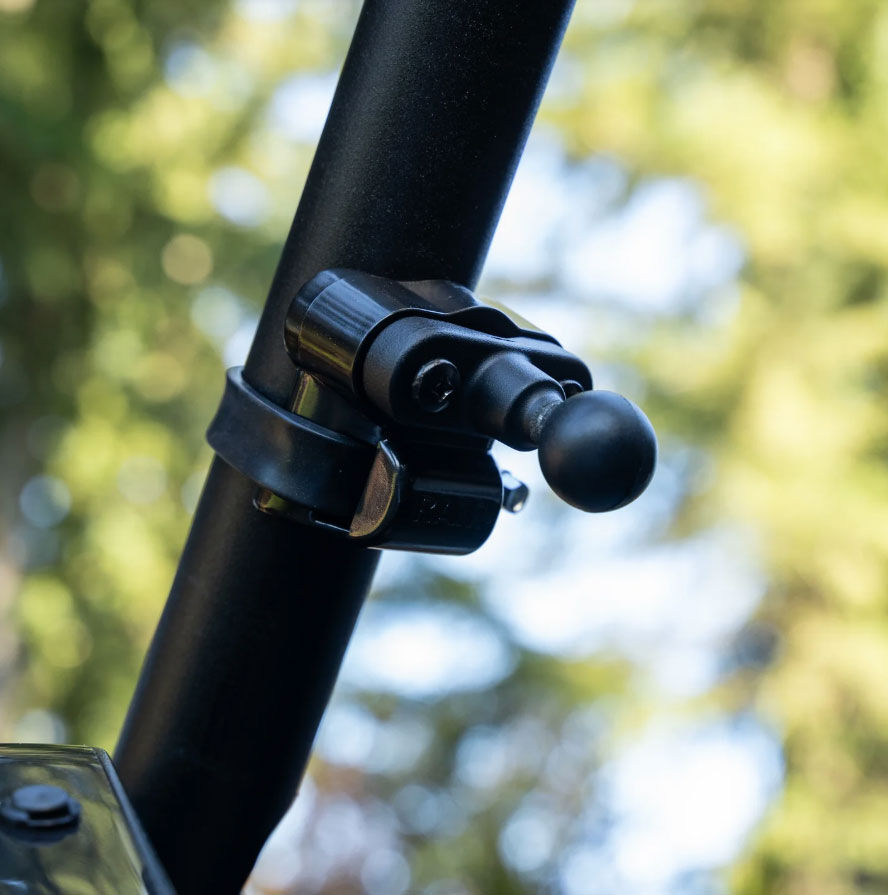

The RAM-B-231Z-2U is designed for a clean, secure, and versatile installation on UTVs and ATVs. Engineered to suit most common rail and bar sizes, this compact base features a concealed strap clamp that eliminates exposed sharp edges while helping prevent loosening in rough conditions.

The kit includes both a strap clamp and a zinc-coated metal U-bolt, allowing you to choose the best mounting method for your setup or relocate the mount to another position if needed. Protective black caps neatly cover the exposed ends of the U-bolt for a tidy, finished appearance.

Equipped with a 25 mm (B size) RAM® rubber ball, the base connects seamlessly to any B size RAM® double socket arm. The proven ball-and-socket design provides near-infinite adjustability, making it easy to position your device exactly where you want it.

Manufactured from powder-coated, marine-grade aluminium and high-strength composite materials, the RAM-B-231Z-2U is built to handle demanding off-road and outdoor environments. As with all genuine RAM® components, it is backed by a lifetime warranty.

Key Features

• Clean, low-profile rail and bar mounting solution for UTVs and ATVs
• Concealed strap clamp for a safer, neater installation
• Includes both strap clamp and U-bolt mounting options
• B size (25 mm / 1") RAM® rubber ball
• Near-infinite adjustability when paired with a RAM® double socket arm

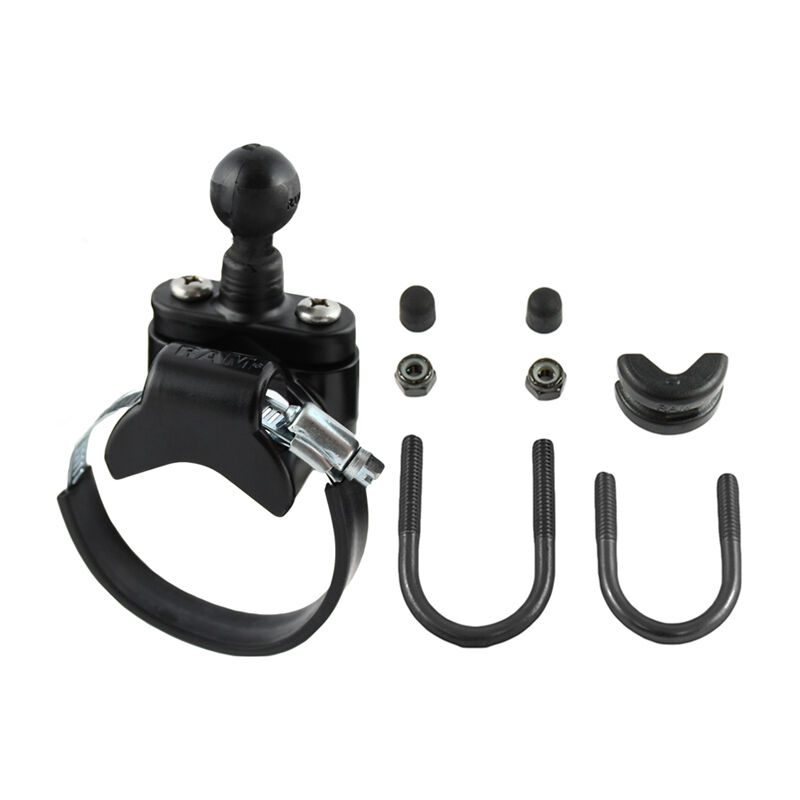

Included Hardware

• (1) Strap clamp adapter
• (2) 1/4"-20 x 1" machine screws
• (2) 1/4"-20 Nylock nuts
• (1) Zinc worm-drive strap clamp
• (1) 6" rubber strip
• (1) 1/4"-20 U-bolt for 12.7 mm – 25 mm rails
• (1) 1/4"-20 U-bolt for 25 mm – 32 mm rails
• (2) Rubber caps
• (1) U-bolt spacer

Clamp Range

• U-bolt: 12.7 mm – 32 mm diameter
• Strap clamp: approx. 40 mm – 80 mm diameter

Specifications

• Ball size: B Size (25 mm / 1")

Load Rating

• Standard use: up to approx. 0.9 kg
• Heavy-duty use: up to approx. 0.45 kg

Materials & Additional Information

• Materials: Marine-grade aluminium, high-strength composite
• Packaging type: Poly bag
• Total weight: approx. 0.25 kg

Availability:

RAM Mounts supply is pretty good in Australia, but they have thousands of parts so we can't stock them all on our shelves. If our site shows this item as in stock in our warehouse (see above), great! It will ship immediately from our warehouse. If it shows as Pre-Order, we get fortnightly shipments from RAM Mounts and our site should show if it's in stock in Australia.

• If in stock in Australia we can have it in about a week or less
• If it's not in stock in Australia, unfortunately the ETA can be quite long, as RAM Mounts in the USA have a manufacturing lead time of 6-8 weeks. But if you'd like to contact us we can find out a more accurate ETA for you
