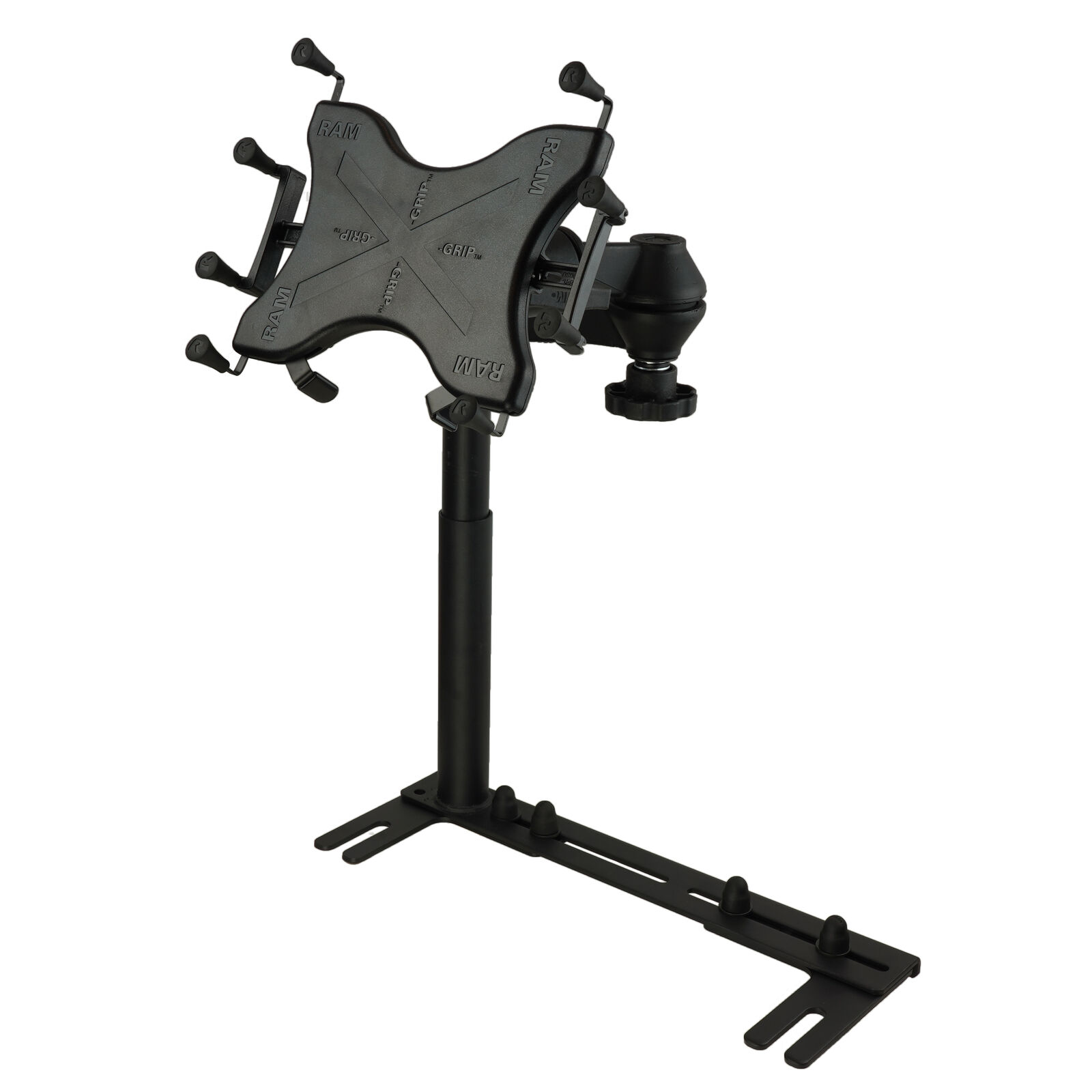

RAM® No-Drill™ Vehicle Mount with X-Grip® Holder for 12" Tablets

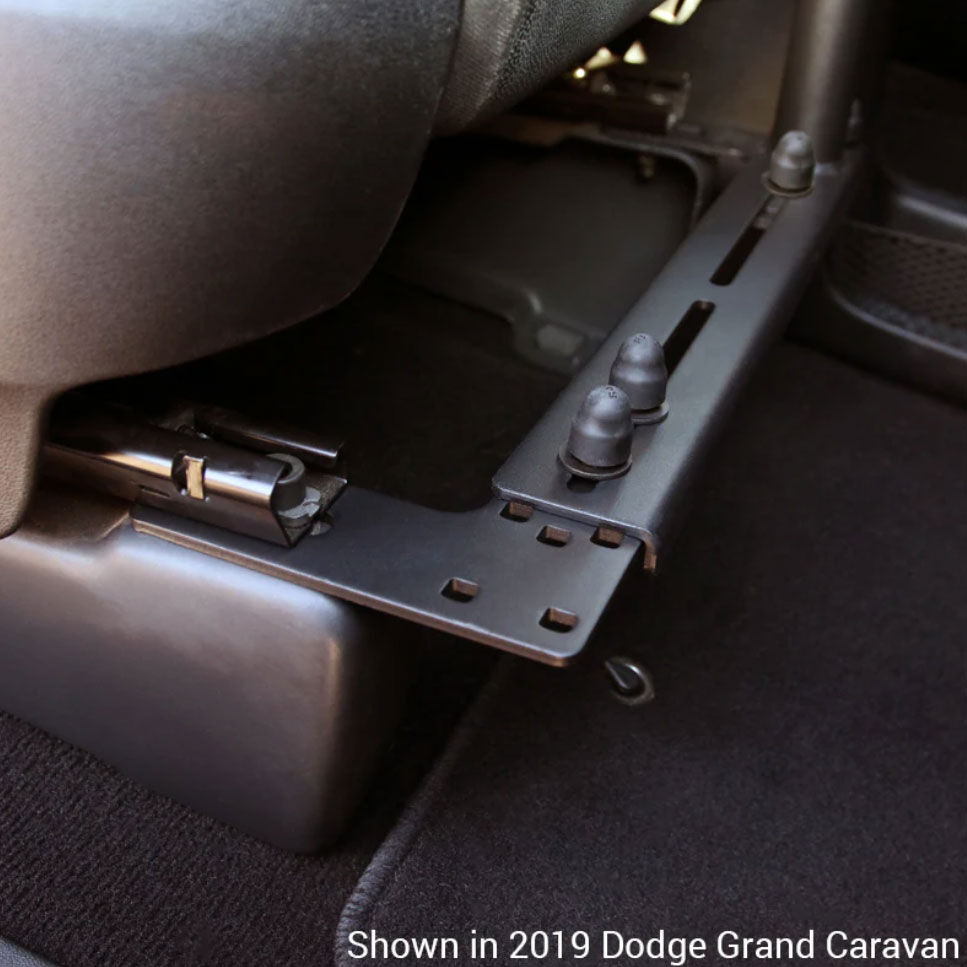

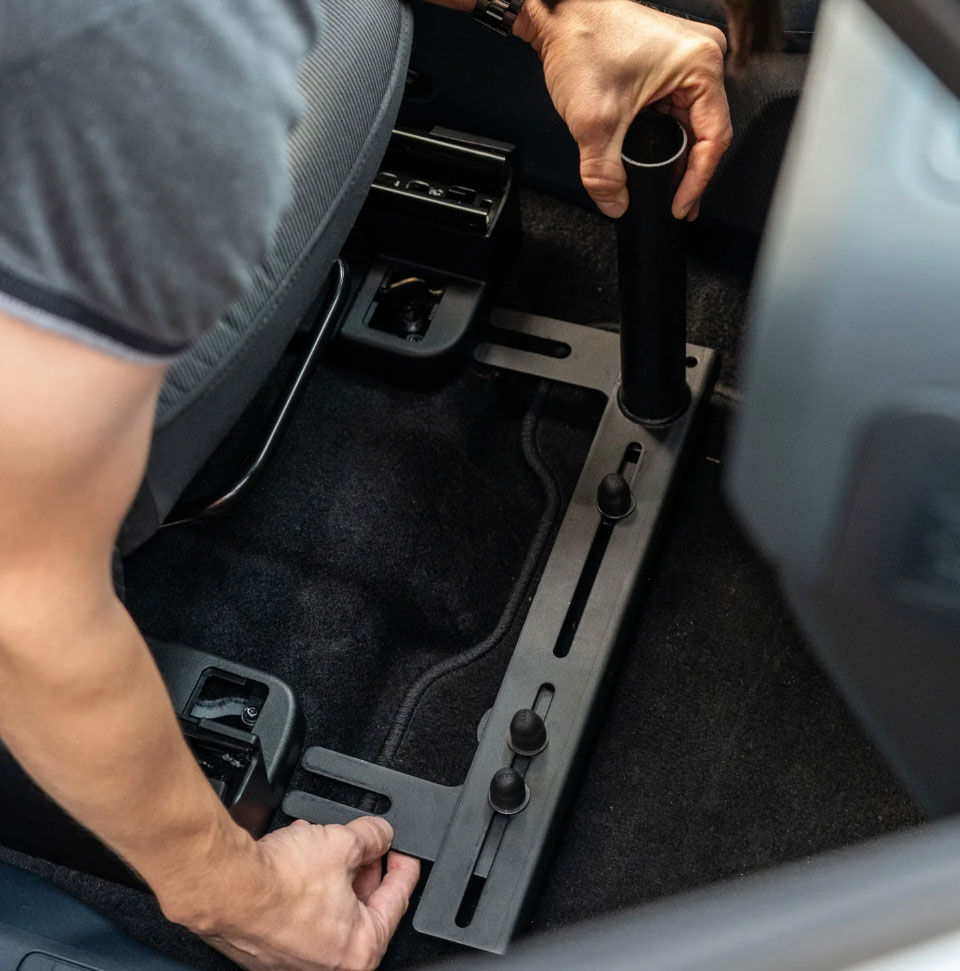

This complete vehicle bundle combines the RAM® No-Drill™ mounting system with the RAM® X-Grip® universal holder, providing a secure and highly adjustable solution for mounting 12" tablets in your vehicle. Designed for quick installation, the No-Drill™ base utilises the existing hardware of the passenger-side seat rails—no drilling required.

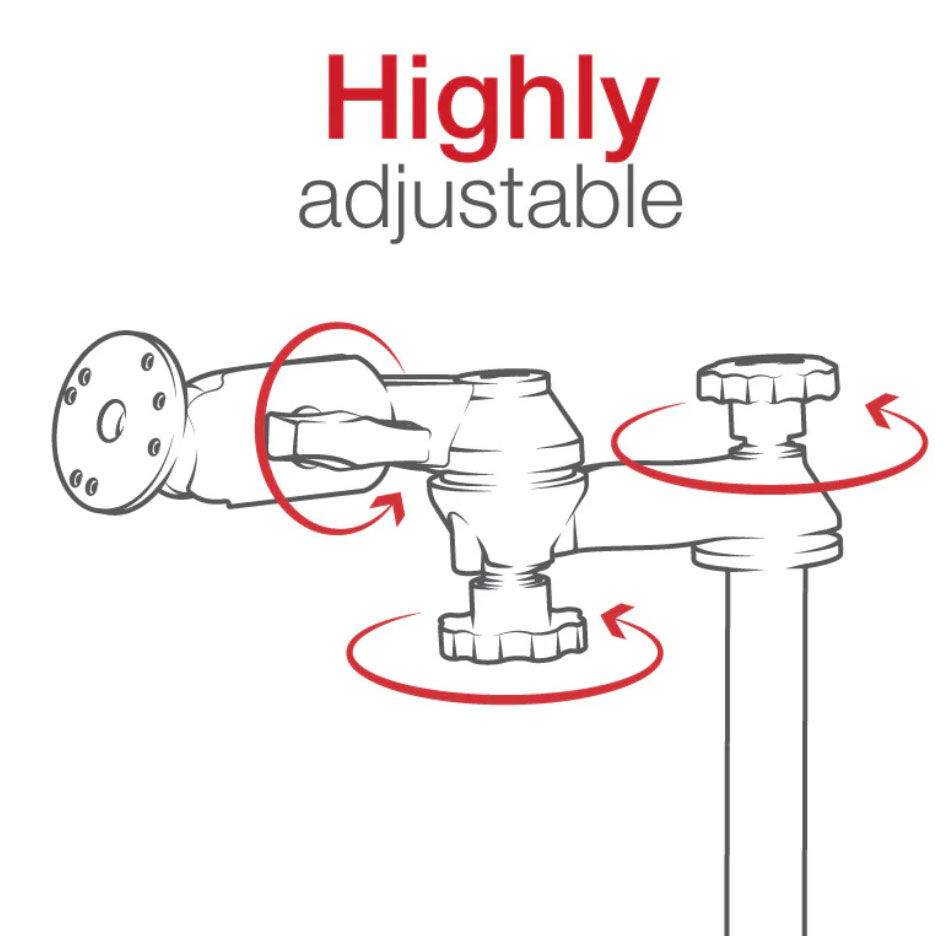

The telescoping mounting system adjusts from approximately 305 mm to 457 mm in height, while dual swing arms offer articulation and up to 305 mm of reach. This allows both driver and passenger to position the device comfortably and precisely.

The RAM® X-Grip® cradle features a spring-loaded ‘X’ design that expands and contracts to securely hold most 12"–13" tablets, even when fitted with a case. Rubber-tipped arms provide strong holding power without obstructing the screen, and quick-release grip knobs on the rear of the cradle make device removal simple.

Constructed from powder-coated, marine-grade aluminium, powder-coated steel, and high-strength composite materials, this mount is built for durability and demanding environments. As with all genuine RAM® products, it is backed by a lifetime warranty.

Key Features

• No-drill installation using passenger seat rail hardware
• Telescoping pole for adjustable height (approx. 305–457 mm)
• Dual articulating swing arms for optimal positioning
• Spring-loaded X-Grip® holder fits most 12"–13" tablets
• C Size (38 mm / 1.5") ball and socket system

Included Hardware

• Assembly hardware
• Stabiliser foot

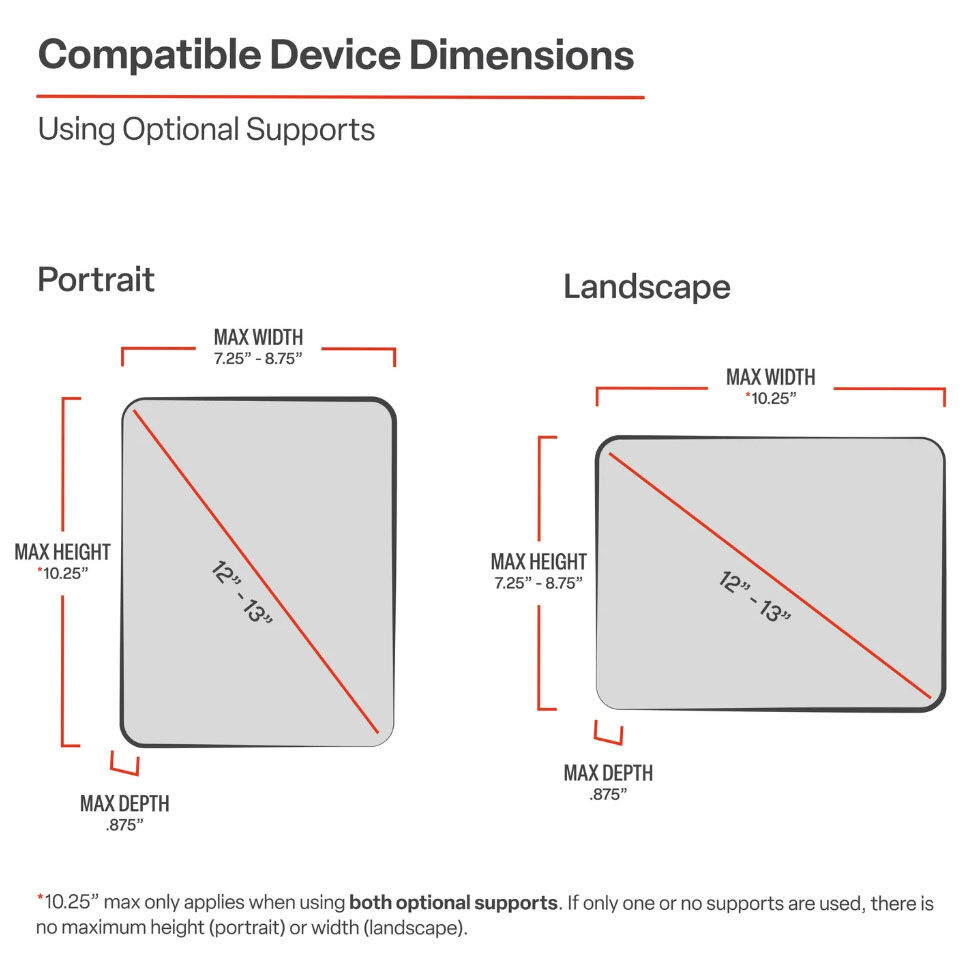

Holder Dimensions

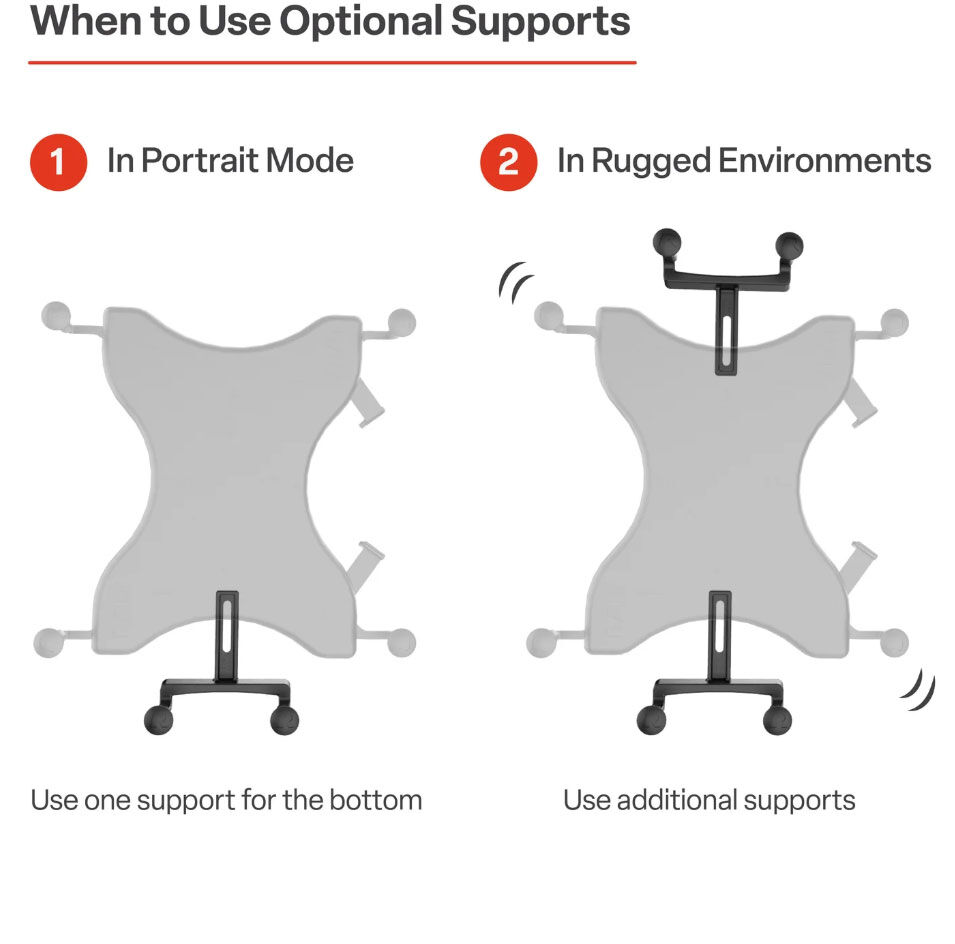

• Maximum height: approx. 260 mm (with optional supports)
• Width range: approx. 184 mm – 222 mm
• Maximum depth: approx. 22 mm

Mounting Specifications

• Seat bolt distance: approx. 229 mm – 479 mm (centre to centre)
• Hole pattern: 4-Hole AMPS (approx. 30.0 mm x 38.0 mm)
• Alternative hole pattern: 3-Hole 120-degree (approx. 46.0 mm diameter)

Load Rating

• Standard use: up to approx. 1.8 kg
• Heavy-duty use: up to approx. 1.36 kg

Materials & Additional Information

• Materials: Powder-coated steel, marine-grade aluminium, high-strength composite
• Packaging type: Box
• Total weight: approx. 5.5 kg

Ideal for work vehicles, fleet applications, or everyday use, this RAM® mounting system offers secure, adjustable tablet placement without permanent modification to your vehicle.
