RAM® Universal Wheelchair Mounting Base

The RAM® Universal Wheelchair Base is a versatile and feature-rich mounting platform designed to support phones, tablets, cup holders, and other compatible RAM® accessories. Engineered to suit wheelchairs with seat tracks and/or armrest tracks, it provides a secure and adaptable solution without compromising manoeuvrability.

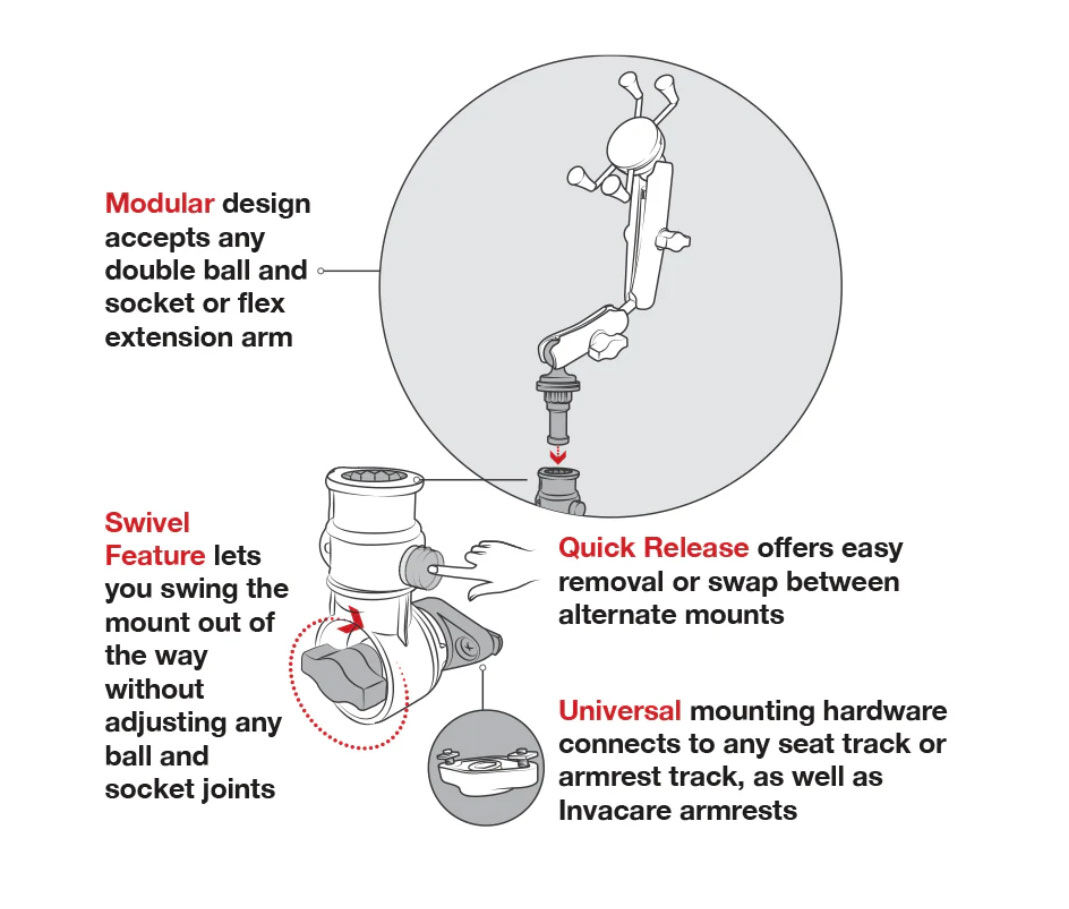

With a simple turn of a single knob, the entire mounting system can be swivelled in or out of position—without adjusting the ball-and-socket components. An integrated quick-release button allows the mount to be easily removed or reinstalled, making it ideal for quickly swapping between devices.

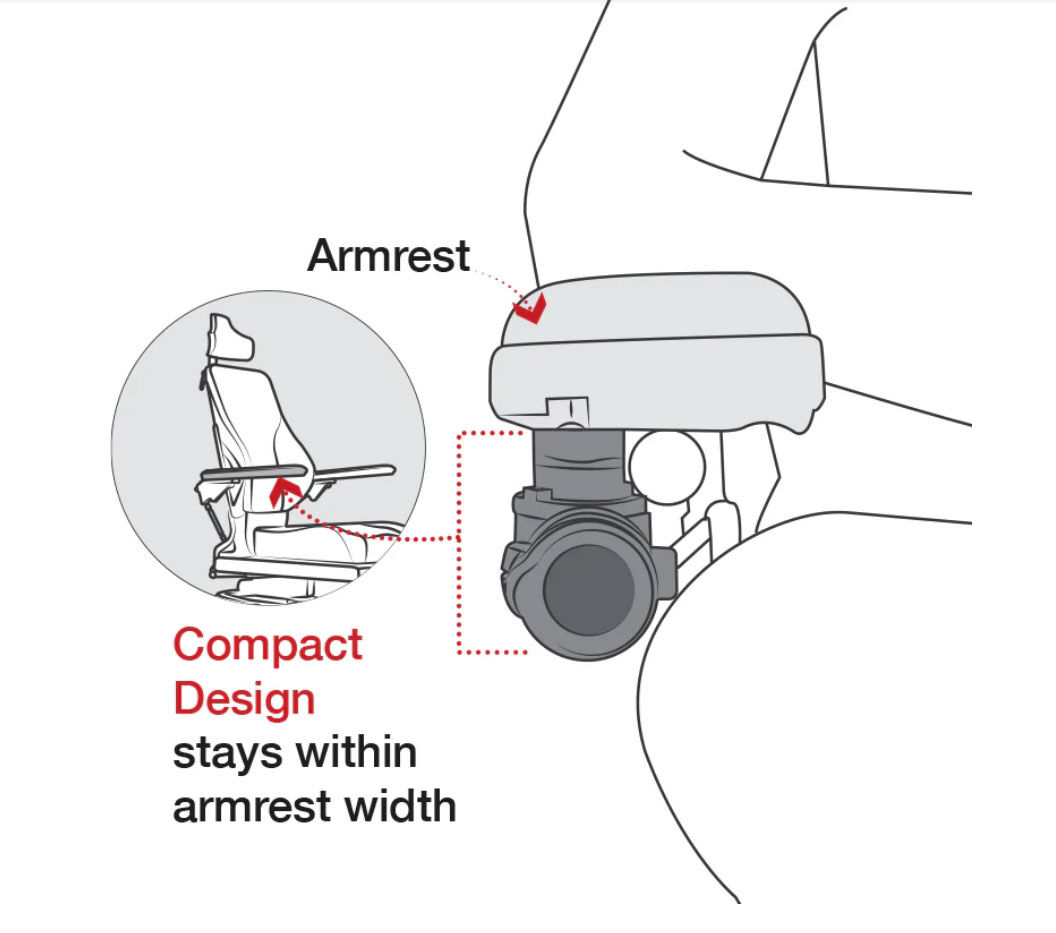

Its compact design keeps the mount within the width of the armrest, offering added confidence when navigating tight spaces, doorways, and everyday environments.

Key Features

• Universal fit for wheelchairs with seat and/or armrest tracks (including Invacare armrests)
• Easy swivel function via single adjustment knob
• Integrated quick-release button for fast removal or device changes
• Compact profile stays within armrest width
• Compatible with a wide range of RAM® phone, tablet, and cup holder mounts
• Backed by a lifetime warranty

Included Hardware

• (2) #10-32 T-Nuts
• (2) #10-32 Flat Weld Nuts
• (2) #10-32 x 11 mm Machine Screws
• (2) #8-32 x 19 mm Machine Screws
• (2) #8-32 Nylock Nuts
• (2) #8 Washers

T-Bolt Dimensions

• Large: approx. 12 mm x 24 mm
• Small: approx. 9.5 mm x 15 mm

Mounting Specifications

• Hole pattern: 2-Hole AMPS (approx. 48.6 mm centre-to-centre)

Materials & Additional Information

• Material: High-strength composite
• Packaging type: Retail bag
• Total weight: approx. 0.19 kg

Designed for convenience, flexibility, and durability, the RAM® Universal Wheelchair Base makes it easy to keep essential devices securely mounted and within reach.

Availability:

RAM Mounts supply is pretty good in Australia, but they have thousands of parts so we can't stock them all on our shelves. If our site shows this item as in stock in our warehouse (see above), great! It will ship immediately from our warehouse. If it shows as Pre-Order, we get fortnightly shipments from RAM Mounts and our site should show if it's in stock in Australia.

• If in stock in Australia we can have it in about a week or less
• If it's not in stock in Australia, unfortunately the ETA can be quite long, as RAM Mounts in the USA have a manufacturing lead time of 6-8 weeks. But if you'd like to contact us we can find out a more accurate ETA for you
